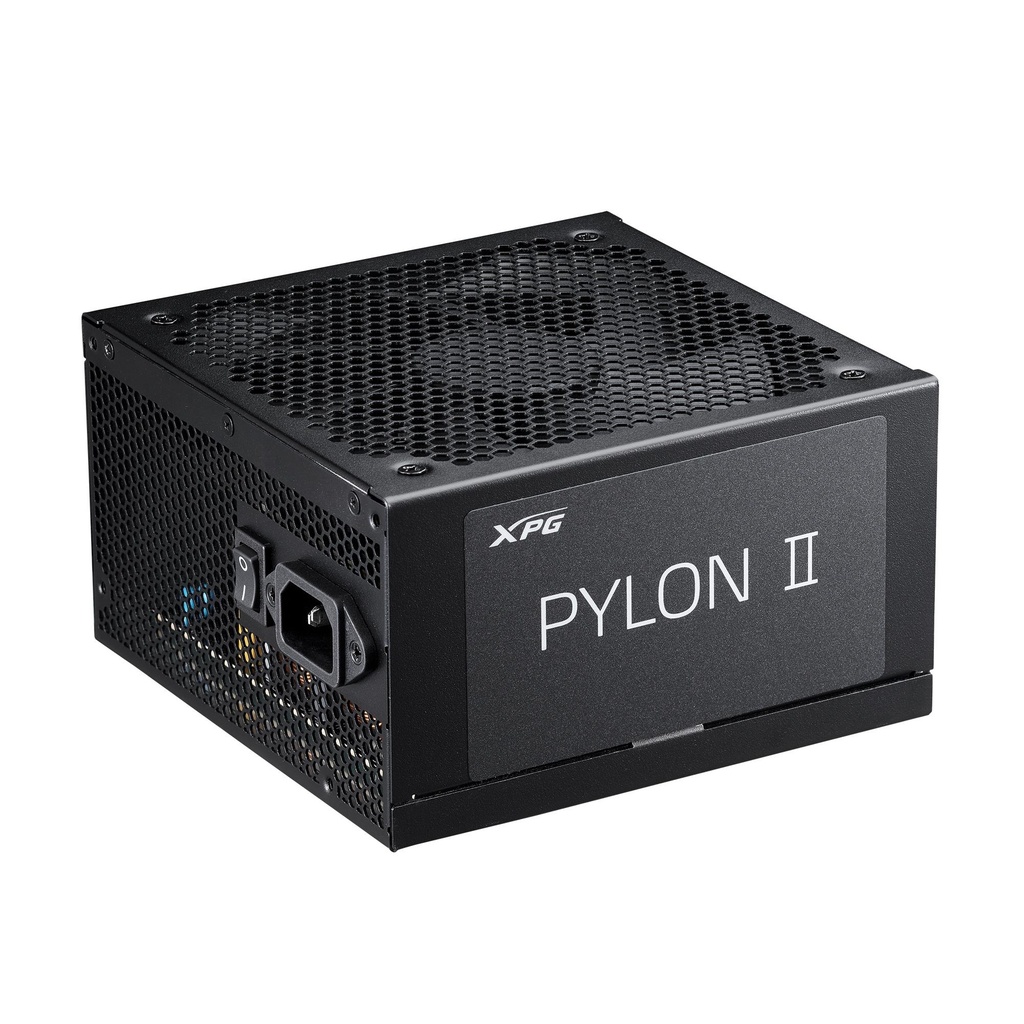

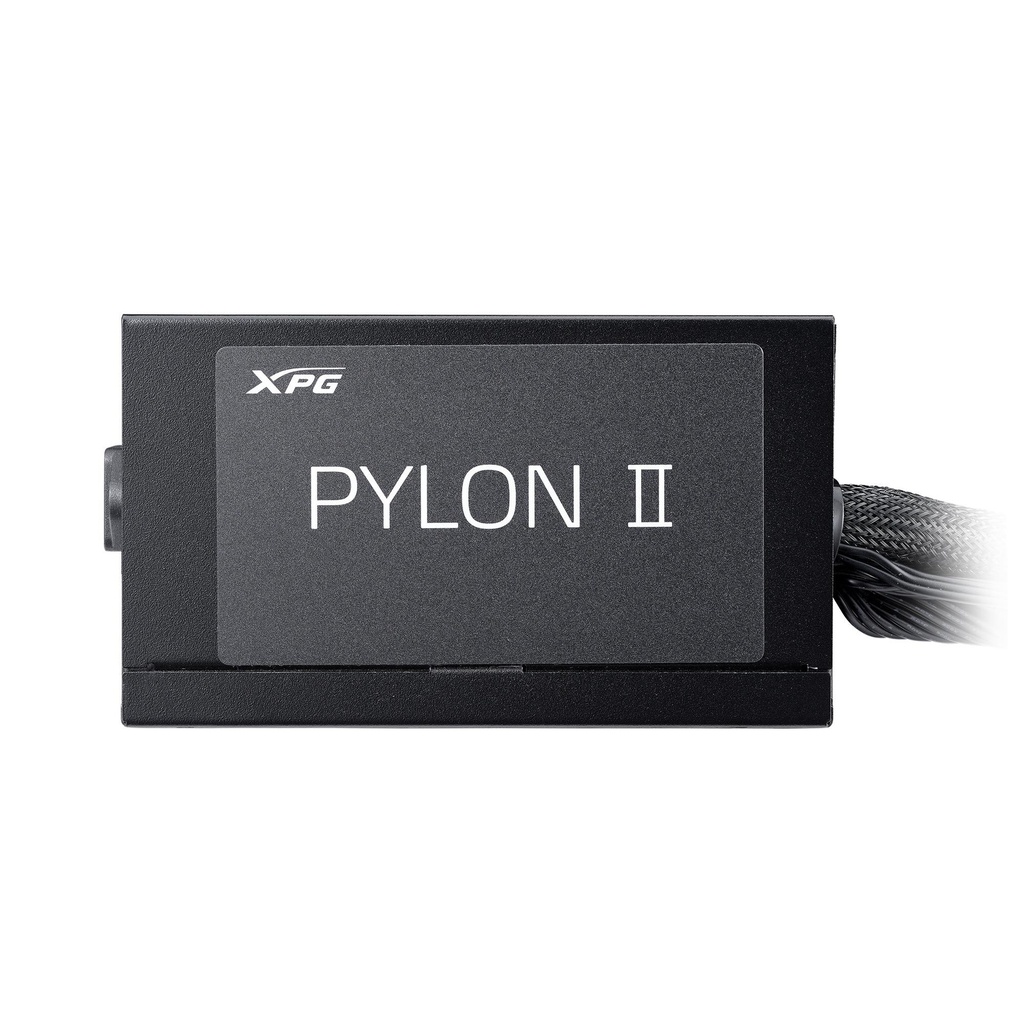

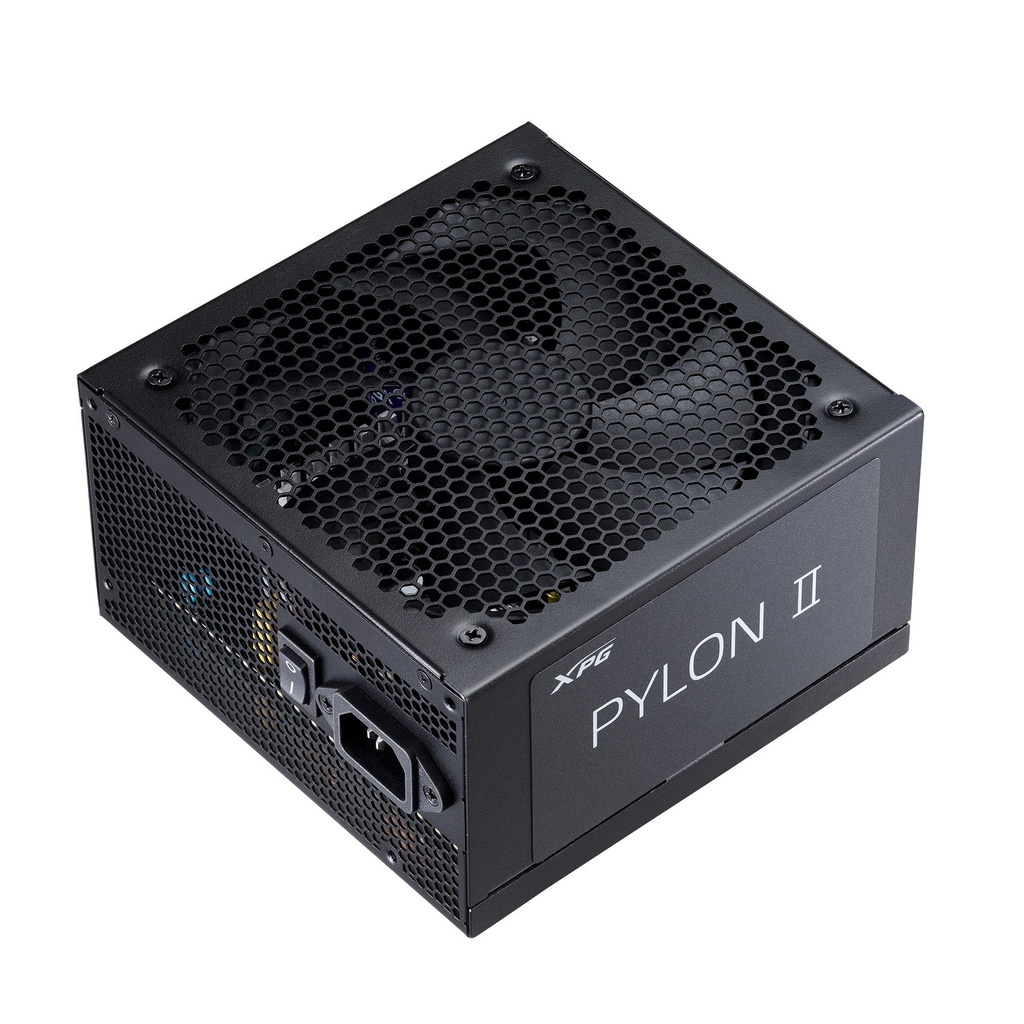

PYLON II
UNLEASH THE SURGE
The PYLON II Bronze PSU delivers 80 PLUS Bronze efficiency, cutting energy costs without sacrificing performance. Designed to meet Intel ATX 3.1 standards, it offers a future-ready solution for high-demand components. Equipped with a quiet and durable FDB fan, it ensures efficient cooling for a stable and noise-free experience. Backed by 8 industrial-grade protections and a 5-year warranty, the PYLON II guarantees long-term reliability and peace of mind for your build.
Intel ATX 3.1 Compliant, Future-Ready Design
Designed with the latest Intel ATX 3.1 standards, the PYLON II is equipped with 12V-2x6 connector*, ensuring compatibility with high-performance components. It’s engineered to meet the evolving needs of modern systems.

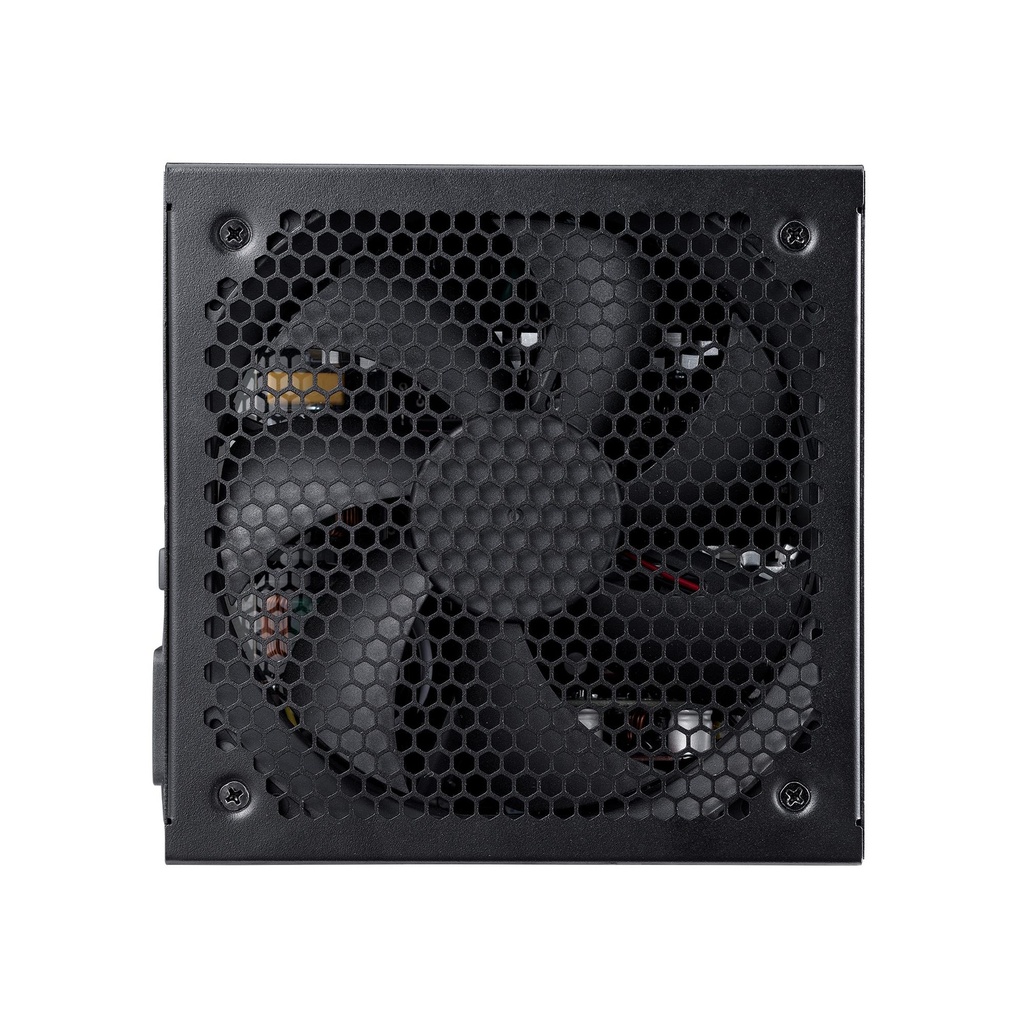

Quiet, Efficient Cooling with FDB Fan
Equipped with a 135mm FDB fan, the PYLON II ensures quiet operation and long-lasting durability. It keeps your system cool even under demanding workloads, delivering optimal cooling without compromising on noise levels.
Comprehensive Protection for Peace of Mind
With 8 industrial-grade protections, the PYLON II shields your system from power surges, short circuits, and other potential risks. This protection, combined with a 5-year warranty, offers long-term peace of mind.
General
| Unit Calculated Weight | 2.67 kg |
| Unit Calculated Volume | 0.009092 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Model name | XPG PYLON II |
| Summary | XPG PYLON II 650w BROZNZE Power Supply. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm |
| Unit Box Height | 0.205 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.12 |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | No load operation/Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage |
| Total power | 650 W |
Ports & interfaces
| EPS power connector (8-pin) | Yes |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
Performance
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
Design
| Cooling type | Active |
| Fan diameter | 135 mm |
| Fan speed | 0 - 2300 RPM |
| Number of fans | 1 fan(s) |

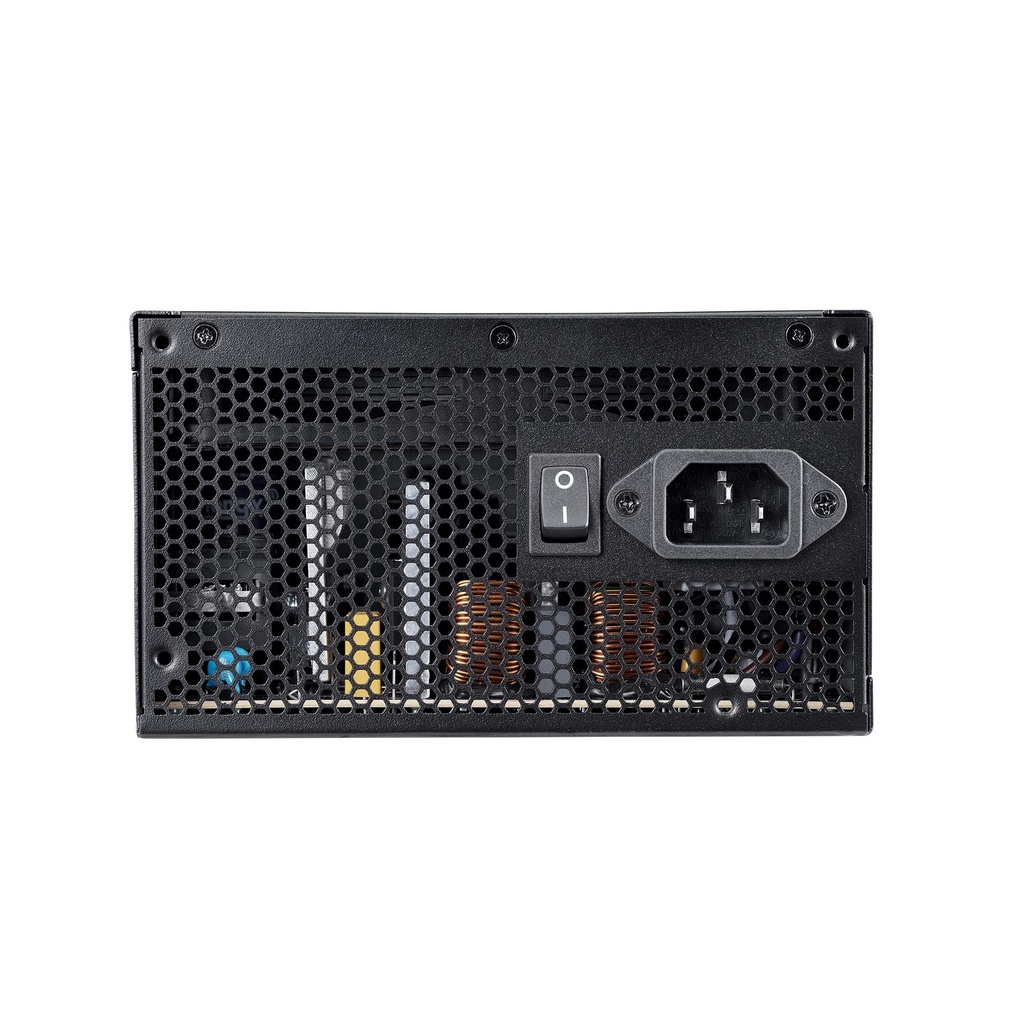

| On/off switch | Yes |
| Product colour | Black |
Weight & dimensions
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1800 g |
| Width | 150 mm |
