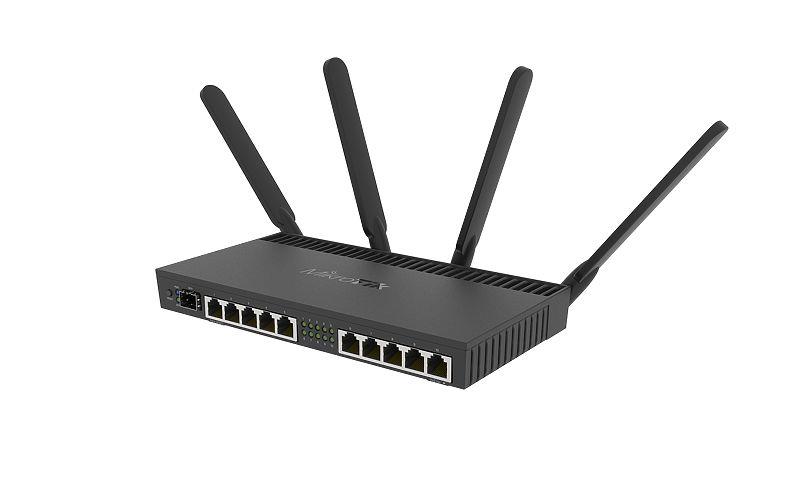

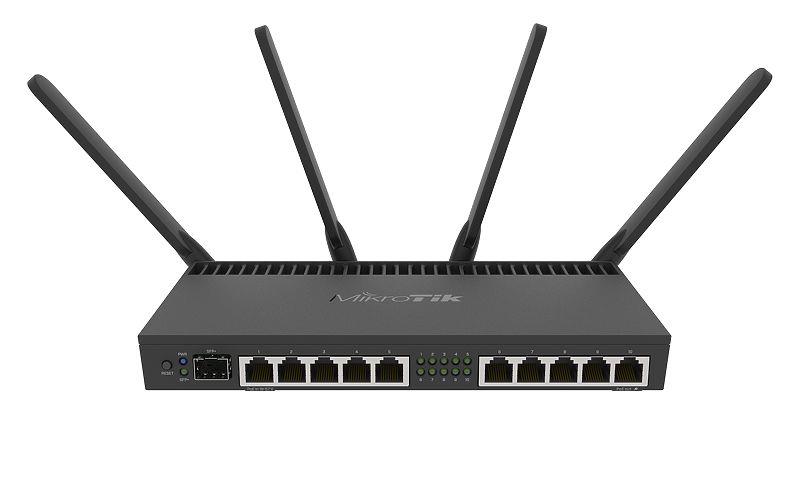

RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
We have two versions available.
RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU
- 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4
- MIMO 802.11a/b/g/n/ac wireless and desktop case
General
| Unit Calculated Weight | 1.45 kg |
| Unit Calculated Volume | 0.006479 cubm |
| Units per Shipping Box | 10 |
| Units per Pallet | 0 |
| Summary | Mikrotik RB4011iGS+5HacQ2HnD-IN. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1733 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Product type: Tabletop router, Product colour: Black. Antenna design: External. Processor model: Annapurna Labs Alpine AL21400, Processor frequency: 1400 MHz |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.27 |
| Model name | RB4011iGS+5HacQ2HnD-IN |
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11ad/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1733 Mbit/s |
Network
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
Ports & interfaces
| DC-in jack | Yes |
Design
| Product colour | Black |
| Product type | Tabletop router |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1400 MHz |
| Processor model | Annapurna Labs Alpine AL21400 |
Power
| Output current | 0.6 A |
| Output voltage | 57 V |
| Power consumption (typical) | 26 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC |
Weight & dimensions
| Depth | 120 mm |
| Height | 30 mm |
| Width | 228 mm |
