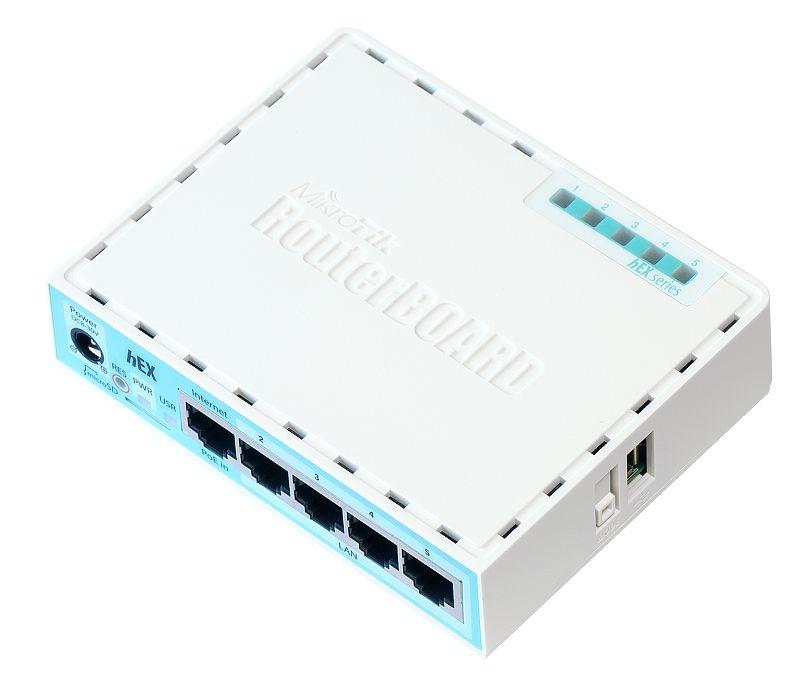

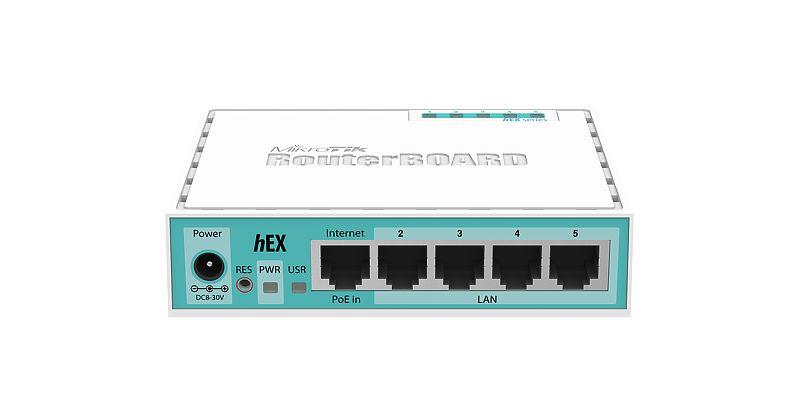

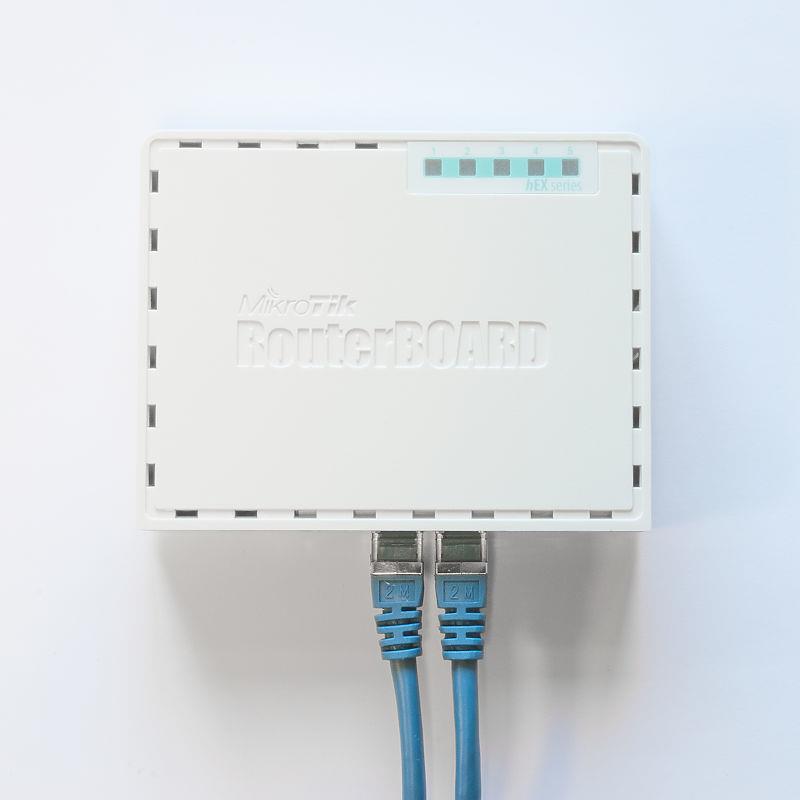

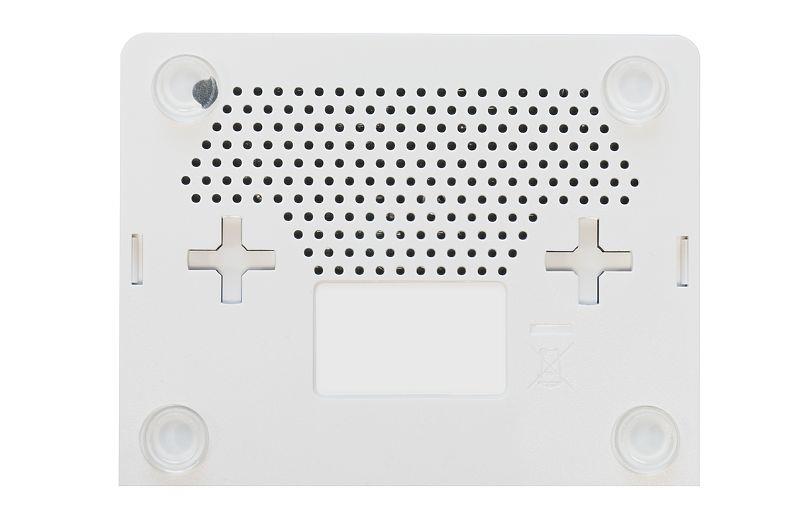

hEX is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a full size USB port. This new updated revision of the hEX brings several improvements in performance.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880MHz CPU and 256MB RAM, capable of all the advanced configurations that RouterOS supports.
IPsec Hardware encryption (~470Mbps) and dude server package is supported, microSD slot on it also provides improved r/w speed for database storage on microSD card.
General
| Unit Calculated Weight | 0.334 kg |
| Unit Calculated Volume | 0.001067 cubm |
| Units per Shipping Box | 60 |
| Summary | Mikrotik RB750GR3. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Processor architecture: MIPS64, Processor frequency: 880 MHz, Internal storage capacity: 0.16 GB. Product colour: Turquoise, White, LED indicators: Power. Power source type: DC, Input current: 8 - 30 A. Width: 113 mm, Depth: 89 mm, Height: 28 mm |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.016 |
WAN connection
| Ethernet WAN | Yes |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
| USB charging port | Yes |
| USB ports quantity | 1 |
Features
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Internal storage capacity | 0.16 GB |
| Processor architecture | MIPS64 |
| Processor cores | 4 |
| Processor frequency | 880 MHz |
Design
| LED indicators | Power |
| Product colour | Turquoise/White |
Power
| Input current | 8 - 30 A |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Depth | 89 mm |
| Height | 28 mm |
| Width | 113 mm |
Logistics data
| Harmonized System (HS) code | 85176990 |
