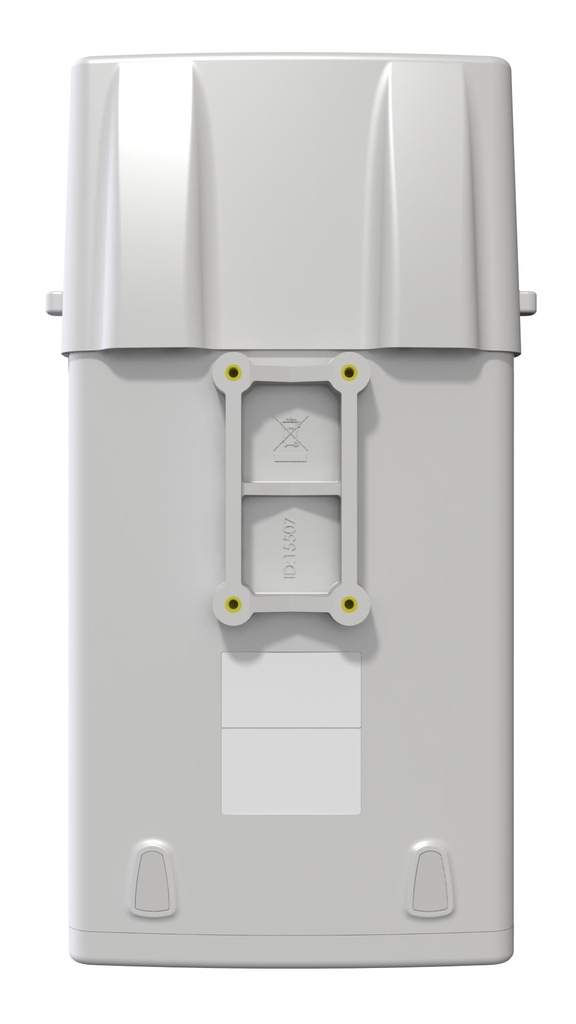

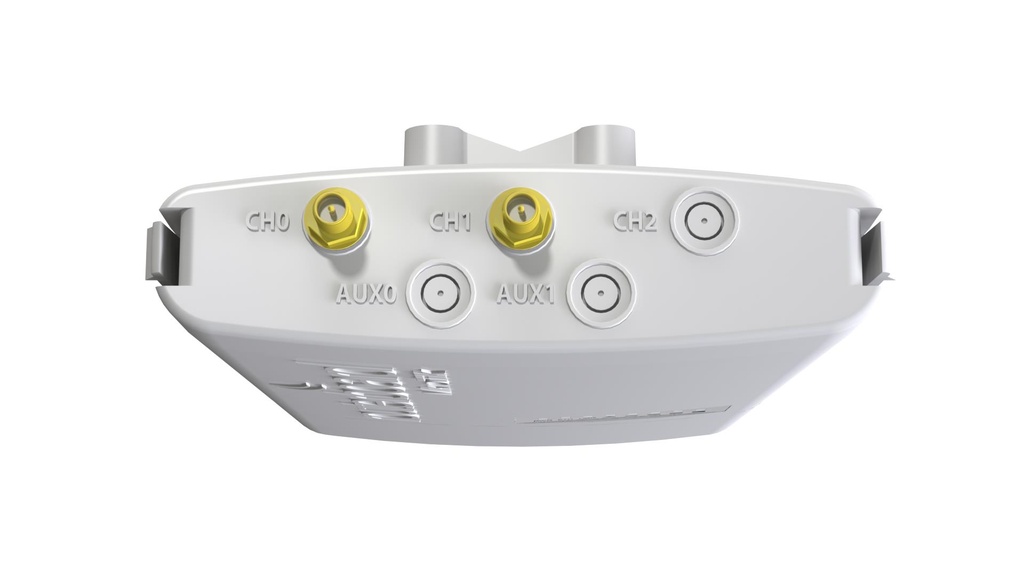

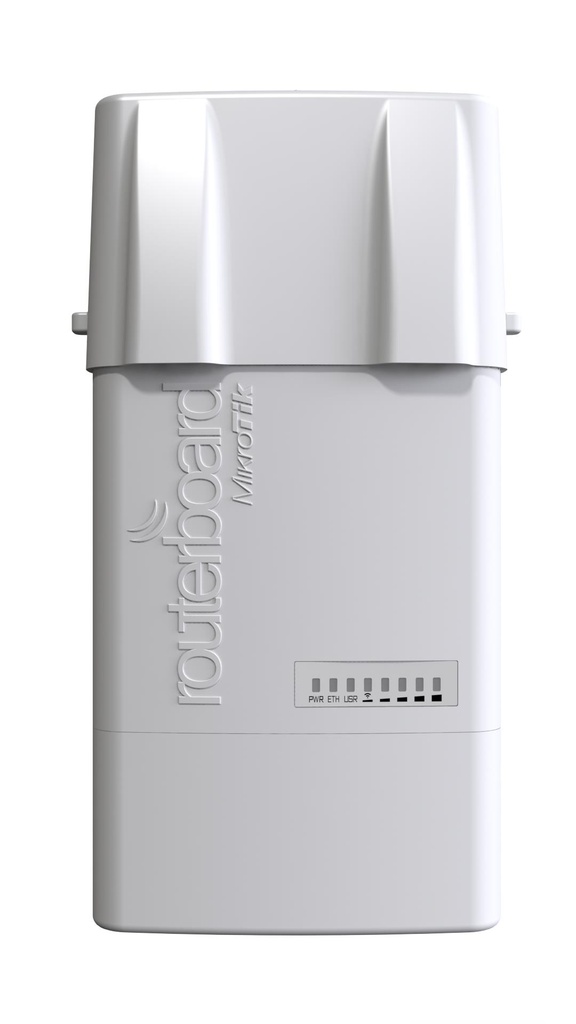

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
General
| Summary | Mikrotik BaseBox 5. 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Grey. Power consumption (max): 14 W |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.065 |
| Name | WRL BASE STATION BASEBOX5/RB912UAG-5HPND-OUT MIKROTIK |
| Model name | BaseBox 5 // RB912UAG-5HPND-OUT |
Features
| Networking standards | IEEE 802.11a/IEEE 802.11n |
| Frequency band | 4.9 - 5.9 GHz |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| 5 GHz | Yes |
Ports & interfaces
| WAN connection | Ethernet (RJ-45)/Wi-Fi |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (max) | 14 W |
| Output voltage | 30 V |
| Power over Ethernet (PoE) | Yes |
Design
| LED indicators | Yes |
| Product colour | Grey |
Antenna
| Antenna connector type | RP-SMA |
Performance
| Compatible operating systems | RouterOS |
| Internal memory | 64 MB |
| Processor model | Qualcomm Atheros AR9342 |
| Built-in processor | Yes |
Weight & dimensions
| Weight | 390 g |
| Height | 50 mm |
| Depth | 135 mm |
| Width | 246 mm |
Packaging content
| Mounting kit | Yes |
Other features
| Connector(s) | 2 x RP-SMA |
Operational conditions
| Operating temperature (T-T) | -30 - 60 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
ELKO Logistics Data
| Unit Height | 14 cm |
| Unit Depth | 34.5 cm |
| Unit Width | 6.5 cm |
| Units per Shipping Box | 1 |
| Product Net Weight | 0.39 kg |
| Unit Calculated Weight | 0.73 kg |
ELKO Internal Logistics Data
| Shipping Box Width | 6.5 cm |
| Shipping Box Depth | 34.5 cm |
| Shipping Box Height | 14 cm |
| Shipping Box Weight | 0.73 kg |
| Unit Calculated Volume | 0.003139 cubm |
