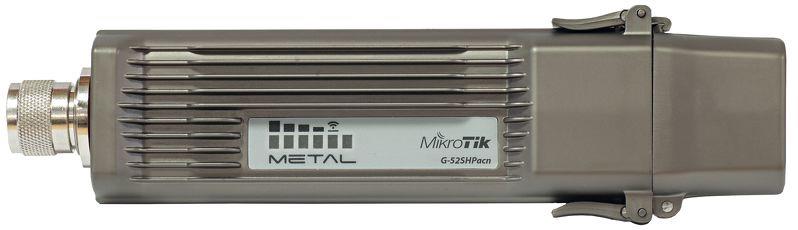

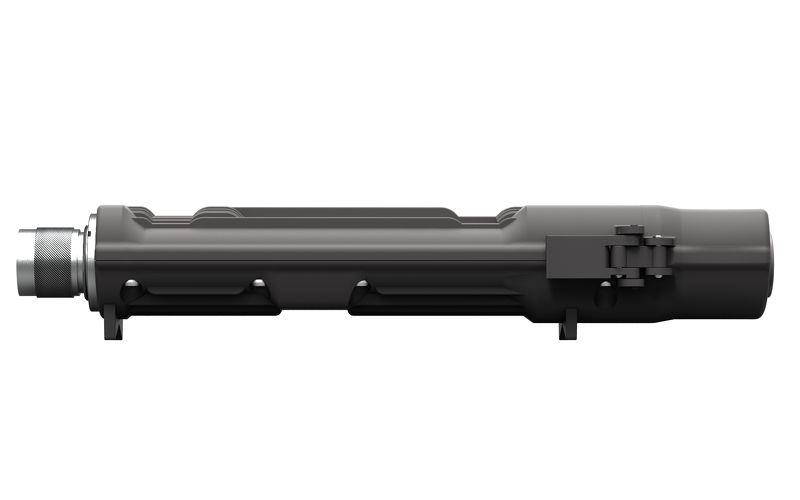

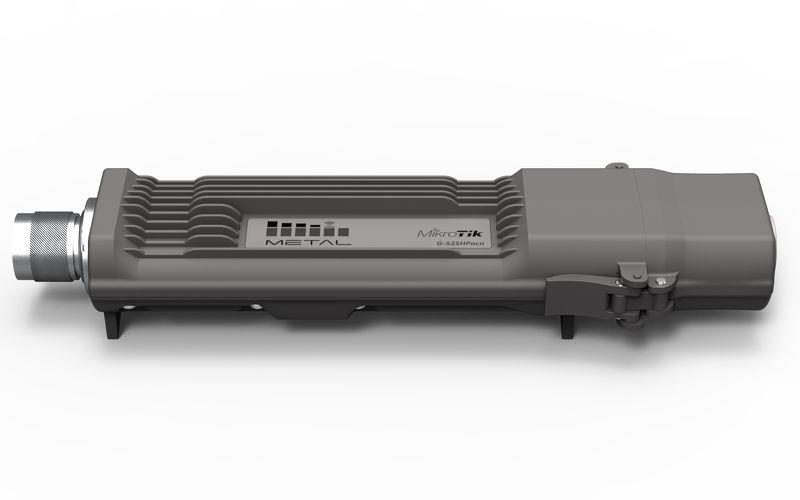

Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4GHz, 5GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4GHz and 802.11 a/n/ac for 5GHz).
General
| Summary | Mikrotik Metal 52 ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 54 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Metallic. Power consumption (max): 11 W |
| CnCode | 85176200 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.105 |
| Model name | Metal 52 ac // RBMetalG-52SHPacn |
| Model | RBMETALG-52SHPACN |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Frequency band | 2.412 - 2.484, 5.150 - 5.875 GHz |
| Maximum data transfer rate | 54 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Receiver sensitivity | 5GHz: -72, -93, -77, -91, -97 2.4GHz: -93, -78, -74, -69 |
| Transmitting power | 31 dBmW |
| Wi-Fi data rate (max) | 54 Mbit/s |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| AC input voltage | 10 - 30 V |
| Output current | 0.8 A |
| Output voltage | 24 V |
| Power consumption (max) | 11 W |
| Power over Ethernet (PoE) | Yes |
Design
| Internal | No |
| Placement | Pole |
| Product colour | Metallic |

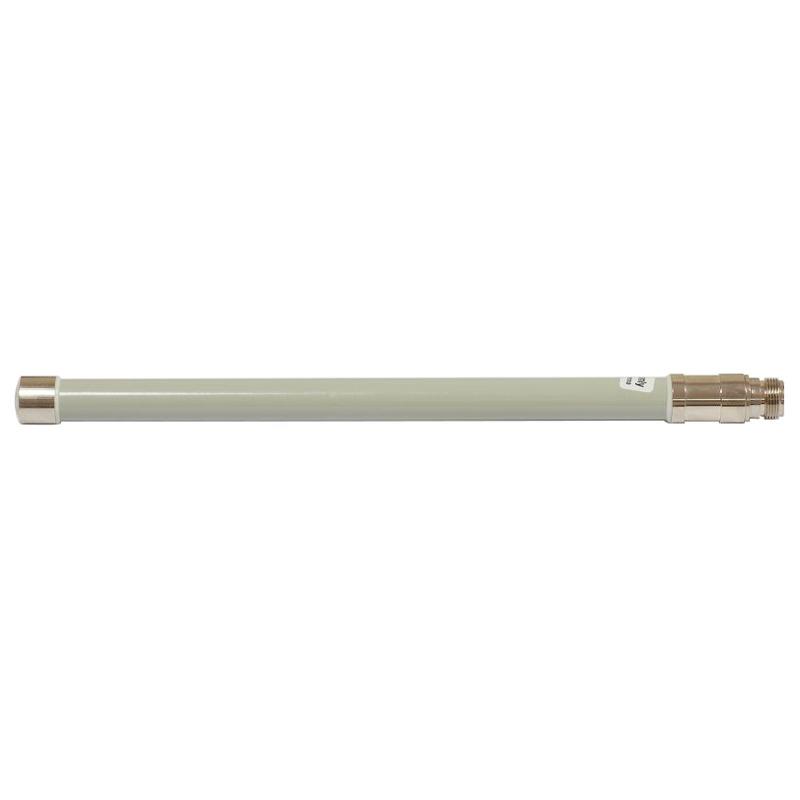

Antenna

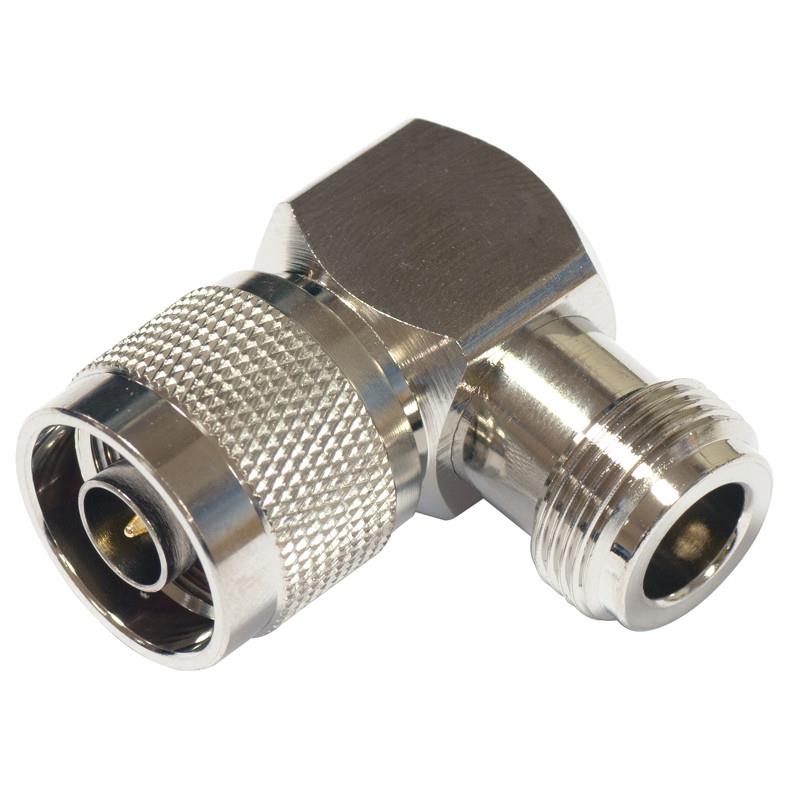

| Antenna connector type | N-type |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antenna gain level (max) | 8 dBi |
| Antennas quantity | 1 |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| High power | Yes |
| Internal memory | 64 MB |
| Operating system installed | RouterOS |
Weight & dimensions
| Depth | 38 mm |
| Height | 215 mm |
| Weight | 300 g |
| Width | 60 mm |
Packaging data
| Package weight | 778 g |
Packaging content

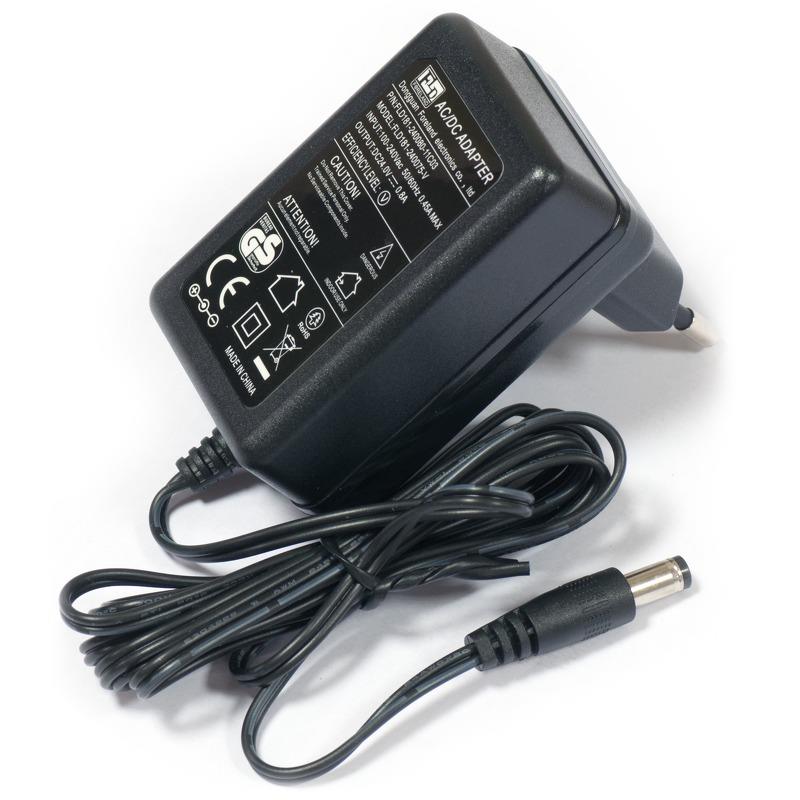

| AC adapter included | Yes |
| Mounting kit | Yes |

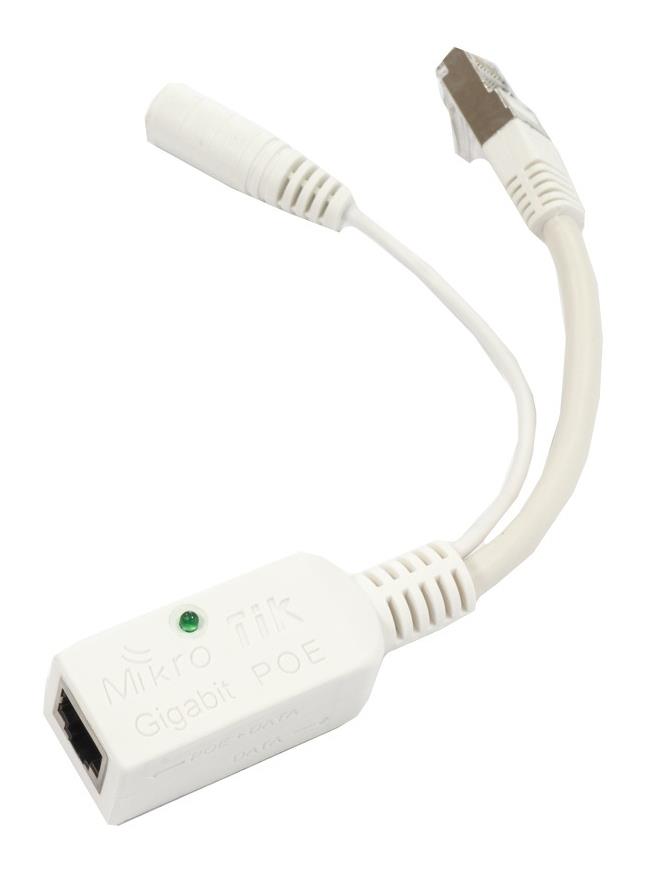

| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating temperature (T-T) | -40 - 70 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
ELKO Logistics Data
| Product Net Weight | 0.3 kg |
| Unit Calculated Weight | 0.76 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
ELKO Internal Logistics Data
| Shipping Box Depth | 55 cm |
| Shipping Box Height | 33.5 cm |
| Shipping Box Weight | 15.1999998092651 kg |
| Shipping Box Width | 25.5 cm |
| Unit Calculated Volume | 0.002349 cubm |
