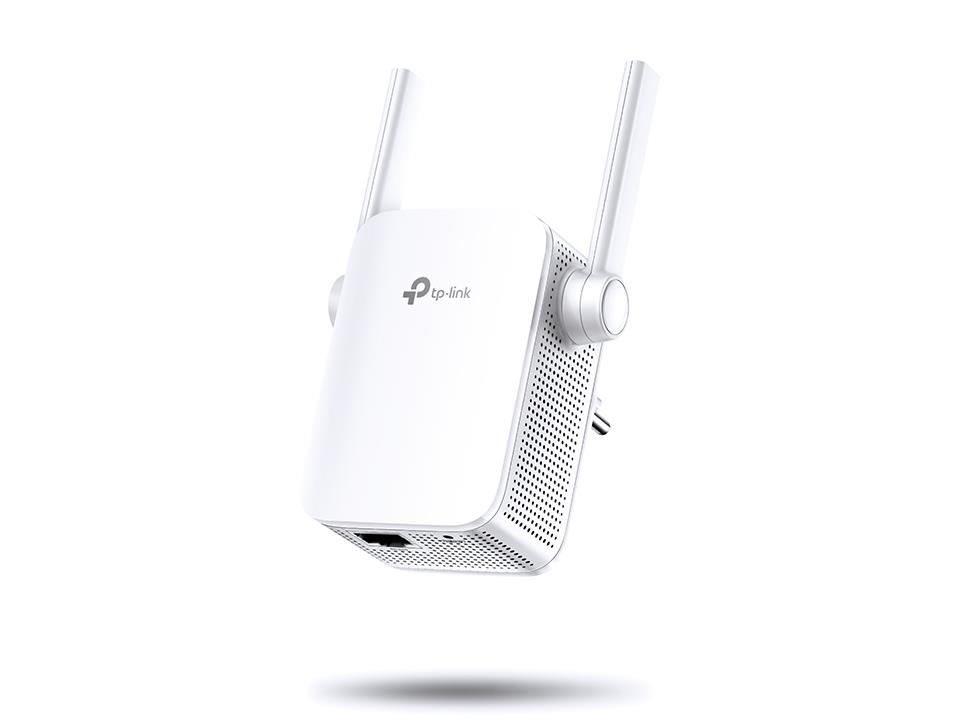

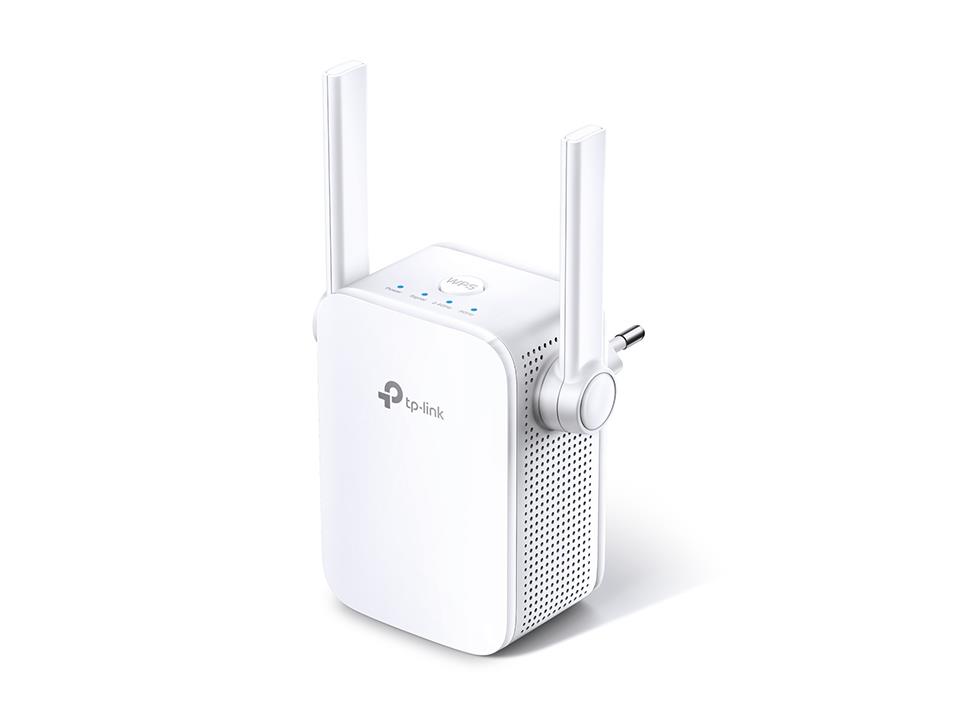

TP-Link AC1200 Mesh Wi-Fi Range Extender designed to enhance and extend the coverage of your existing Wi-Fi network. Operates over both the 2.4GHz band and 5GHz band for more stable wireless experience. Creates a Mesh network by connecting to a TP-Link OneMesh router for seamless whole-home coverage. Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength. Works with any Wi-Fi router or wireless access point. EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.
- Designed to enhance and extend the coverage of your existing Wi-Fi network
- Operates over both the 2.4GHz band and 5GHz band for more stable wireless experience
- Creates a mesh network by connecting to a TP-Link One Mesh router for seamless whole-home coverage
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
General
| Unit Calculated Weight | 0.285 kg |
| Unit Calculated Volume | 0.001836 cubm |
| Units per Shipping Box | 20 |
| Units per Pallet | 0 |
| Summary | TP-Link AC1200 Mesh Wi-Fi Range Extender, White. Type: Network repeater, Data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Antenna type: Internal, Transmitting power (CE): 17 dBm. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Product colour: White, Quantity per pack: 1 pc(s), Country of origin: China. AC input voltage: 220 - 240 V, AC input frequency: 60 Hz, Power consumption (max): 7.3 W |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.1 |
| Model name | AC1200 Mesh Wi-Fi Range Extender, White |
Performance
| Data transfer rate | 867 Mbit/s |
| Ethernet LAN data rates | 10/100 Mbit/s |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Type | Network repeater |
| Windows operating systems supported | Windows 10/Windows 7/Windows 8/Windows 8.1/Windows 98SE/Windows NT/Windows XP |
| WPS push button | Yes |
Antenna
| Antenna type | Internal |
| Antennas quantity | 2 |
| Transmitting power (CE) | 17 dBm |
Network
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.3/IEEE 802.3u |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA2-PSK/WPA-PSK |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac) |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Country of origin | China |
| LED indicators | Yes |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Reset button | Yes |
Power
| AC input frequency | 60 Hz |
| AC input voltage | 220 - 240 V |
| Power consumption (max) | 7.3 W |
| Power plug type | Type I |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 78 mm |
| Height | 77 mm |
| Width | 80 mm |
Packaging content
| Quick start guide | Yes |
Packaging data
| Package depth | 160 mm |
| Package height | 200 mm |
| Package type | Box |
| Package weight | 300 g |
| Package width | 150 mm |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
Logistics data
| Harmonized System (HS) code | 85176990 |
