Expand Coverage of the Fastest Next-Gen Wi-Fi

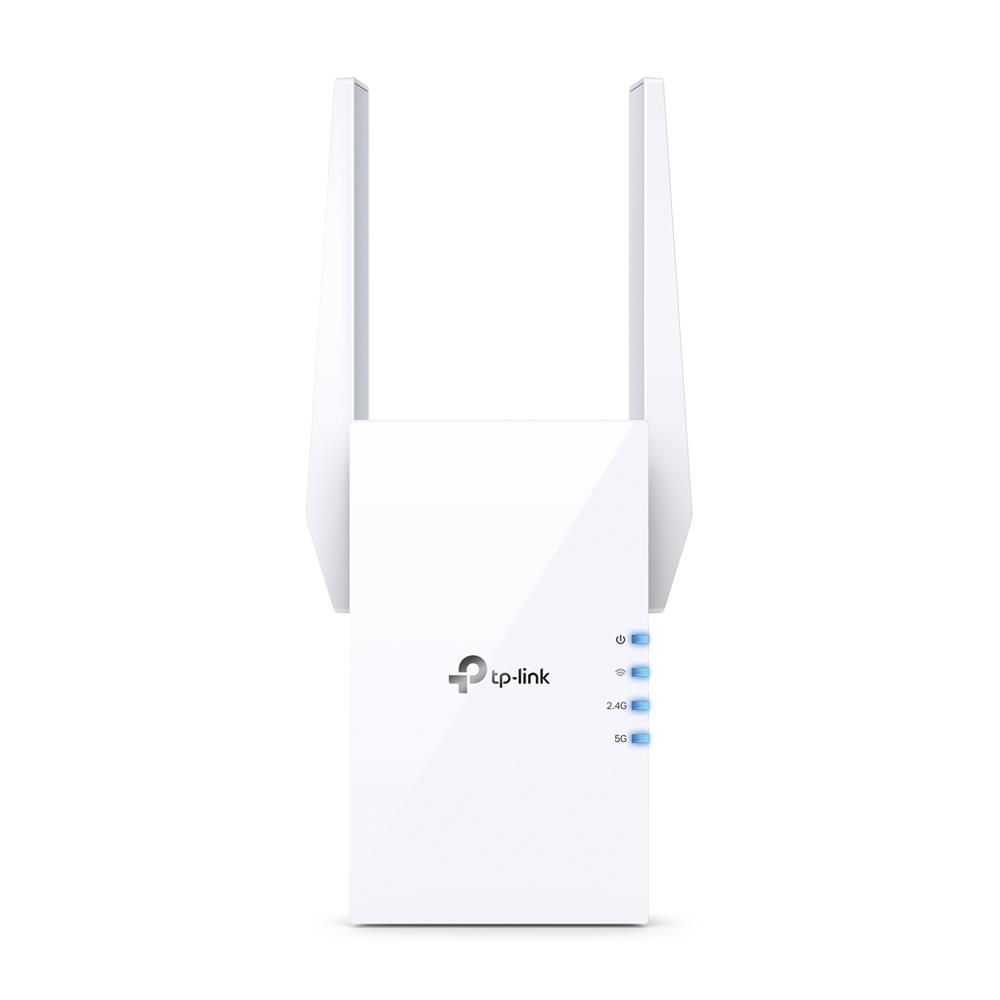

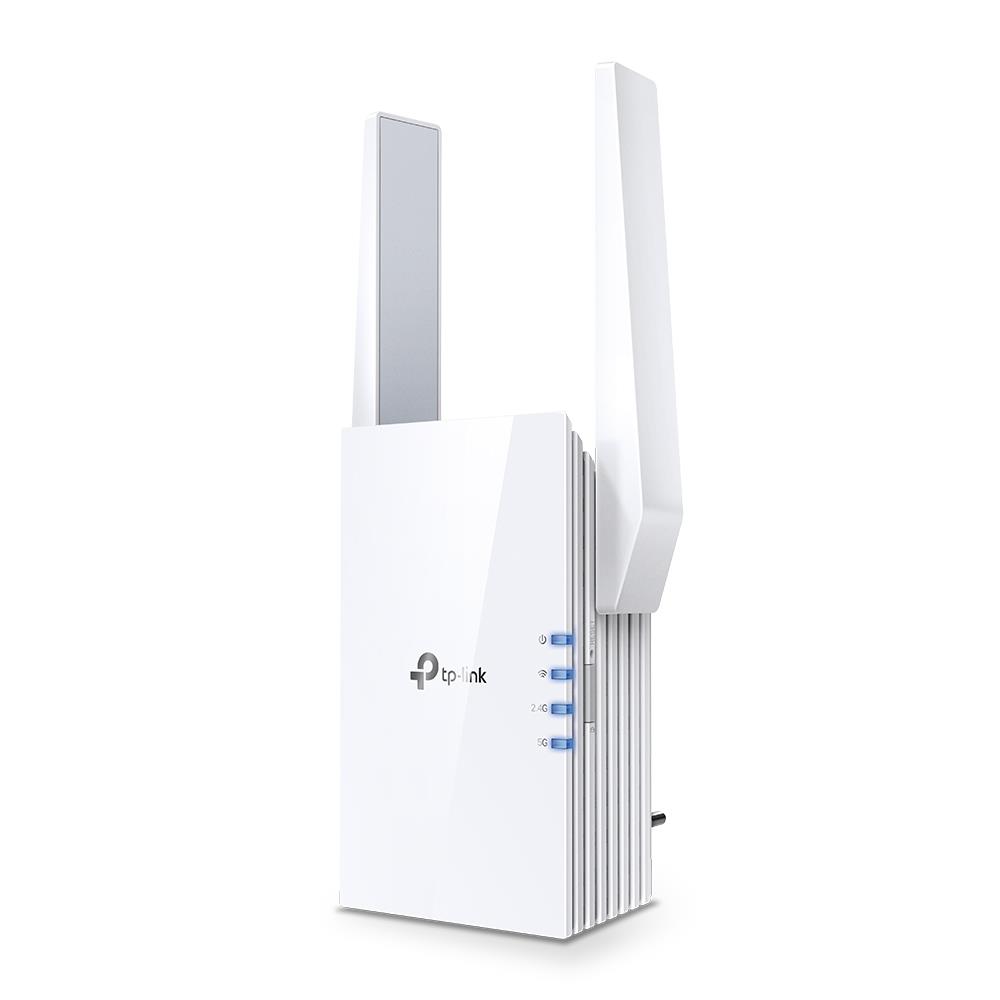

AX1500 Range Extender
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.

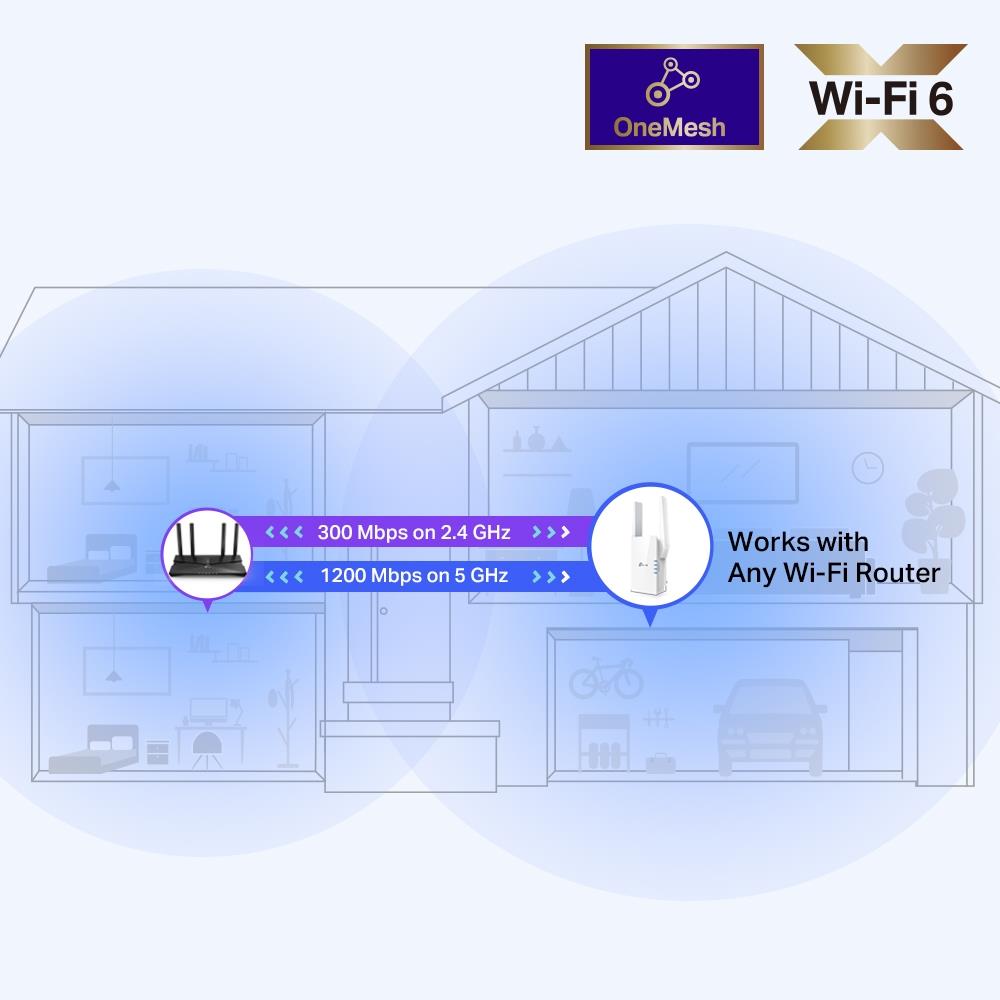

Fill Every Inch of Your Home with Wi-Fi 6
The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.
Dual Band, More Benefits
Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.
Built-In Access Point Mode
RE505X is more than just a wireless range extender.
Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.
TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.
Smart Roaming
Uninterrupted streaming when moving around your home
One Wi-Fi Name
No more switching Wi-Fi network names
Easy Creation
OneMesh Router and OneMesh Range Extenders pair instantly
Unified Management
Manage the entire network all from the TP-Link Tether app
Enjoy an AX Mesh Network with Your Existing Router
Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set? Update your existing TP-Link router’s firmware to the OneMeshTM version—no need to replace anything. Connect the RE505X to the router. Enjoy your Mesh network.

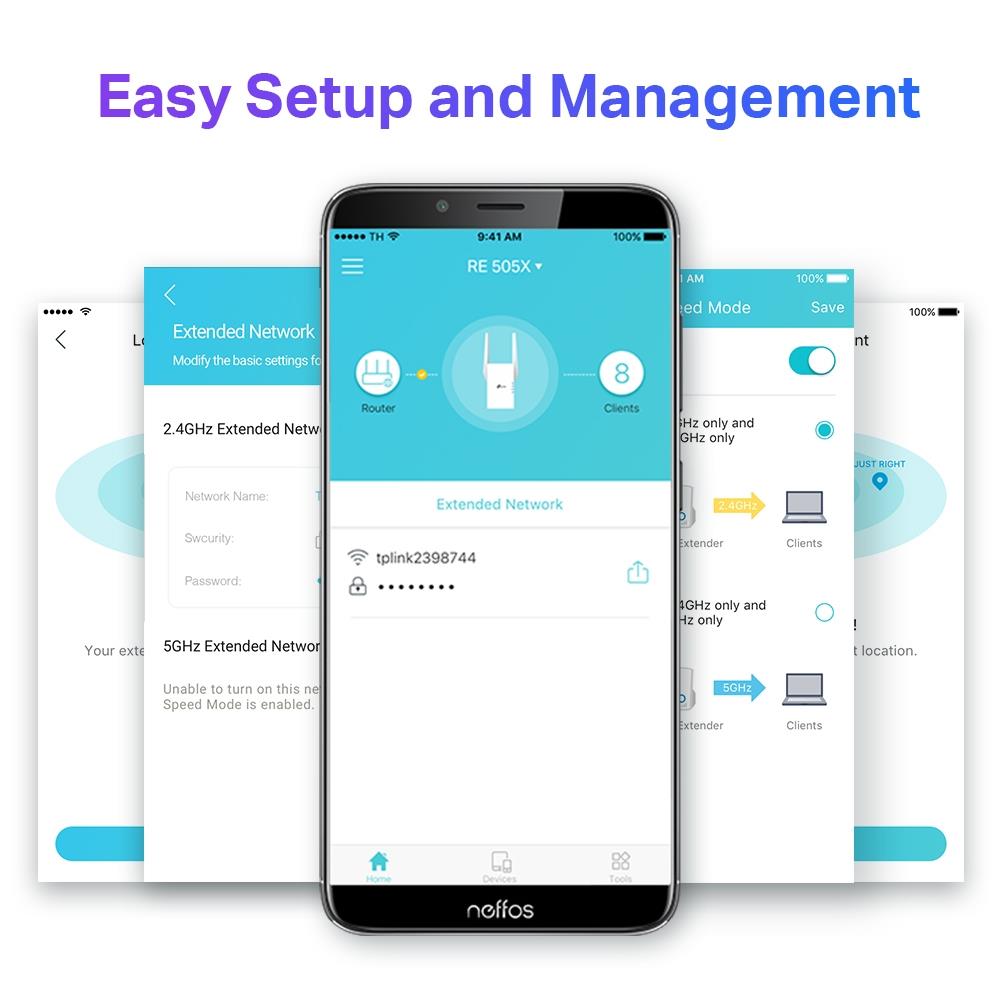

Control at Your Fingertips
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
- RE505X comes equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion
- Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage

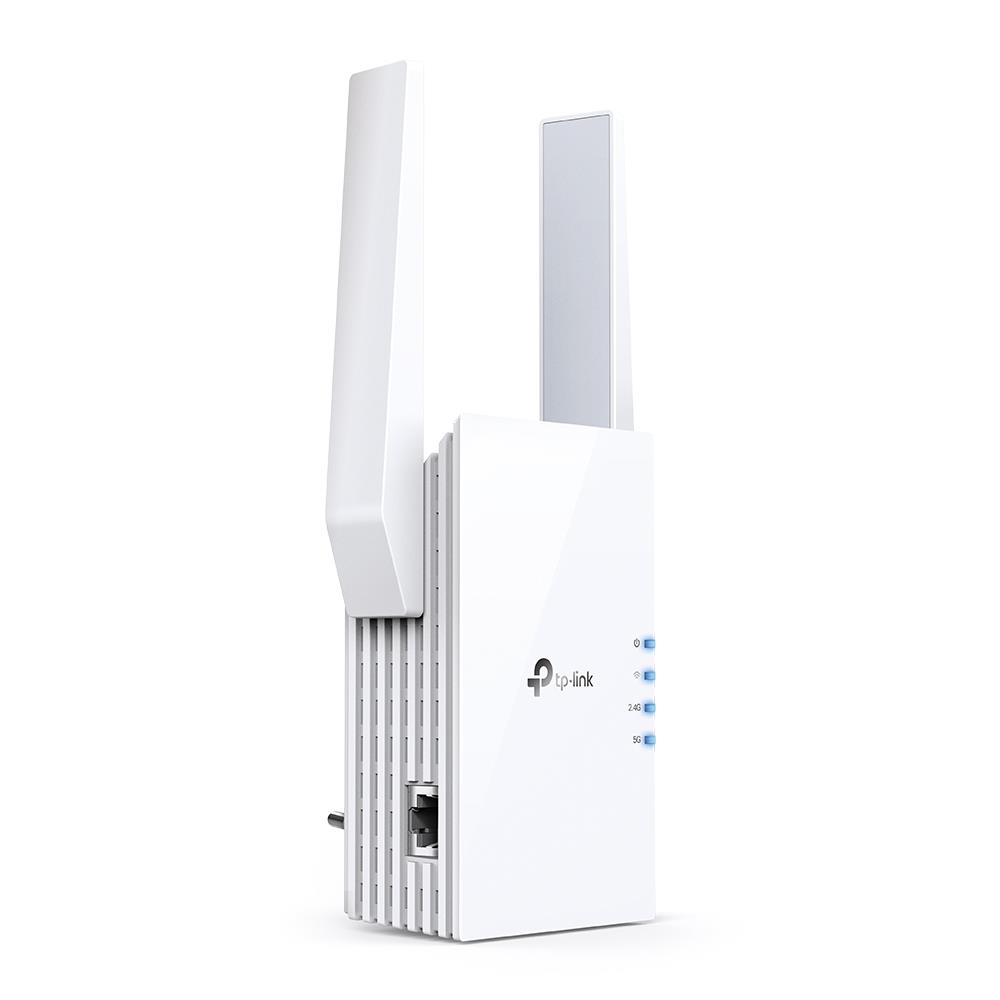

- Gigabit Ethernet Port – Provide faster-wired connections to smart TVs, computers and gaming consoles
- Intelligent Signal Light – Helps to determine the best location for optimal Wi-Fi coverage by indicating the signal strength in the current placement
- AP Mode – create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
- TP-LINK Tether App – Easily access and manage your network using any iOS or Android mobile device
- Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point
General
| Unit Calculated Weight | 0.513 kg |
| Unit Calculated Volume | 0.003048 cubm |
| Units per Shipping Box | 24 |
| Units per Pallet | 0 |
| Summary | TP-Link RE505X. Type: Network transmitter & receiver, Data transfer rate: 1200 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Antenna type: External, Transmitting power (CE): 2.4 GHz ≤20dBm, 5 GHz ≤30dBm. Ethernet LAN interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n. Product colour: White, LED indicators: Power, WAN, WLAN, Quantity per pack: 1 pc(s). AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (max): 10 W |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.125 |
| Model name | RE505X |
Performance
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Data transfer rate | 1200 Mbit/s |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Plug and Play | Yes |
| Type | Network transmitter & receiver |
| Windows operating systems supported | Window/Windows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64/Windows 2000 |
| WPS push button | Yes |
Antenna
| Antenna type | External |
| Antennas quantity | 2 |
| Transmitting power (CE) | 2.4 GHz =20dBm, 5 GHz =30dBm dBm |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Security algorithms | 128-bit WEP/64-bit WEP/WPA/WPA2/WPA2-PSK/WPA-PSK |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) | 1200 Mbit/s |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 300 Mbit/s |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Design
| LED indicators | Power/WAN/WLAN |
| Product colour | White |
| Quantity per pack | 1 pc(s) |
| Reset button | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 10 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 46 mm |
| Height | 124.8 mm |
| Width | 74 mm |
Packaging content
| Quick start guide | Yes |
Packaging data
| Package depth | 125 mm |
| Package height | 97 mm |
| Package type | Box |
| Package weight | 400 g |
| Package width | 202 mm |
Certificates
| Compliance certificates | RoHS |
Logistics data
| Harmonized System (HS) code | 85176990 |
