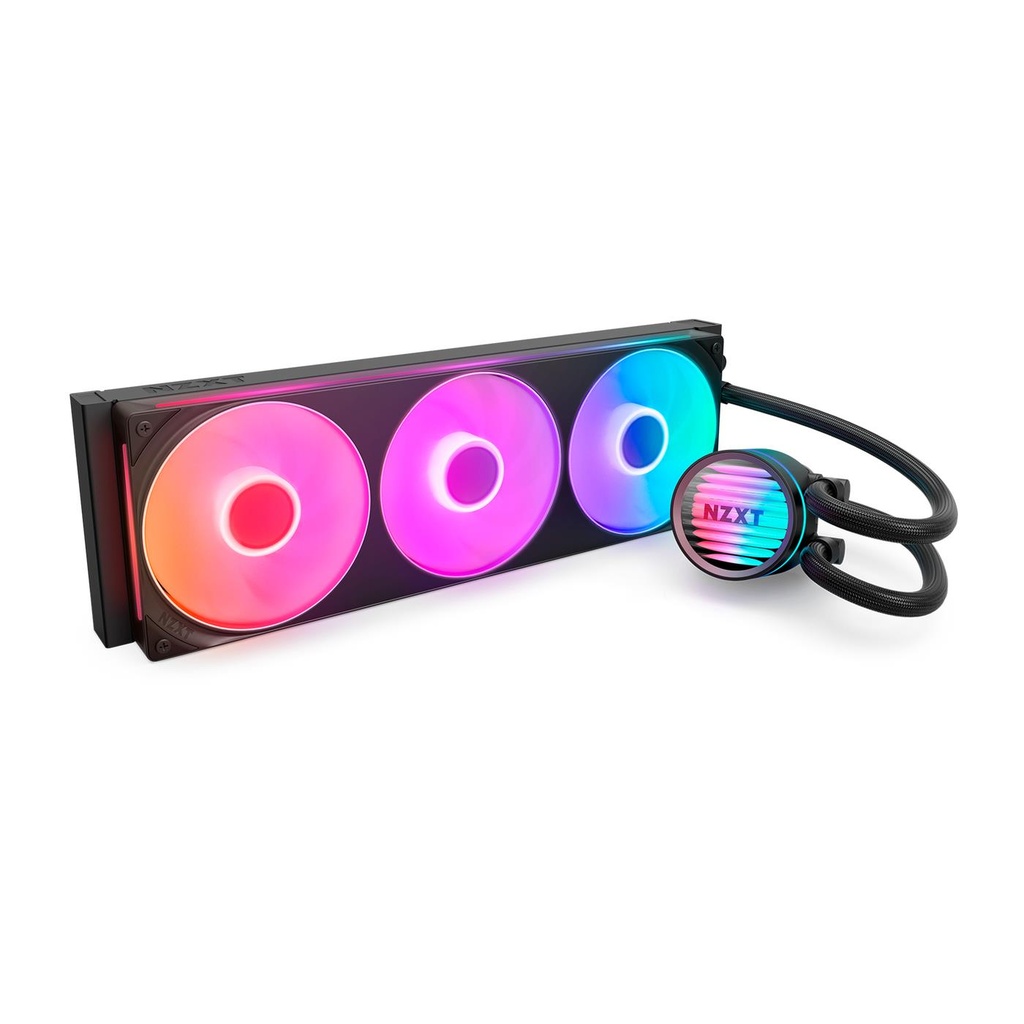

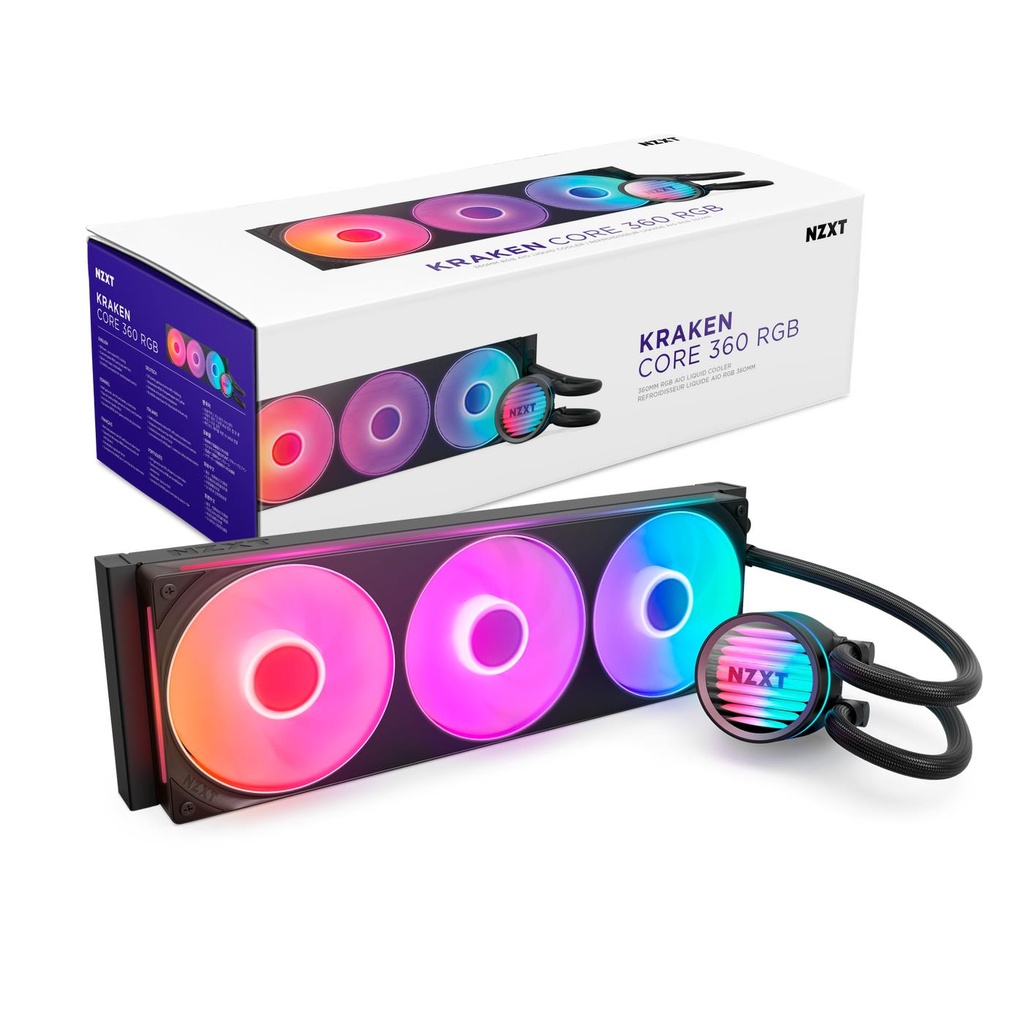

The NZXT Kraken Core AIO delivers powerful, quiet liquid cooling with a high-performance pump, PWM fans, and vibrant RGB lighting. Easy to install and compatible with the latest Intel and AMD sockets, it keeps your CPU cool, your system quiet, and your build looking clean.
Cool and Quiet: A powerful 3,100 RPM pump keeps your CPU cool during heavy gaming and multitasking, while minimizing noise.
Simple Connectivity: Connects directly to your motherboard for easier cable management and a faster build—no extra controllers required.
Optimized Fan Blades: High static pressure fans efficiently push air through radiator fins for stronger cooling with less noise.
Adjustable Fan Controls: PWM-enabled fans allow precise adjustments for efficient performance you can customize to your setup.
Single-Frame Design: Multiple fans in one solid frame reduce screws and cables, making installation easier and your build cleaner.
Easy Installation: Tool-free brackets, pre-applied thermal paste, and flexible tubing make setup fast and frustration-free.
Radiant RGB: Customize lighting on the pump and fans using your motherboard’s 5V ARGB header for simple personalization.
Ready for Intel or AMD: Includes mounting hardware for the latest AMD® and Intel® sockets, including AM5 and LGA 1851.
General
| Unit Calculated Weight | 2.56 kg |
| Unit Calculated Volume | 0.01301 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Summary | NZXT Kraken Core 360 RGB. Type: Liquid cooling kit, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2400 RPM, Airflow: 75.05 m³/h, Minimum air pressure: 3.07 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Depth: 27 mm. Product colour: Black |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.438 |
| Unit Box Width | 0.188 |
| Model name | KRAKEN 360 RGB |
Performance
| Airflow | 75.05 m³/h |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 120 mm |
| Minimum air pressure | 3.07 mmH2O |
| Noise level (high speed) | 31.9 dB |
| Quantity per pack | 1 pc(s) |
| Rotational speed (max) | 2400 RPM |
| Rotational speed (min) | 500 RPM |
| Suitable location | Processor |
| Supported processor sockets | LGA 1150 (Socket H3)/LGA 1151 (Socket H4)/LGA 1155 (Socket H2)/LGA 1156 (Socket H)/LGA 1200 (Socket H5)/LGA 1700/LGA 1851/Socket AM4/Socket AM5 |
| Type | Liquid cooling kit |
Design
| Base plate material | Copper |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Material | Plastic |
| Number of fans | 3 fan(s) |
| Number of LEDs | 19 |
| Product colour | Black |
| Radiator material | Aluminum |
Power
| Maximum current | 1.01 A |
| Voltage | 12 V |
Weight & dimensions
| Depth | 27 mm |
| Pump depth | 70.56 mm |
| Pump height | 64.24 mm |
| Pump width | 70.56 mm |
| Radiator depth | 397 mm |
| Radiator height | 27 mm |
| Radiator width | 120 mm |
| Tube length | 400 mm |
