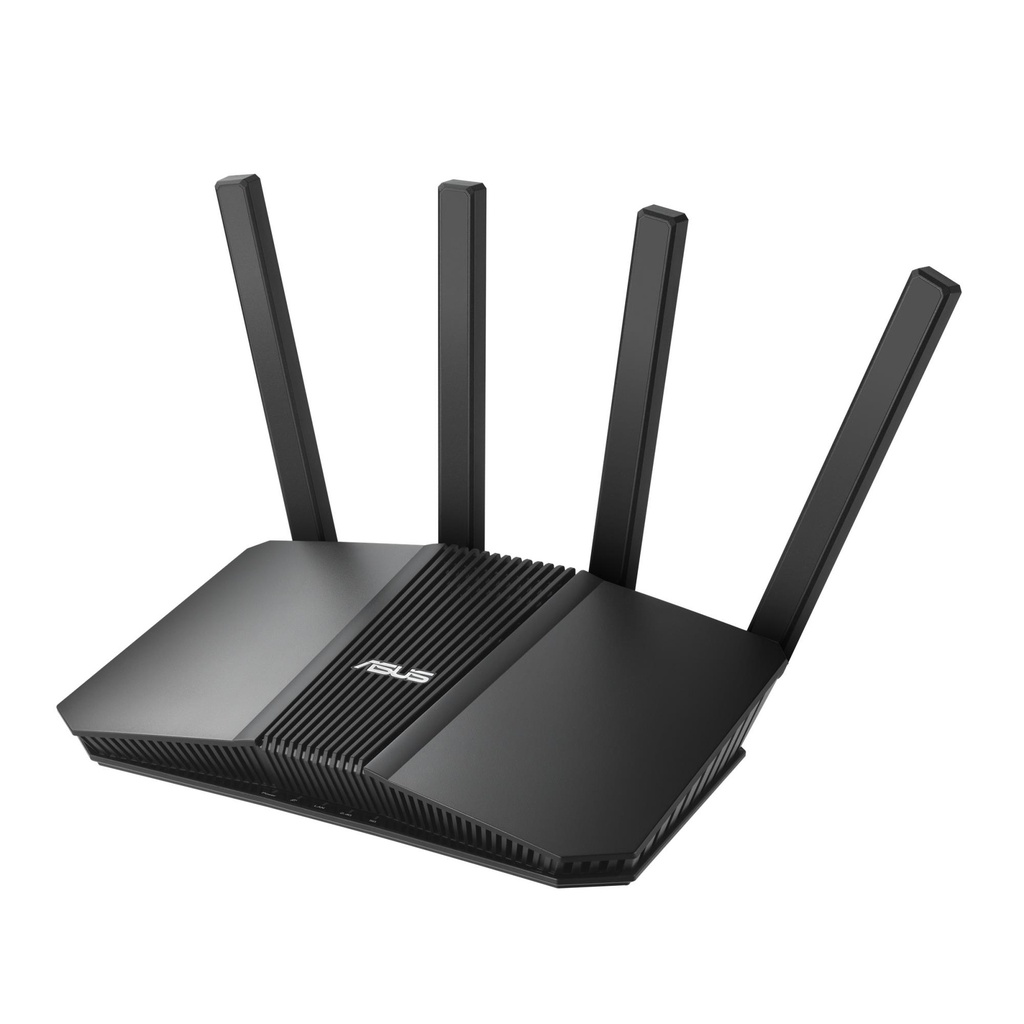

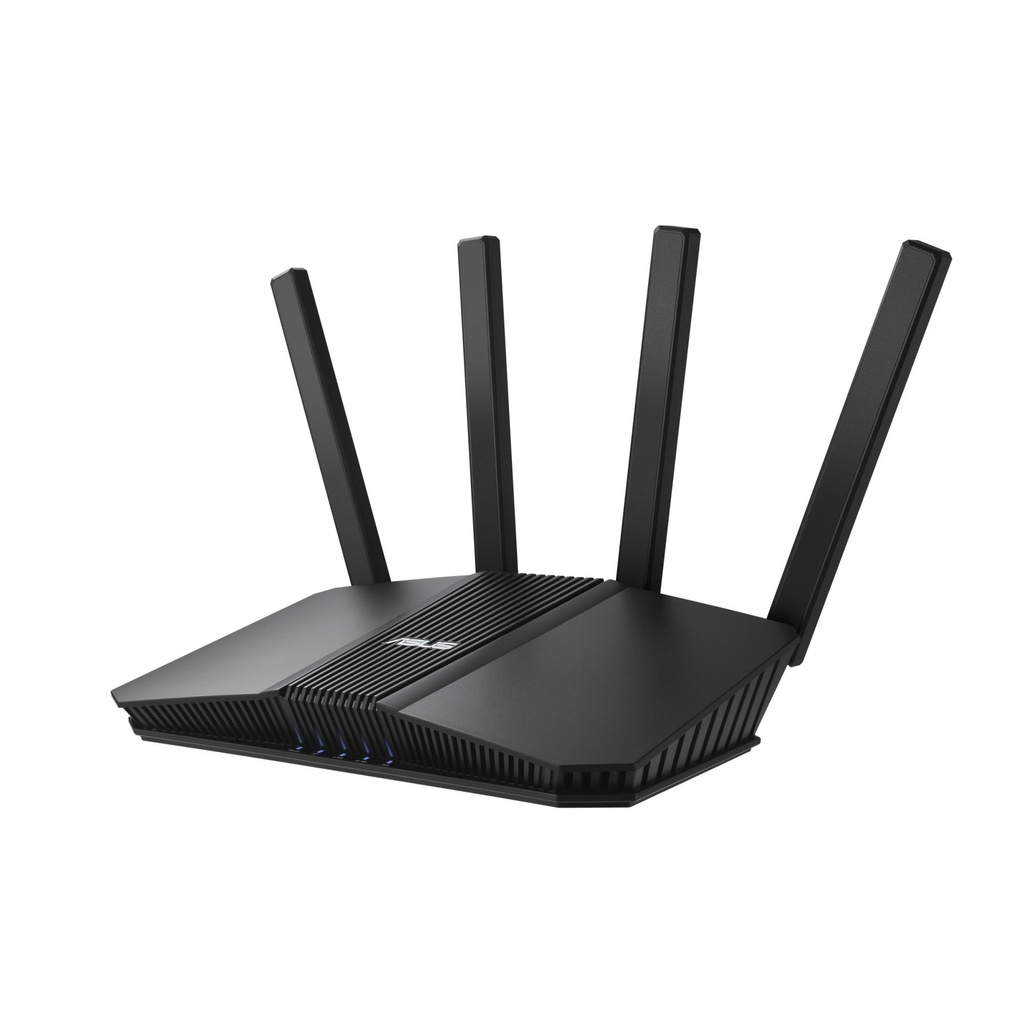

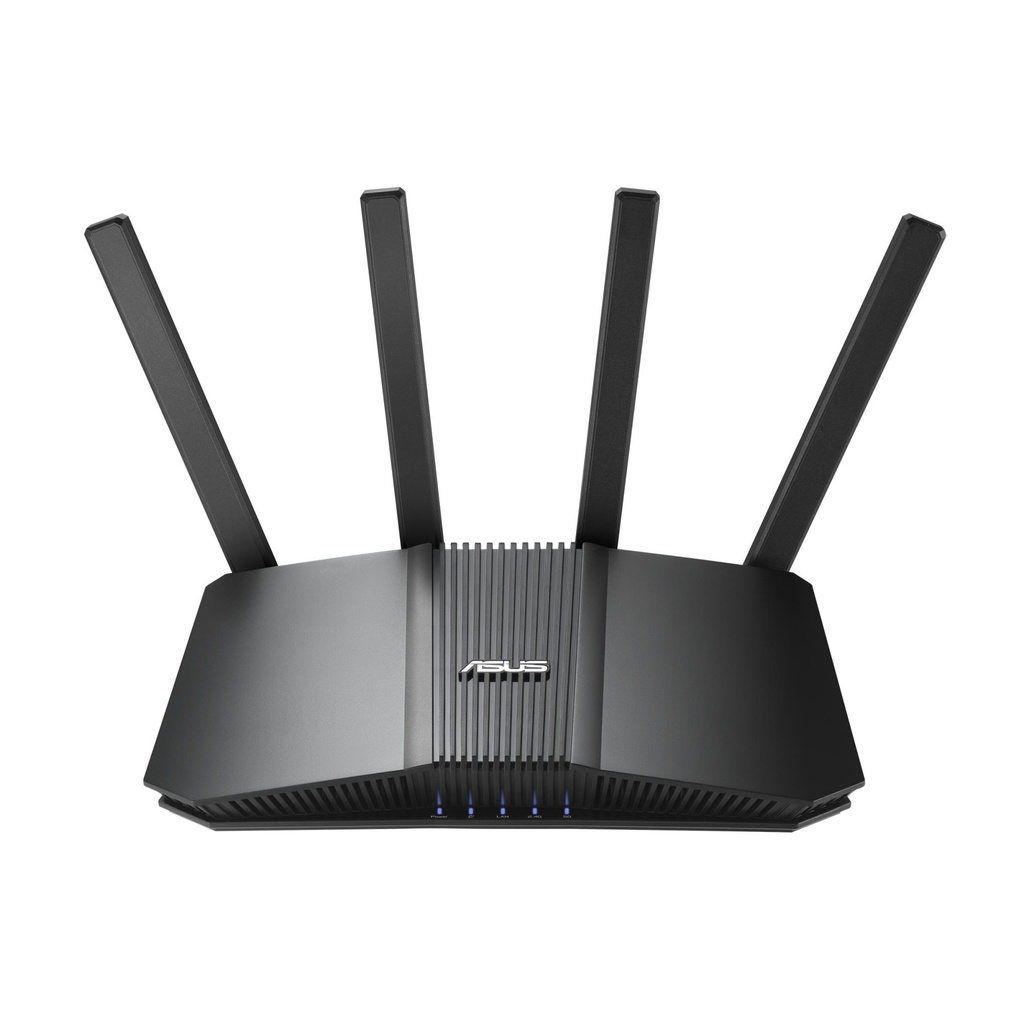

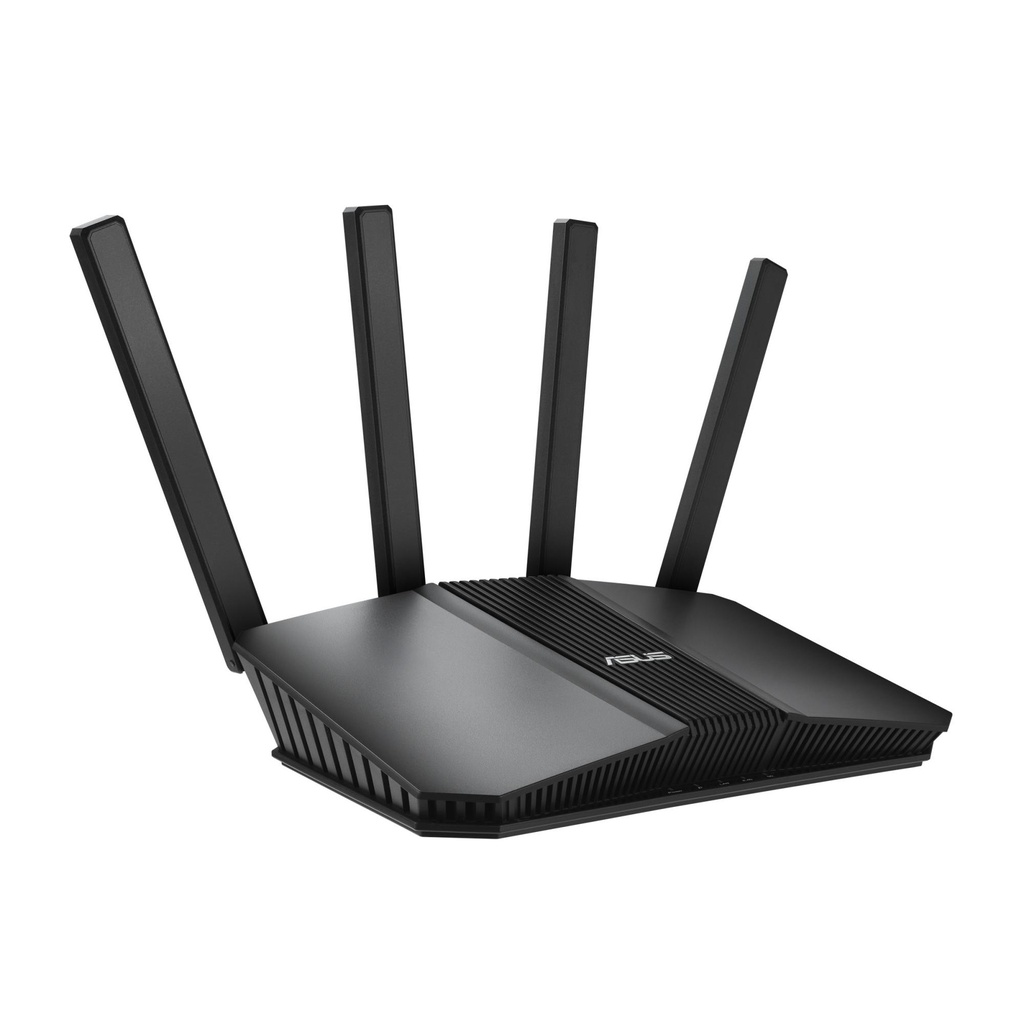

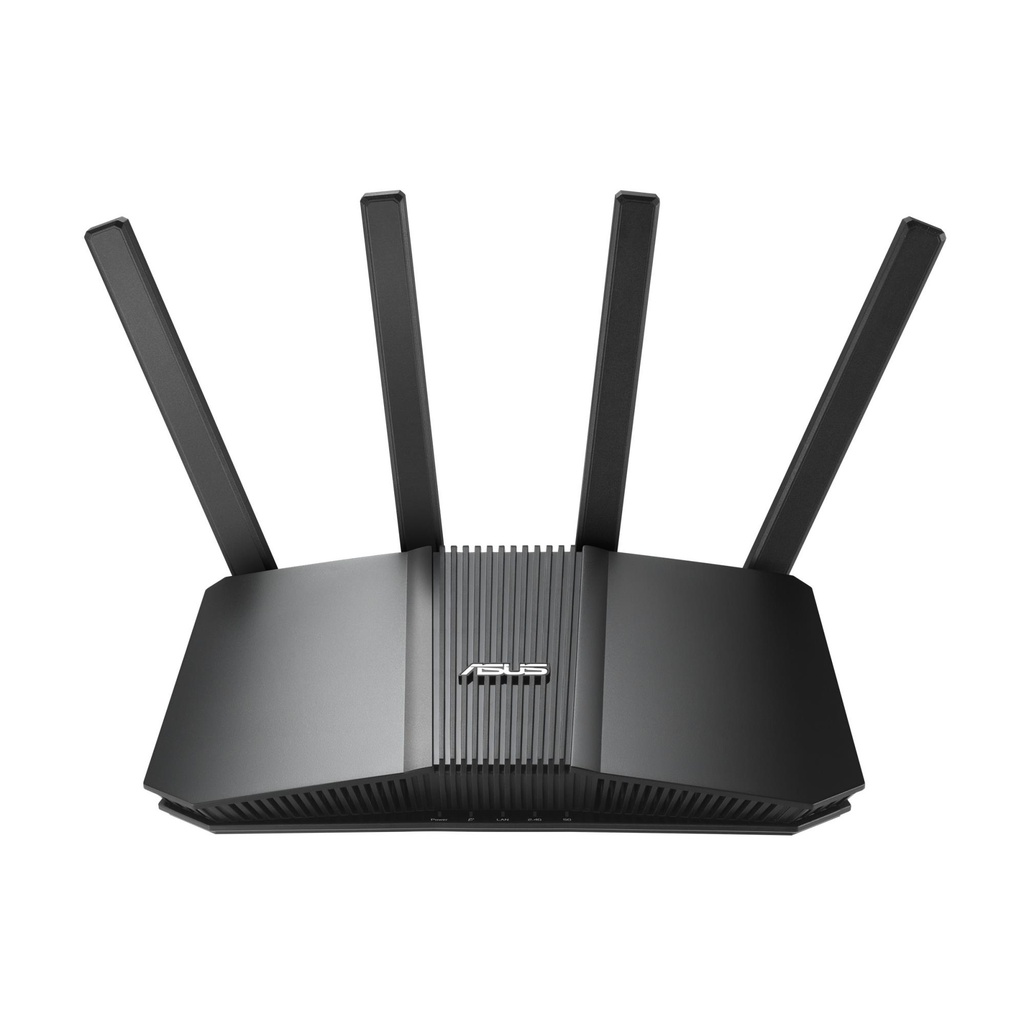

ASUS RT-BE55
Worry-Free Smart Home WiFi 7
Elevate your smart home with blazing-fast dual-band Wi-Fi 7 speeds of up to 3600 Mbps and boosted coverage with AI-boosted Smart AiMesh technology. With next-gen ASUS Network Security and a suite of advanced network technologies such as IoT Network, the RT-BE55 safeguard your network end-to-end, 24/7.
- Ultrafast WiFi 7 – WiFi 7 (802.11be) dual-band extendable router boosts speeds up to 3600 Mbps, with 4096-QAM increasing a single frequency band’s transmission speed by 1.2 times
- Unleashing Multi-link operation (MLO) for Ultra-Smooth Connectivity – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Hassle-free AiMesh Extendable Network – AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
- Commercial-Grade Network Security – Network security with commercial-grade AiProtection, plus a one-tap security scan and Safe Browsing
General
| Unit Calculated Weight | 1.07 kg |
| Unit Calculated Volume | 0.006652 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | ASUS RT-BE55. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 3600 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 1000,2500 Mbit/s, VPN support: Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server.... Security algorithms: SSH, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA, WPA3-Personal, WPS, WPA-Enterprise,..., Firewall security: Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum..., NAT functionality: PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through,.... Product type: Tabletop router, Product colour: Black, LED indicators: Power, LAN, WAN |
| CnCode | 85176200 |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.105 |
| Unit Box Width | 0.285 |
Wireless LAN features
| Modulation | 4096-QAM/OFDMA |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 3600 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | No |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000/2500 Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Port forwarding | Yes |
| Port triggering | Yes |
| VPN support | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | No |
Management features
| Bandwidth control | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Firewall security | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
| MAC address filtering | Yes |
| NAT functionality | PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | SSH/WPA/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal/WPS |
| System event log | Yes |
Protocols
| DHCP server | Yes |
Design
| LED indicators | Power,LAN,WAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Warranty card | Yes |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Processor cores | 4 |
| Processor frequency | 2000 MHz |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 1.5 A |
| Output voltage | 12 V |
| Power source type | AC |
Weight & dimensions
| Depth | 193 mm |
| Height | 59 mm |
| Weight | 446 g |
| Width | 238 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package depth | 193 mm |
| Package height | 104 mm |
| Package type | Box |
| Package weight | 1030 g |
| Package width | 285 mm |
