TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
- Extreme Performance: 2497 MHz (MSI Center)
- Boost: 2482 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management

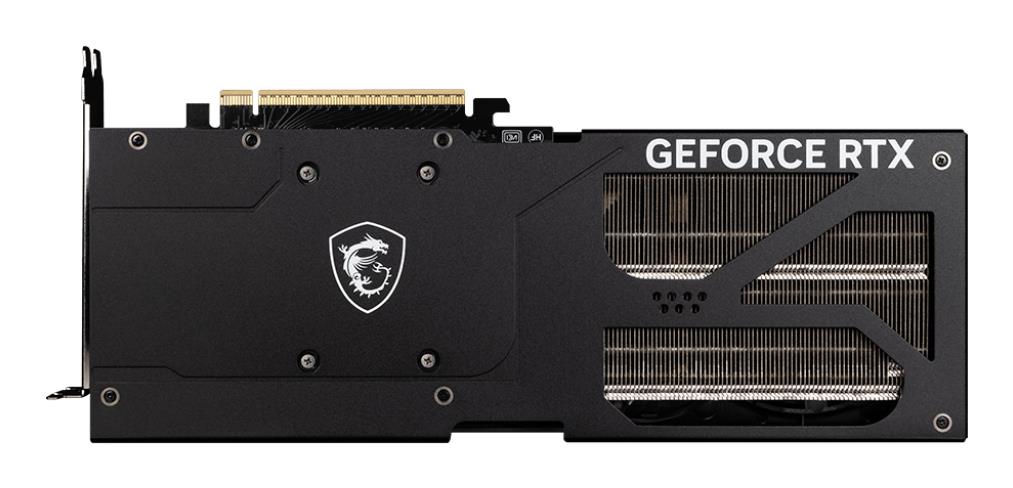

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
General
| Unit Calculated Weight | 1.56 kg |
| Product Net Weight | 0.7 kg |
| Unit Calculated Volume | 0.008595 cubm |
| Units per Shipping Box | 1 |
| Model | GeForce RTX™ 5070 Ti 16G VENTUS 3X OC PLUS |
| Summary | MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti, Processor frequency: 2497 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s) |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.235 |
Processor
| CUDA | Yes |
| CUDA cores | 8960 |
| Graphics processor | GeForce RTX 5070 Ti |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2482 MHz |
| Processor frequency | 2497 MHz |
Memory
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
Ports & interfaces

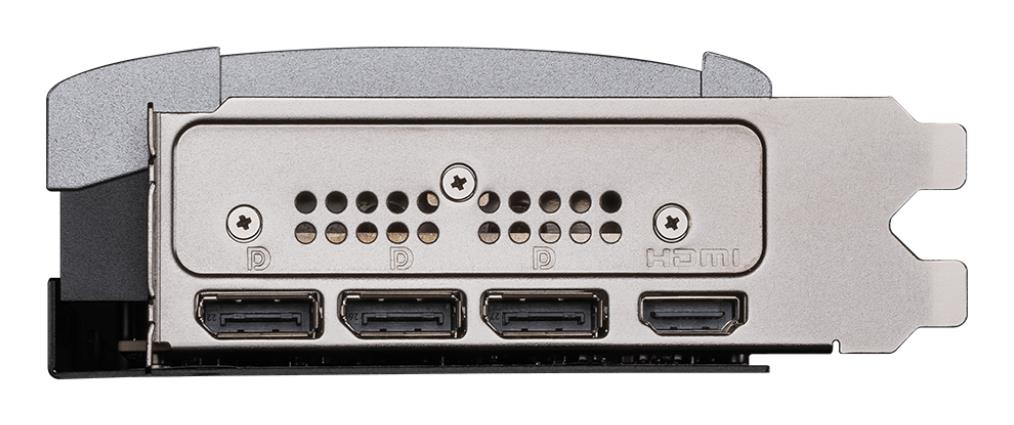

| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
Performance
| DirectX version | 12 Ultimate |
| HDCP | Yes |
| NVIDIA G-SYNC | Yes |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
Design
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Product colour | Aluminium/Black |
Power
| Minimum system power supply | 750 W |
| Power consumption (typical) | 300 W |

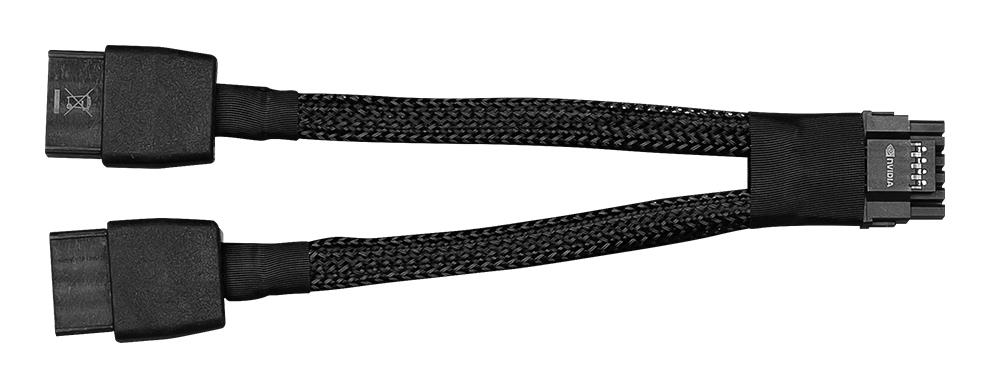

| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Depth | 49 mm |
| Height | 121 mm |
| Length | 303 mm |
| Weight | 1073 g |
Packaging data
| Package type | Box |
| Package weight | 1566 g |
