- 1/1.8" 8Megapixel STARVIS™ CMOS
- 25× optical zoom
- Starlight technology
- Max. 25/30 fps@8M
- IR distance up to 150 m
- Auto-tracking 3.0
- Perimeter protection
- Face detection
- SMD 4.0
- Full-color illuminator; red and blue warning light
- IP66
- PoE (802.3at)
General
| Unit Calculated Weight | 6.8 kg |
| Unit Calculated Volume | 0.03101 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |

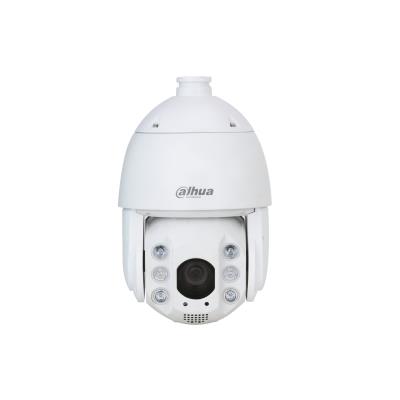

| Summary | Dahua Technology SD6C3825GA-HNR-A-PV1. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.0001 lx, Lens viewing angle, horizontal: 61.6 - 3.6°, Lens viewing angle, vertical: 35.7 - 2°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 25x, Digital zoom: 16x, Focal length range: 5.4 - 135 mm |
| Unit Box Height | 0.45 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.26 |
| Model | SD6C3825GA-HNR-A-PV1 |
Design
| Form factor | Dome |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
Performance
| Auto patrol mode | Yes |
| Auto-tracking | Yes |
| Certification | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| PTZ control | Yes |
| PTZ modes | 5 Pattern/5 Scan/8 Tour/Preset point |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
Camera
| Camera shutter speed | 1/1 - 1/30000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 66.6 - 4 ° |
| Lens viewing angle, horizontal | 61.6 - 3.6 ° |
| Lens viewing angle, vertical | 35.7 - 2 ° |
| Minimum illumination | 0.0001 lx |
| Number of Privacy masking areas | 24 |
| White balance | Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp |
Image sensor
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Sensor type | CMOS |
Lens system
| Auto focus | Yes |
| Closest focusing distance | 2 m |
| Digital zoom | 16 x |
| Focal length range | 5.4 - 135 mm |
| Focus | Manual |
| Maximum aperture number | 1.6 |
| Minimum aperture number | 4 |
| Number of lenses | 1 |
| Optical zoom | 25 x |
| Zoom capability | Yes |
Night vision
| Night vision | Yes |
Video
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
Audio
| Bit rate range | 51 - 12288 Kbit/s |
Network
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Streaming method | Multicast/Unicast |
| Supported network protocols | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;R TP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP; UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
| RAM capacity | 1024 MB |
| ROM capacity | 4096 MB |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Video motion detection | Yes |
Management features
| Cloud-managed | Yes |
Power
| Power consumption (max) | 23 W |
| Power consumption (typical) | 13 W |
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 202 mm |
| Height | 325.3 mm |
| Weight | 4600 g |
| Width | 202 mm |
Packaging data
| Package weight | 7130 g |
Packaging content
| Number of cameras | 1 |
