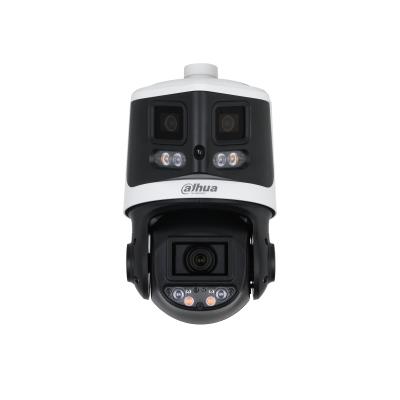

Designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images. It has the combined power of the panoramic and detail camera in its
structure and is highly cost-effectve, greatly reducing the installation cost of security systems. It also leverages its two cameras to performsmart tracking, and has an independent mode that allows you to separately use
each camera.
- Panorama: Outputs 180° wide angle splicing image
- Detail: 1/2.8"4Megapixel STARVIS™ CMOS
- 10x optical zoom
- Starlight technology
- Max. 25/30 fps@8M
- IR distance up to 70 m
- Warm light illumination distance up to 30 m Active deterrence
- Auto Tracking Lite
- Perimeter protection
- Face detection
- SMD4.0
- IP66
- Smart dual light
General
| Unit Calculated Weight | 2.95 kg |
| Unit Calculated Volume | 0.01894 cubm |
| Units per Shipping Box | 4 |
| Units per Pallet | 0 |
| Summary | Dahua Technology SDT3E410-8P-MB-A-PV1. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Sensor type: CMOS. Maximum resolution: 4096 x 1860 pixels, Total megapixels: 8 MP. Power source type: DC, PoE |
| Unit Box Height | 0.288 |
| Unit Box Length | 0.309 |
| Unit Box Width | 0.173 |
| Model | SDT3E410-8P-MB-A-PV1 |
Design
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
Performance
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
Image sensor
| Sensor type | CMOS |
Night vision
| Night vision | Yes |
Video
| Maximum resolution | 4096 x 1860 pixels |
| Total megapixels | 8 MP |
Network
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Built-in HDD | No |
Management features
| Cloud-managed | Yes |
Power
| Power source type | DC,PoE |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Depth | 140.3 mm |
| Height | 238.8 mm |
| Weight | 2170 g |
| Width | 181.7 mm |
Packaging data
| Package weight | 3100 g |
Packaging content
| Number of cameras | 1 |
