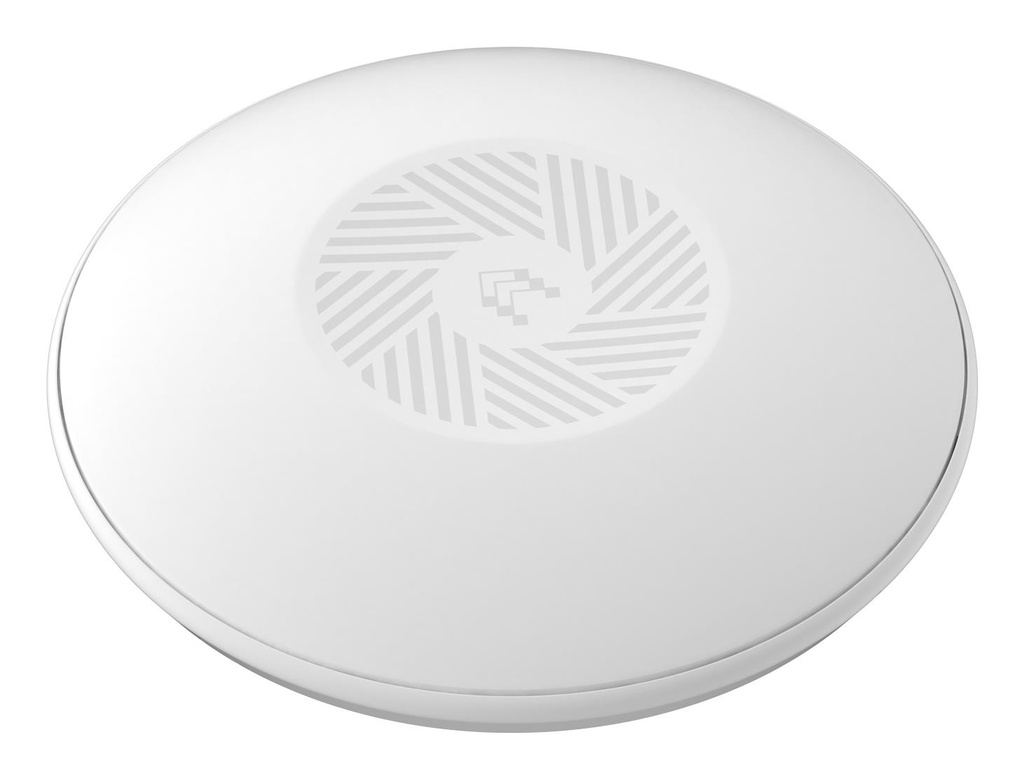

The TAP400 is a high-performance Wi-Fi 6 access point designed for SMBs that need fast, efficient wireless coverage and simple centralized management. Experience ultra-fast throughput with the dedicated 2.5 GbE uplink and multi-user efficiency of Wi-Fi 6. The device ensures network continuity and seamless expansion with Fast Roaming and Mesh. All network configuration, monitoring, and troubleshooting can be handled remotely via Teltonika RMS, allowing you to seamlessly reach and control other devices on the network. Upgrade your business to high-performance connectivity that covers every corner.
General
| Unit Calculated Weight | 0.318 kg |
| Unit Calculated Volume | 0.001011 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Teltonika TAP400. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE, AES-CCMP, TKIP, EAP-TLS. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 11 W |
| Unit Box Height | 0.165 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.035 |
| Model name | TAP400 |
| Model | TAP400 |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 100/1000/2500 Mbit/s |
| Fast roaming | Yes |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 576 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11k/IEEE 802.11r/IEEE 802.11s/IEEE 802.11v/IEEE 802.11w/IEEE 802.1x/IEEE 802.3/IEEE 802.3af/IEEE 802.3az/IEEE 802.3u |
| Number of simultaneously connected devices (max) | 512 |
| Virtual LAN features | Tagged VLAN |
| VLAN support | Yes |
| Wireless meshing | Yes |
Security
| Blacklist | Yes |
| MAC address filtering | Yes |
| Security algorithms | AES-CCMP/EAP-TLS/OWE/PEAP/TKIP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK |
| Whitelist | Yes |
Protocols
| Supported network protocols | TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, PPP, HTTP, TTPS |
Management features
| Web-based management | Yes |
Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| DC voltage range | 44 - 57 V |
| Power consumption (max) | 11 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Plastic,Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Power |
| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 4.9 dBi |
| Antenna type | Internal |
| Antennas quantity | 3 |
Performance
| Built-in processor | Yes |
| Flash memory | 16 MB |
| Internal memory | 512 MB |
| Internal memory type | DDR3 |
| Operating system installed | RutOS |
| Processor frequency | 1300 MHz |
Certificates
| Compliance certificates | CB/CE/EAC/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA/WEEE |
Weight & dimensions
| Depth | 31.4 mm |
| Height | 158 mm |
| Weight | 285 g |
| Width | 158 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
