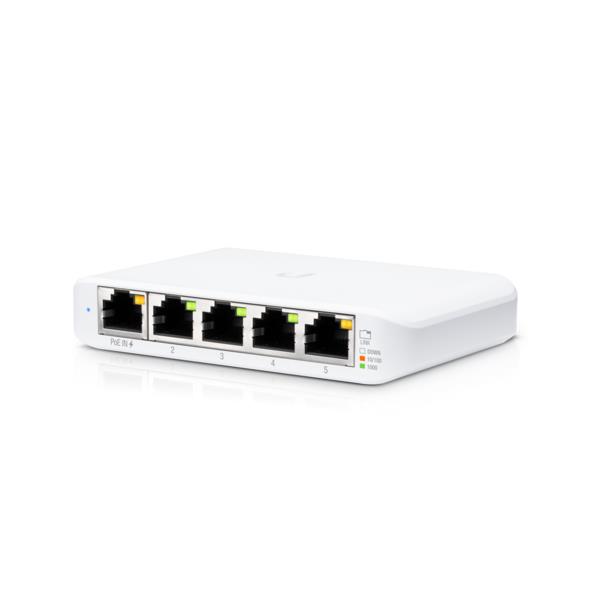

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter
Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
General
| Unit Calculated Weight | 0.267 kg |
| Unit Calculated Volume | 0.001318 cubm |
| Units per Shipping Box | 30 |
| Units per Pallet | 0 |
| Summary | Ubiquiti UniFi USW Flex Mini. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE) |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.05 |
| Model name | USW-Flex-Mini |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| 10G support | No |
| Flow control support | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Data transmission
| Forwarding rate | 7.44 Mpps |
| Switching capacity | 10 Gbit/s |
| Throughput | 5 Gbit/s |
Design
| LED indicators | Activity/Link/Speed/Status |
| Product colour | White |
Power
| Power consumption (max) | 2.5 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Depth | 70.15 mm |
| Height | 21.17 mm |
| Weight | 150 g |
| Width | 107.16 mm |
Certificates
| Certification | CE, FCC, IC |
Logistics data
| Harmonized System (HS) code | 85176990 |
