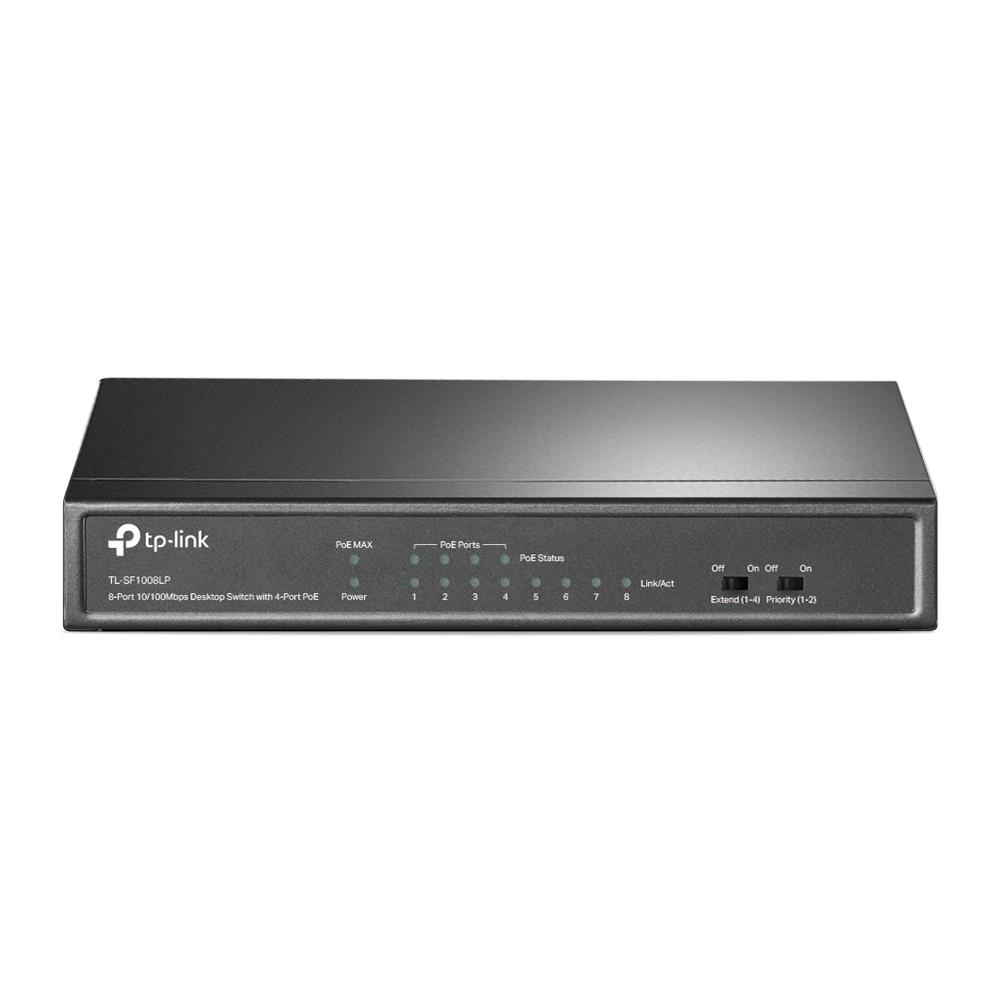

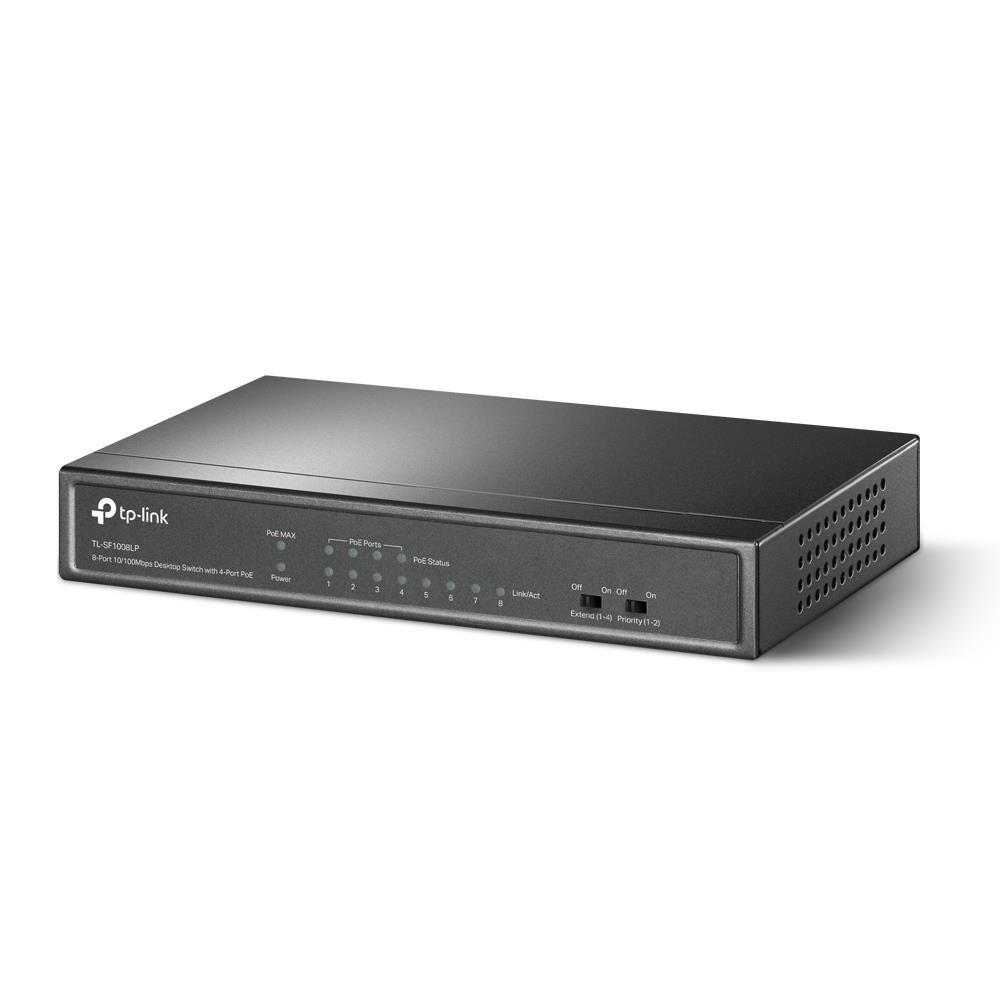

TP-LINK Desktop/pedestal 8x10Base-T / 100Base-TX PoE ports 4 TL-SF1008LP

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 60 mėn.
Pristatymas į terminalą: DPD, InPost, Omniva
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Priority Video
Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.

General
Unit Calculated Weight0.93 kg
Unit Calculated Volume0.004334 cubm
Units per Shipping Box1
SummaryTP-Link TL-SF1008LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Unit Box Height0.226
Unit Box Length0.282
Unit Box Width0.068
ModelTL-SF1008LP
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity8
Power connectorDC-in jack
Network
10G supportNo
Auto MDI/MDI-XYes
Auto-negotiationYes
Copper ethernet cabling technology100BASE-TX/10GBASE-T
Flow control supportYes
Full duplexYes
Half duplexYes
MAC address auto-aging supportedYes
MAC address auto-learning supportedYes
Networking standardsIEEE 802.3af/IEEE 802.3x
Data transmission
Forwarding rate1.1904 Mpps
Jumbo frames2000
Jumbo frames supportYes
MAC address table2000 entries
Store-and-forwardYes
Switching capacity1.6 Gbit/s
Security
DHCP featuresDHCPv6 relay
Protocols
IPv4 & IPv6 featuresIPv6 portal
Routing protocolsOSPF
Design
Housing materialMetal
LED indicatorsYes
Number of fans0 fan(s)
Product colourBlack
Rack mountingNo
StackableNo
Wall mountableYes
Performance
FanlessYes
Power
AC input frequency50 Hz
AC input voltage220 V
DC input voltage53.5 V
Input current0.81 A
Power consumption (max)47.1 W
Power sourceDC/PoE
Power supply includedNo
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Total Power over Ethernet (PoE) budget41 W
Other features
Bandwidth1.6 Gbit/s
Operational conditions
Heat dissipation160.61 BTU/h
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Weight & dimensions
Depth98 mm
Height27 mm
Width171 mm
Packaging content
Cables includedAC
User guideYes
Packaging data
AC adapter includedYes
Package depth280 mm
Package height68 mm
Package weight750 g
Package width223 mm
Sustainability
Sustainability complianceYes
Certificates
Compliance certificatesCE/Federal Communications Commission (FCC)/RoHS
Logistics data
Harmonized System (HS) code85176990
