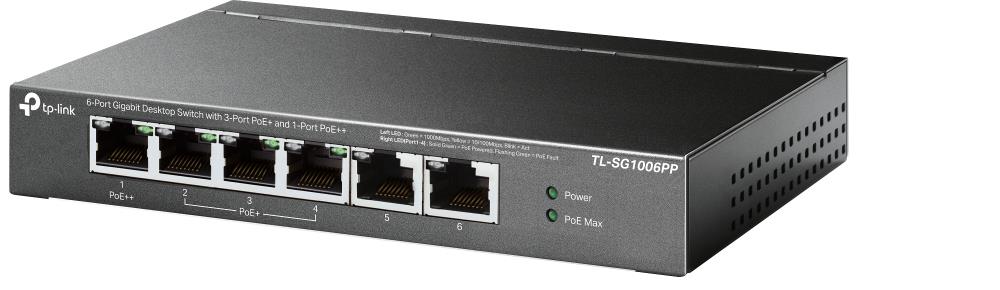

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc

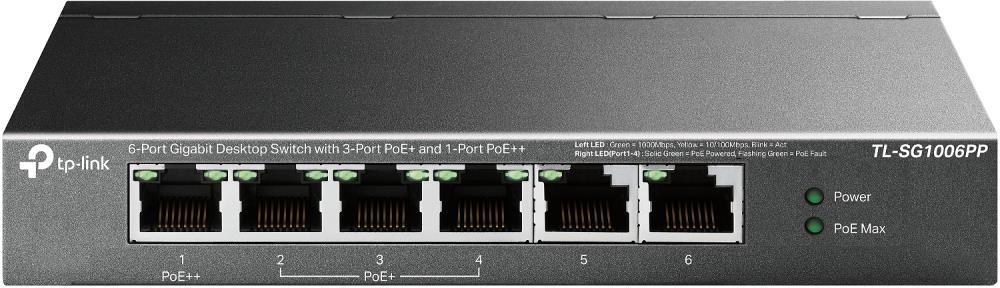

- 6× 10/100/1000 Mbps RJ45 ports

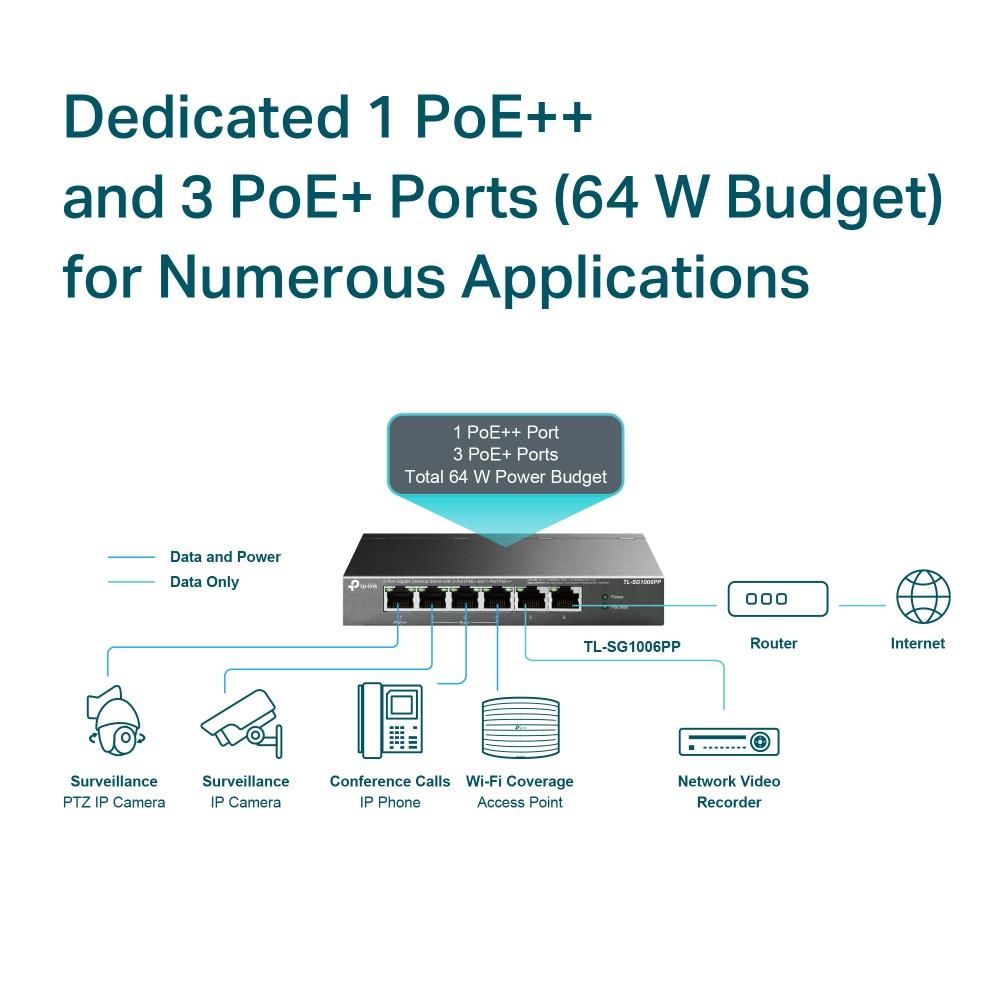

- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports*

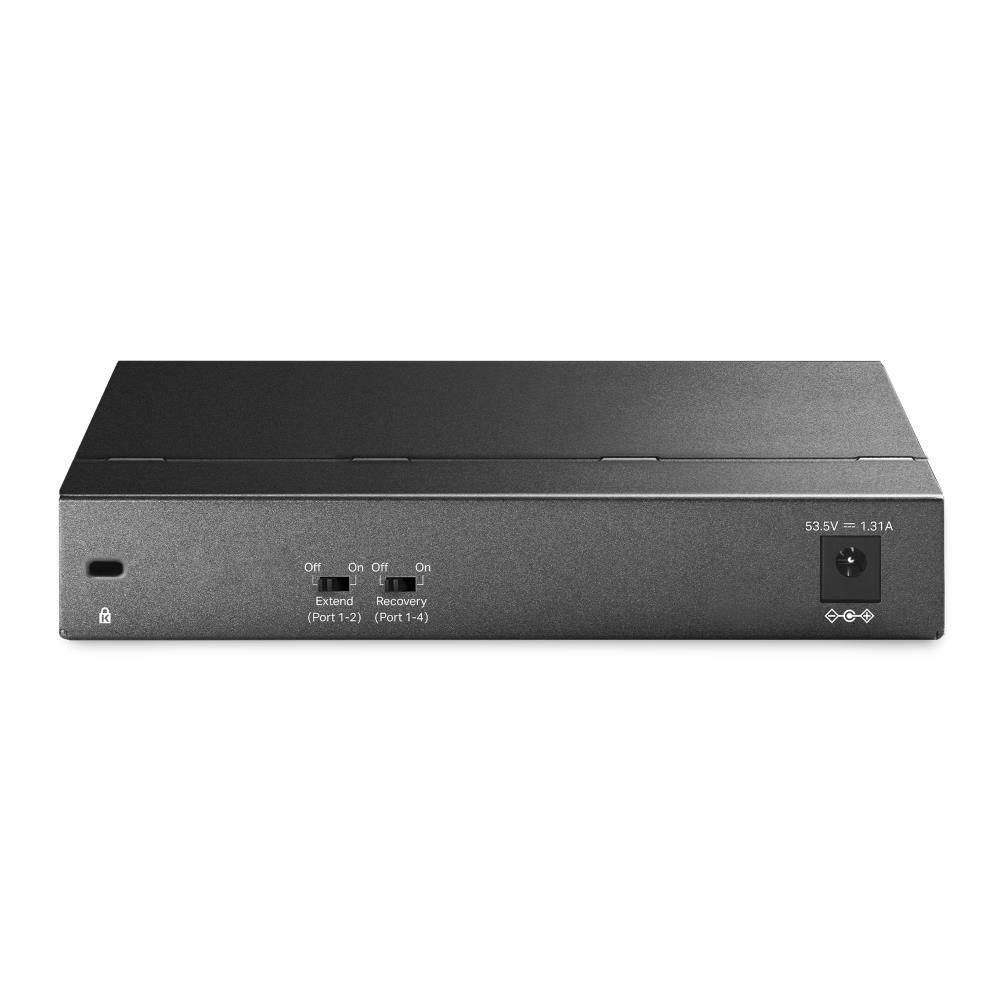

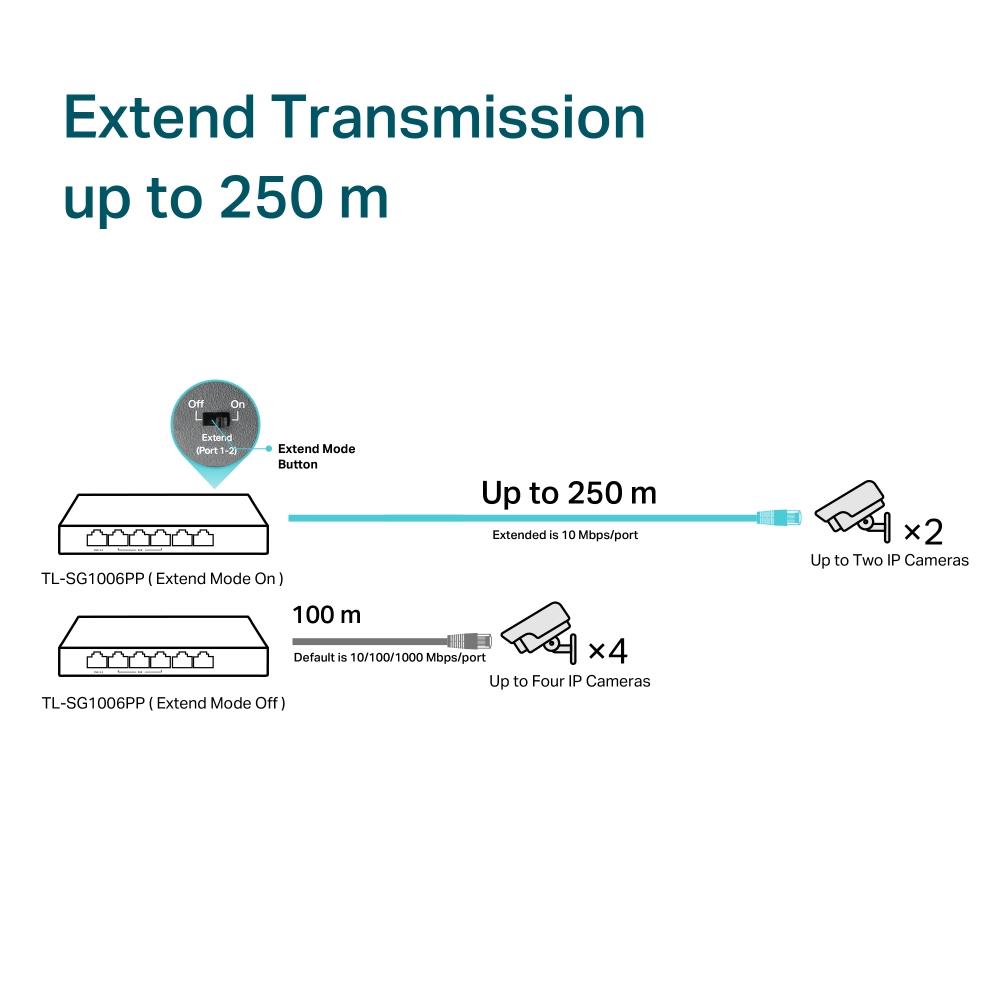

- Up to 250m data and power transmitting range under Extend Mode**

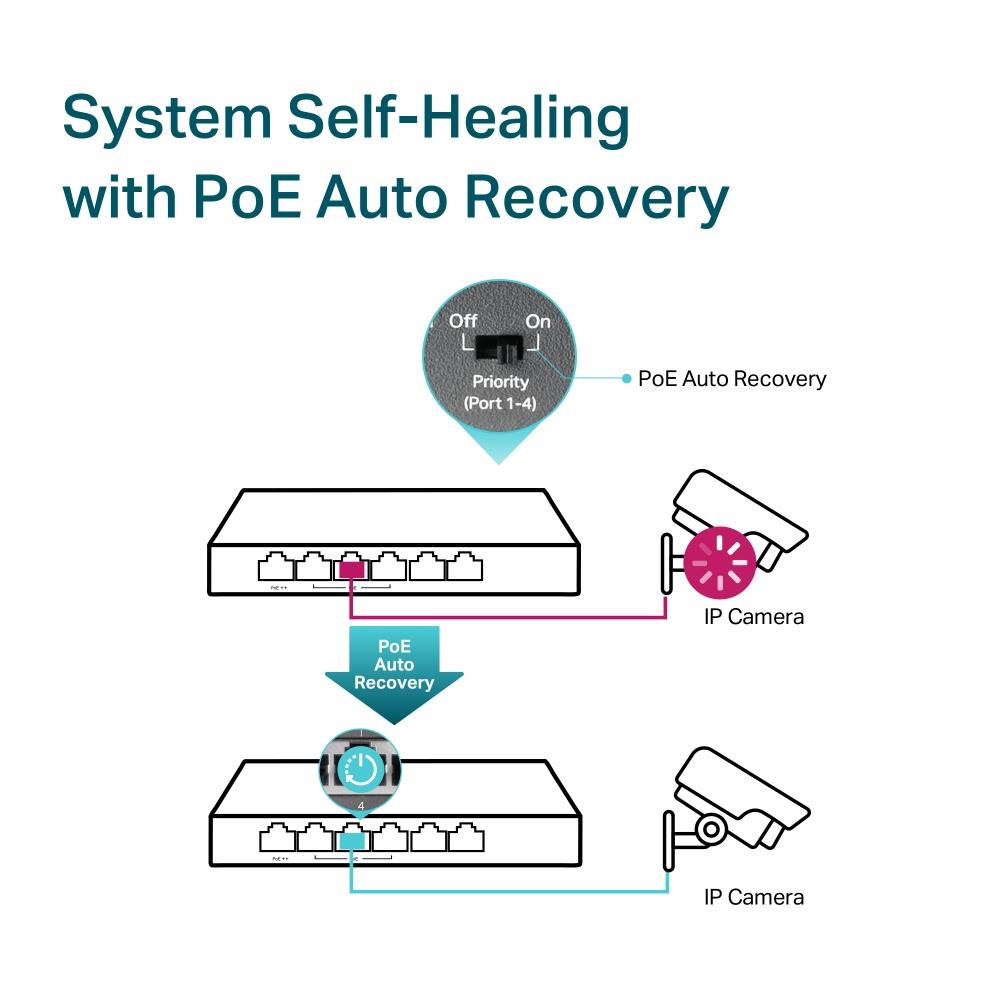

- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

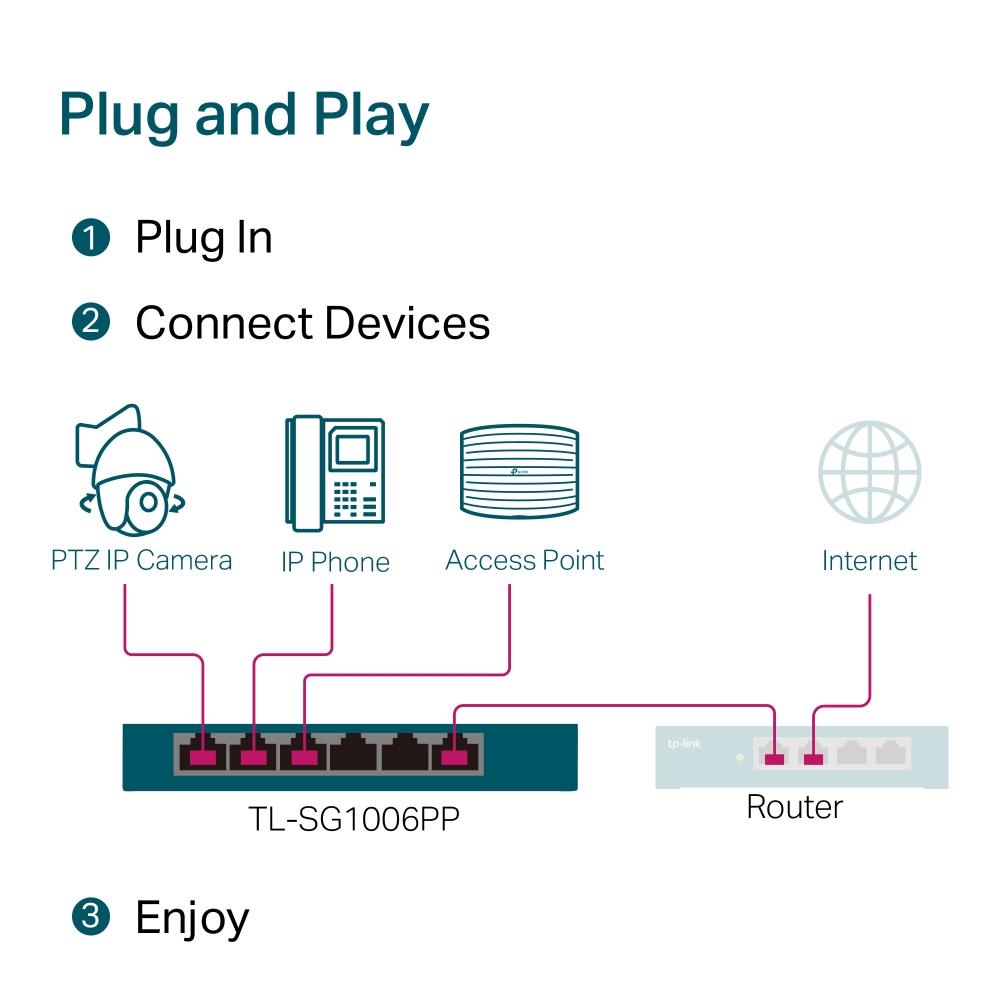

- Plug and Play, no configuration and installation required
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
General
| Unit Calculated Weight | 0.88 kg |
| Unit Calculated Volume | 0.003042 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 4000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Rack mounting |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.195 |
| Unit Box Width | 0.12 |
| Model name | 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++ |
Management features
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e/Cat6 |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
Data transmission
| Forwarding rate | 8.928 Mpps |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Switching capacity | 12 Gbit/s |
Security
| IGMP snooping | Yes |
Design
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
| Stackable | Yes |
Performance
| Fanless | Yes |
Power
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Power consumption (max) | 71.46 W |
| Power consumption (typical) | 4.75 W |
| Power source | DC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 64 W |
Operational conditions
| Heat dissipation | 16.2 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 101 mm |
| Height | 25 mm |
| Width | 158 mm |
Packaging content
| Quick start guide | Yes |
Packaging data
| Package type | Box |
Certificates
| Certification | FCC, CE, RoHS |
