PoE Switches for Your Ultra Convenience

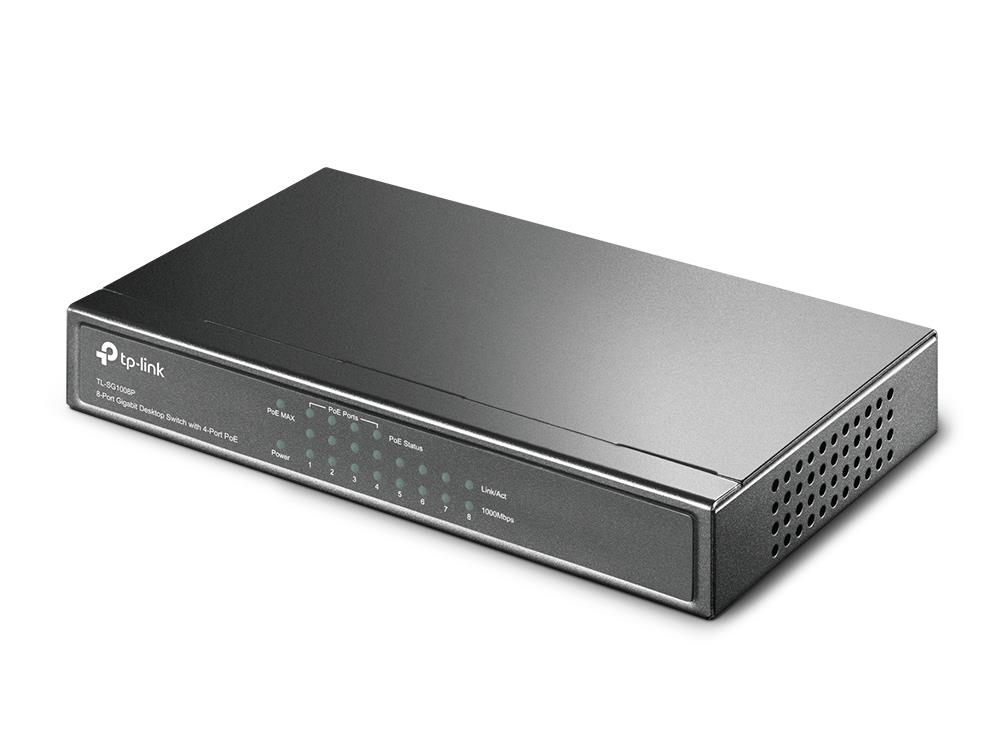

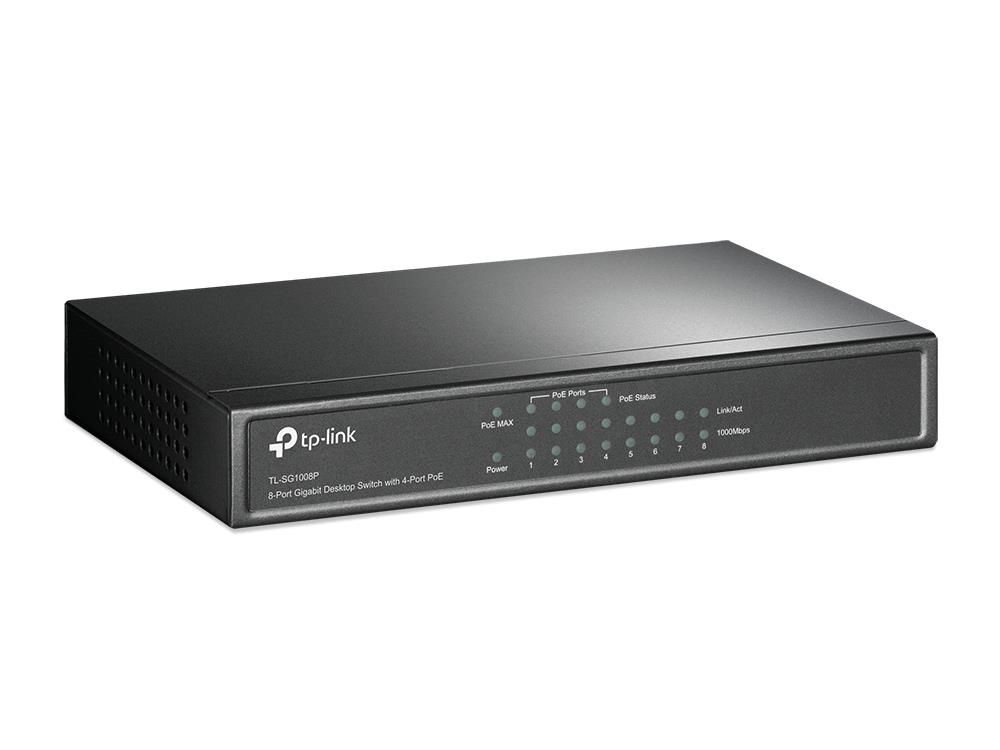

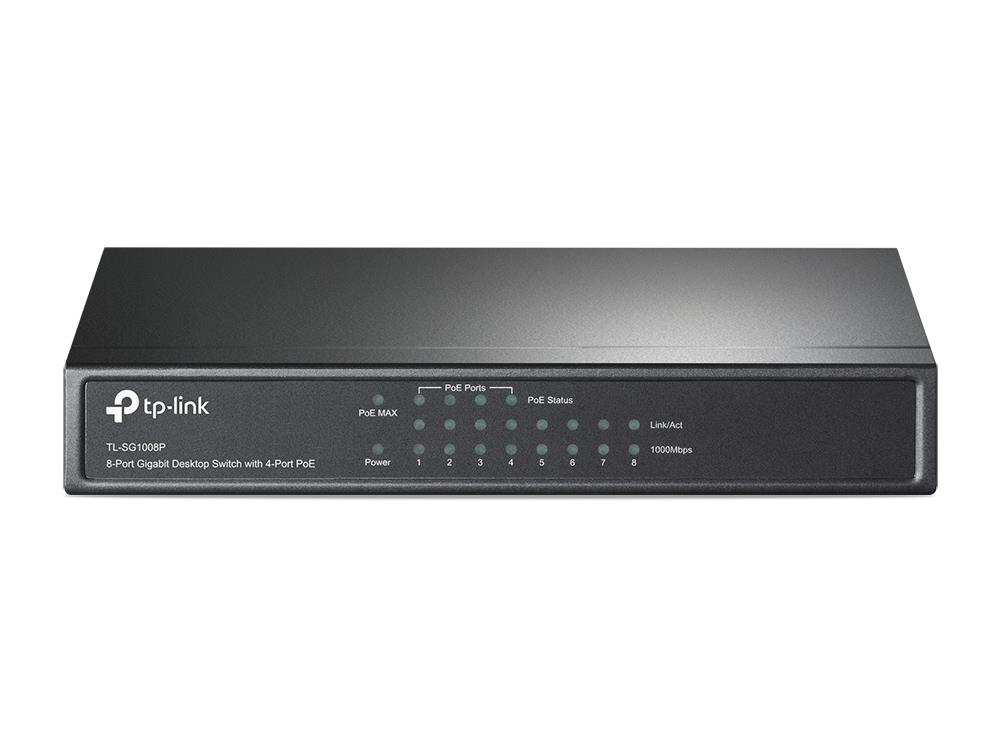

8-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

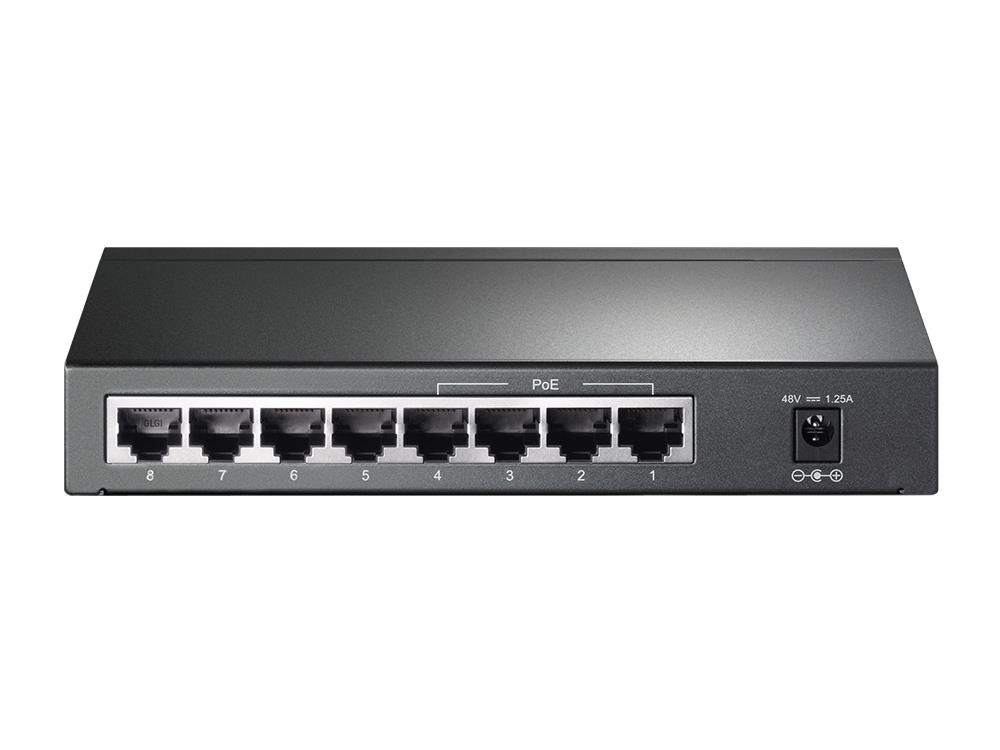

- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
- Requires no configuration and installation
General
| Unit Calculated Weight | 1.08 kg |
| Unit Calculated Volume | 0.005384 cubm |
| Units per Shipping Box | 12 |
| Units per Pallet | 0 |
| Summary | TP-Link 8-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE) |
| CnCode | 85176200 |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.225 |
| Model name | 8-Port Gigabit Desktop PoE Switch with 4-Port |
Management features
| Quality of Service (QoS) support | No |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x |
Data transmission
| Forwarding rate | 11.904 Mpps |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
Security
| IGMP snooping | Yes |
Design
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Grey |
| Rack mounting | No |
| Stackable | No |
Performance
| Fanless | Yes |
| Maximum cable length | 100 m |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 53.5 V |
| Input current | 1.31 A |
| Number of power supply units | 1 |
| Power consumption (max) | 75 W |
| Power source | DC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 64 W |
Operational conditions
| Heat dissipation | 225.75 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 98 mm |
| Height | 27 mm |
| Width | 171 mm |
Packaging content
| Cables included | AC |
| User guide | Yes |
Packaging data
| Package depth | 280 mm |
| Package height | 68 mm |
| Package type | Box |
| Package weight | 1250 g |
| Package width | 223 mm |
Sustainability
| Sustainability compliance | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
