Easily Expand Your Gigabit Network and Save Energy

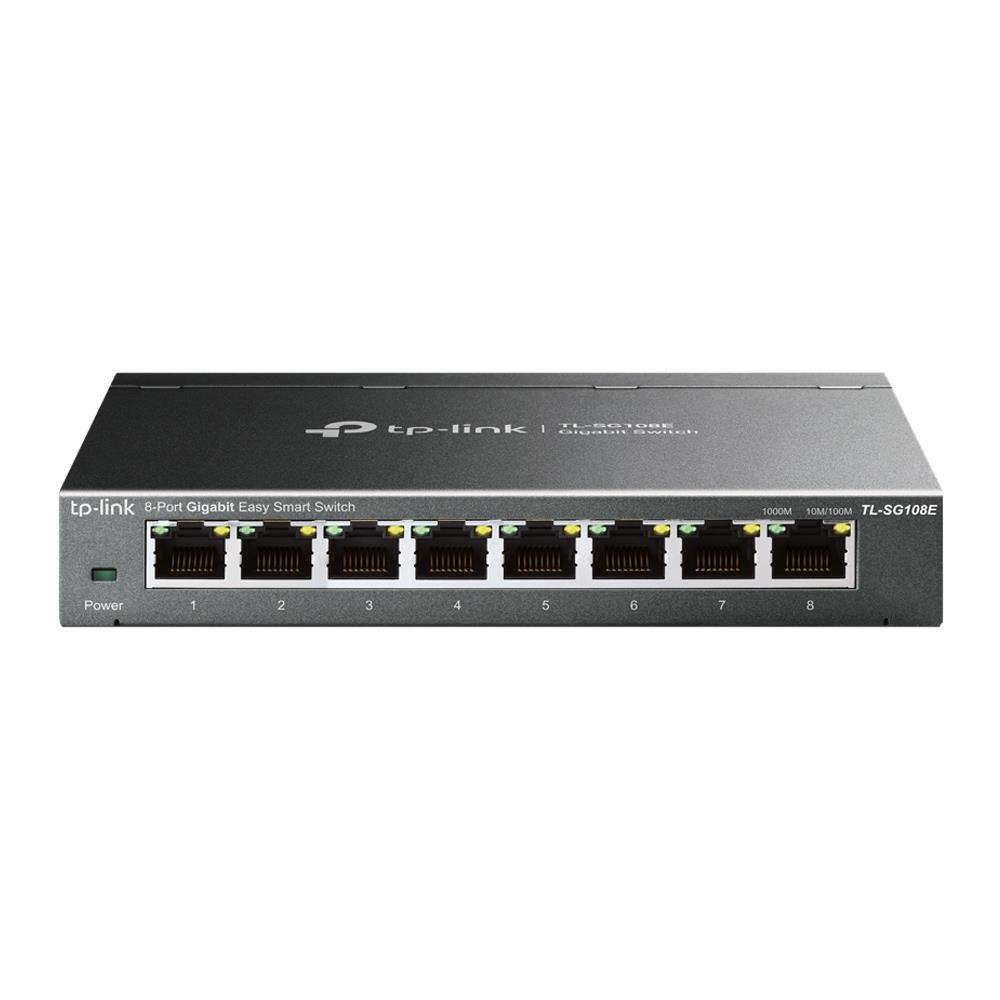

8-Port Gigabit Easy Smart Switch
Link Your Devices, Create Convenient Business
The 8-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

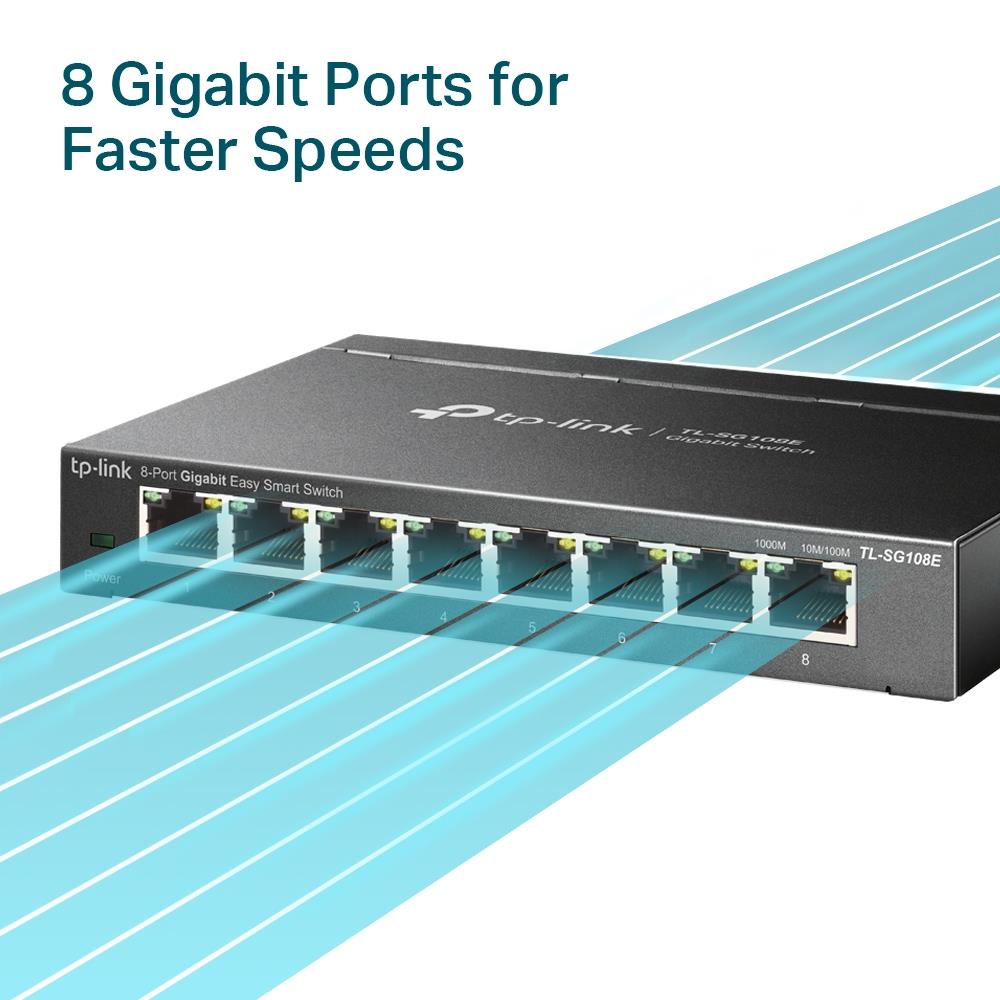

Gigabit Ports for Maximum Speed
8 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.
More Features,More Choices
- QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video
- IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
- VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups
Management Made Easy
TL-SG108E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

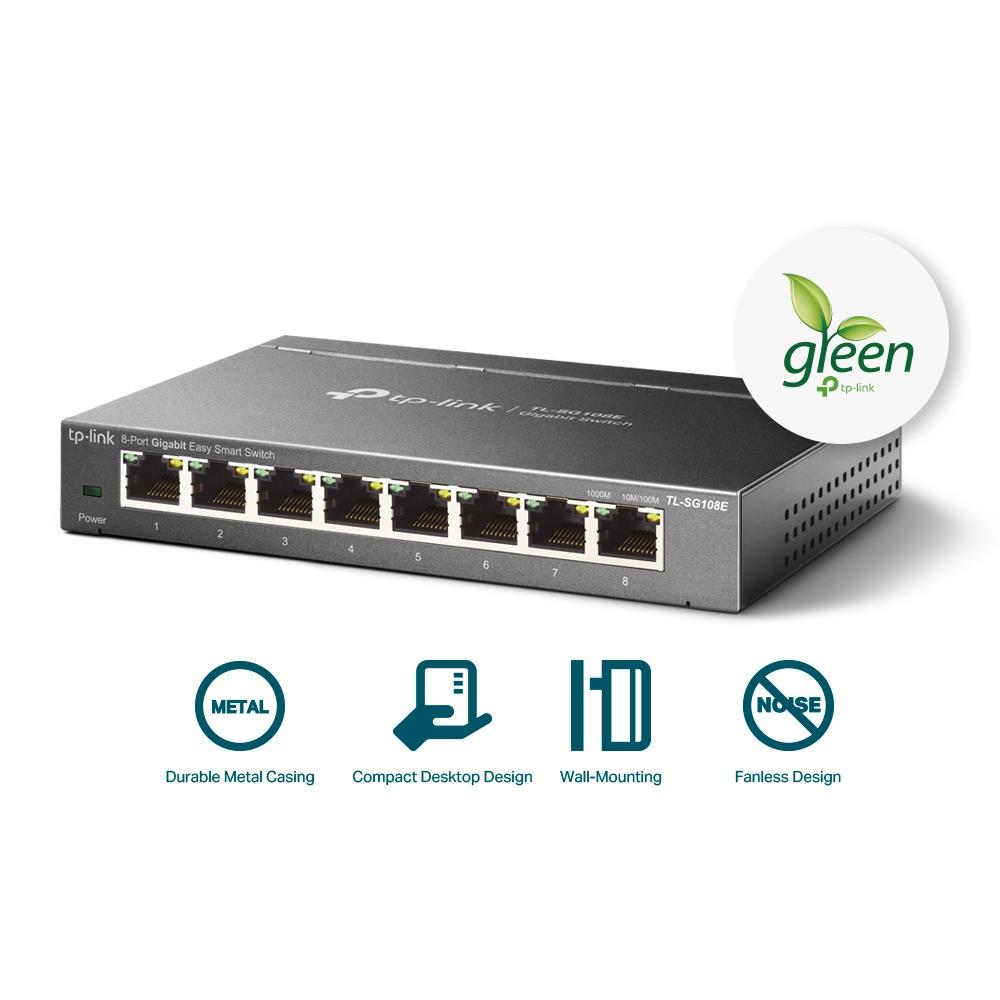

Durable Metal Casing
The interior components of TL-SG108E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108E delivers switching performance you can depend on.
Go Green with Your Ethernet
TP-Link’s latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
- 8 10/100/1000Mbps RJ45 ports

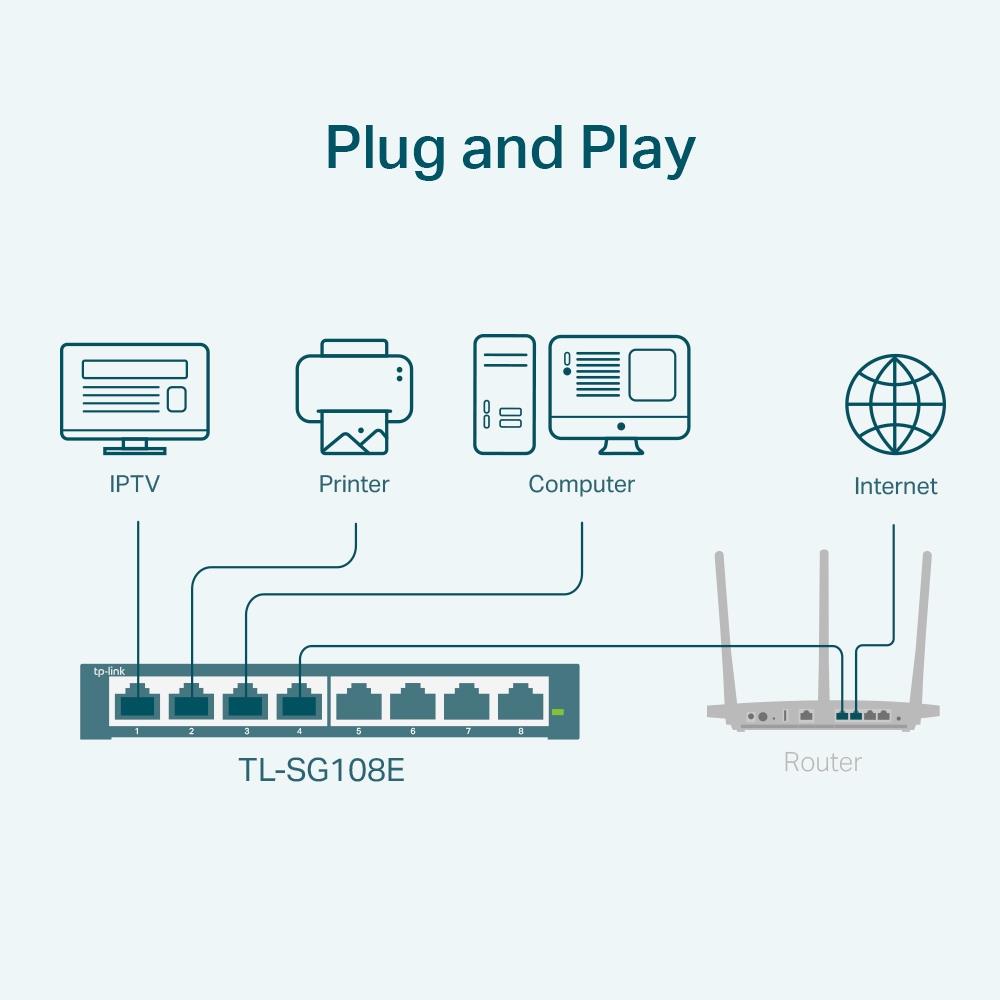

- Plug and play, with no configuration required
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
General
| Unit Calculated Weight | 0.704 kg |
| Unit Calculated Volume | 0.002819 cubm |
| Units per Shipping Box | 24 |
| Units per Pallet | 0 |
| Summary | TP-Link 8-Port Gigabit Easy Smart Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Unit Box Height | 0.13 |
| Unit Box Length | 0.09 |
| Unit Box Width | 0.195 |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 32 |
| Port mirroring | Yes |
| Virtual LAN features | Port-based VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 11.9 Mpps |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| MAC address table | 4000 entries |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | Yes |
| Switching capacity | 16 Gbit/s |
Security
| IGMP snooping | Yes |
| Loop protection | Yes |
| Security algorithms | SNMP/SNMPv2/SNMPv3 |
Design
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
Performance
| Plug and Play | Yes |

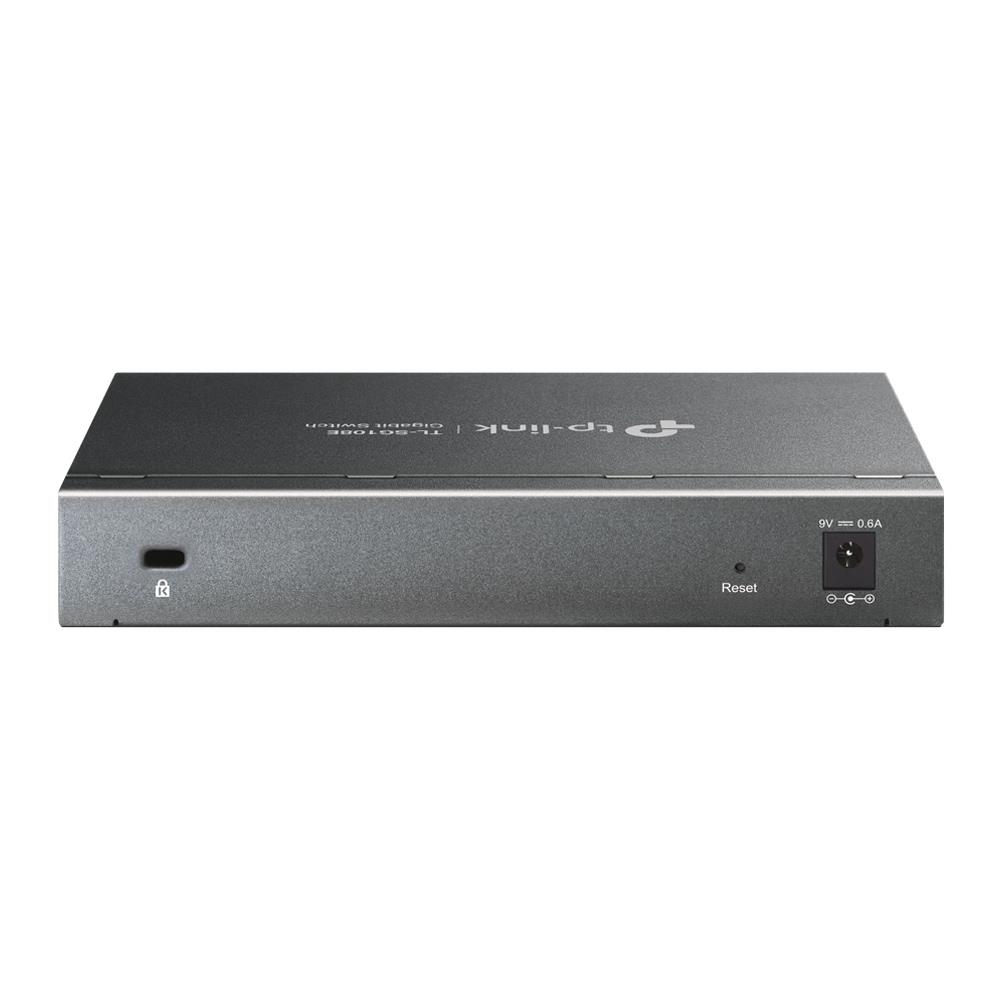

Power
| Input current | 0.6 A |
| Input voltage | 9 V |
| Power consumption (max) | 3.55 W |
| Power source | DC |
| Power supply included | Yes |
Operational conditions
| Heat dissipation | 12.12 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 101 mm |
| Height | 25 mm |
| Width | 158 mm |
Packaging content
| Cables included | AC |
| User guide | Yes |
Packaging data
| Package depth | 191 mm |
| Package height | 92 mm |
| Package type | Box |
| Package weight | 630 g |
| Package width | 130 mm |
Certificates
| Certification | FCC, CE, RoHS |
