TP-LINK Switch type Unmanaged 9xRJ-45 ports RJ-45 Ports Type Gigabit Ethernet (10/100/1000) 1xCombo SFP ports quantity P
General
| Unit Calculated Weight | 1.59 kg |
| Unit Calculated Volume | 0.00588 cubm |
| Units per Shipping Box | 1 |
| Summary | TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE) |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.245 |

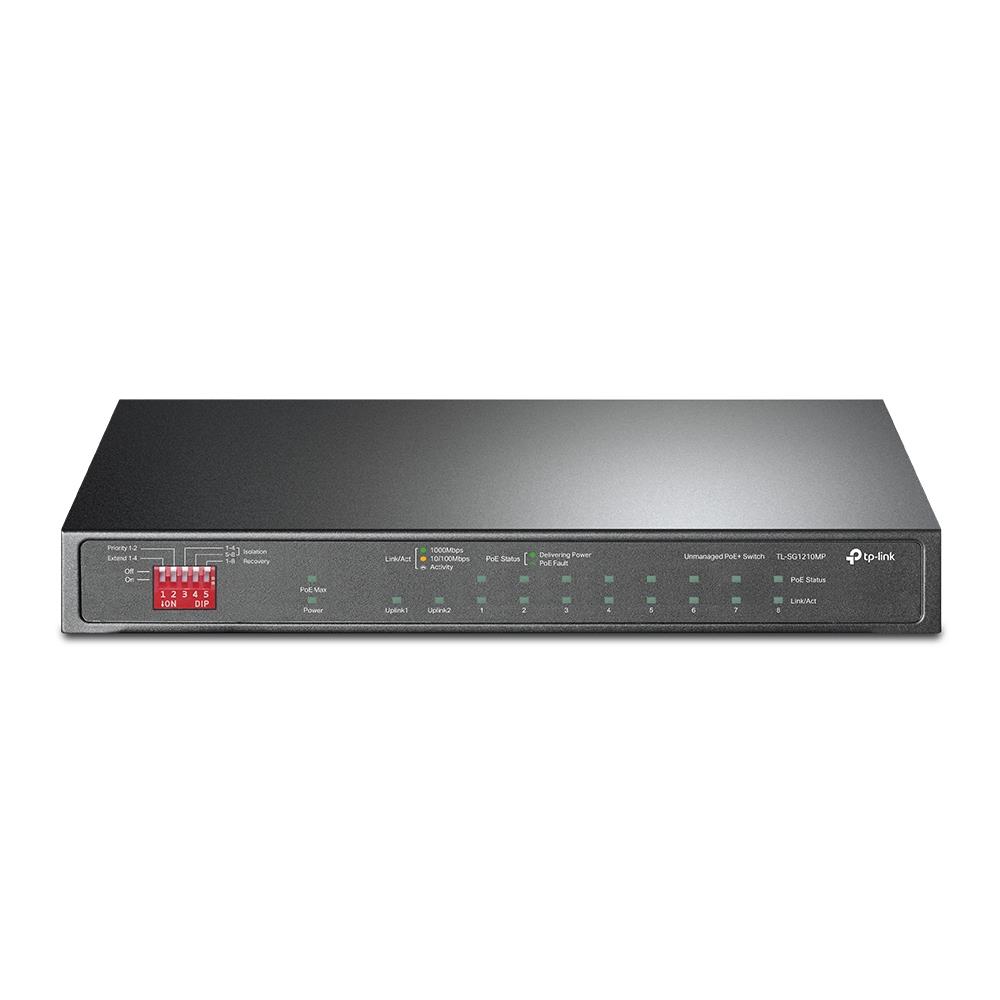

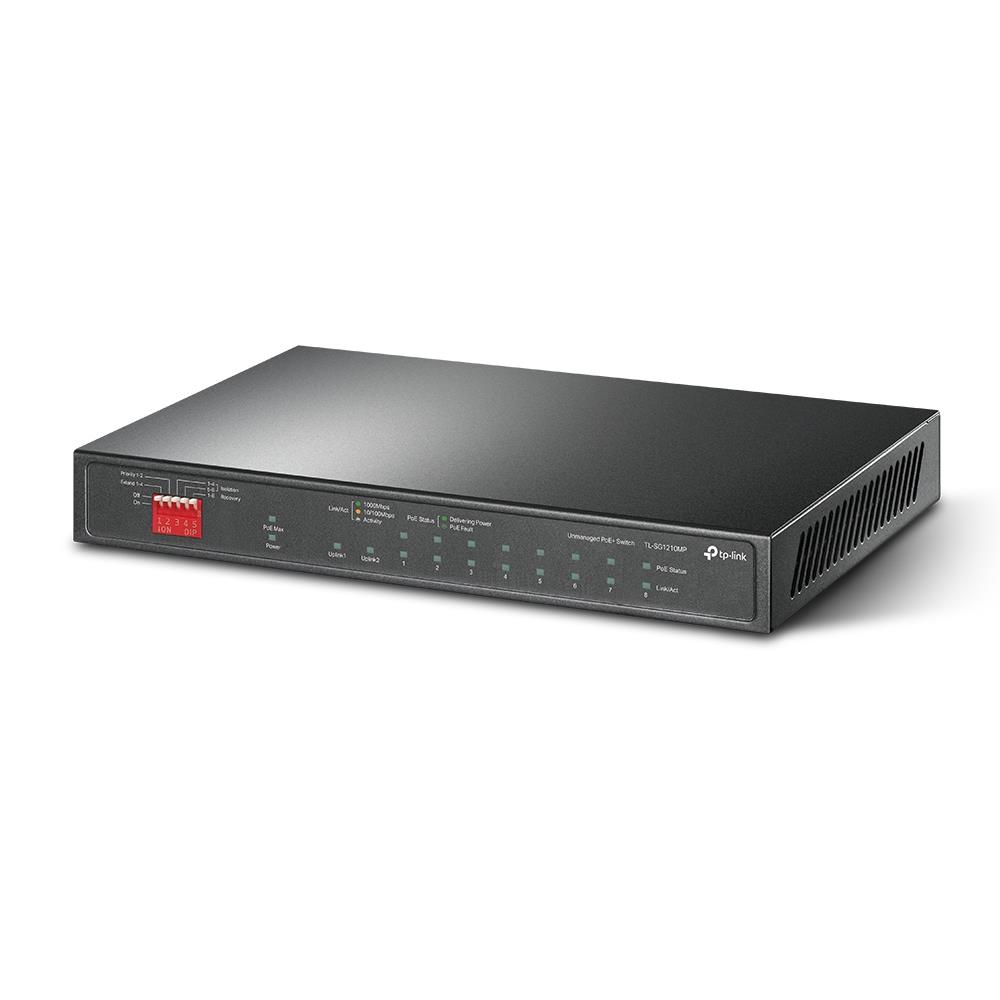

| Model name | TL-SG1210MP |
| Model | TL-SG1210MP |
Management features
| Switch type | Unmanaged |
Ports & interfaces

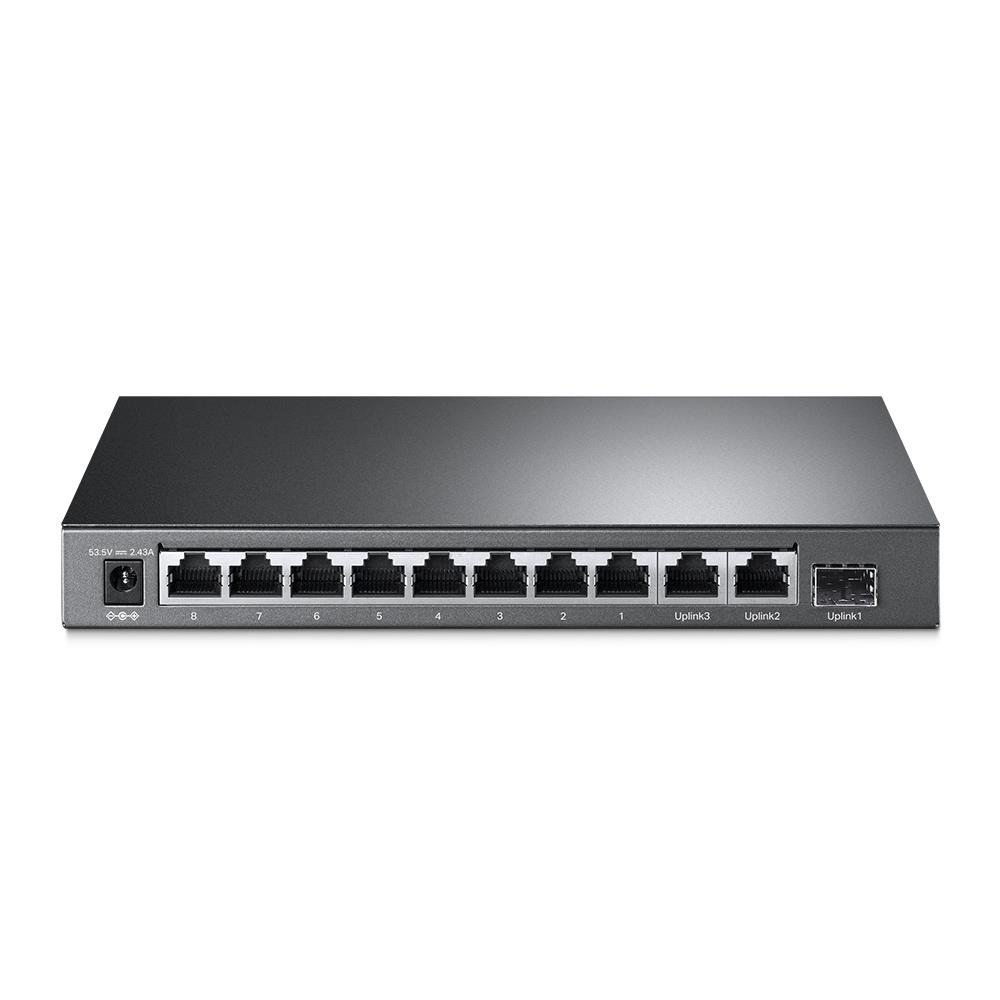

| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
Data transmission
| MAC address table | 4000 entries |
| Packet buffer memory | 14.88 MB |
| Store-and-forward | Yes |
| Switching capacity | 20 Gbit/s |
Design
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
Performance
| Fanless | Yes |
Power
| Input current | 2.43 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 141.4 W |
| Power source | DC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 123 W |
Operational conditions
| Heat dissipation | 482.17 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 126 mm |
| Height | 26 mm |
| Width | 209 mm |
Packaging content
| Quick start guide | Yes |
Packaging data
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1410 g |
| Package width | 240 mm |
Certificates
| Certification | CE, FCC |
Logistics data
| Harmonized System (HS) code | 85176990 |
