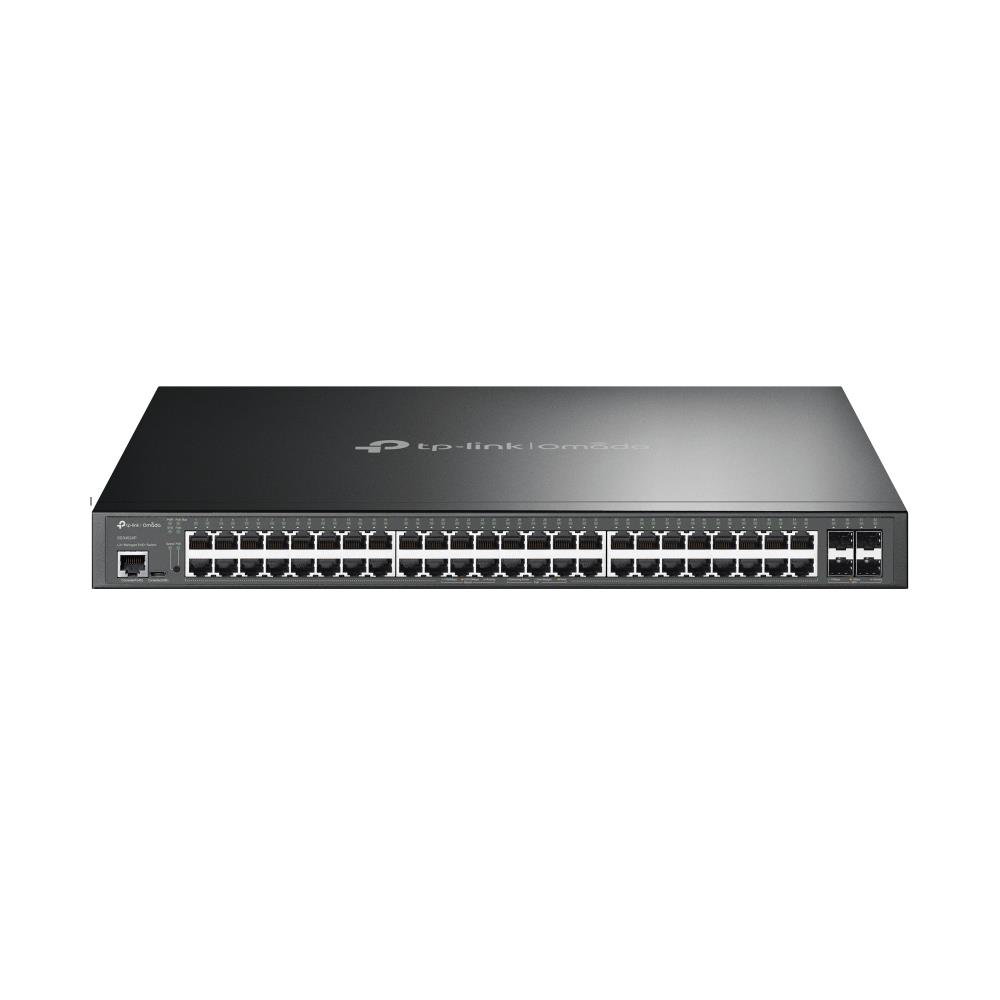

TP-LINK Omada TL-SG3452XP Type L2+ Rack 48x10Base-T / 100Base-TX / 1000Base-T 4xSFP+ 1 1 PoE+ ports 48 500 Watts TL-SG34

Kainos tik partneriams Prisijungti B2B

TP-LINK
Garantija: 60 mėn.
  • Gamintojas
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Gamintojas: TP-LINK

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

  • 4× 10 Gbps SFP+ slots
  • 48× Gigabit 802.3af/at PoE+ ports
  • 500 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design
General
Unit Calculated Weight6.6 kg
Unit Calculated Volume0.02332 cubm
Units per Shipping Box1
SummaryTP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Unit Box Height0.1
Unit Box Length0.53
Unit Box Width0.44
Model nameTL-SG3452XP
SeriesOmada
Management features
ARP inspectionYes
Cloud-managedYes
Configuring Location Settings (CLI)Yes
Quality of Service (QoS) supportYes
Switch layerL2+
Switch typeManaged
System event logYes
Web-based managementYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45/Micro-USB
Power connectorAC-in jack
SFP+ module slots quantity4
Network
10G supportYes
Broadcast storm controlYes
Flow control supportYes
Head-of-line (HOL) blockingYes
Link aggregationYes
Networking standardsIEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Port mirroringYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes
Data transmission
Forwarding rate130.9 Mpps
Jumbo frames9000
Jumbo frames supportYes
MAC address table16000 entries
Packet buffer memory12 MB
Store-and-forwardYes
Switching capacity176 Gbit/s
Security
Access Control List (ACL)Yes
AuthenticationAuto VLAN,Guest VLAN
BPDU filtering/protectionYes
DHCP featuresDHCP client/DHCP relay/DHCP server
IGMP snoopingYes
IP-MAC-Port bindingYes
MAC address filteringYes
SSH/SSL supportYes
Static port securityYes
Multicast features
Multicast supportYes
Design
Form factor1U
LED indicatorsYes
Number of fans3 fan(s)
Product colourBlack
Rack mountingYes
Reset buttonYes
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power consumption (max)635.7 W
Power sourceAC
Power supply includedYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget500 W
Operational conditions
Heat dissipation2169.2 BTU/h
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Weight & dimensions
Depth330 mm
Height44 mm
Width440 mm
Packaging content
Cables includedAC
Quick start guideYes
Certificates
CertificationCE, FCC, RoHS
