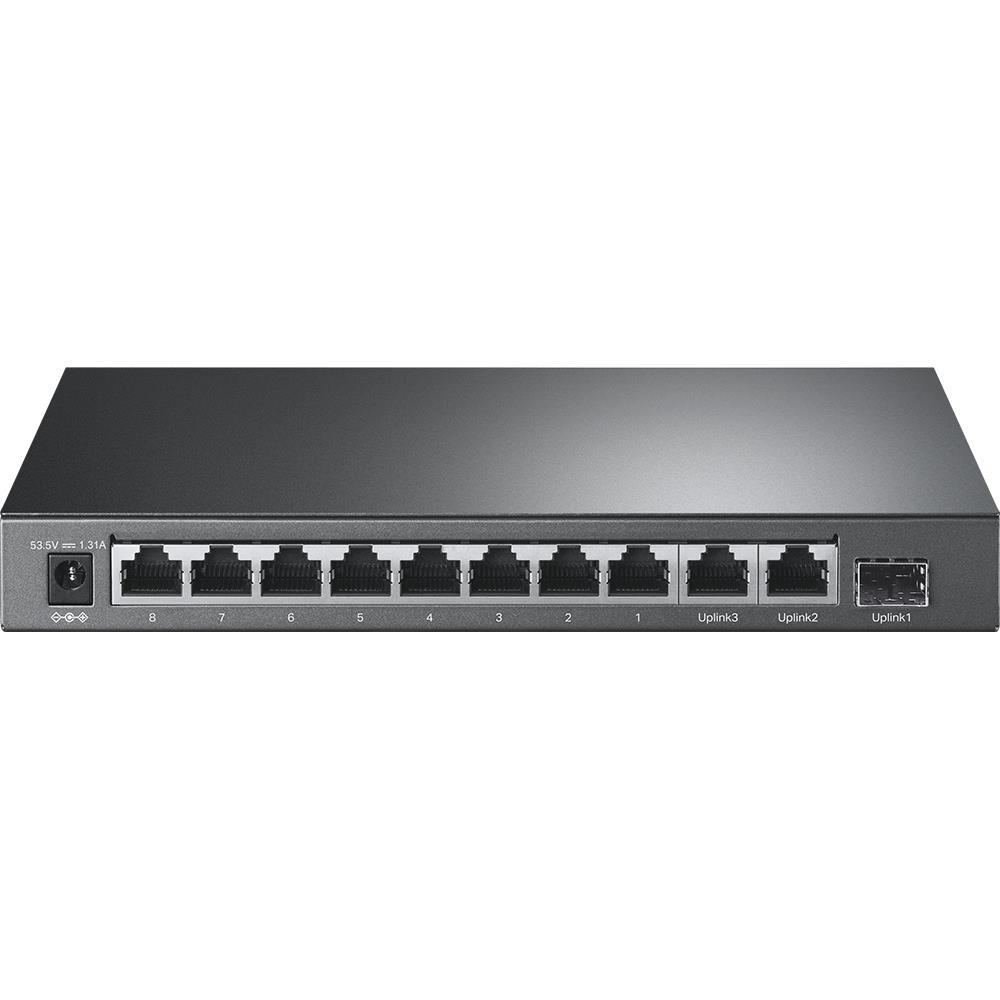

- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
General
| Unit Calculated Weight | 1.31 kg |
| Unit Calculated Volume | 0.005519 cubm |
| Units per Shipping Box | 1 |

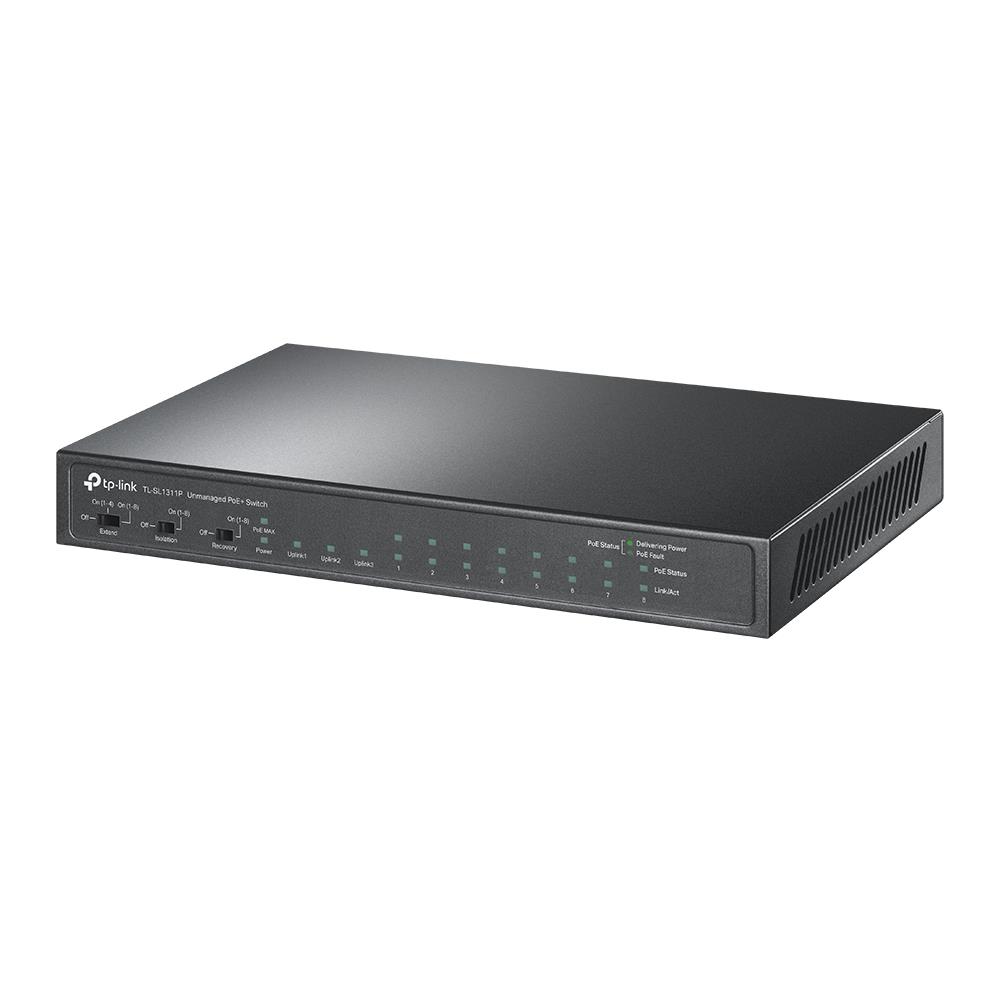

| Summary | TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 7.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE) |
| Unit Box Height | 0.073 |
| Unit Box Length | 0.315 |
| Unit Box Width | 0.24 |
| Model | TL-SL1311P |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Network
| 10G support | No |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Data transmission
| Forwarding rate | 5.6544 Mpps |
| Jumbo frames | 16 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Switching capacity | 7.6 Gbit/s |
Design
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Reset button | Yes |
Power
| DC input voltage | 53.5 V |
| Power consumption (max) | 77.32 W |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Depth | 126 mm |
| Height | 26 mm |
| Width | 209 mm |
Packaging content
| Cables included | LAN (RJ-45) |
Packaging data
| Package type | Box |
Certificates
| Certification | FCC, CE, RoHS |
