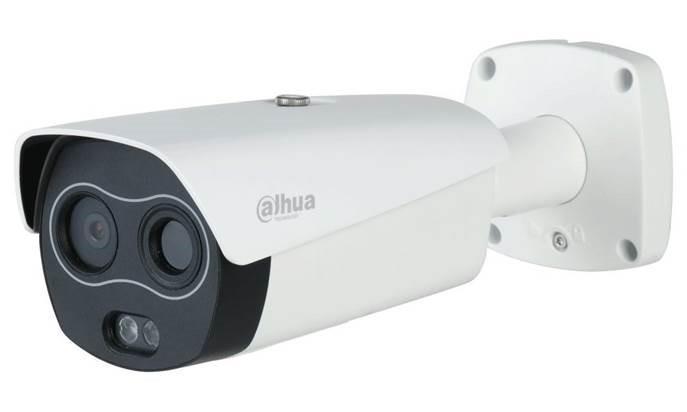

Thermal Network Hybrid Bullet Camera
> Vanadium oxide uncooled focal plane detector.
> 4Megapixel progressive scan CMOS.
> Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection.
> Built-in white light and speaker that produce light and sound alarms to deter intruders.
> Built-in IR LED with a maximum illumination distance of 35 m.
> Dual image fusion (visible and thermal images).
> 12 VDC ± 20%/PoE power supply.
> IP67 rated.
> Thermal Focal Length 7 mm, Field of View 24°
> Visual Focal Length 8 mm, Field of View 33.4°
General
| Unit Calculated Weight | 1.93 kg |
| Unit Calculated Volume | 0.01183 cubm |
| Units per Shipping Box | 1 |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.365 |
| Unit Box Width | 0.18 |
| Model | TPC-BF2241-TB7F8-DW-S2 |
Design
| Form factor | Bullet |
| Product colour | White |
Performance
| Thermal module | Yes |
Camera
| Camera shutter speed | 1 s–1/30,000 s s |
Image sensor
| Number of effective pixels (H x V) | 256 (H) × 192 (V) pixels |
| Optical sensor size | 1/2.7" " |
| Sensor type | CMOS |
Lens system
| Focal length range | Thermal - 7mm, visual - 8mm mm |
Video
| Total megapixels | 4 MP |
Storage
| Compatible memory cards | MicroSDXC |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Security
| Alarm input channels | 1 |
| Alarm output channels | 1 |
Operational conditions
| Operating temperature (T-T) | –30 °C to +60 °C °C |
Weight & dimensions
| Depth | 103.8 mm |
| Height | 95.8 mm |
| Weight | 1400 g |
| Width | 279.9 mm |
Technical details
| Audio input | 1 |
| Power source | 12 VDC, 1 A ± 20%, PoE (802.3af) |
| Suitable for outdoor use | Yes |
Other features
| Audio output | 1 |
