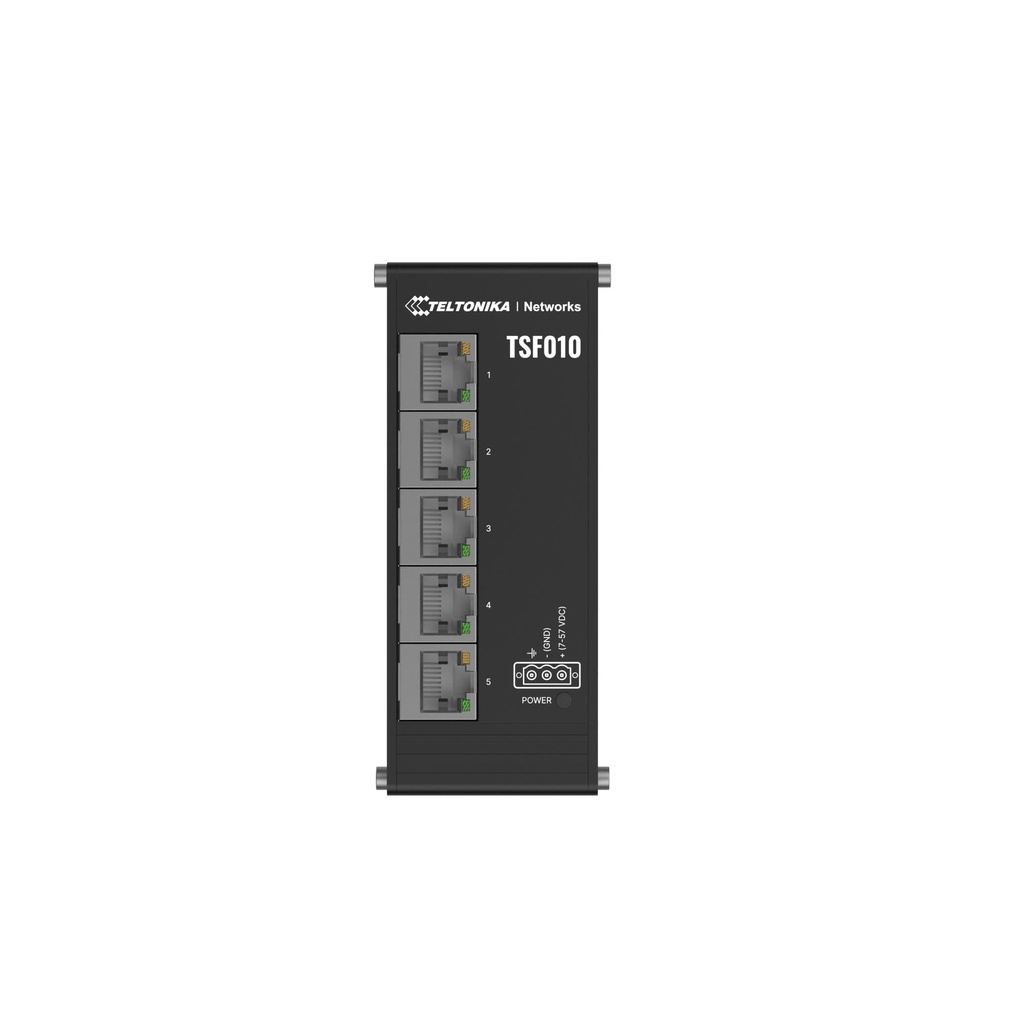

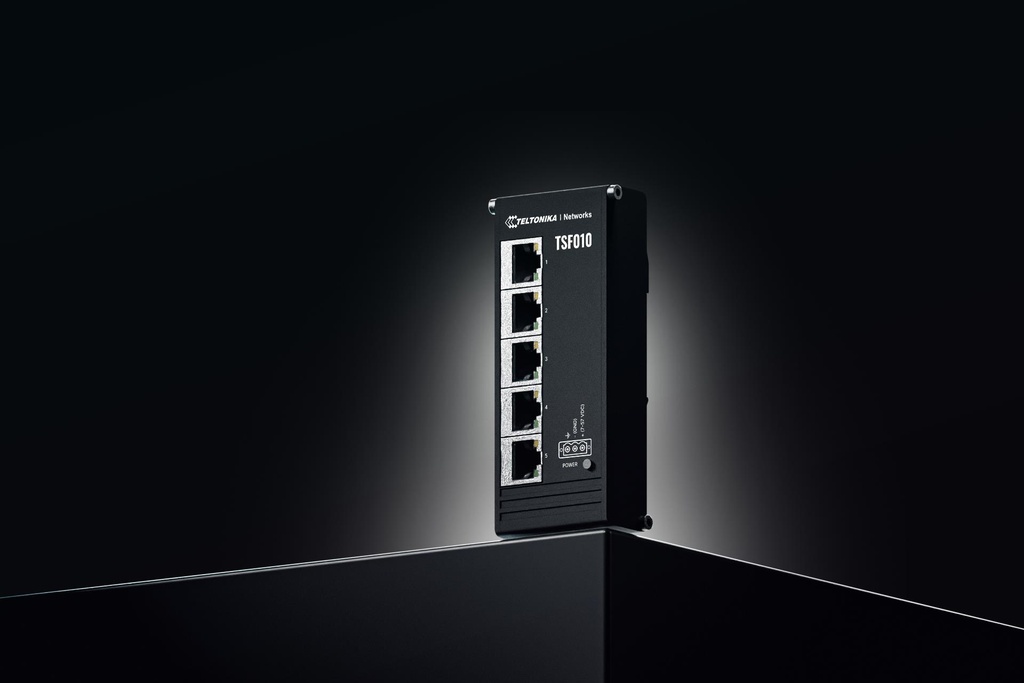

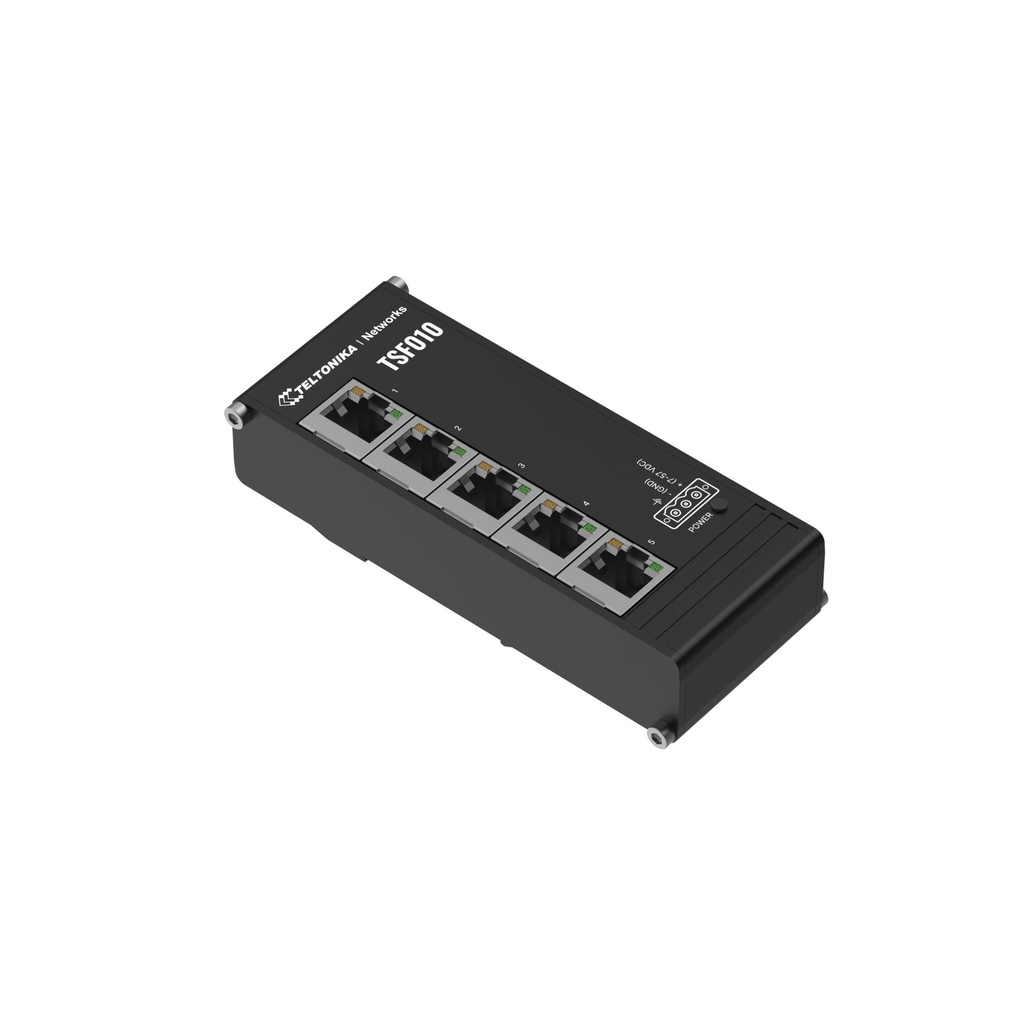

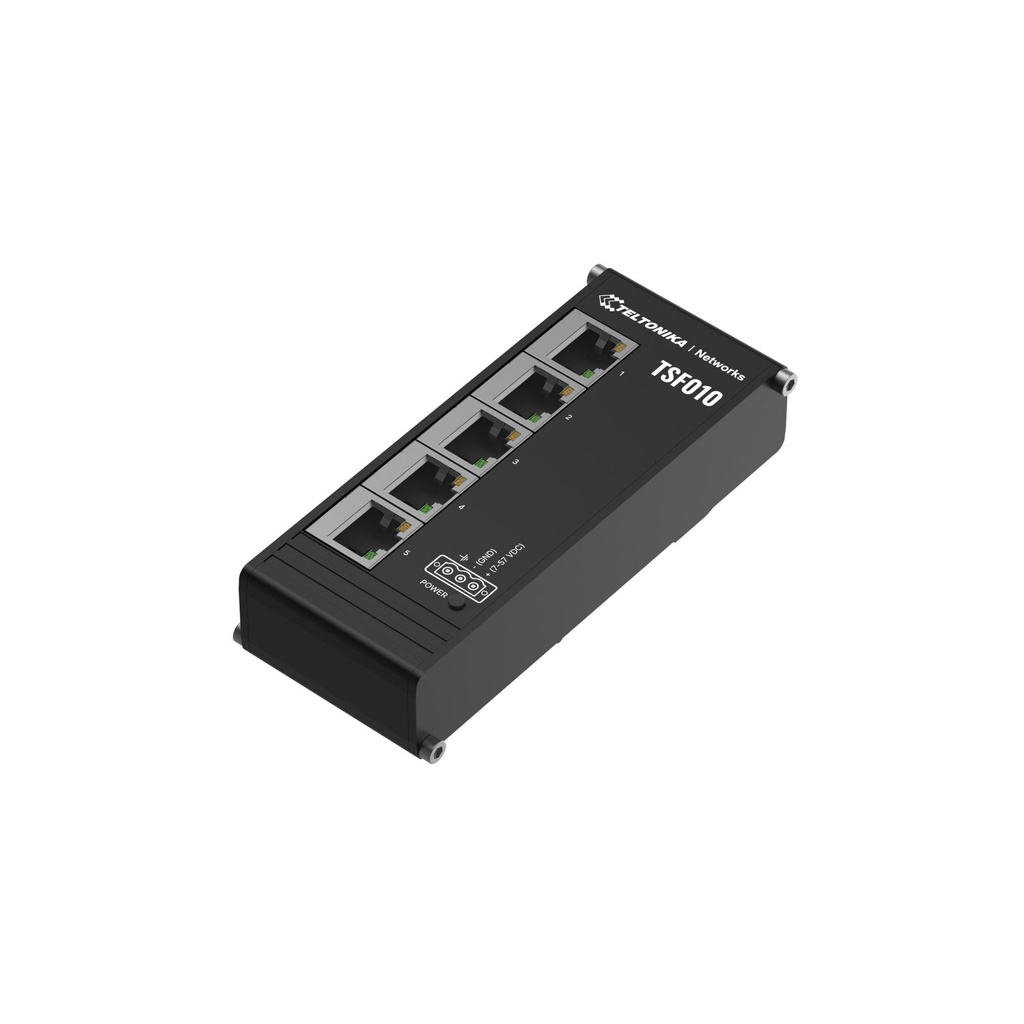

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

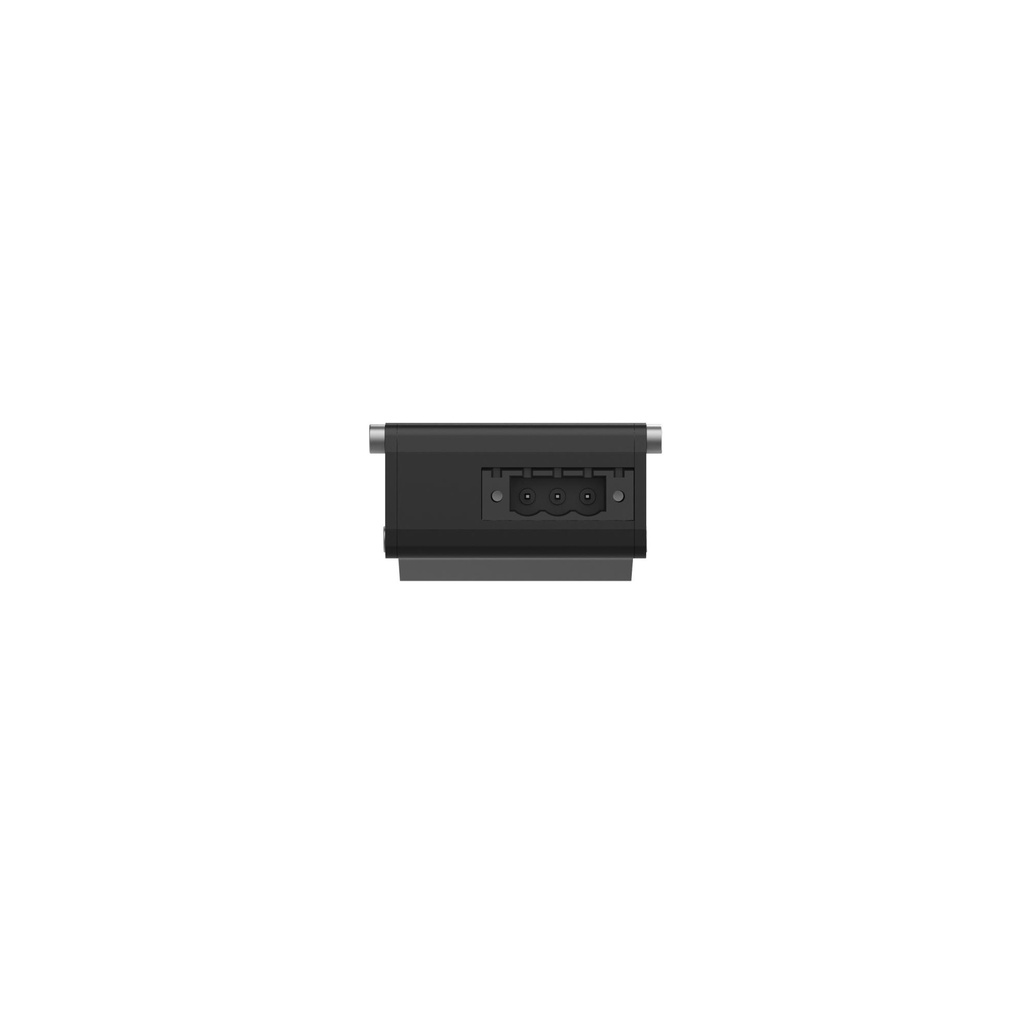

- 3-PIN POWER INPUT
- Flexible and tailor-made for industrial use
- FLAT & COMPACT
- Flat and compact design weighing only 142 g

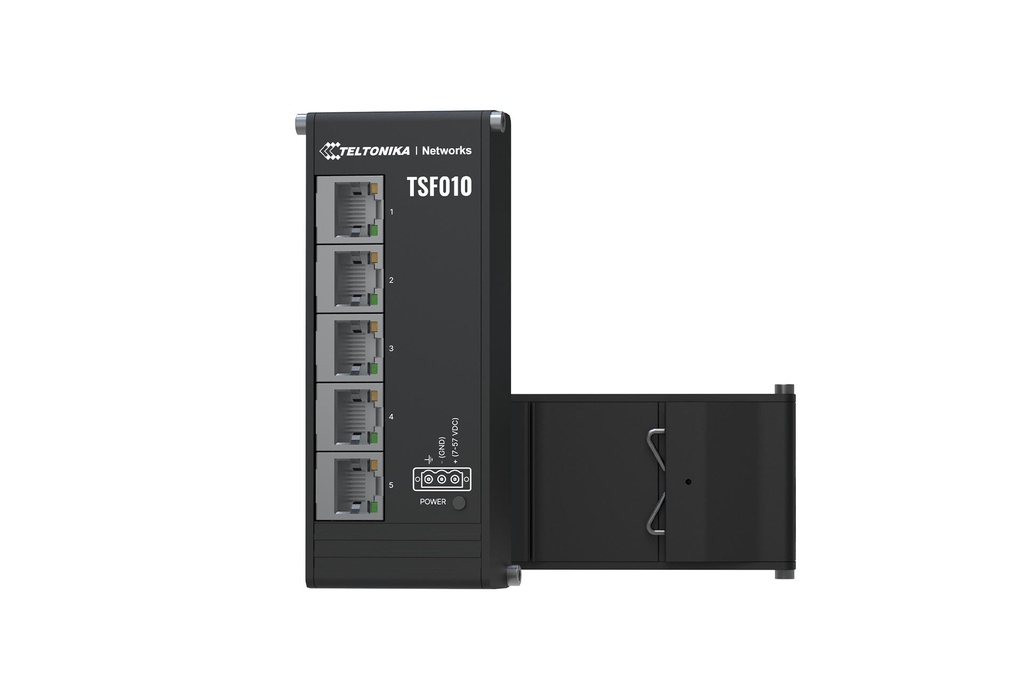

- INTEGRATED DIN RAIL BRACKET
- Easy mounting for plug-and-play deployment
- 7-57 VDC
- Suitable voltage range for industrial applications
General
| Unit Calculated Weight | 0.15 kg |
| Unit Calculated Volume | 0.000237 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Form factor: DIN rail |
| Unit Box Height | 0.031 |
| Unit Box Length | 0.139 |
| Unit Box Width | 0.055 |
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x |
Data transmission
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
Design
| DIN rail mounting | Yes |
| Form factor | DIN rail |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| Product colour | Black |
| Rack mounting | No |
| Stackable | No |
Power
| Input voltage | 7 - 57 V |
| Power consumption (max) | 1.5 W |
| Power consumption (typical) | 1 W |
| Power source | DC |
| Power supply included | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 50 mm |
| Height | 28 mm |
| Weight | 142 g |
| Width | 113 mm |
