PLUG-N-PLAY
No additional configuration needed
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
STATUS LEDS
1 x Power, 10 x Ethernet
9-30 V
Wide range of supported power supply voltages
GIGABIT ETH
5 x Gigabit Ethernet with speeds up to 1000 Mbps

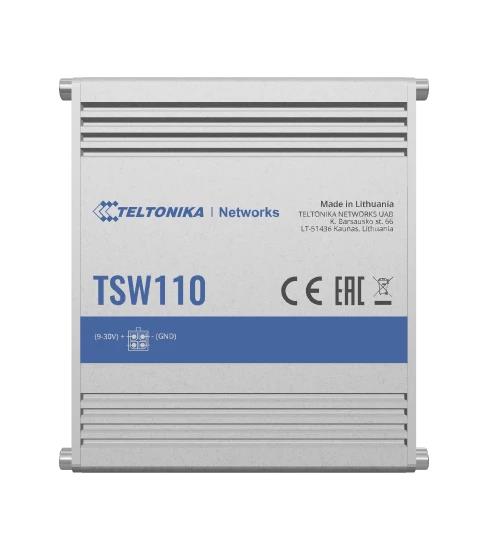

- TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100
- Possible to power up through the first LAN port
- It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution
- It offers a wide range of supported power supply voltages (9-30 V)
- Ideal for professional high bandwidth applications to provide reliable data connection
General
| Unit Calculated Weight | 0.393 kg |
| Unit Calculated Volume | 0.001837 cubm |
| Units per Shipping Box | 1 |
| Summary | Teltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 30 V. Power over Ethernet (PoE) |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.15 |
| Model name | TSW110000000 |
| Model | TSW110 |
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
Data transmission
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.128 MB |
| Switching capacity | 10 Gbit/s |
Design
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Yes |
| Product colour | Blue/Grey |
Power
| AC input voltage | 100 - 240 V |
| DC input voltage | 30 V |
| Power consumption (typical) | 1.8 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 85 mm |
| Height | 30 mm |
| Weight | 227 g |
| Width | 100 mm |
Packaging content
| Quick start guide | Yes |
Packaging data
| Package type | Box |
