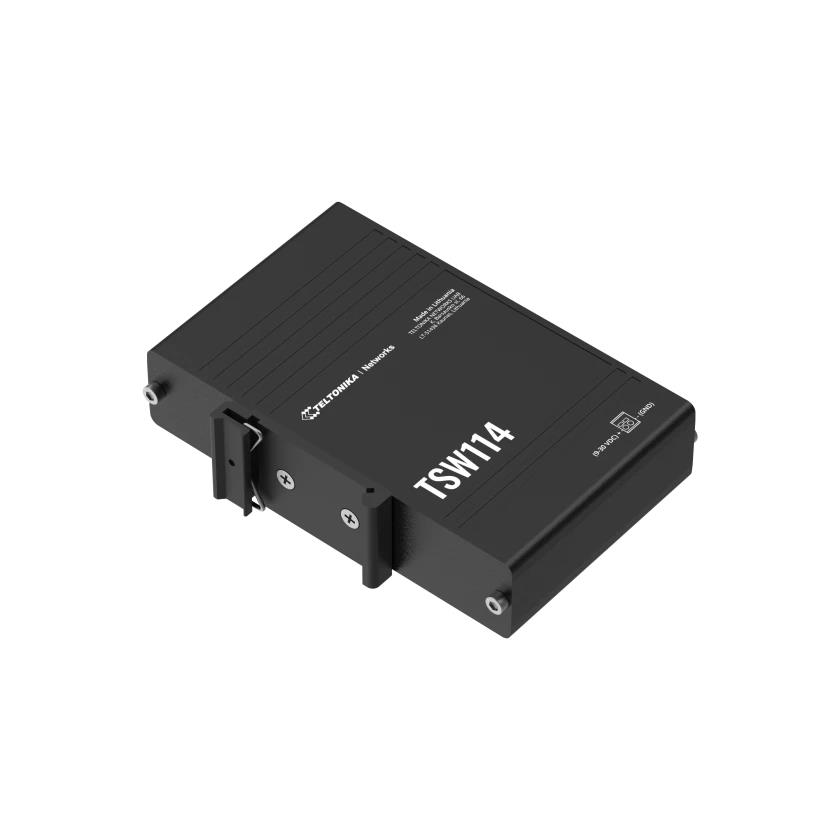

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.
General
| Unit Calculated Weight | 0.186 kg |
| Unit Calculated Volume | 0.0004253 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Teltonika TSW114000000. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Wall mountable |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.035 |
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| 10G support | No |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
Data transmission
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
Design
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | LAN/Power |
| Product colour | Black |
| Rack mounting | No |
| Stackable | No |
| Wall mountable | Yes |
Power
| Power consumption (max) | 2.3 W |
| Power source | DC |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 80.5 mm |
| Height | 27.4 mm |
| Weight | 174 g |
| Width | 113.1 mm |
Certificates
| Certification | CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM |
