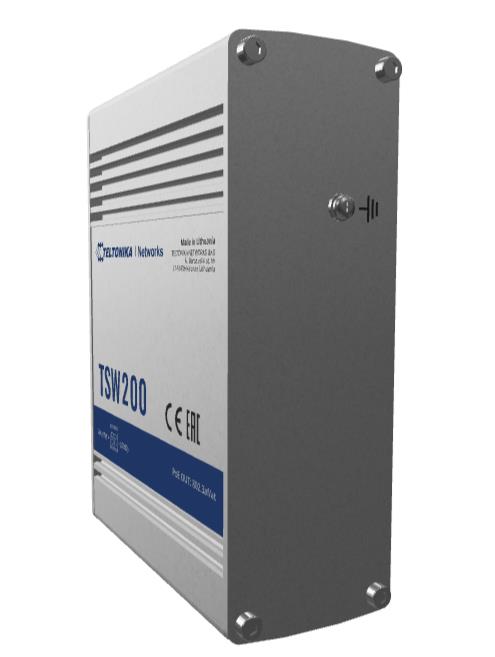

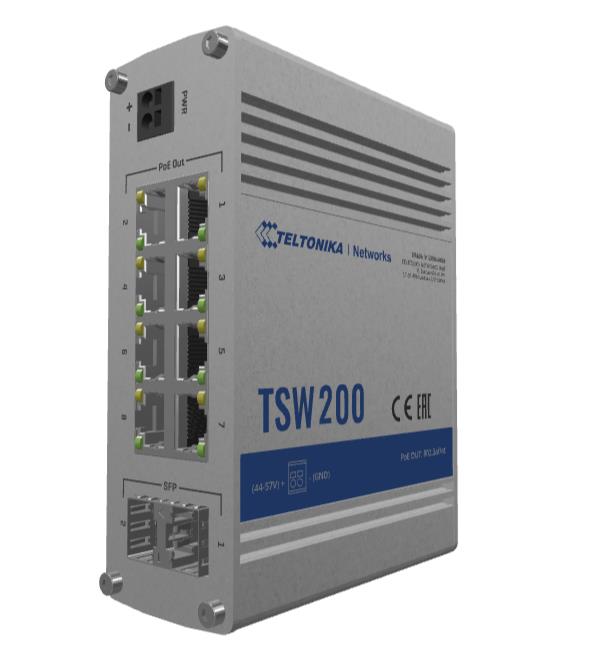

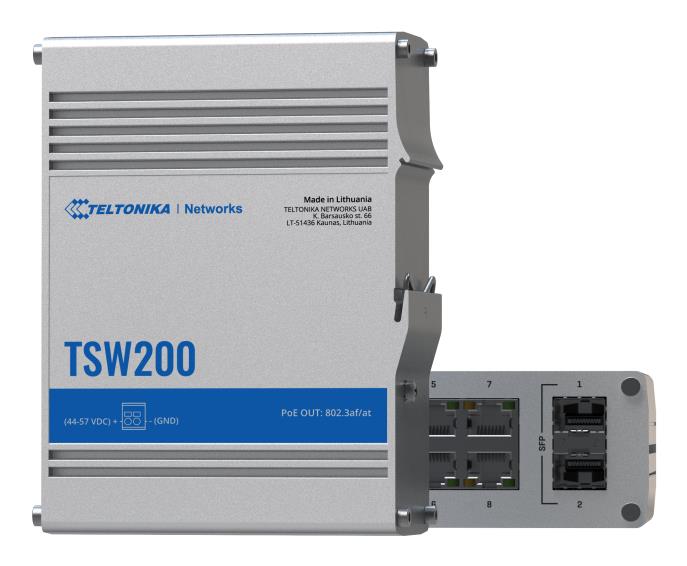

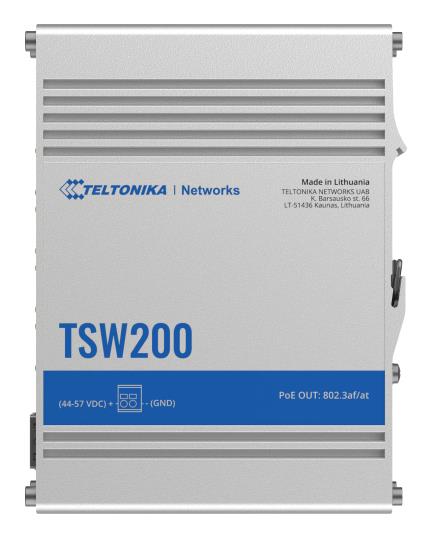

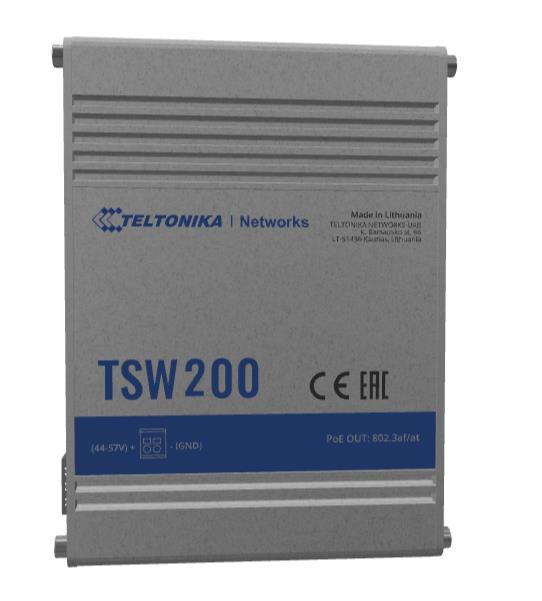

TSW200 is industrial unmanaged switch from Teltonika Networks.
TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.
- POE+
- SFP
- ETHERNET
- DURABILITY
- MOUNTING (DIN rail)
- POWER BUDGET
General
| Unit Calculated Weight | 0.6 kg |
| Unit Calculated Volume | 0.001737 cubm |
| Units per Shipping Box | 1 |
| Summary | Teltonika TSW200. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 - 57 V. Power over Ethernet (PoE). Wall mountable, Rack mounting |
| Unit Box Height | 0.146 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.07 |
| Model name | TSW200 |
| Model | TSW200 |
Management features
| Switch type | Unmanaged |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u |
Data transmission
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet buffer memory | 0.128 MB |
Design
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | LAN/PoE/Status |
| Product colour | Aluminium |
| Rack mounting | Yes |
| Wall mountable | Yes |
Power
| DC input voltage | 7 - 57 V |
| Power consumption (max) | 106 W |
| Power consumption (typical) | 1.8 W |
| Power source | DC |
| Power supply included | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 44.2 mm |
| Height | 132 mm |
| Weight | 456 g |
| Width | 95.1 mm |
