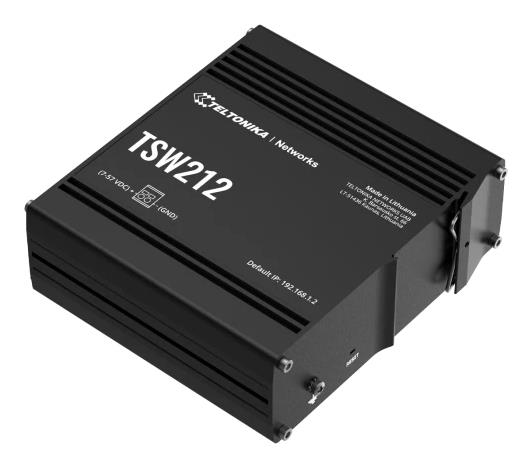

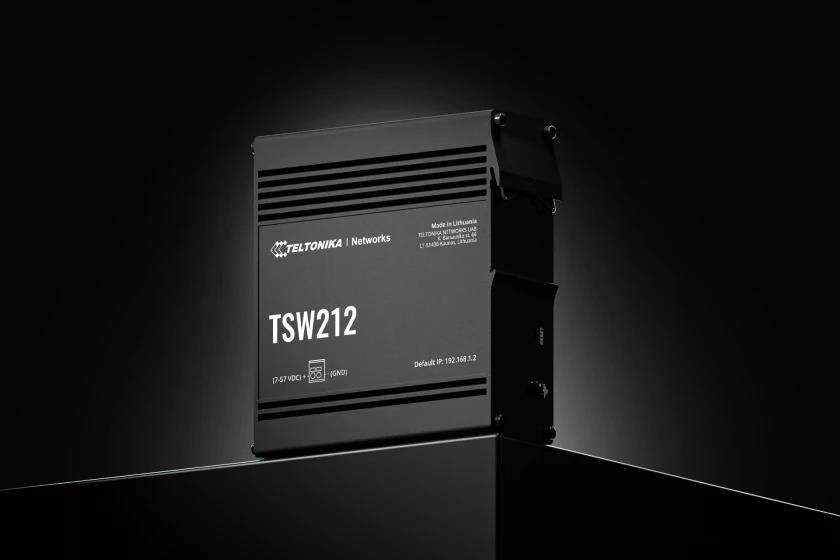

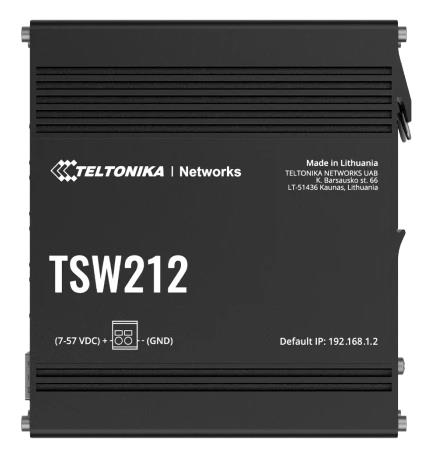

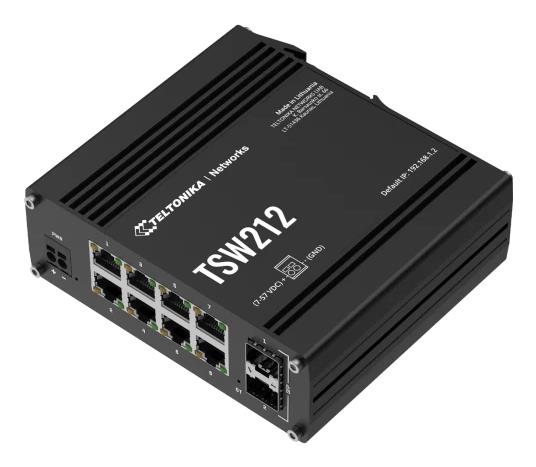

MANAGED ETHERNET SWITCH
TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
General
| Unit Calculated Weight | 0.675 kg |
| Unit Calculated Volume | 0.001455 cubm |
| Units per Shipping Box | 16 |
| Units per Pallet | 0 |
| Summary | Teltonika TSW212. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.14 |
| Model name | TSW212000000 |
| Model | TSW212 |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |

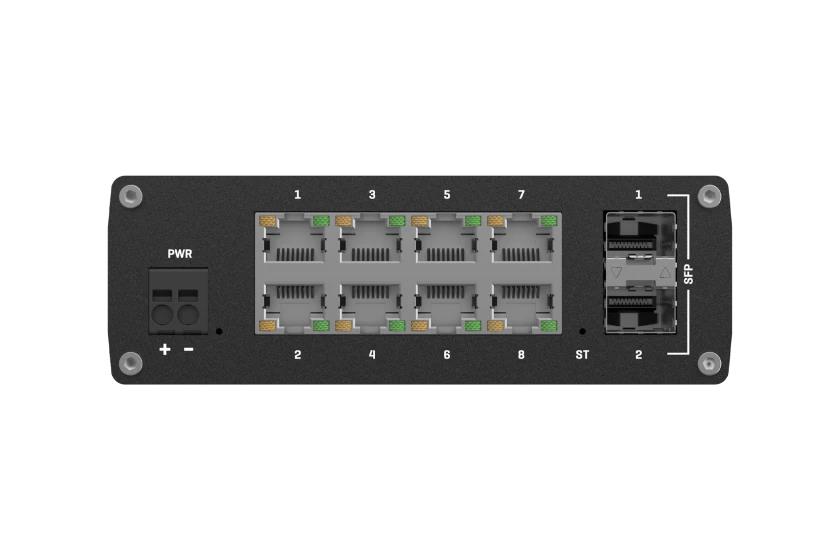

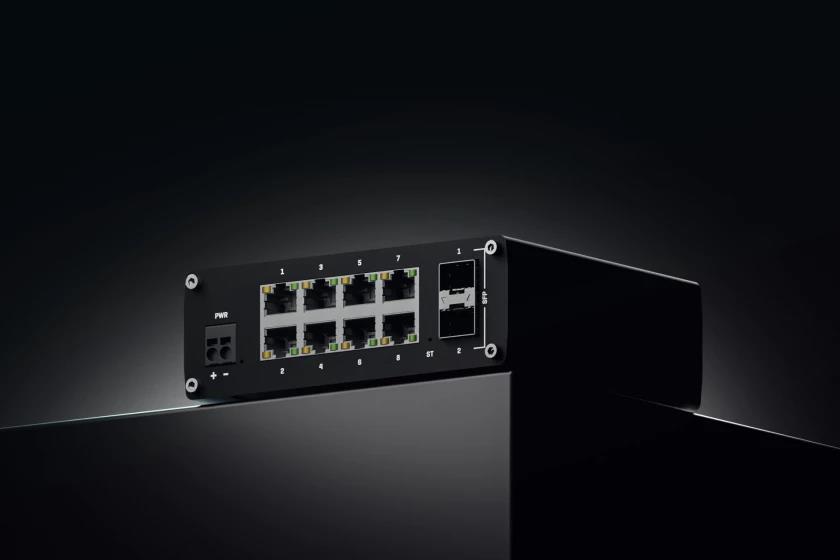

Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| IP routing | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3az |
| Port mirroring | Yes |
| VLAN support | Yes |
Data transmission
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
Security
| DHCP features | DHCP client/DHCP server |
| Queue scheduling algorithms | Weighted Round Robin (WRR)/WFQ/WFQ+SP |
| Security algorithms | SNMPv2/SNMPv3 |
Design
| International Protection (IP) code | IP30 |
| LED indicators | LAN/Power |
| Product colour | Black |

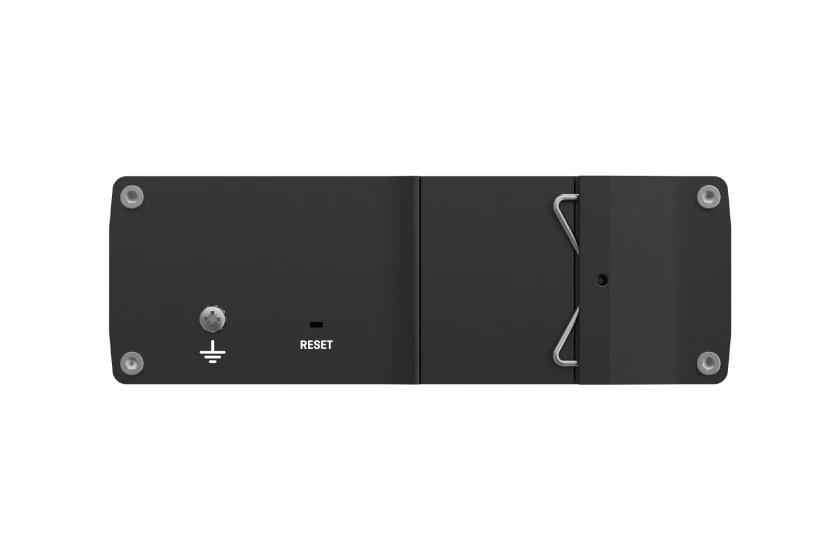

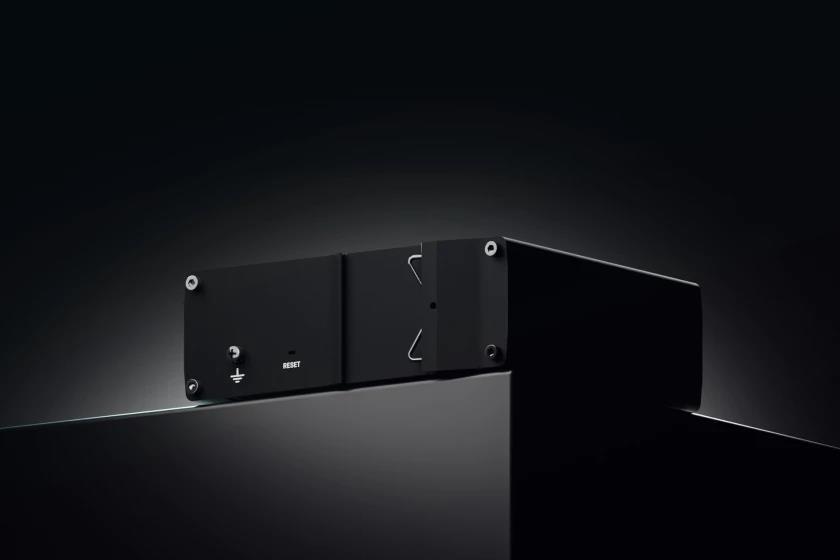

| Reset button | Yes |
Performance
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Memory type | DDR3-SDRAM |
Power
| Power consumption (max) | 6 W |
| Power source | DC |
| Power supply included | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Depth | 122.2 mm |
| Height | 44.2 mm |
| Weight | 615 g |
| Width | 132 mm |
