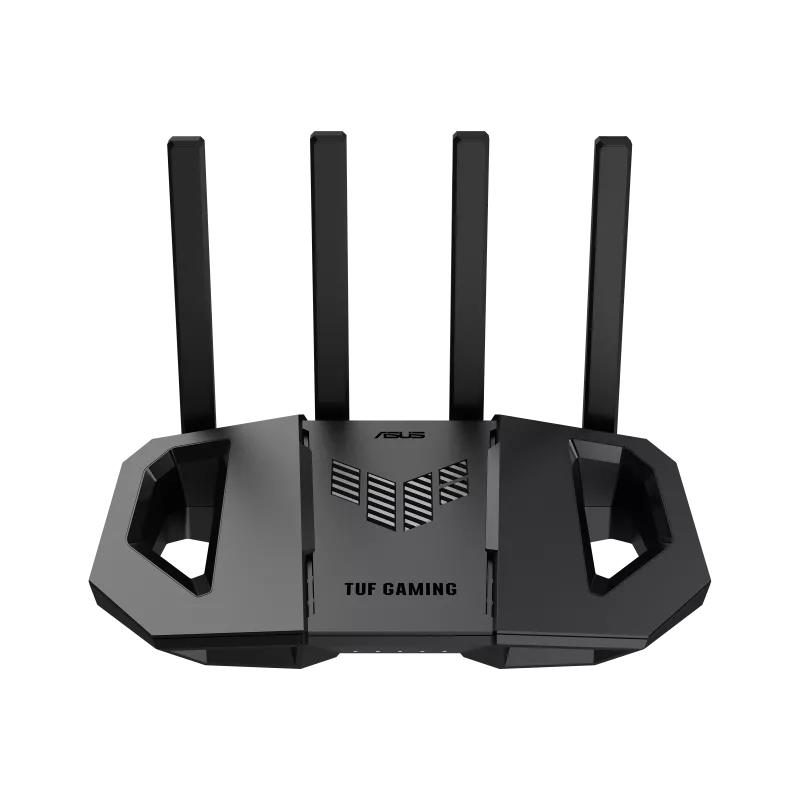

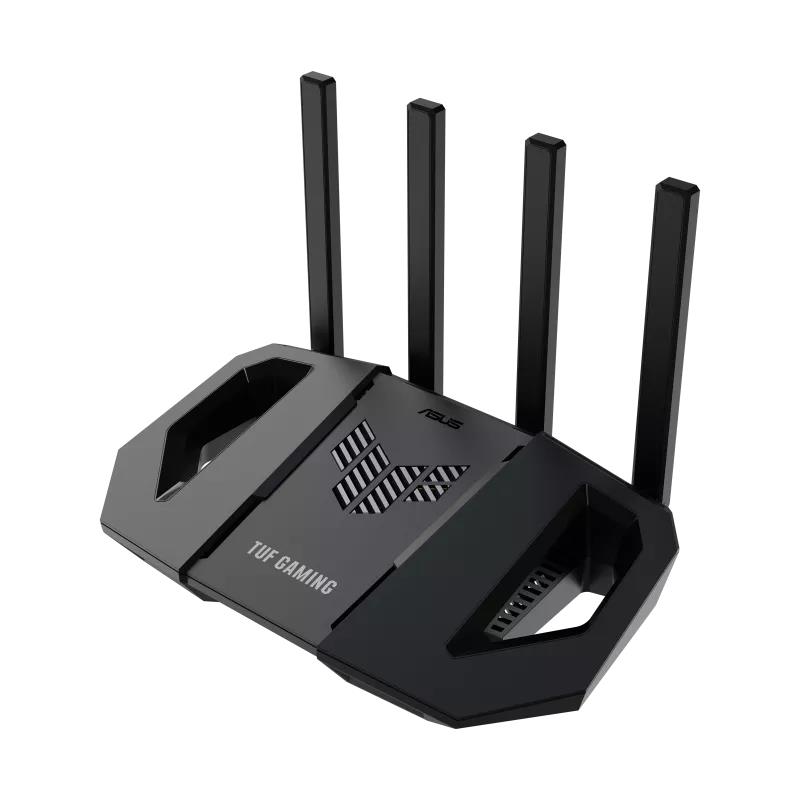

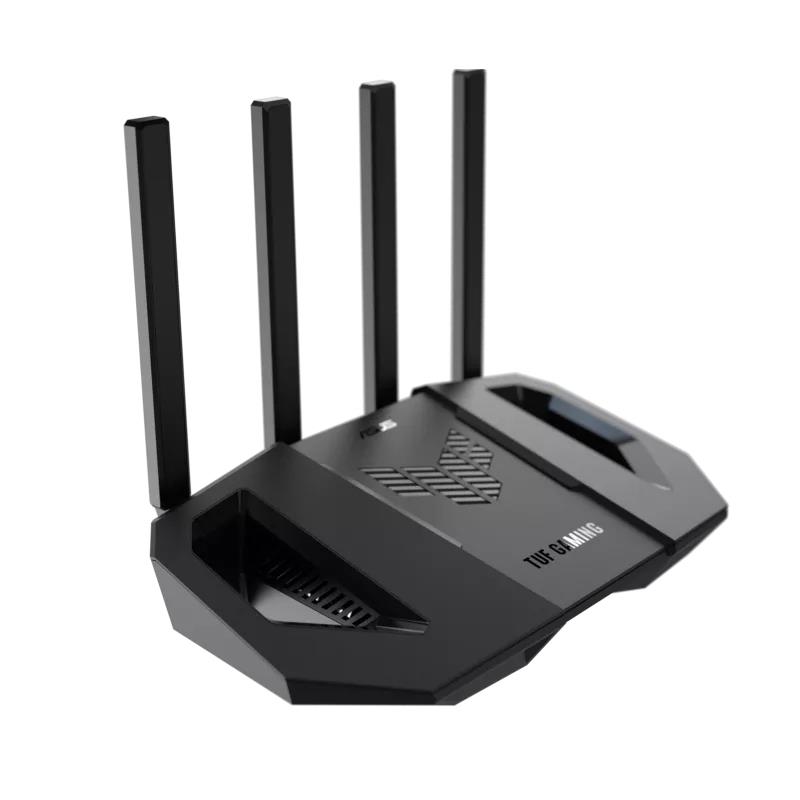

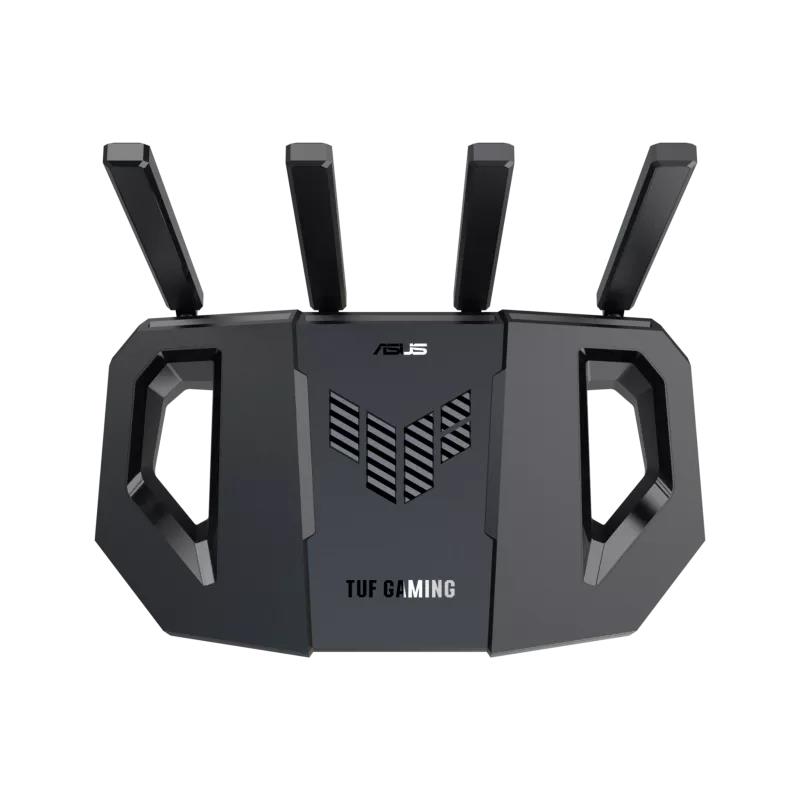

TUF Gaming BE3600
Inspired by the unique design and power wings of drones, the TUF Gaming BE3600 combines a sleek appearance with advanced cooling efficiency. Its hollow design on both sides enhances heat dissipation for stable all-day operation, enhancing your internet and gaming experience.
4K-QAM
Compared to 1024-QAM with WiFi 6/6E, 4096-QAM (Quadrature Amplitude Modulation)* allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.
Multi-Link Operation (MLO)
Multi-Link Operation (MLO)* enables buffering-free connection by intelligently combining and switching between the 2.4 GHz and 5 GHz bands. TUF Gaming BE3600 is built to be future-proof with all WiFi 7 devices, regardless of the MLO mode they utilize*.
- Ultrafast WiFi 7 – Next-generation WiFi 7 router boosts speeds up to 3600 Mbps
- 4K-QAM Modulation – All-new 4096-QAM offers a 1.2 times increase in transmission speed compared to the previous generation
- High Computational Power CPU – Equipped with the all-new Broadcom quad-core powerhouse CPU, boasting a DMIPS computational capability of 20K, effortlessly handling both software and hardware-related tasks
- ASUS AiMesh Support – Support AiMesh to create a whole-home mesh network
- Tested Durability and Stable Operation – TUF Gaming BE3600 is built to be durable and undergoes verified testing to ensure reliable, stable operation
General
| Unit Calculated Weight | 1.35 kg |
| Unit Calculated Volume | 0.009016 cubm |
| Units per Shipping Box | 8 |
| Units per Pallet | 0 |
| Summary | ASUS TUF-BE3600. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 2882 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, VPN server: VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard. Security algorithms: SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal, WPS, Firewall security: Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum..., NAT functionality: NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through,.... Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WAN |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.09 |
| Unit Box Width | 0.425 |
| Model name | TUF-BE3600 |
Wireless LAN features
| Modulation | 4096-QAM/OFDMA |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 2882 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | Yes |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Built-in FTP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Port forwarding | Yes |
| Port triggering | Yes |
| Support Samba (storage) | Yes |
| VPN server | VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard |
| VPN support | VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |

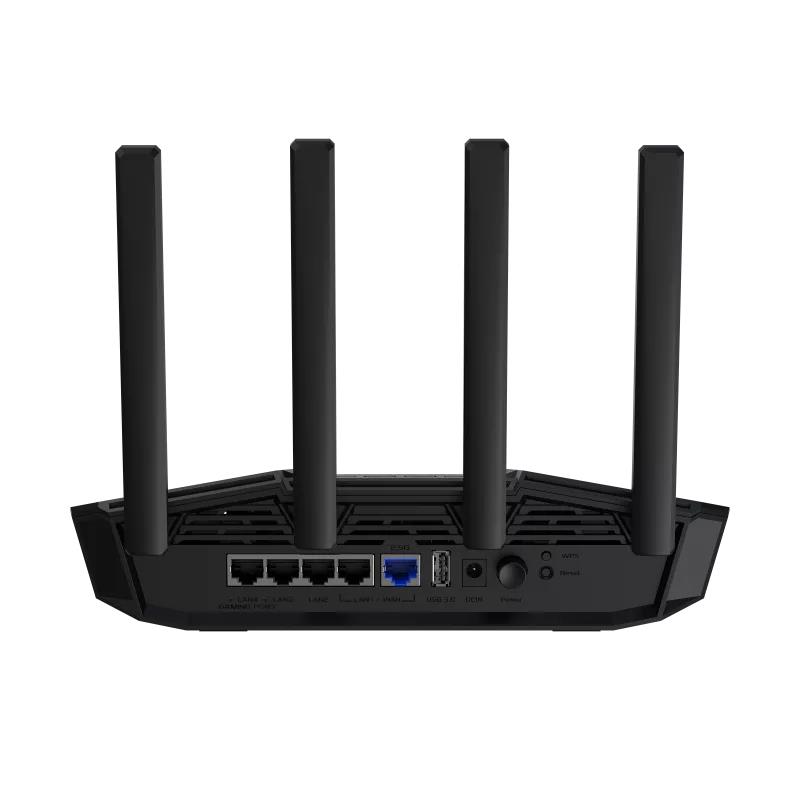

Ports & interfaces
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Firewall security | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
| MAC address filtering | Yes |
| NAT functionality | NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | SSH/WPA2-Enterprise/WPA2-Personal/WPA3-Personal/WPA-Enterprise/WPA-Personal/WPS |
| System event log | Yes |
| URL filtering | Yes |
Protocols
| DHCP server | Yes |
Design
| LED indicators | LAN,Power,WAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Warranty card | Yes |
Antenna
| Antenna design | External |
| Antennas quantity | 4 |
Features
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Processor cores | 4 |
| Processor frequency | 2000 MHz |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output current | 2 A |
| Output voltage | 12 V |
| Power source type | AC |
Weight & dimensions
| Depth | 168 mm |
| Height | 205 mm |
| Weight | 561 g |
| Width | 274 mm |
Packaging data
| Number of products included | 1 pc(s) |
| Package depth | 190 mm |
| Package height | 90 mm |
| Package type | Box |
| Package weight | 1130 g |
| Package width | 420 mm |
