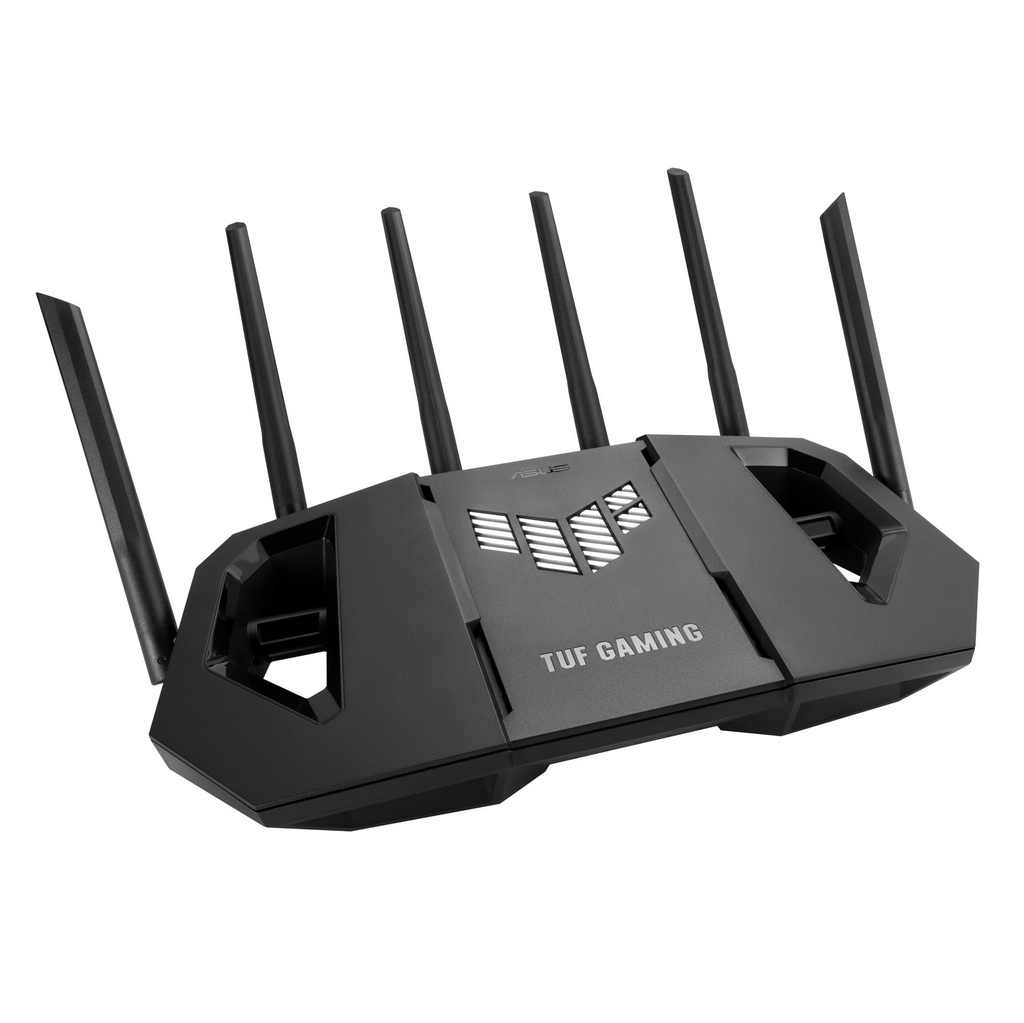

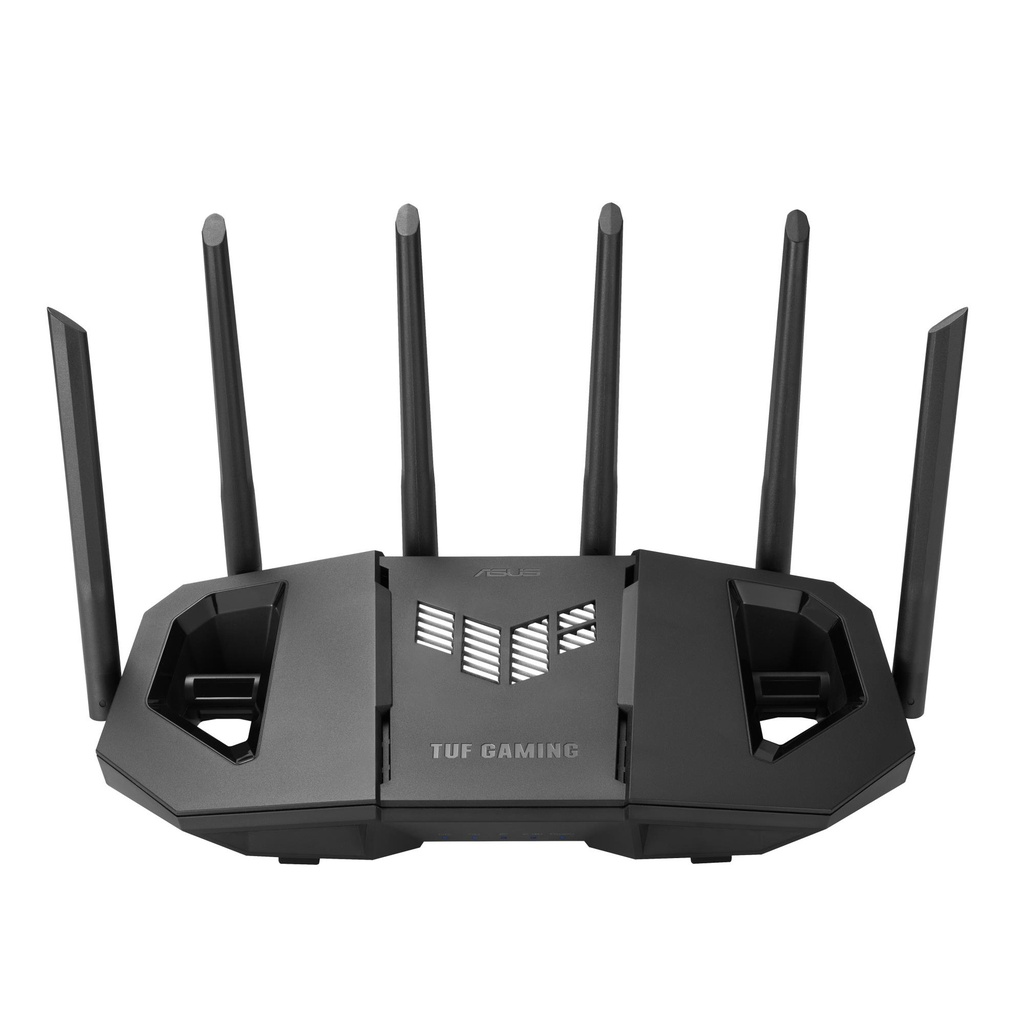

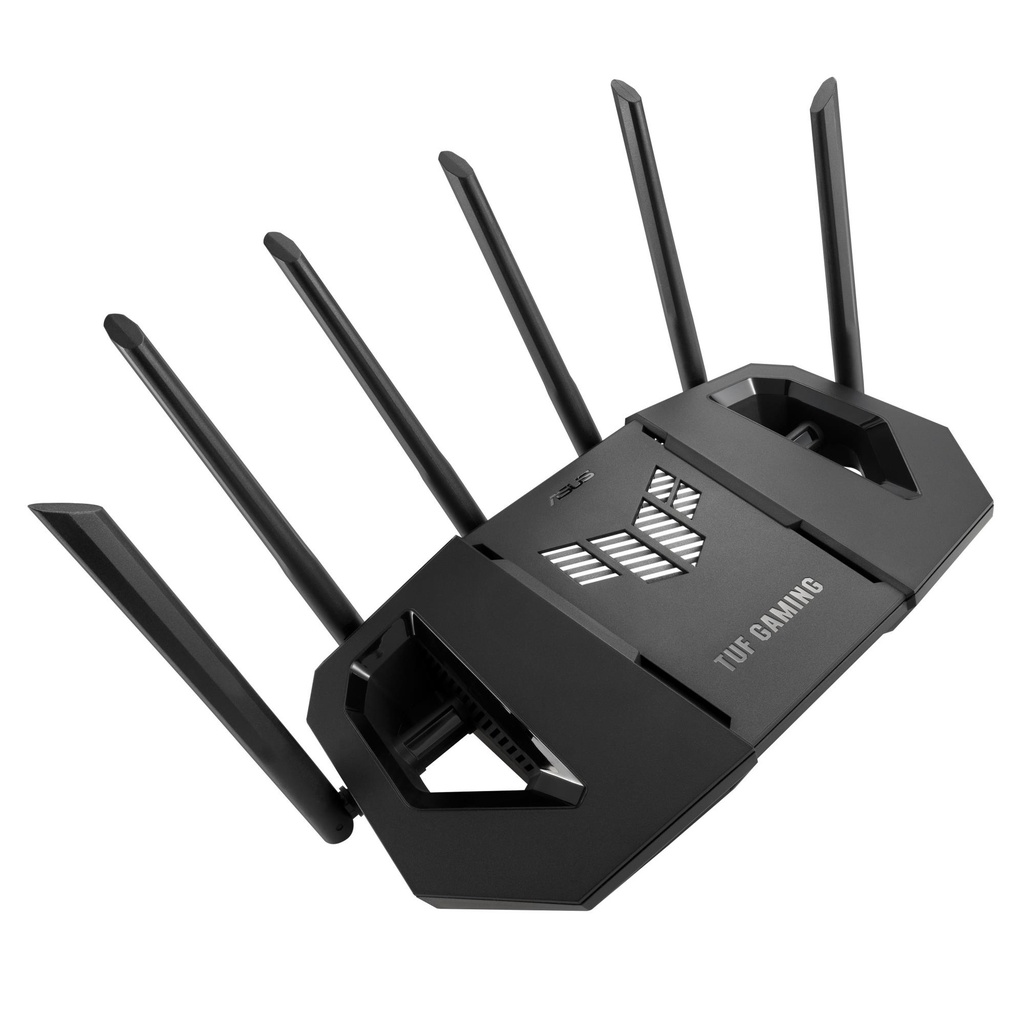

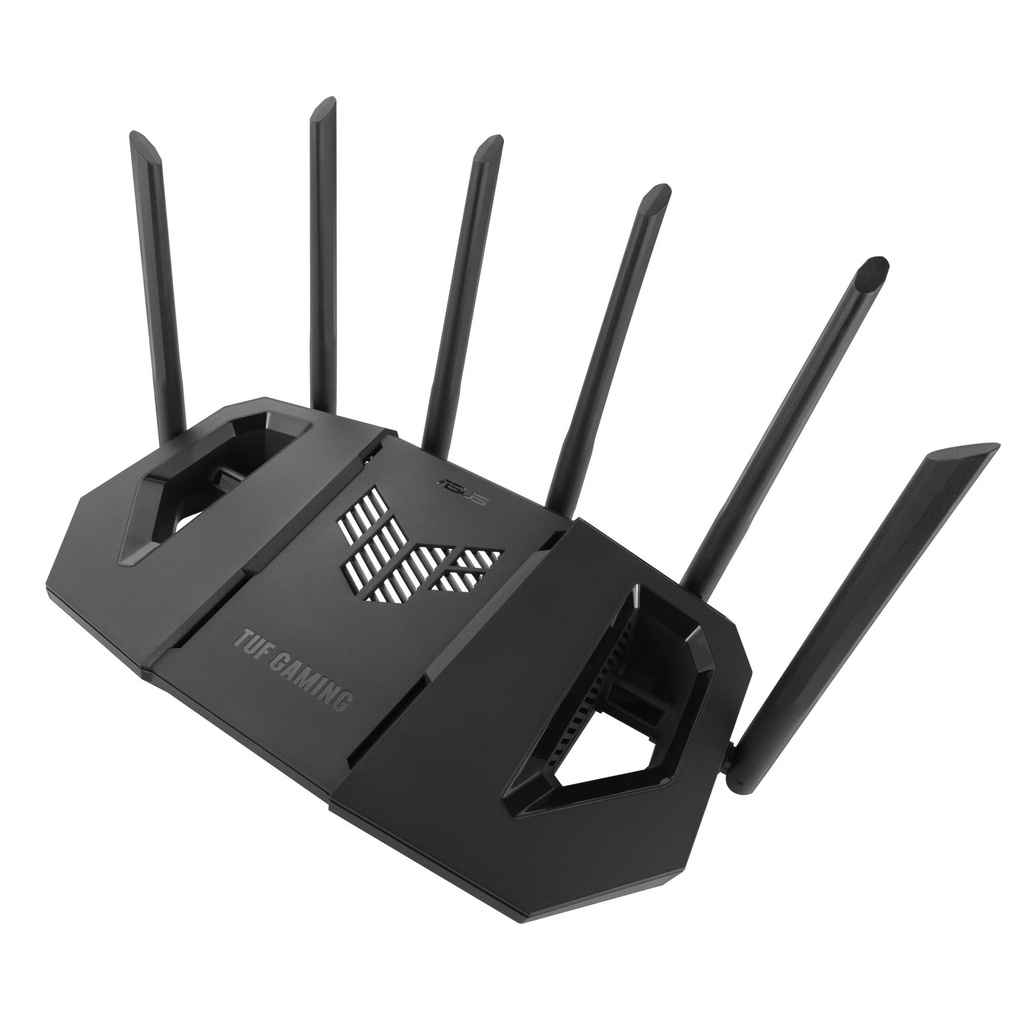

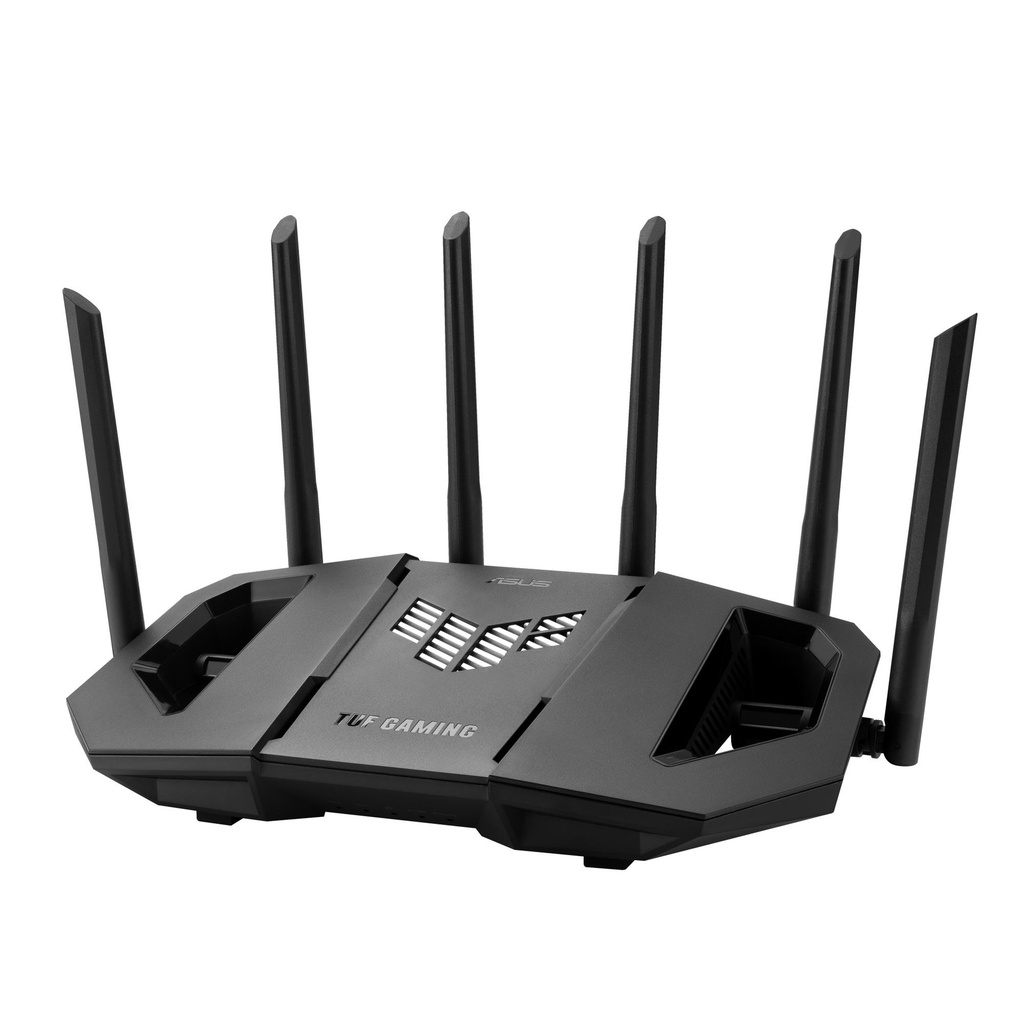

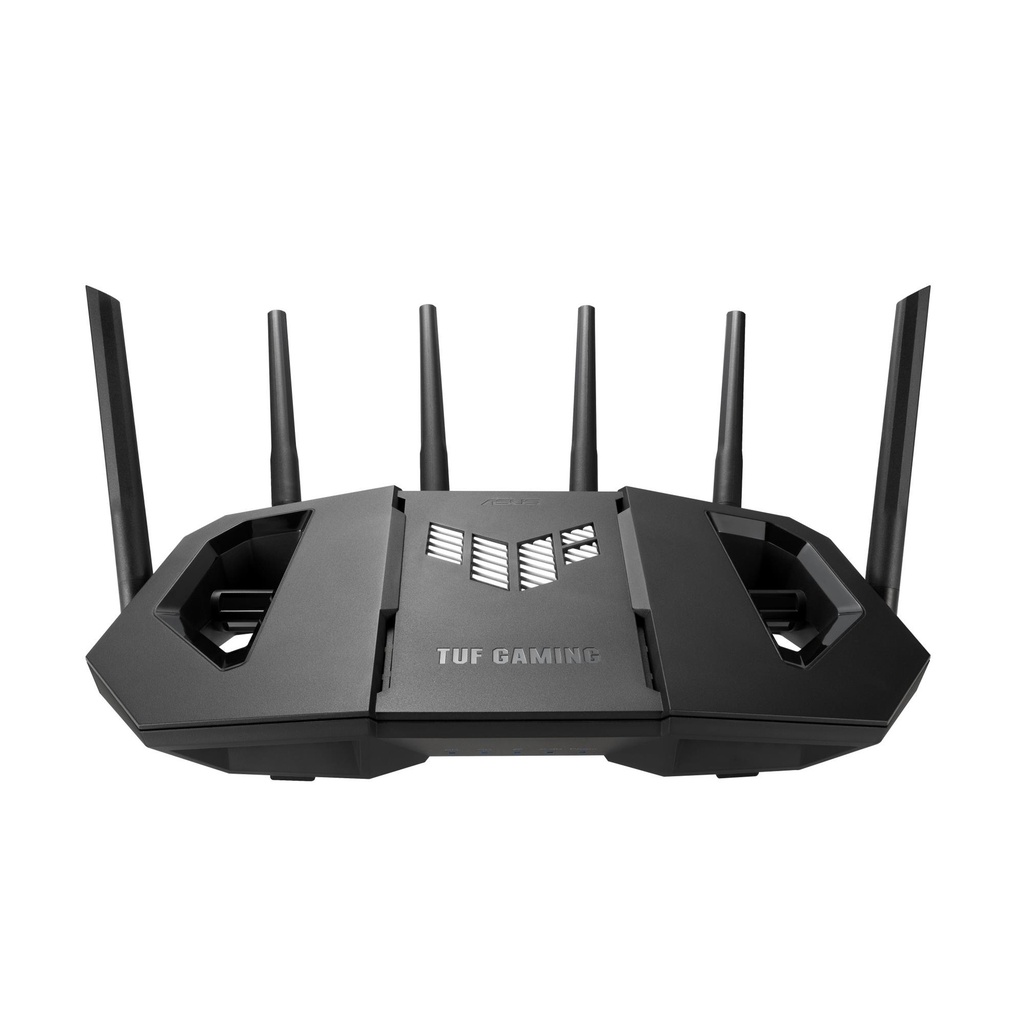

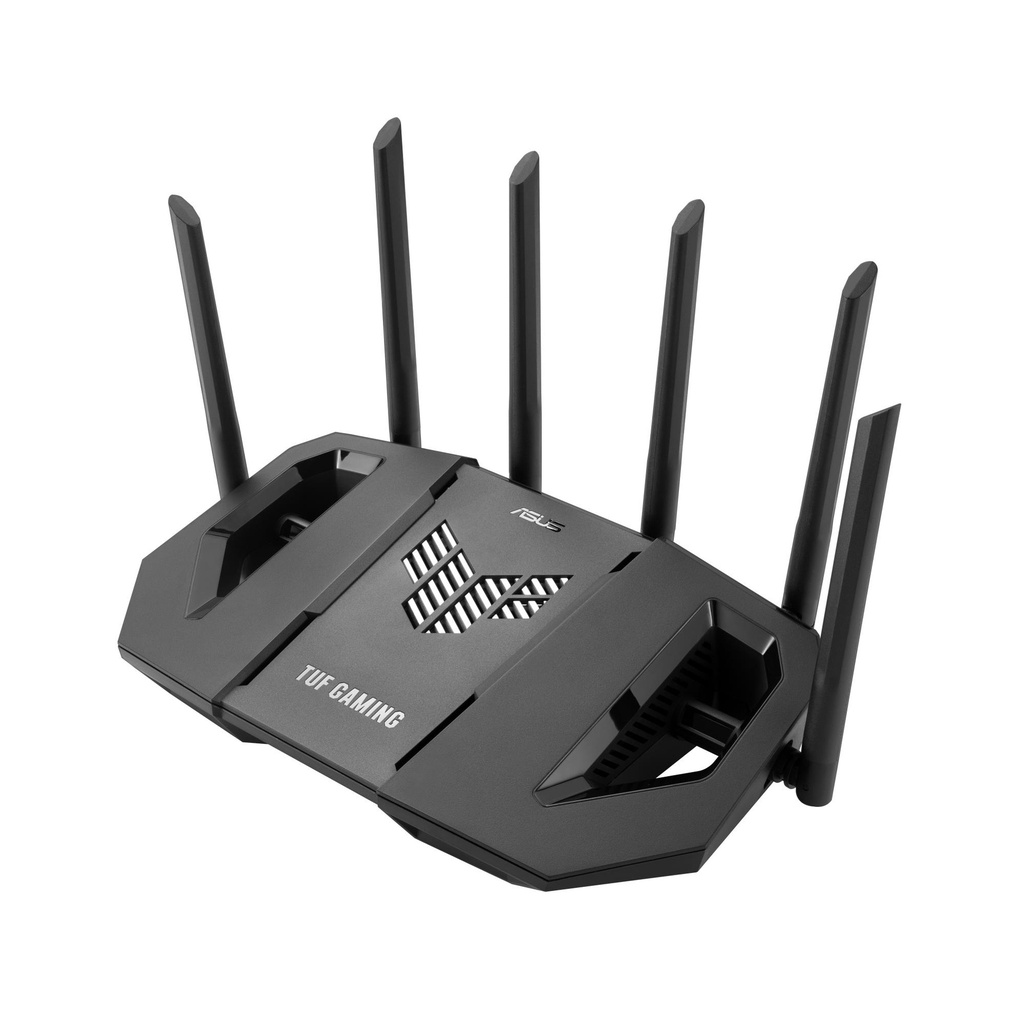

TUF Gaming BE9400
Always Strong.
Always On.
The TUF Gaming BE9400 is a durable, high-performance WiFi 7 router designed for stable, low-latency gaming. With speeds of up to 9,400Mbps, support for 320MHz channels, and Multi-Link Operation, it delivers fast and reliable connections across all your devices. It features four 2.5G LAN ports including a dedicated gaming port, to provide speedy and consistent wired connections for low-lag gameplay. Built to power through every battle, this router is ready when you are.
- Tri-band WiFi 7 throughput of up to 9400Mbps with 320MHz, MLO and 4K-QAM, enabling range of up to 2500 square feet

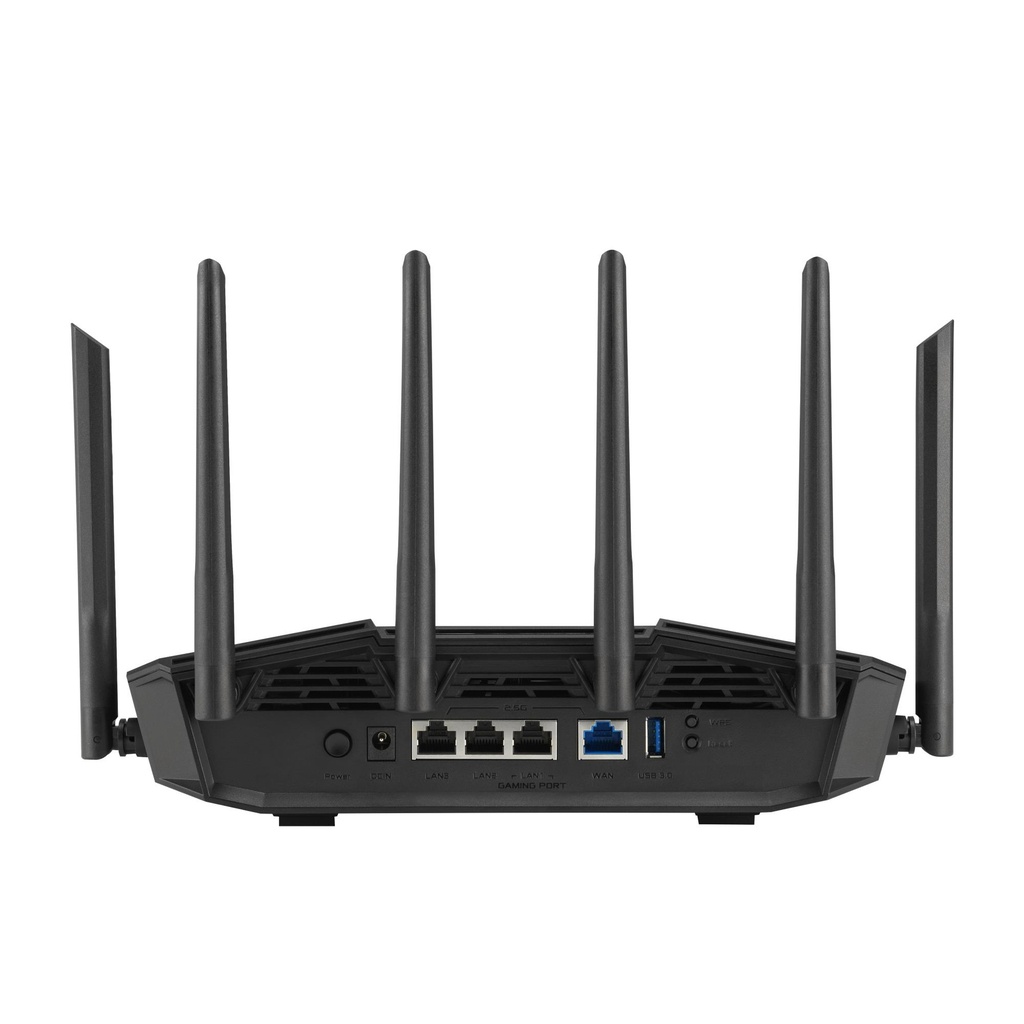

- Four 2.5G ports with three 2.5G LAN ports and one 2.5G WAN port
- Dedicated gaming port, one-tap game prioritization and OpenNAT for accelerating gameplay
- Advanced triple-level network security with AiProtection and pre-installed VPNs
- Easy IoT device and VPN subnetwork setup, instant connections with Smart Home Master
- Built to endure rigorous testing, ensuring reliability, stability, and long-lasting durability
- WiFi 7-enhanced AiMesh enables a secure and extendable network with compatible ASUS routers
General
| Unit Calculated Weight | 1.64 kg |
| Unit Calculated Volume | 0.01025 cubm |
| Units per Shipping Box | 7 |
| Units per Pallet | 0 |
| Summary | ASUS 90IG0A30-MO9C00. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 9400 Mbit/s. Ethernet LAN interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 2500 Mbit/s, VPN support: nstant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server.... Security algorithms: SSH, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA, WPA3-Personal, WPS, WPA-Enterprise,..., Firewall security: Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum.... Product type: Tabletop router, Product colour: Black, LED indicators: Power, LAN, WAN |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.08 |
| Unit Box Width | 0.445 |
| Model name | 90IG0A30-MO9C00 |
Wireless LAN features
| Modulation | 4096-QAM/OFDMA |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (max) | 9400 Mbit/s |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (third band) | 5764 Mbit/s |
WAN connection
| 3G/4G USB modem compatibility | Yes |
| Ethernet WAN | Yes |
| SIM card slot | No |
| WAN connection type | RJ-45 |
Network
| Built-in FTP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Media server | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Support Samba (storage) | Yes |
| VPN support | nstant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark Support Nord VPN |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB port | Yes |
Management features
| Bandwidth control | Yes |
| MU-MIMO technology | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| WPS push button | Yes |
Security
| DMZ support | Yes |
| Firewall | Yes |
| Firewall security | Maximum Firewall Keyword Filter : 64 Maximum Firewall Network Service Filter : 32 Maximum Firewall URL Filter : 64 |
| MAC address filtering | Yes |
| Network address translation (NAT) | Yes |
| Parental control | Yes |
| Security algorithms | SSH/WPA/WPA2-Enterprise/WPA2-Personal/WPA3-Enterprise/WPA3-Personal/WPA-Enterprise/WPA-Personal/WPS |
| System event log | Yes |
Protocols
| DHCP server | Yes |
Design
| LED indicators | Power,LAN,WAN |
| On/off switch | Yes |
| Product colour | Black |
| Product type | Tabletop router |
Packaging content
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Warranty card | Yes |
Antenna
| Antenna design | External |
| Antennas quantity | 6 |
Features
| Built-in processor | Yes |
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Processor cores | 4 |
| Processor frequency | 1500 MHz |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 110 - 240 V |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Power source type | AC |
Weight & dimensions
| Depth | 179 mm |
| Height | 191 mm |
| Weight | 764 g |
| Width | 320 mm |
Packaging data
| Package depth | 236 mm |
| Package height | 82 mm |
| Package type | Box |
| Package weight | 1245 g |
| Package width | 442 mm |
