A high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
General
| Unit Calculated Weight | 1 kg |
| Unit Calculated Volume | 0.002457 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Ubiquiti UniFi 5G Max. Device type: Cellular network modem, Product colour: White, Housing material: Polycarbonate (PC), Aluminium. Ethernet LAN interface type: 2.5 Gigabit Ethernet. Data network: 3G, 4G, 5G, 3G standards: UMTS, 4G standard: LTE. Compliance certificates: CE, GCF, PTCRB. Antenna type: Internal |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.21 |
| Unit Box Width | 0.13 |
| Model name | UniFi 5G Max |
Design
| Built-in display | Yes |
| Device type | Cellular network modem |
| Display diagonal | 1.3 " |
| Housing material | Aluminium/Polycarbonate (PC) |
| Mounting | Desktop/Wall/Window mounting |
| Product colour | White |
| Reset button | Yes |
Ethernet LAN features
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
Wireless LAN features
| Wi-Fi | No |
Mobile network
| 3G standards | UMTS |
| 4G standard | LTE |
| 5G standard | NR/Sub6 NSA/Sub6 SA |
| Data network | 3G/4G/5G |
| Data transfer rate (LTE) (download) | 1600 Mbit/s |
| Data transfer rate (LTE) (upload) | 210 Mbit/s |
| Number of SIM cards | 2 |
| SIM card type | NanoSIM + eSIM |
Ports & interfaces

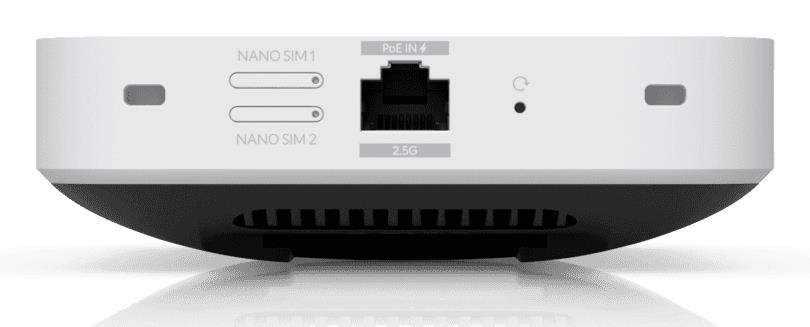

| Ethernet LAN (RJ-45) ports | 1 |
Certificates
| Compliance certificates | CE/GCF/PTCRB |
Performance
| Antenna type | Internal |
| Antennas quantity | 4 |
Power
| Power source type | PoE |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |

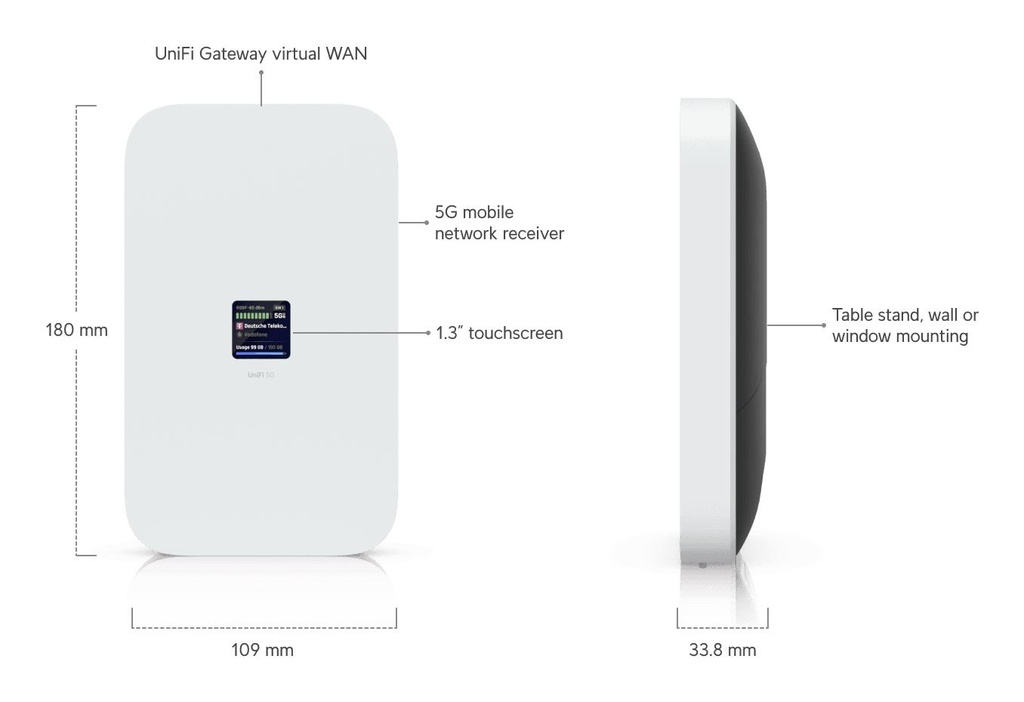

Weight & dimensions
| Depth | 33.8 mm |
| Height | 180 mm |
| Weight | 410 g |
| Width | 109 mm |
