Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.
The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.
- Dual-band WiFi 6 (802.11ax)
- 5 GHz (4x4 MU-MIMO) band with a 4.8 Gbps throughput rate
- 2.4 GHz (2x2 MIMO) band with a 573.5 Mbps throughput rate
- Operates at full 4x4 MIMO with 160 MHz bandwidth
- 300+ concurrent client capacity
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion

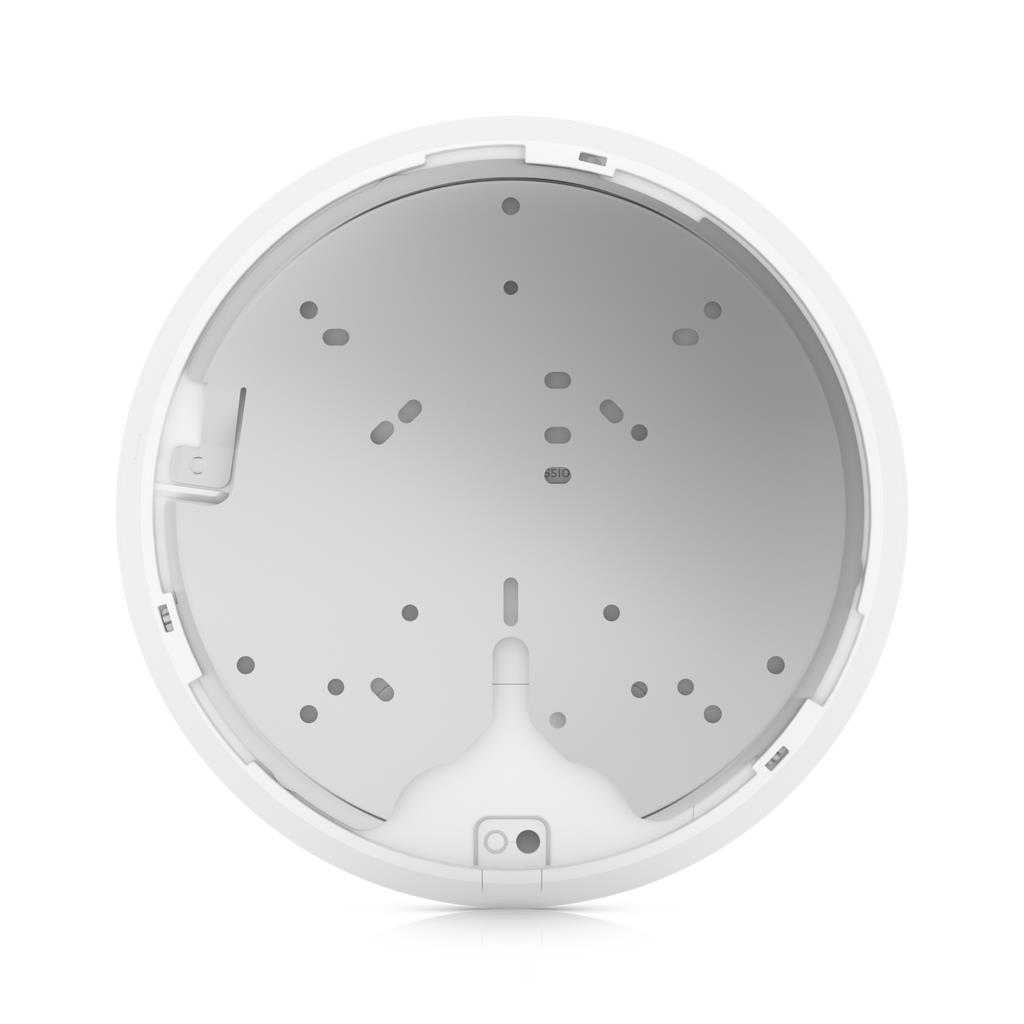

- Included universal mounting plate, backing plate, and screw kit
General
| Unit Calculated Weight | 1.42 kg |
| Unit Calculated Volume | 0.00917 cubm |
| Units per Shipping Box | 5 |
| Units per Pallet | 0 |
| Summary | Ubiquiti U6-PRO. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.25 |
| Model name | UniFi6 Pro |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Bluetooth | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Throughput data rate | 5300 Mbit/s |
| VLAN support | Yes |
Security
| Security algorithms | WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (typical) | 13 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Plastic |
| International Protection (IP) code | IP54 |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 6 dBi |
| Antenna type | Internal |
Certificates
| Certification | CE, FCC, IC |
Weight & dimensions
| Depth | 197 mm |
| Height | 35 mm |
| Weight | 460 g |
| Width | 197 mm |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
