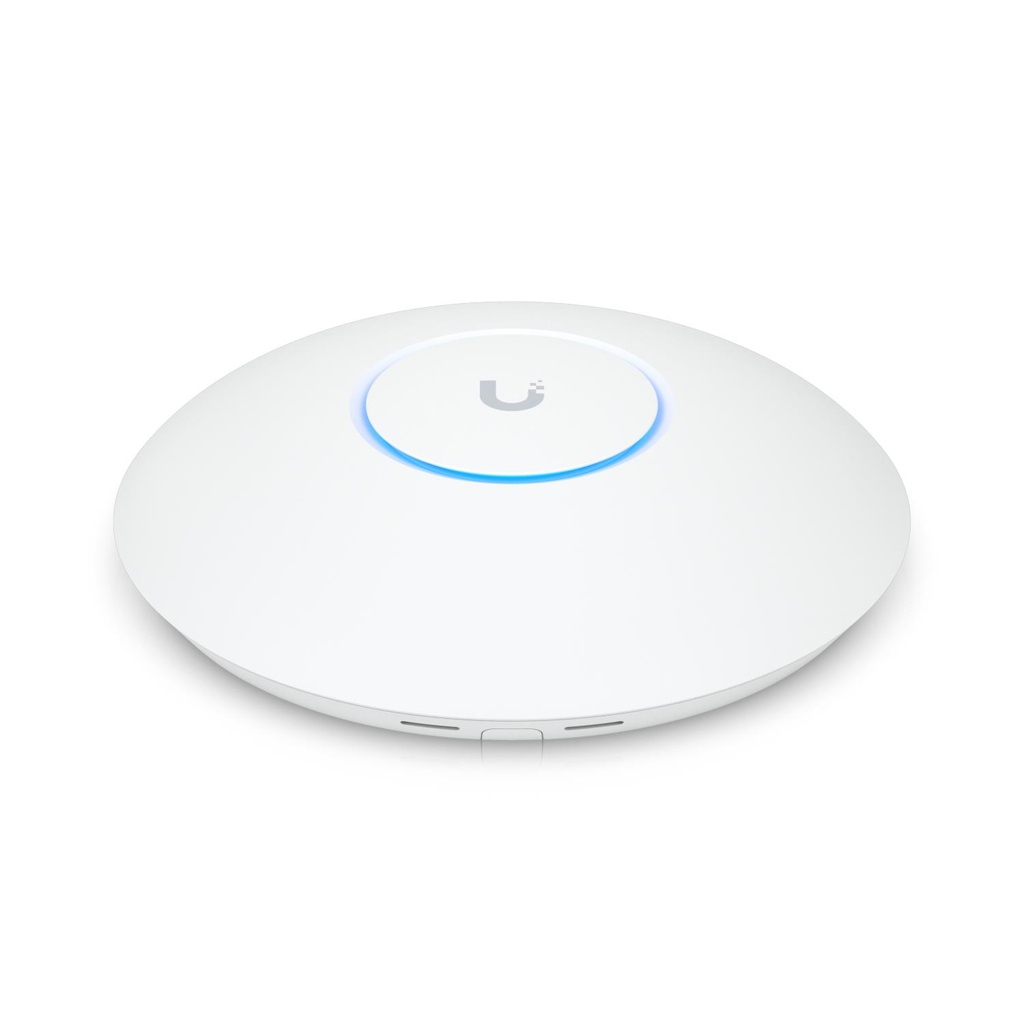

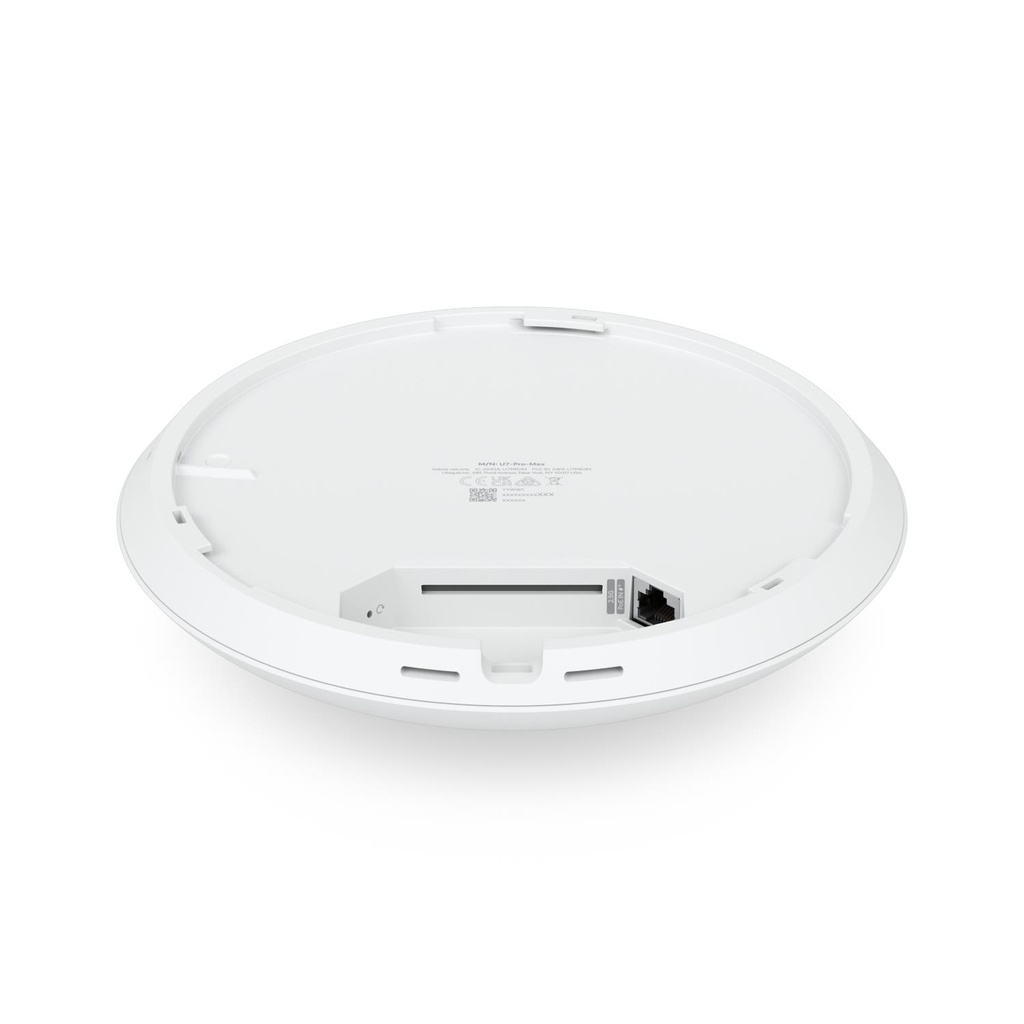

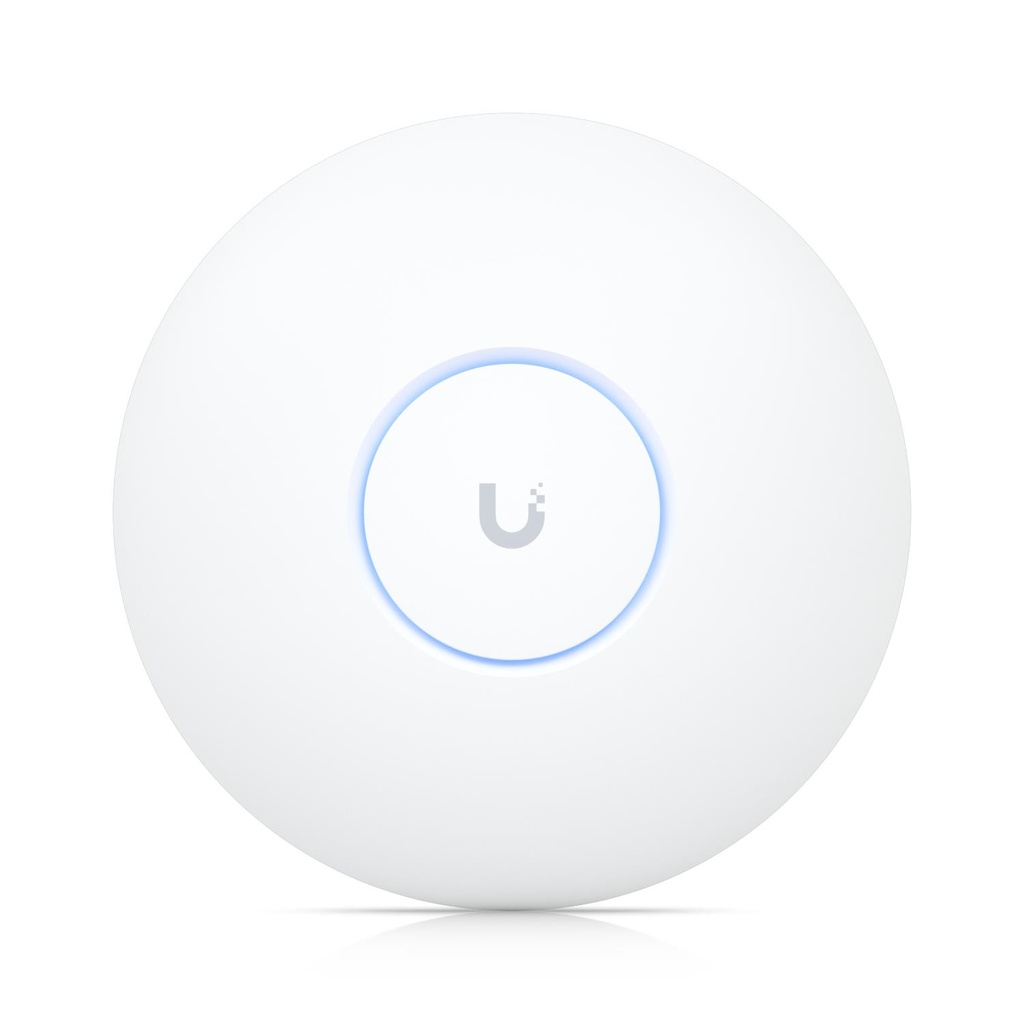

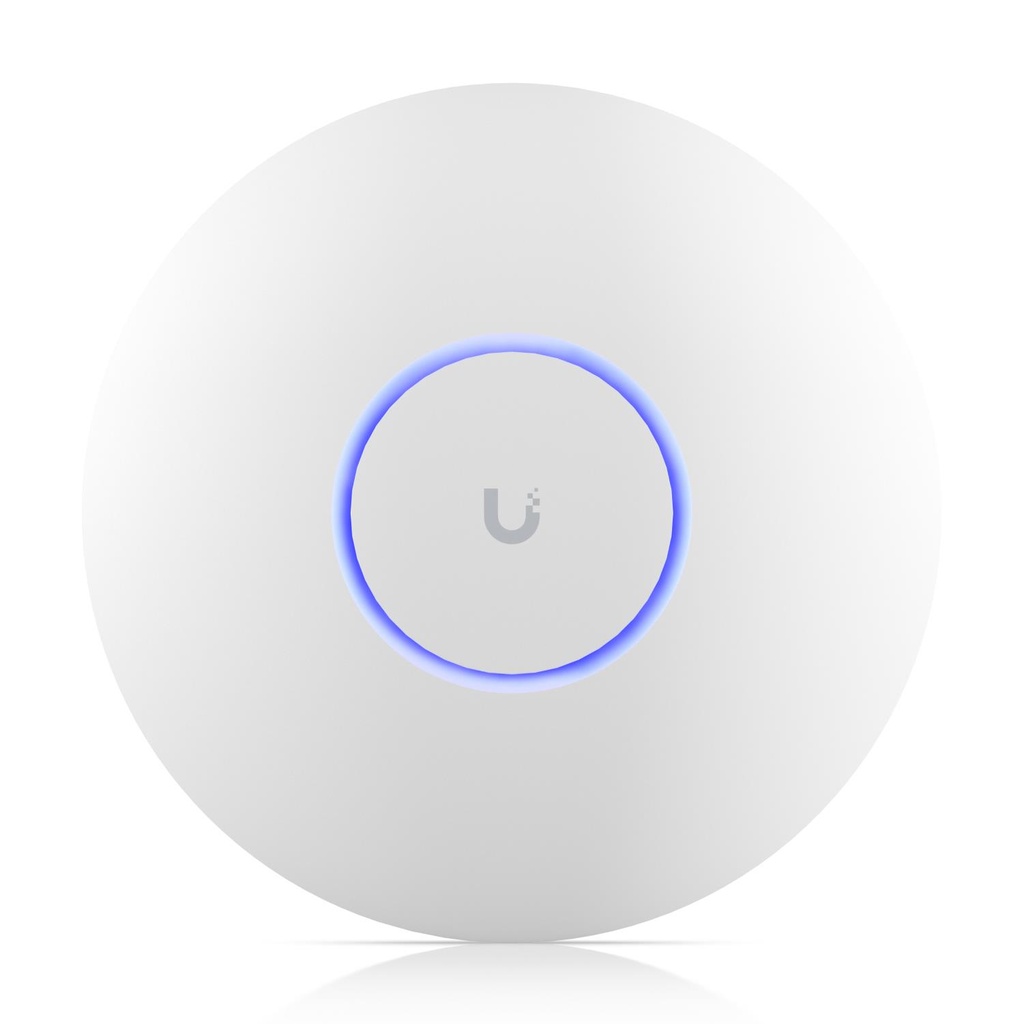

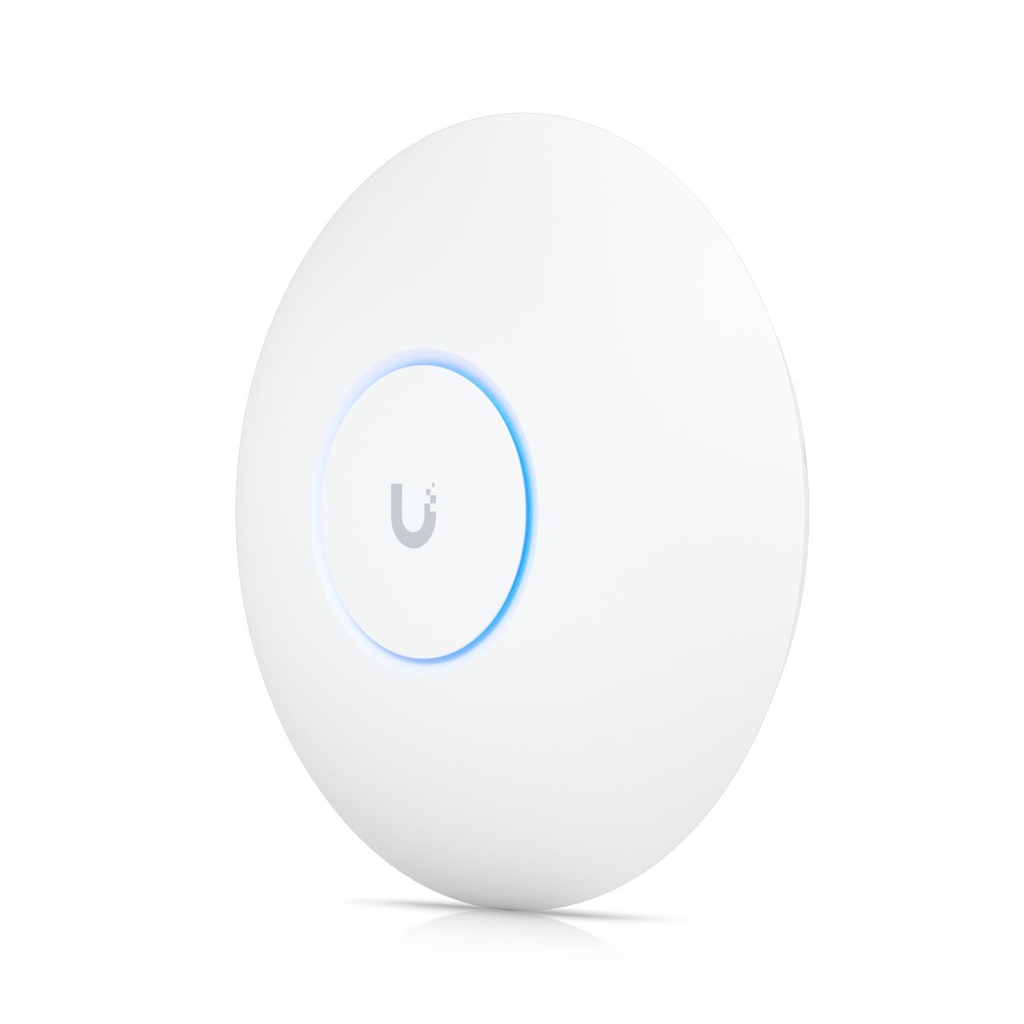

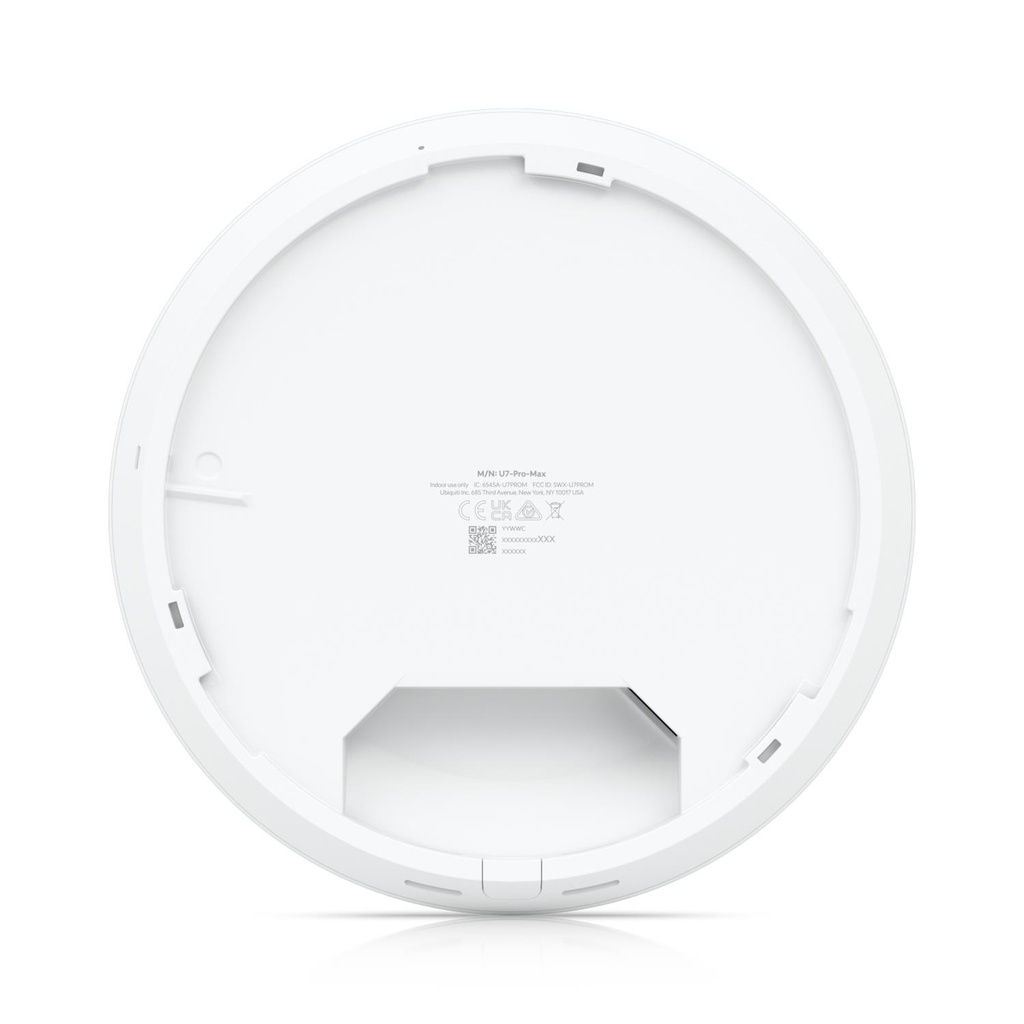

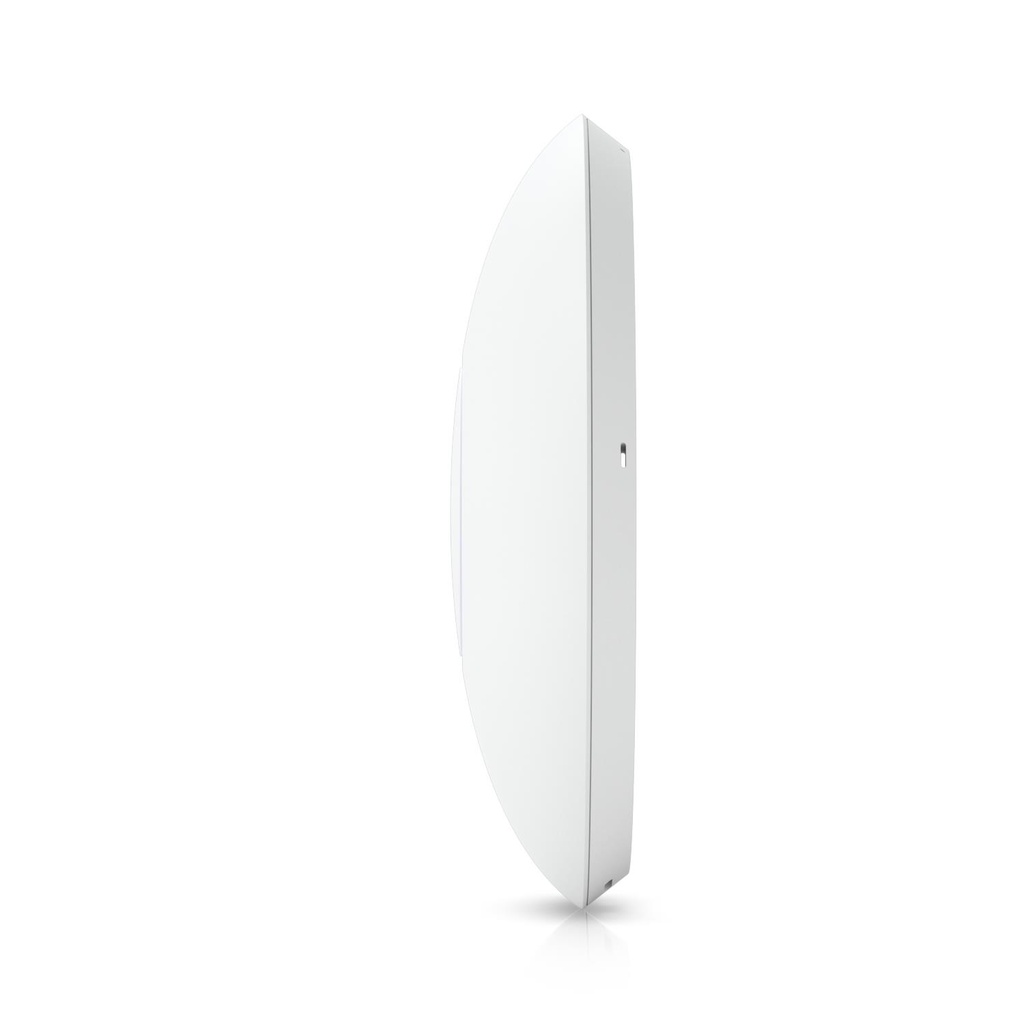

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
General
| Unit Calculated Weight | 1.6 kg |
| Unit Calculated Volume | 0.01139 cubm |
| Units per Shipping Box | 5 |
| Summary | Ubiquiti U7 Pro Max. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5700 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 22 W |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.245 |
| Unit Box Width | 0.1 |
| Model name | U7 Pro Max |
| Model | U7 Pro Max |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Frequency band | 2.4 - 5.7 GHz |
| Maximum data transfer rate | 5700 Mbit/s |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Rate limiting | Yes |
| Spatial streams | 8 |
| Throughput data rate | 5765 Mbit/s |
| VLAN support | Yes |
Security
| Security algorithms | PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| DC voltage range | 44 - 57 V |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
Design
| Housing material | Aluminium,Polycarbonate (PC) |
| LED indicators | Yes |
| Placement | Ceiling,Wall |
| Product colour | White |
| Recommended usage | Indoor |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 5.9 dBi |
| Antenna type | Internal |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
Weight & dimensions
| Depth | 206 mm |
| Height | 46 mm |
| Weight | 680 g |
| Width | 206 mm |
Packaging content

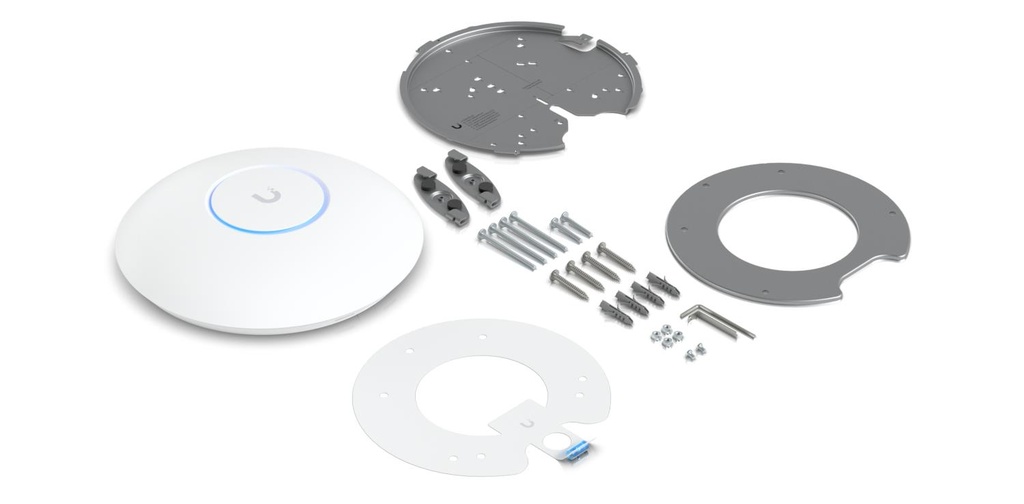

| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
Sustainability
| Sustainability compliance | Yes |
