Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
General
| Unit Calculated Weight | 1.48 kg |
| Unit Calculated Volume | 0.00866 cubm |
| Units per Shipping Box | 6 |
| Summary | Ubiquiti U7 Pro XG. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 1000,2500,5000,10000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 22 W |
| CnCode | 85176200 |
| Unit Box Height | 0.079 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.244 |
| Model name | U7 Pro XG |
| Model | U7-PRO-XG |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Band steering | Yes |
| Coverage area | 140 m² |
| Ethernet LAN data rates | 1000/10000/2500/5000 Mbit/s |
| Fast roaming | Yes |
| Fit AP mode features | Hotspot 2.0 |
| Frequency band | 2.4, 5, 6 GHz |
| Maximum data transfer rate | 5800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Maximum Tx power (6 GHz) | 24 dBmW |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11v |
| Number of users | 300 user(s) |
| Rate limiting | Yes |
| Spatial streams | 6 |
| VLAN support | Yes |
| Wireless meshing | Yes |
Security
| Security algorithms | PPSK |
Management features
| Access point management | Wi-Fi schedule |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
Design
| Housing material | Metal,Polycarbonate (PC) |
| LED indicators | Status |
| Placement | Ceiling,Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna gain level (max) | 6 dBi |
| Antenna type | Internal |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
Weight & dimensions
| Depth | 32.5 mm |
| Height | 206 mm |
| Weight | 750 g |
| Width | 206 mm |
Packaging content

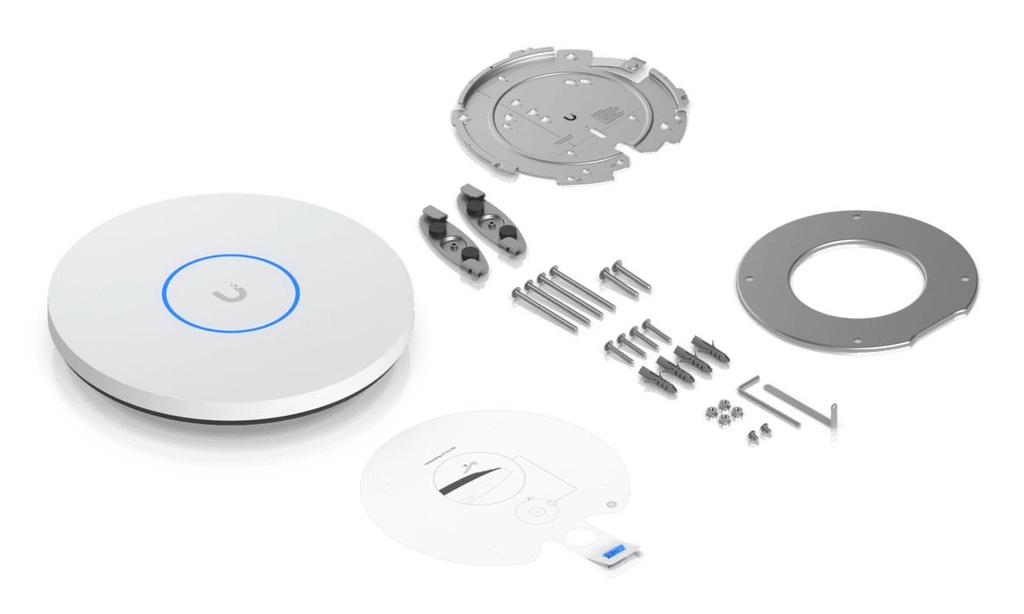

| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 40 °C |
