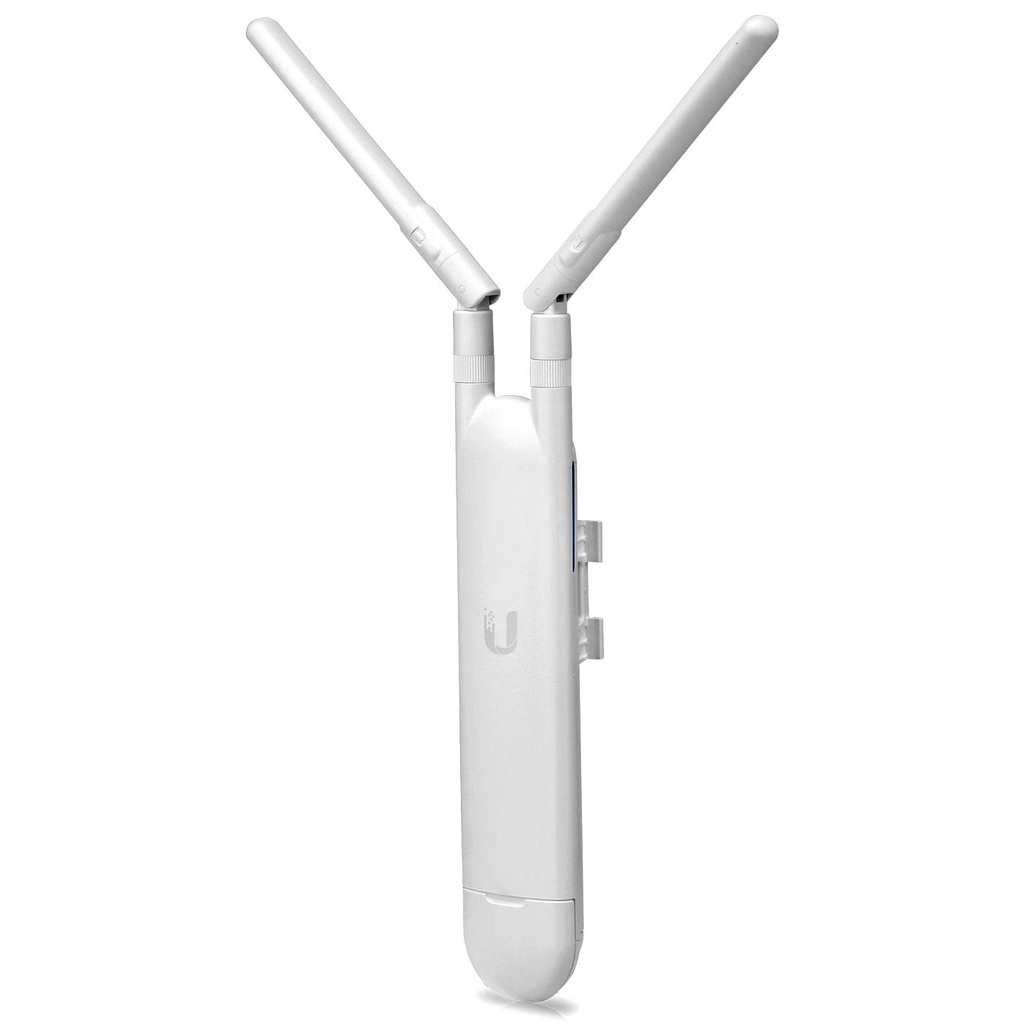

UBIQUITI 1167 Mbit/s 1xLAN ports 2xAntennas quantity UAP-AC-M
General
| Long Description | Ubiquiti Unifi AC Mesh. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Summary | Ubiquiti Unifi AC Mesh. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Power over Ethernet (PoE). Product colour: White |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.245 |
| Unit Box Width | 0.08 |
| Model name | Unifi AC Mesh |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1167 Mbit/s |
| MIMO | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 250 user(s) |
| Quality of Service (QoS) support | Yes |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security
| Number of SSID supported | 4 |
| Service Set Identifier (SSID) features | Hidden SSID |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Power consumption (typical) | 8.5 W |
| Power over Ethernet (PoE) | Yes |
| Power supply | 24 W |
Design
| Internal | No |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
Antenna
| Antenna features | Detachable antenna |
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
Certificates
| Certification | CE, FCC, IC |
Weight & dimensions
| Depth | 34 mm |
| Height | 353 mm |
| Weight | 152 g |
| Width | 46 mm |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 70 °C |
Logistics data
| Harmonized System (HS) code | 85176990 |
ELKO Logistics Data
| Product Net Weight | 0.152 kg |
| Unit Calculated Weight | 0.75 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
ELKO Internal Logistics Data
| Shipping Box Depth | 45 cm |
| Shipping Box Height | 27 cm |
| Shipping Box Weight | 7.5 kg |
| Shipping Box Width | 23 cm |
| Unit Calculated Volume | 0.002795 cubm |
