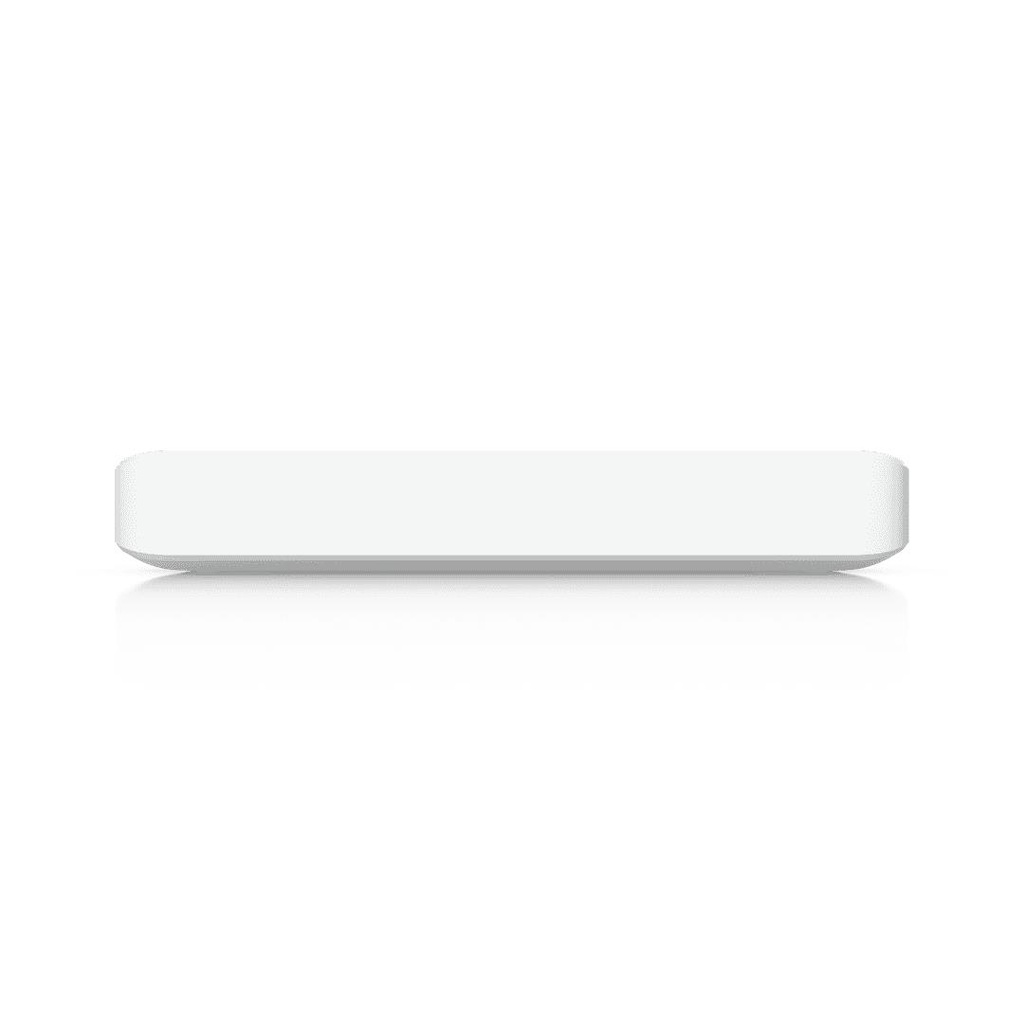

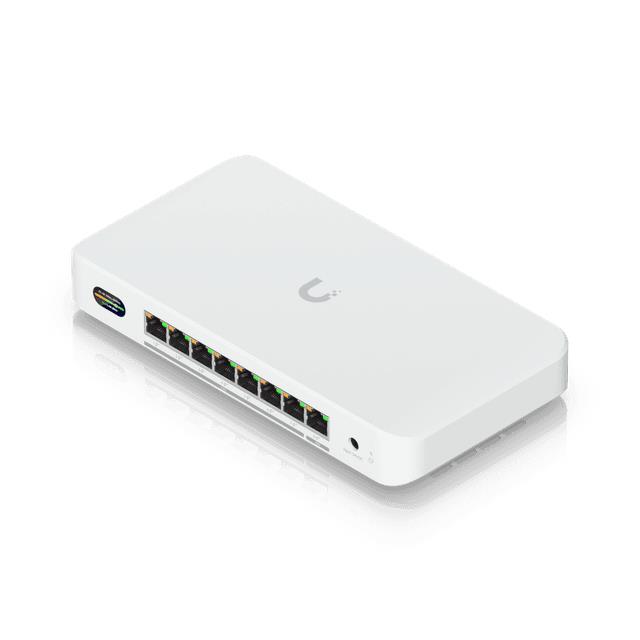

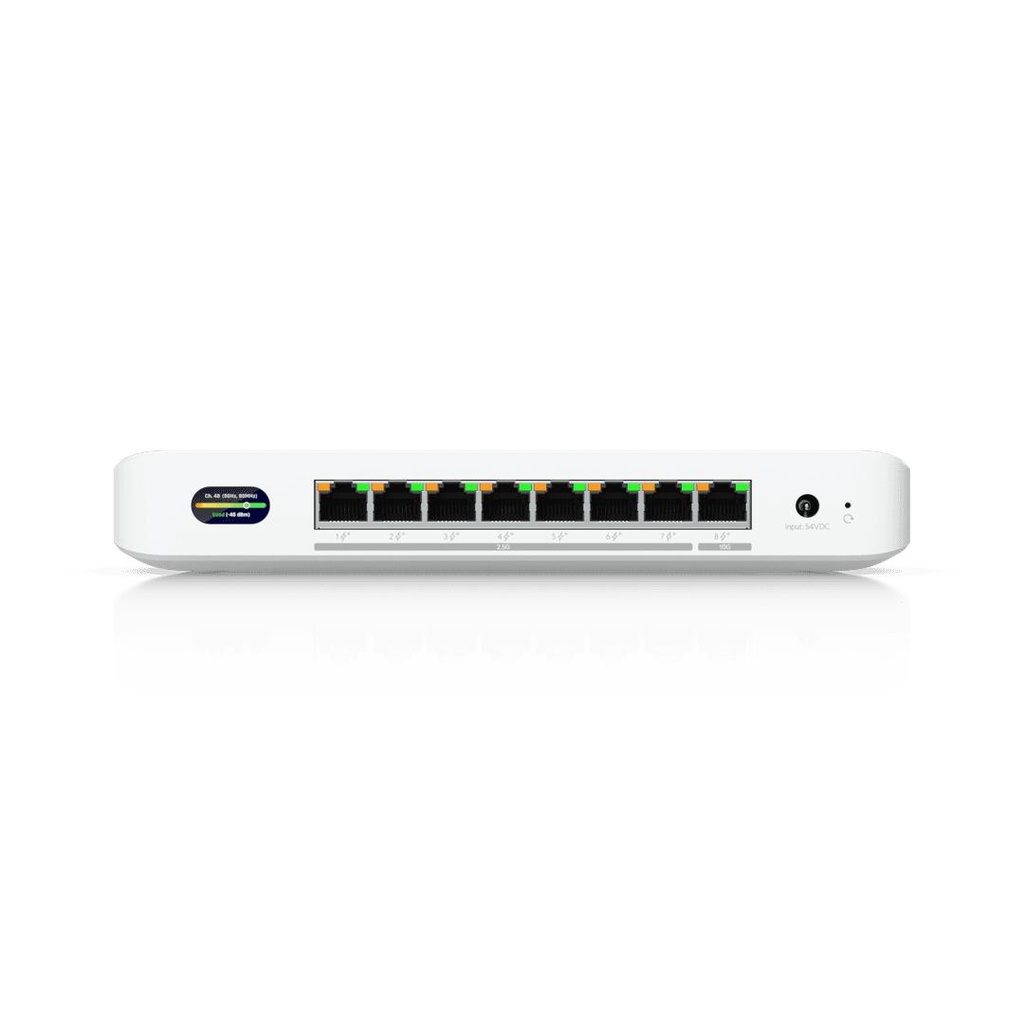

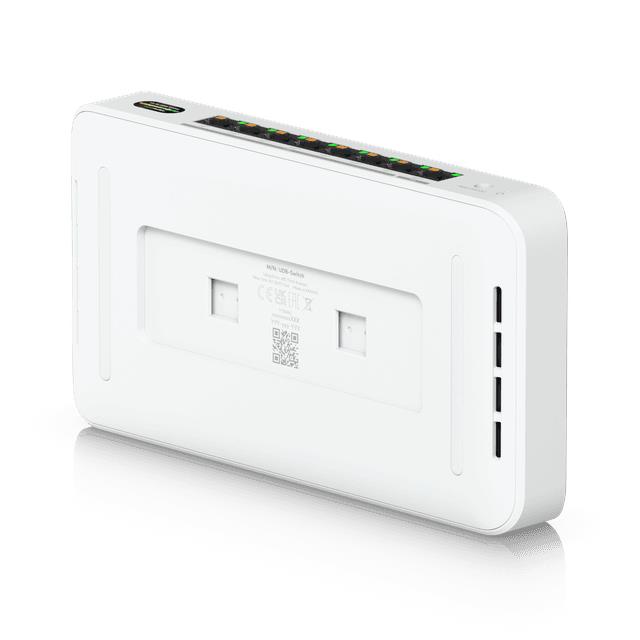

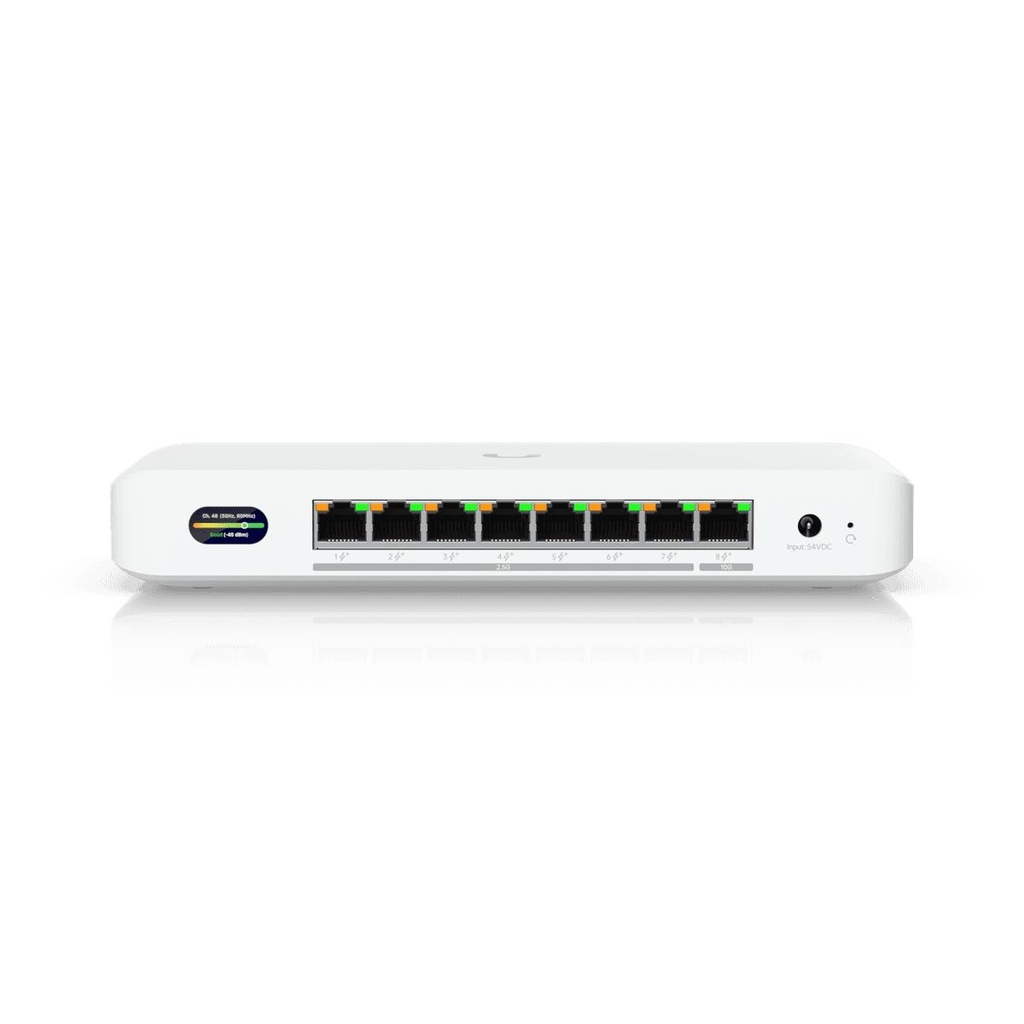

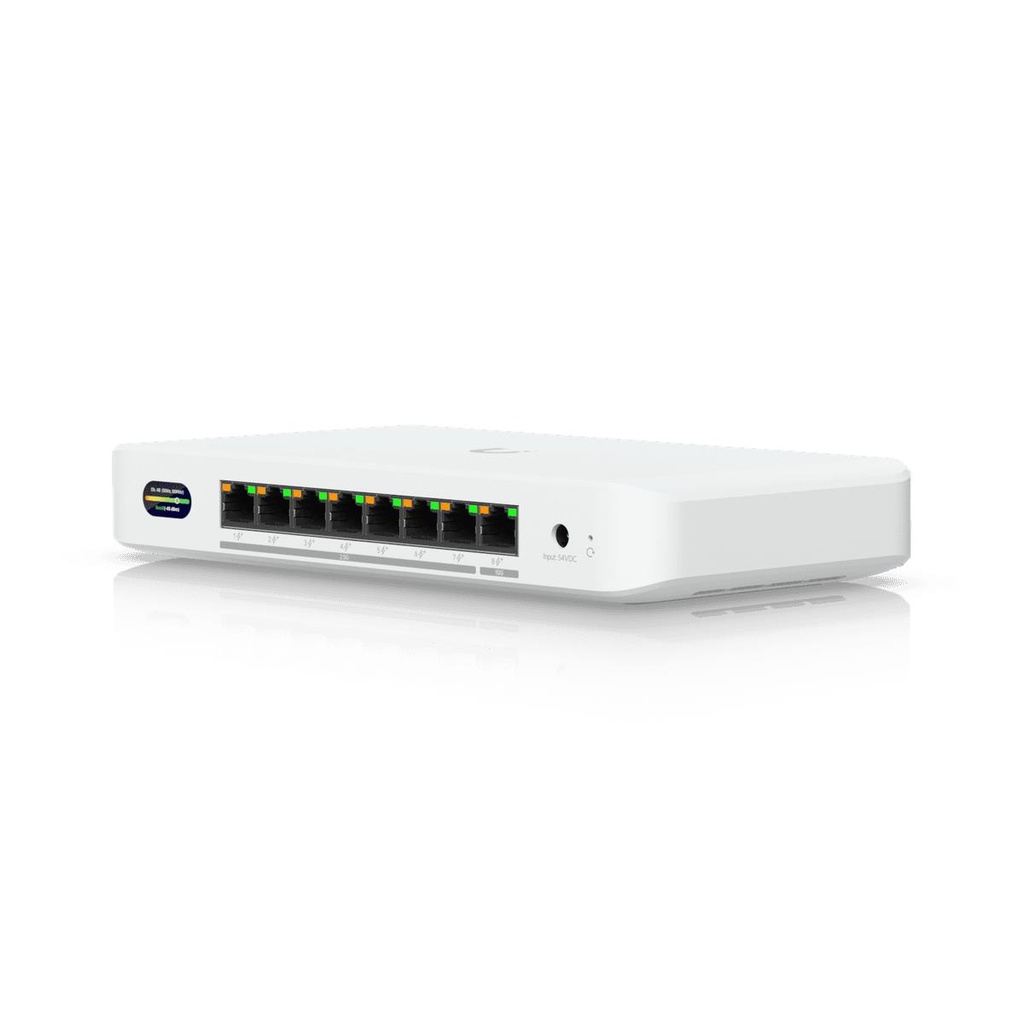

Ubiquiti UDB-Switch
General
| Unit Calculated Weight | 1.33 kg |
| Unit Calculated Volume | 0.006061 cubm |
| Units per Shipping Box | 6 |
| Units per Pallet | 0 |
| Summary | Ubiquiti UDB-Switch. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 7. Networking standards: IEEE 802.11a, IEEE 802.11n, IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac. DC input voltage: 54 V. Power over Ethernet (PoE) |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.11 |
| Model name | UDB-Switch |
| Model | Ubiquiti UDB-Switch |
Ports & interfaces
| 10G Ethernet (copper) ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 7 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
Network
| 10G support | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11be/IEEE 802.11n |
Design
| Product colour | White |
Power
| DC input voltage | 54 V |
| Power consumption (max) | 25 W |
| Power source | DC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 185 W |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -30 - 40 °C |
Weight & dimensions
| Depth | 113 mm |
| Height | 32.5 mm |
| Width | 212.9 mm |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
