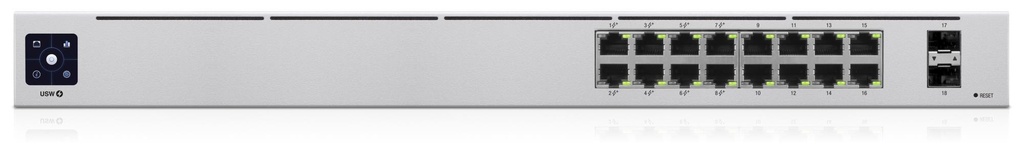

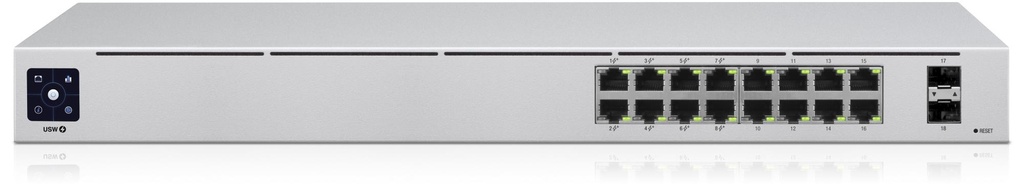

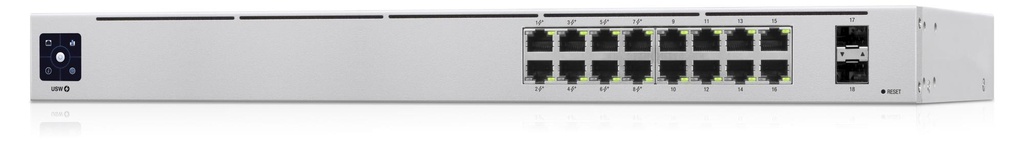

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
General
| Unit Calculated Weight | 4.15 kg |
| Unit Calculated Volume | 0.02387 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti UniFi 16-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 44 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.51 |
| Unit Box Width | 0.12 |
| Model name | USW-16-POE |
Management features
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
Network
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 26.78 Mpps |
| Jumbo frames support | Yes |
| Static route | Yes |
| Switching capacity | 36 Gbit/s |
| Throughput | 18000 Mpps |
Security
| Authentication type | IEEE 802.1x,RADIUS |
Design
| Form factor | 1U |
| LED indicators | Activity/Link/PoE/Speed/System |
| Product colour | Silver |
| Rack mounting | Yes |

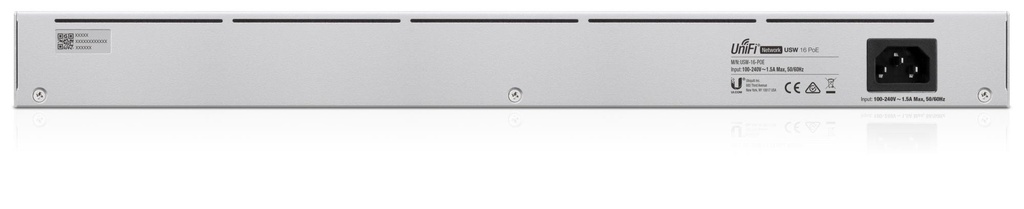

Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 44 - 57 V |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 48 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 2800 g |
| Width | 442.4 mm |
Certificates
| Certification | CE, FCC, IC |
Logistics data
| Harmonized System (HS) code | 85176990 |
