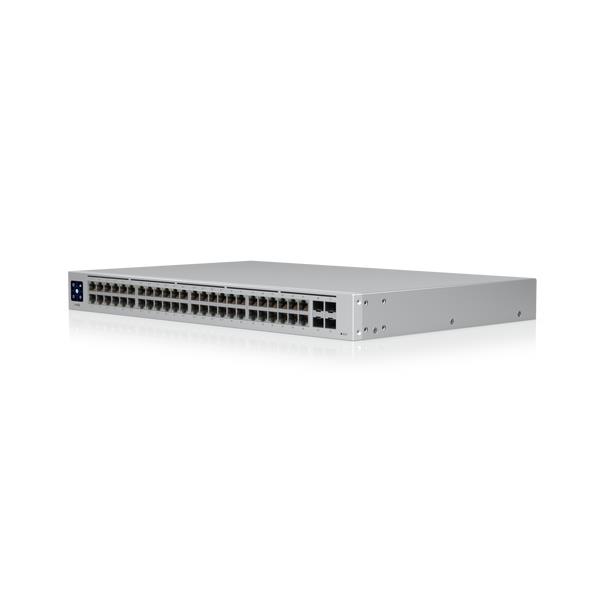

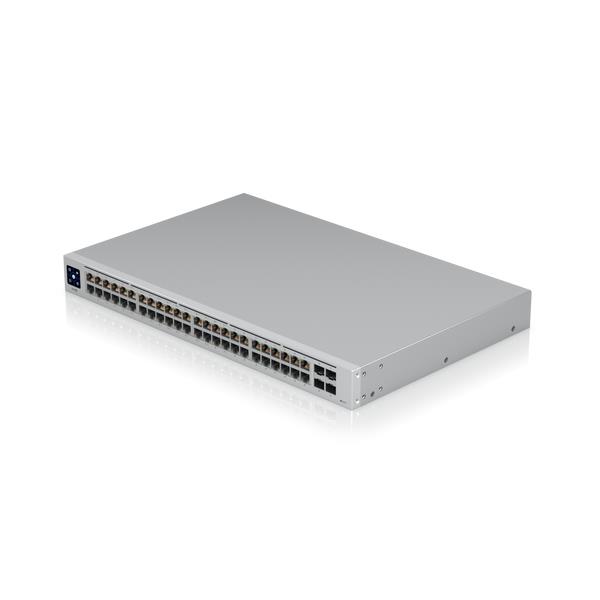

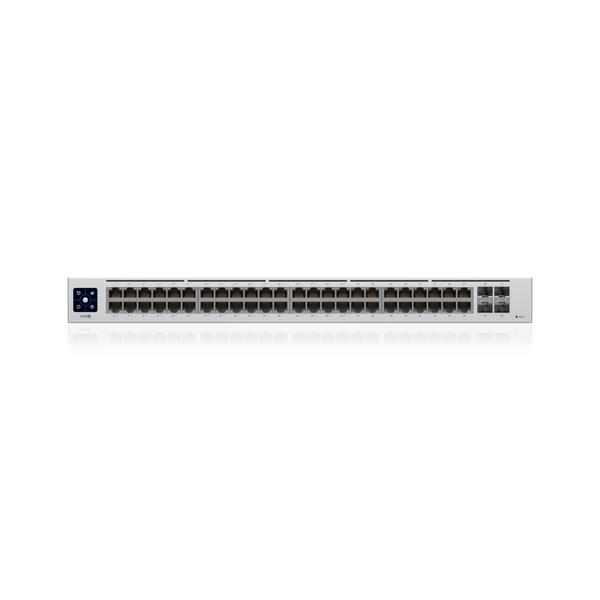

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
- (32) GbE, PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
General
| Unit Calculated Weight | 6.28 kg |
| Unit Calculated Volume | 0.03019 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti UniFi USW-48-POE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Unit Box Height | 0.43 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.13 |
| Model name | USW-48-POE |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
Network
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 77.38 Mpps |
| Jumbo frames support | Yes |
| Switching capacity | 104 Gbit/s |
| Throughput | 52 Gbit/s |
Security
| Authentication type | RADIUS |
Design
| Form factor | 1U |
| LED indicators | Activity/Link/Speed |
| Product colour | Stainless steel |
| Rack mounting | Yes |
Performance
| Fanless | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 45 W |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Total Power over Ethernet (PoE) budget | 195 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 4520 g |
| Width | 442.4 mm |
Packaging content
| Manual | Yes |
Certificates
| Certification | CE, FCC, IC |
