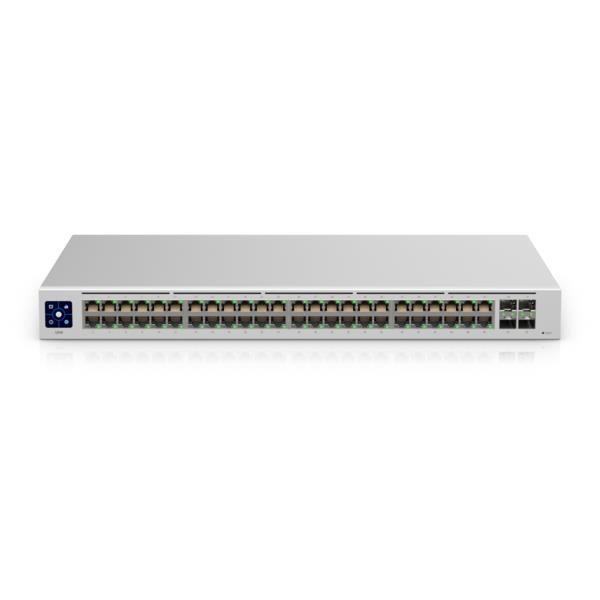

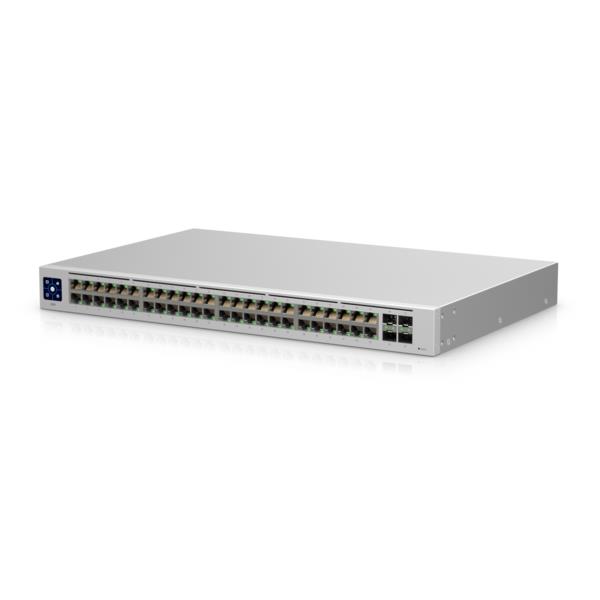

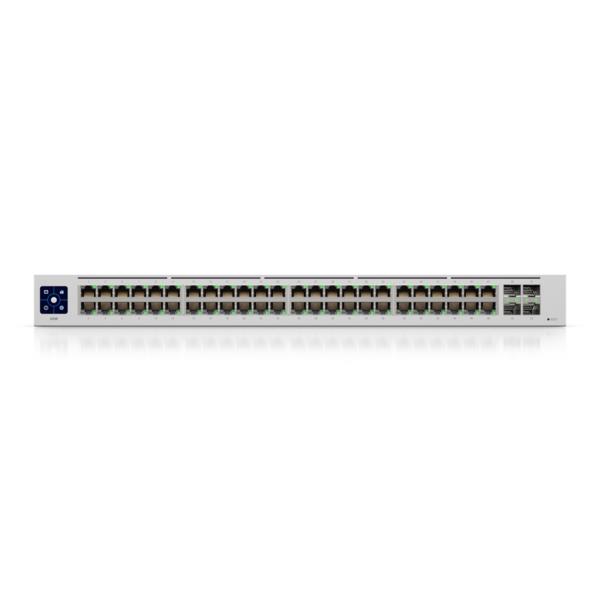

The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
- (48) Gigabit RJ45 ports
- (4) 1G SFP ports
- Layer 2 features
- Fanless, silent cooling
- 1.3" touchscreen display, supports UniFi Network AR
- Managed by UniFi Network Controller (5.13.10 or later)
General
| Unit Calculated Weight | 5.6 kg |
| Unit Calculated Volume | 0.02376 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti UniFi USW-48. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 52 Gbit/s. Rack mounting |
| Unit Box Height | 0.44 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.1 |
| Model name | USW-48 |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
Network
| 10G support | No |
Data transmission
| Forwarding rate | 77.376 Mpps |
| Switching capacity | 52 Gbit/s |
Design
| Housing material | Steel |
| LED indicators | LAN/System |
| Product colour | Silver |
| Rack mounting | Yes |
Performance
| Fanless | Yes |
| Firmware upgradeable | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 40 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -15 - 40 °C |
Weight & dimensions
| Depth | 285 mm |
| Height | 43.7 mm |
| Weight | 3900 g |
| Width | 442.4 mm |
Certificates
| Certification | CE, FCC, IC |
Logistics data
| Harmonized System (HS) code | 85176990 |
