Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.

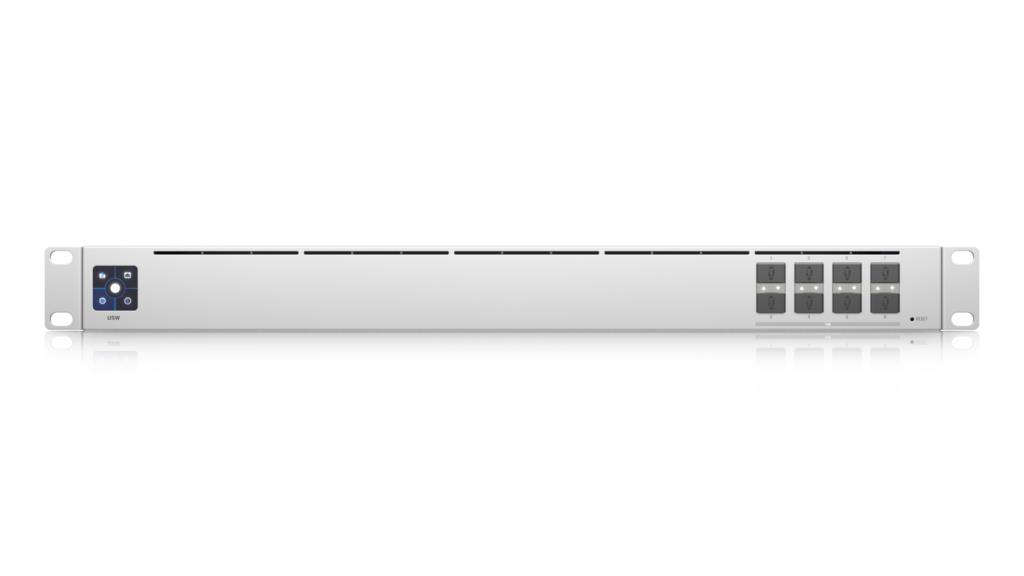

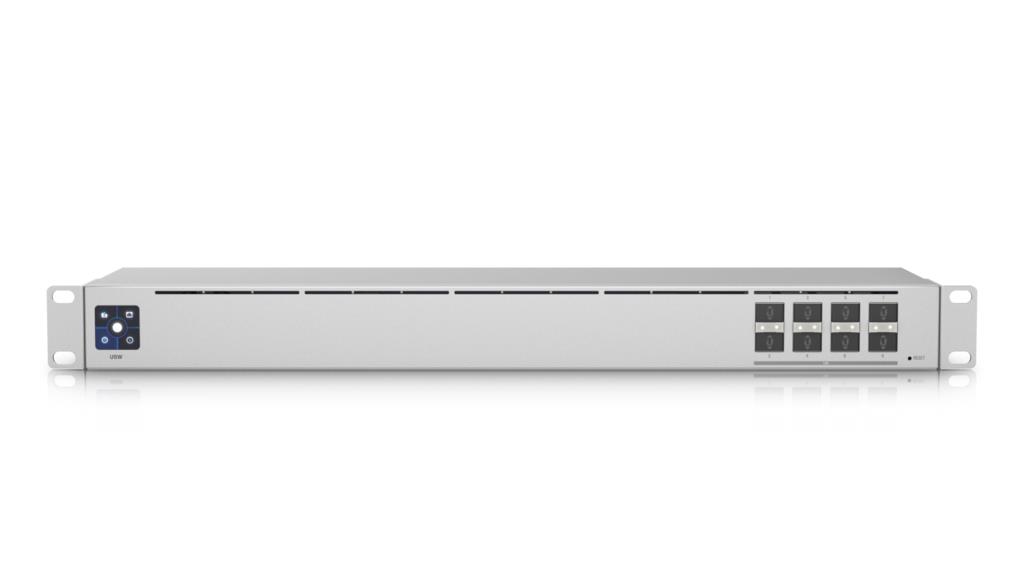

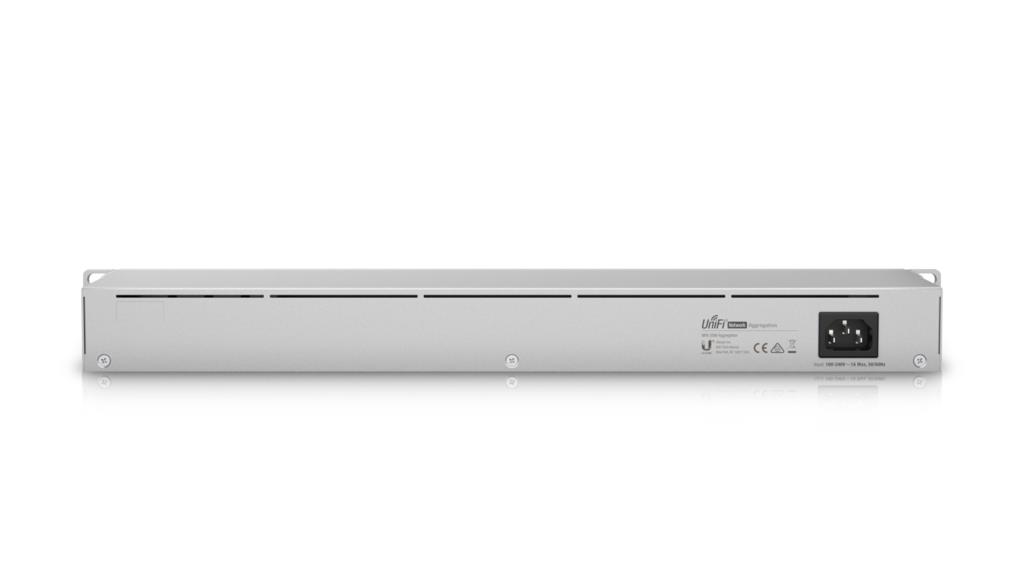

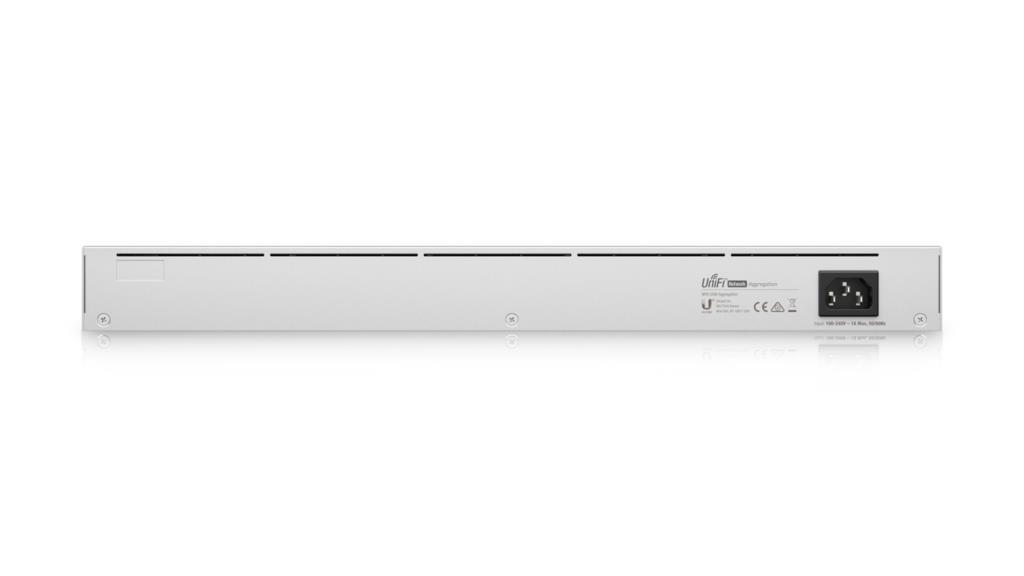

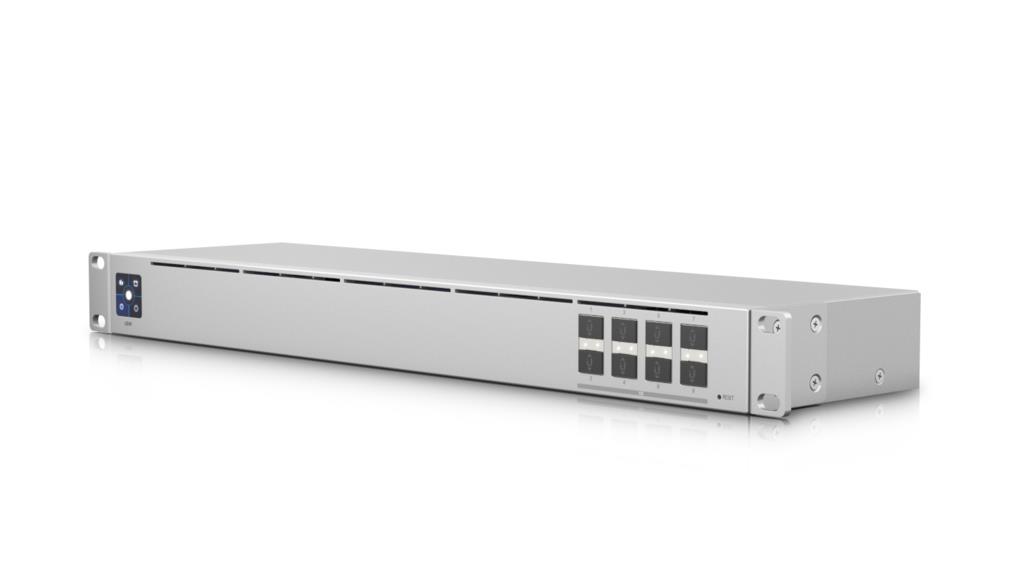

The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3" Touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
General
| Unit Calculated Weight | 3.78 kg |
| Unit Calculated Volume | 0.009163 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti USW-AGGREGATION. Switch type: Managed, Switch layer: L2. Switching capacity: 160 Gbit/s. Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.263 |
| Unit Box Length | 0.536 |
| Unit Box Width | 0.065 |
| Model name | USW-Aggregation |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 8 |
Network
| 10G support | Yes |
Data transmission
| Forwarding rate | 119.04 Mpps |
| Switching capacity | 160 Gbit/s |
| Throughput | 80 Gbit/s |
Design
| Form factor | 1U |
| Housing material | Galvanized steel |
| LED indicators | System |
| Product colour | Silver |
| Rack mounting | Yes |
Performance
| Fanless | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 30 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 120 mm |
| Height | 43.7 mm |
| Weight | 2650 g |
| Width | 442.4 mm |
Packaging content
| Cables included | AC |
| Rack mount kit | Yes |
Certificates
| Certification | CE, FCC, IC |
Logistics data
| Harmonized System (HS) code | 85176990 |
