Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.

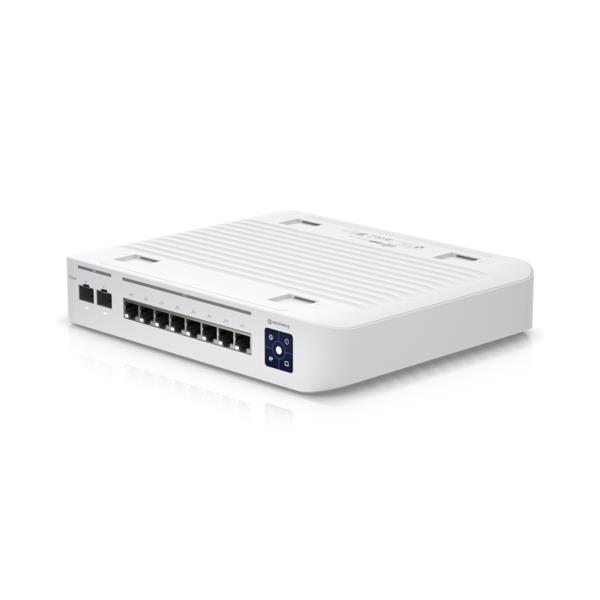

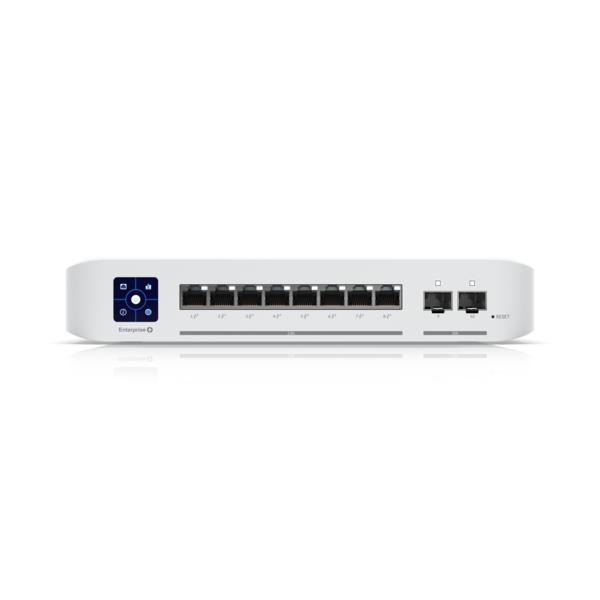

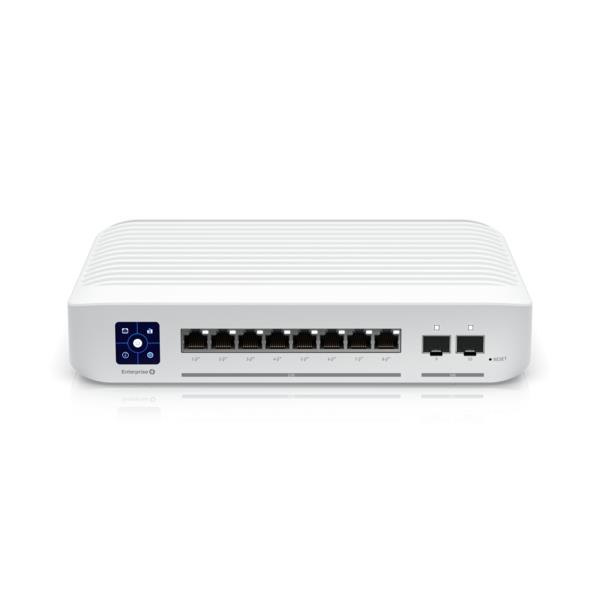

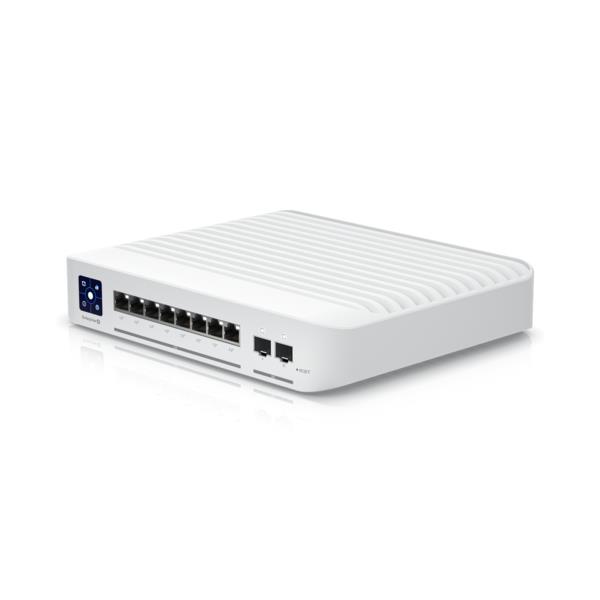

The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- 120W total PoE supply
- Wall-mountable (kit included)
General
| Unit Calculated Weight | 2.76 kg |
| Unit Calculated Volume | 0.008228 cubm |
| Units per Shipping Box | 1 |
| Summary | Ubiquiti UniFi Enterprise 8 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Wall mountable, Rack mounting |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.368 |
| Unit Box Width | 0.086 |
| Model name | Enterprise 8 PoE |
Management features
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
Network
| 10G support | No |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
Data transmission
| Forwarding rate | 59.52 Mpps |
| Switching capacity | 80 Gbit/s |
| Throughput | 40 Gbit/s |
Design
| Housing material | Polycarbonate (PC) |
| LED indicators | Activity/Link |
| Product colour | Stainless steel |
| Rack mounting | Yes |
| Wall mountable | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 2 A |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 32 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 2400 g |
| Width | 248 mm |
Packaging content
| Manual | Yes |
Certificates
| Compliance certificates | CE |
Logistics data
| Harmonized System (HS) code | 85176990 |
