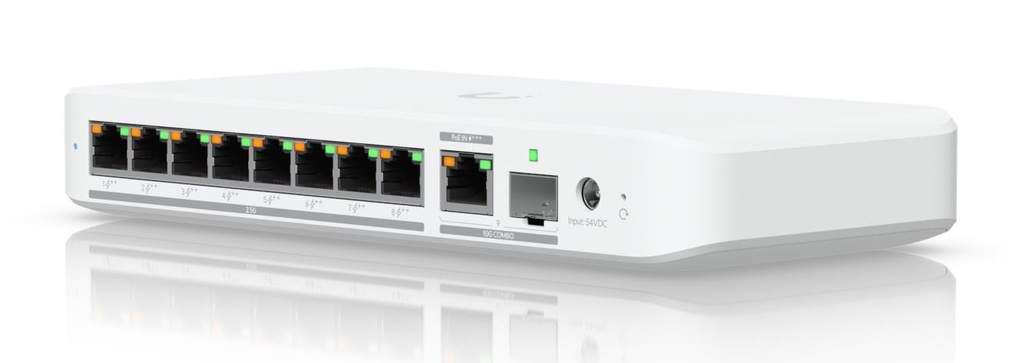

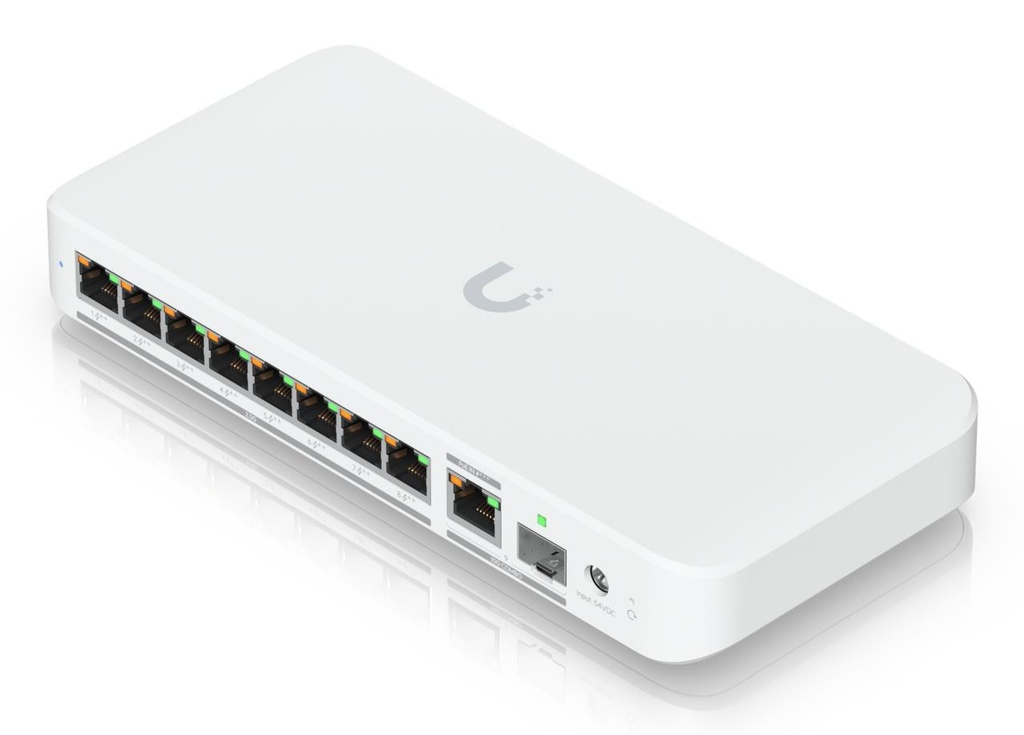

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter*.
*AC power adapter sold separately.

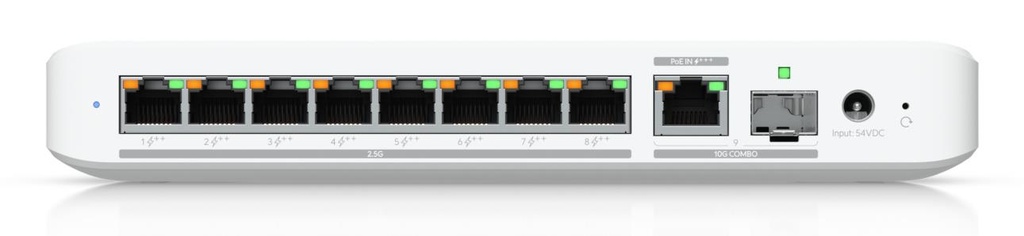

- (8) 2.5 GbE PoE++ output ports
- (1) 10 GbE PoE+++ input port for power / SFP+ port combo (57W PoE availability with PoE+++ input / 37W PoE availability with PoE++ input / 12W PoE availability with PoE+ input)
- 196W PoE availability with optional AC power adapter
General
| Unit Calculated Weight | 0.825 kg |
| Unit Calculated Volume | 0.002471 cubm |
| Units per Shipping Box | 12 |
| Summary | Ubiquiti UniFi Flex 2.5G PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 60 Gbit/s. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting |
| Unit Box Height | 0.051 |
| Unit Box Length | 0.246 |
| Unit Box Width | 0.12 |
| Model name | USW-FLEX-2.5G-8-POE |
| Model | UBIQUITI Flex 2.5G PoE |
Management features
| Switch layer | L2 |
| Switch type | Managed |
Ports & interfaces
| 10G Ethernet (copper) ports quantity | 1 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | DC-in jack |
| SFP+ module slots quantity | 1 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Flow control support | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
Data transmission
| Forwarding rate | 44.64 Mpps |
| Jumbo frames support | Yes |
| Switching capacity | 60 Gbit/s |
| Throughput | 30 Gbit/s |
Security
| Loop protection | Yes |
Multicast features
| Multicast support | Yes |
Design

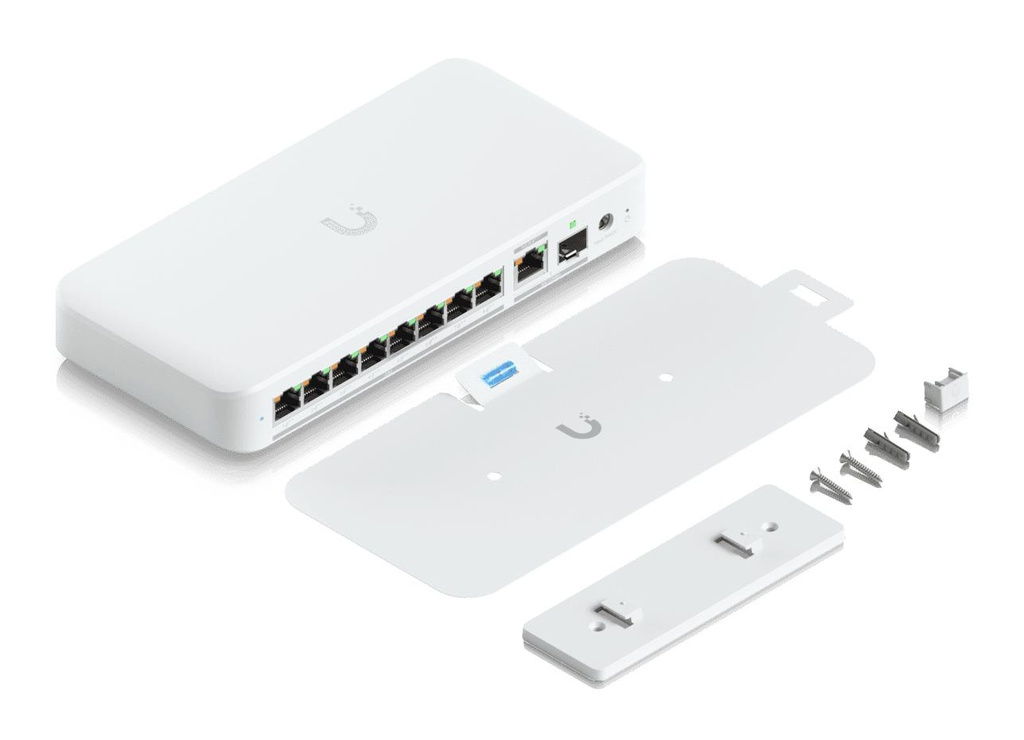

| DIN rail mounting | Yes |
| Form factor | Desktop/Wall-Mounting |
| Housing material | Polycarbonate (PC) |
| LED indicators | Activity/Link/PoE/Power/Status |
| Product colour | White |
| Reset button | Yes |

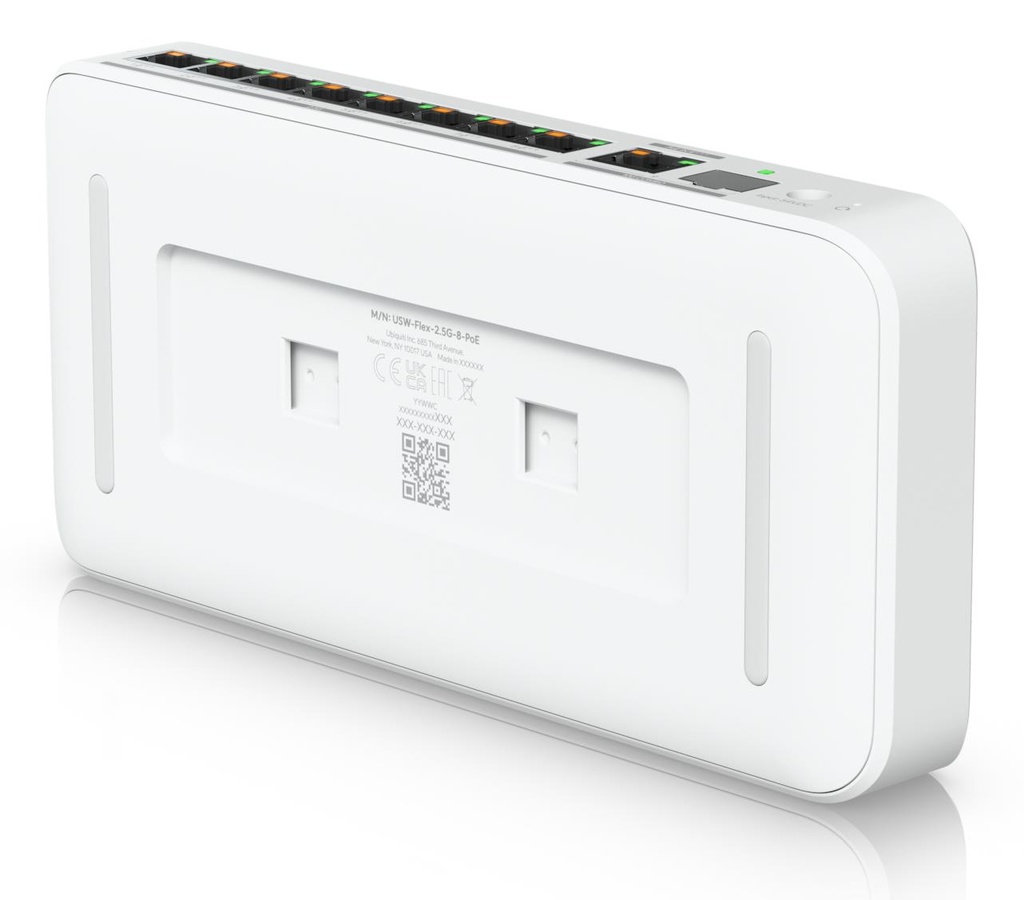

| Wall mountable | Yes |
Power
| DC input voltage | 54 V |
| Input current | 3.9 A |
| Power consumption (max) | 17 W |
| Power source | AC/DC/PoE |
| Power supply included | No |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 196 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -20 - 45 °C |
Weight & dimensions
| Depth | 99.4 mm |
| Height | 33.5 mm |
| Weight | 567 g |
| Width | 212.9 mm |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
