Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.

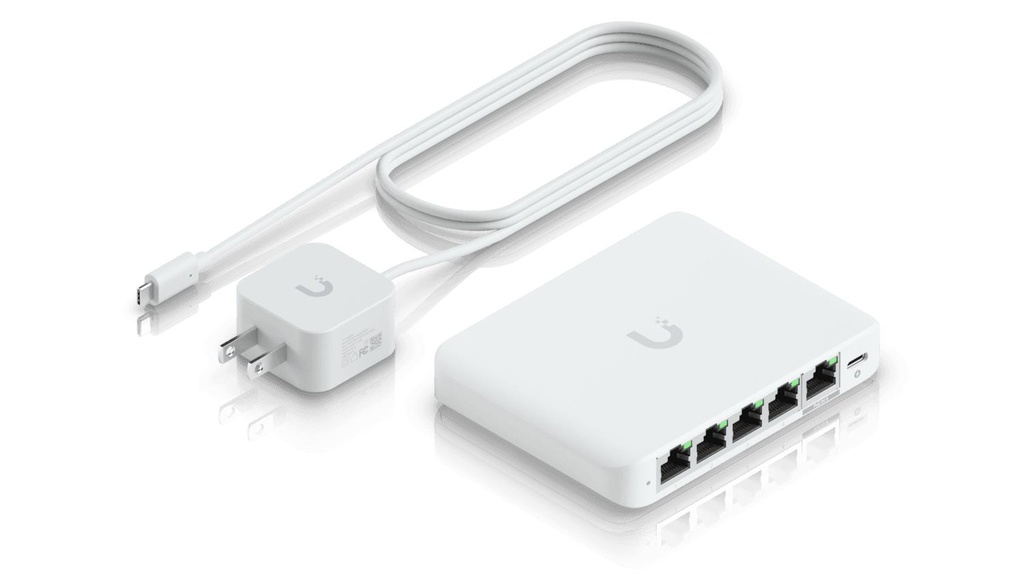

- Optional powering with included 5V, 1A USB-C adapter
- Ethernet In-Band
- Certifications CE, FCC, IC
General
| Unit Calculated Weight | 0.456 kg |
| Unit Calculated Volume | 0.001429 cubm |
| Units per Shipping Box | 18 |
| Summary | Ubiquiti UniFi Flex Mini 2.5G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 25 Gbit/s. DC input voltage: 5 V. Power connector: USB. Power over Ethernet (PoE). Form factor: Desktop |
| CnCode | 85176200 |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.122 |
| Unit Box Width | 0.101 |
| Model name | Flex Mini 2.5G |
| Model | USW-FLEX-2.5G-5 |
Management features
| Switch type | Managed |
Ports & interfaces
| 2.5G Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | USB |
| USB Type-C ports quantity | 1 |
Network
| 10G support | No |
| Broadcast storm control | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Flow control support | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
Data transmission
| Forwarding rate | 18.6 Mpps |
| Jumbo frames support | Yes |
| Switching capacity | 25 Gbit/s |
| Throughput | 12.5 Gbit/s |
Multicast features
| Multicast support | Yes |
Design
| Form factor | Desktop |
| Housing material | Polycarbonate (PC) |
| LED indicators | Activity/Power/Progress |
| Product colour | White |
| Reset button | Yes |
Performance
| Minimum system requirements | UniFi Network Version 8.4.62 and later |
Power
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 5 W |
| Power plug type | Type A |
| Power source | AC/DC/PoE |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 6.4 W |
| Power over Ethernet (PoE) voltage | 57 V |
Other features
| Networking features | STP / RSTP with priorities and port-level disable, Egress rate limit |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -20 - 45 °C |
Weight & dimensions
| Depth | 90 mm |
| Height | 21.2 mm |
| Weight | 206 g |
| Width | 117.1 mm |
Packaging data
| AC adapter included | Yes |
Certificates
| Certification | CE, FCC, IC |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
