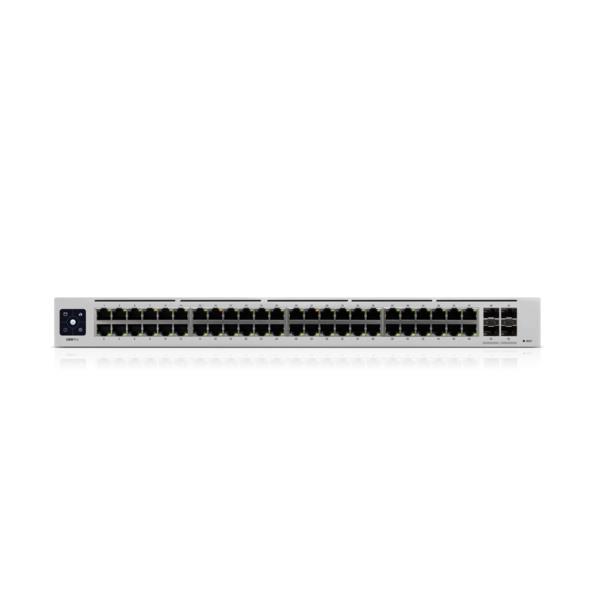

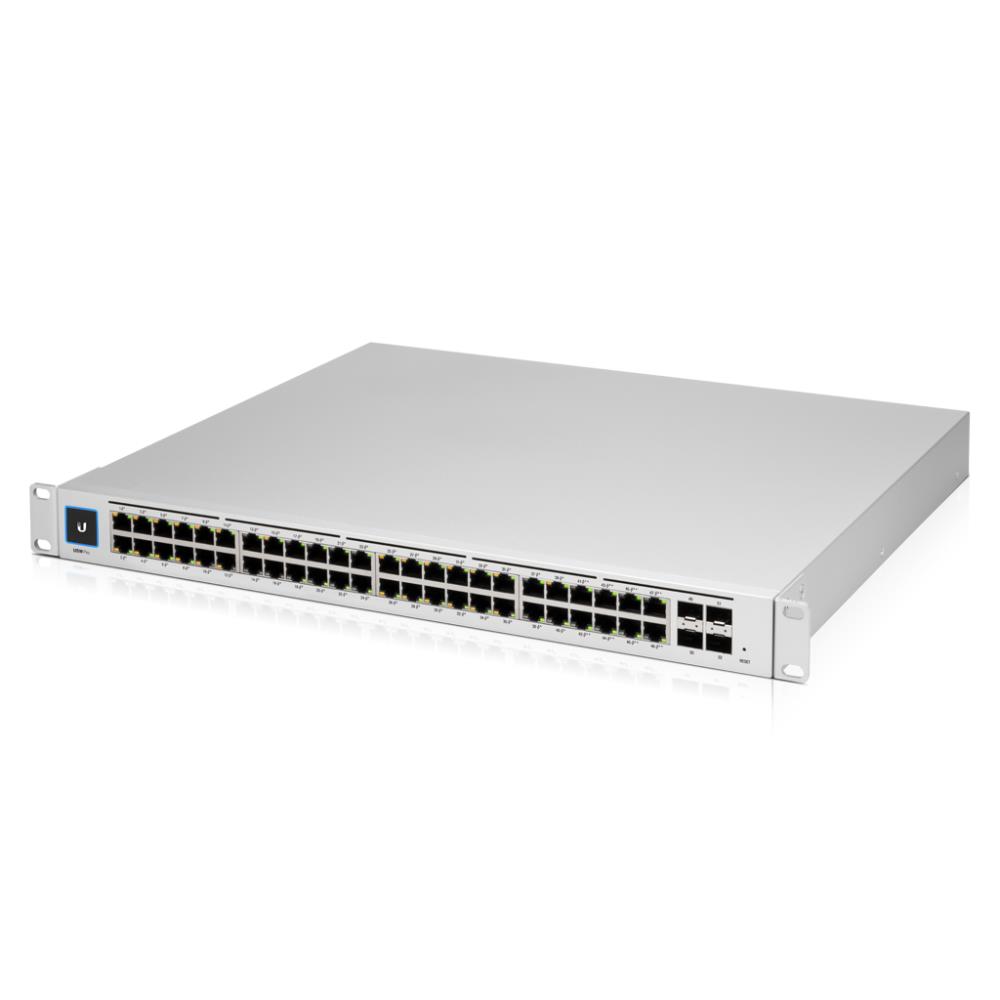

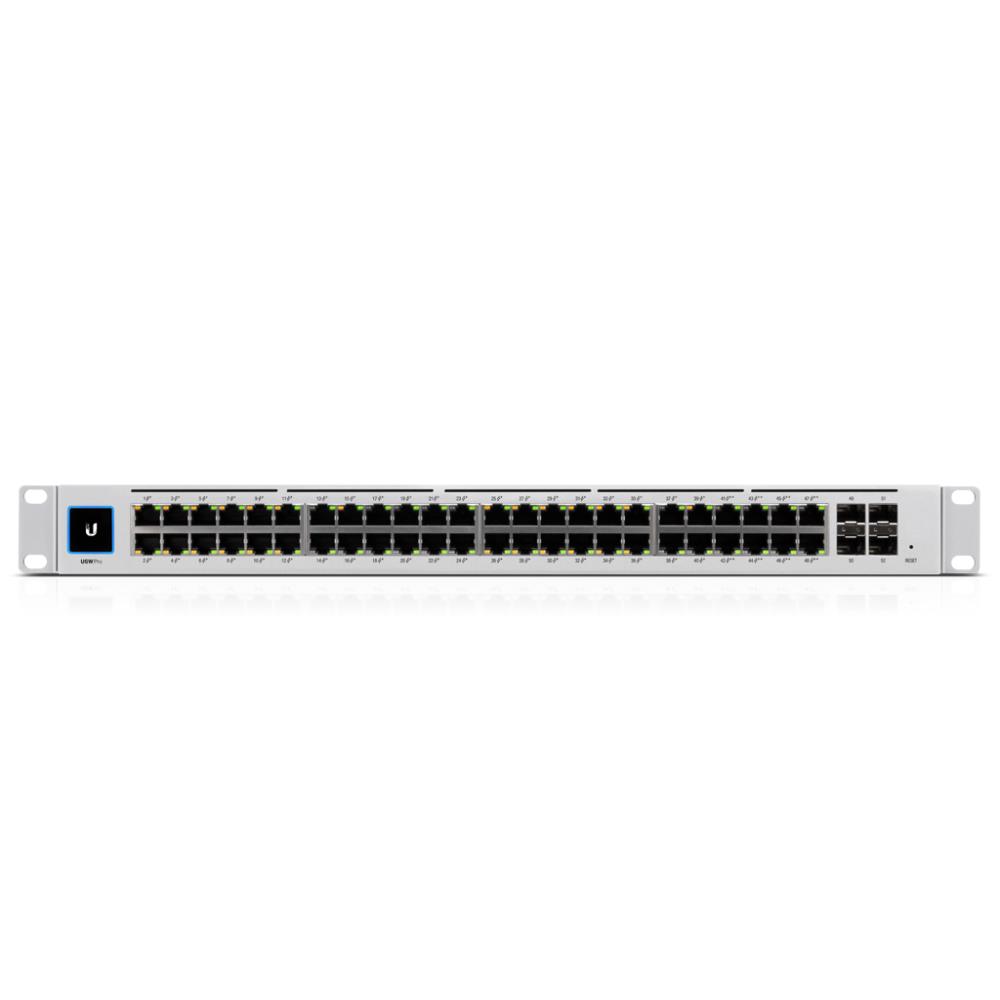

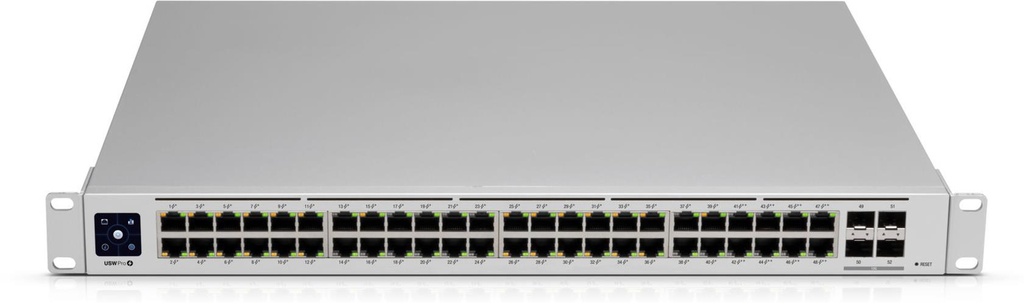

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
- (48) Gigabit RJ45 ports
- (4) 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" touchscreen display
- Managed by UniFi Network Controller
General
| Unit Calculated Weight | 5.2 kg |
| Unit Calculated Volume | 0.0252 cubm |
| Units per Shipping Box | 1 |
| Summary | Ubiquiti UniFi USW-PRO-48. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1x. DC input voltage: 11.5 V. Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.395 |
| Unit Box Length | 0.523 |
| Unit Box Width | 0.122 |
| Model name | USW-PRO-48 |
Management features
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1x |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 130.944 Mpps |
| Switching capacity | 176 Gbit/s |
Security
| Authentication type | IEEE 802.1x,RADIUS |
Design
| Backlight display | Yes |
| Form factor | 1U |
| LED indicators | Activity/Link/Speed |
| Product colour | Silver |
| Rack mounting | Yes |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 11.5 V |
| Input current | 5.22 A |
| Power consumption (max) | 60 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4000 g |
| Width | 442.4 mm |
Packaging content
| User guide | Yes |
Certificates
| Certification | CE, FCC, IC ETSI300-019-1.4 |
Logistics data
| Harmonized System (HS) code | 85176990 |
