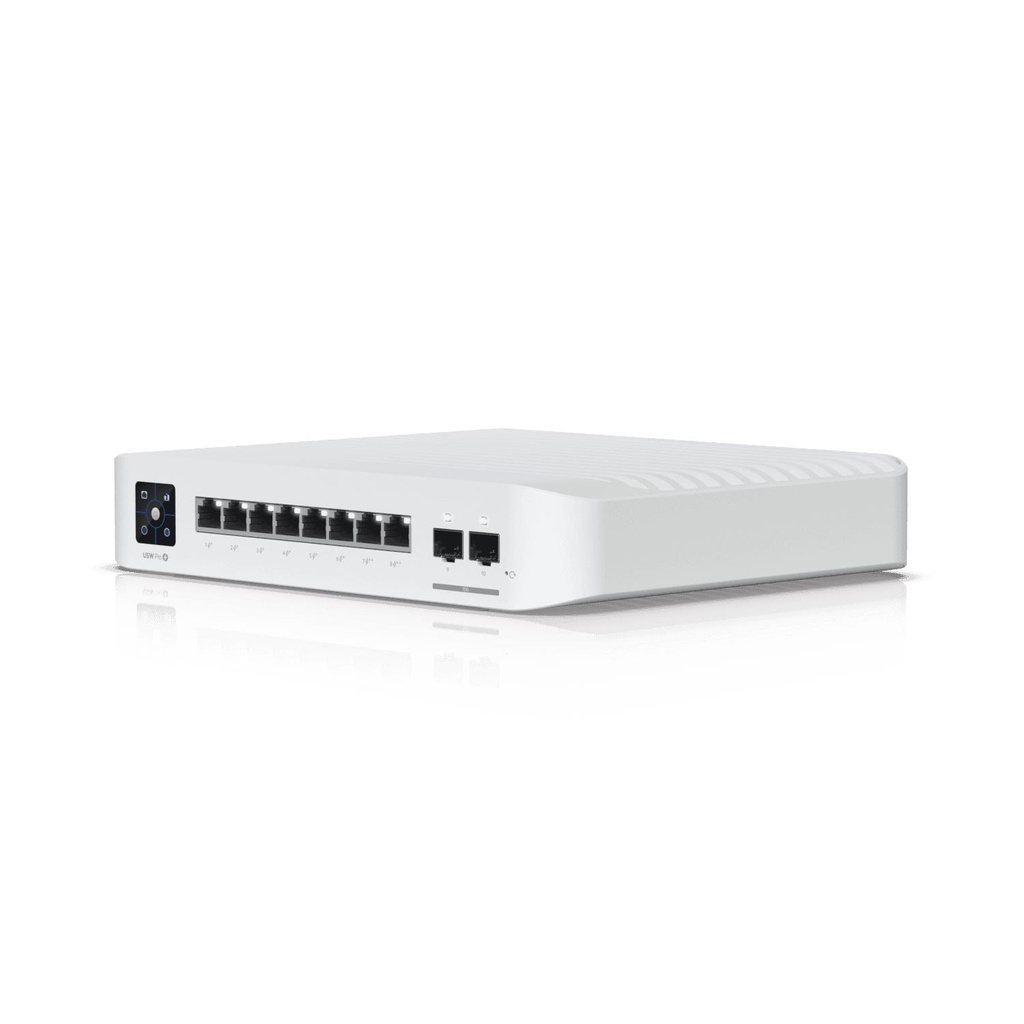

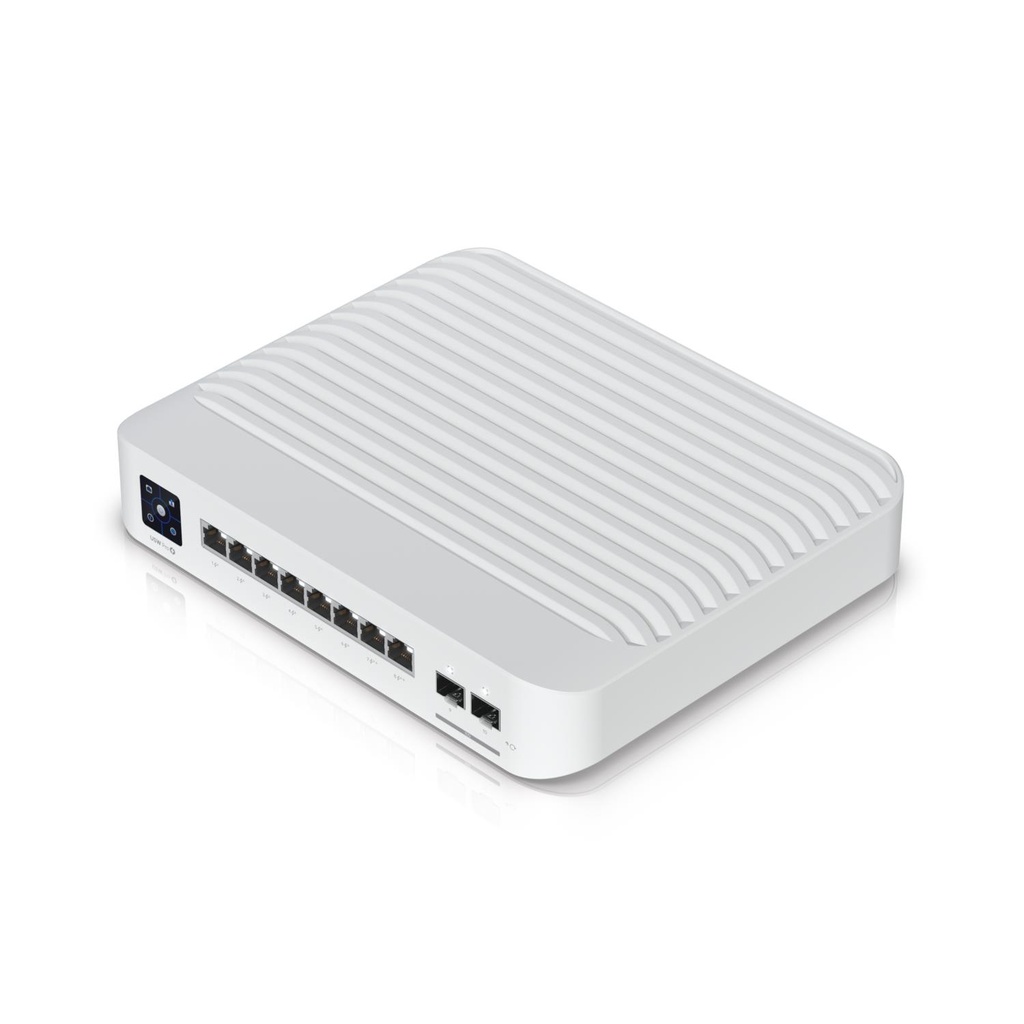

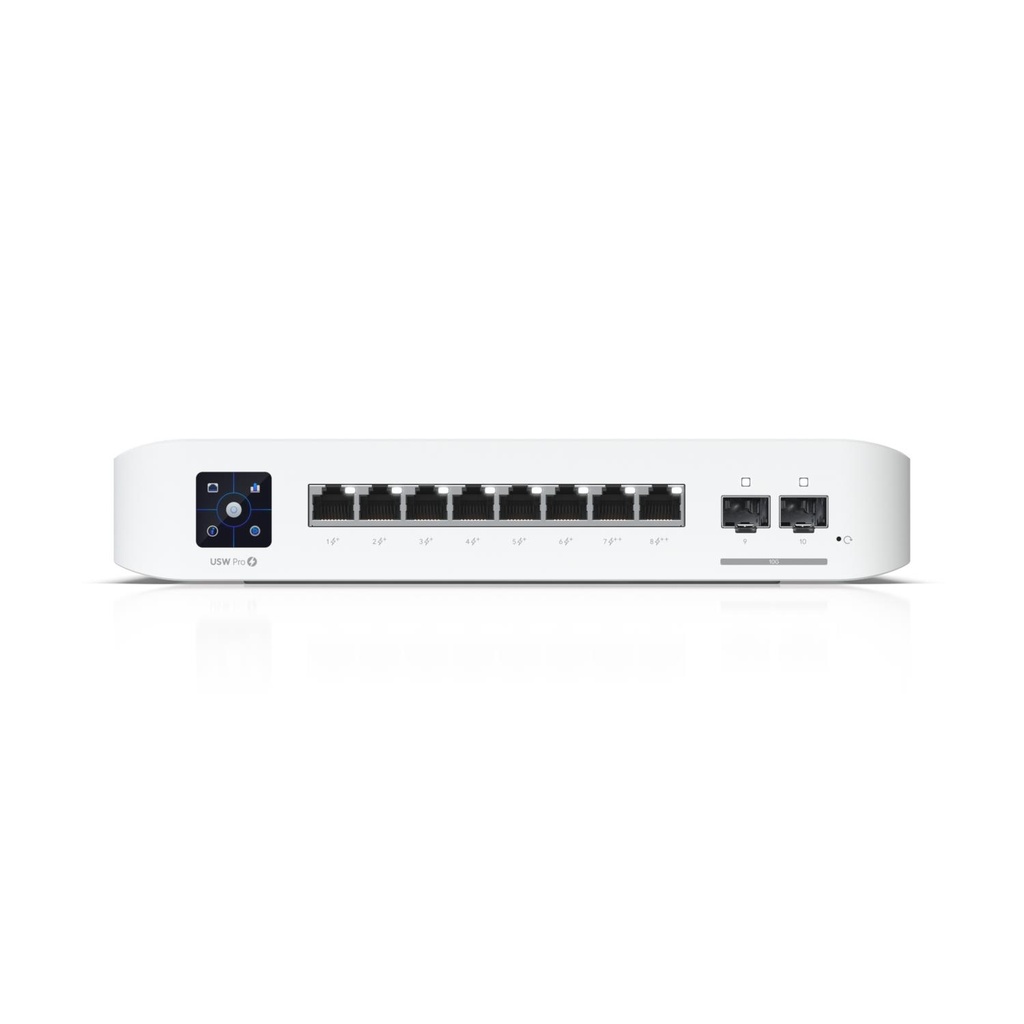

An 8-port, Layer 3 switch with PoE+ and PoE++ output.
- (6) GbE PoE+ ports
- (2) GbE PoE++ ports
- (2) 10G SFP+ ports
- 120W total PoE availability
General
| Unit Calculated Weight | 2.93 kg |
| Unit Calculated Volume | 0.009386 cubm |
| Units per Shipping Box | 6 |
| Summary | Ubiquiti UniFi USW-PRO-8-POE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Form factor: 1U |
| Unit Box Height | 0.082 |
| Unit Box Length | 0.365 |
| Unit Box Width | 0.258 |
| Model name | USW-PRO-8-POE |
Management features
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
Network
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 100BASE-FX/100BASE-TX/10BASE-T/10BASE-TX |
| Flow control support | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Jumbo frames support | Yes |
| Static route | Yes |
| Switching capacity | 56 Gbit/s |
| Throughput | 28 Gbit/s |
Security
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x,RADIUS |
| DHCP features | DHCP server |
Design
| Form factor | 1U |
| Housing material | Metal/Plastic |
| LED indicators | Activity/Link/PoE/Speed/System |
| Product colour | White |
Power

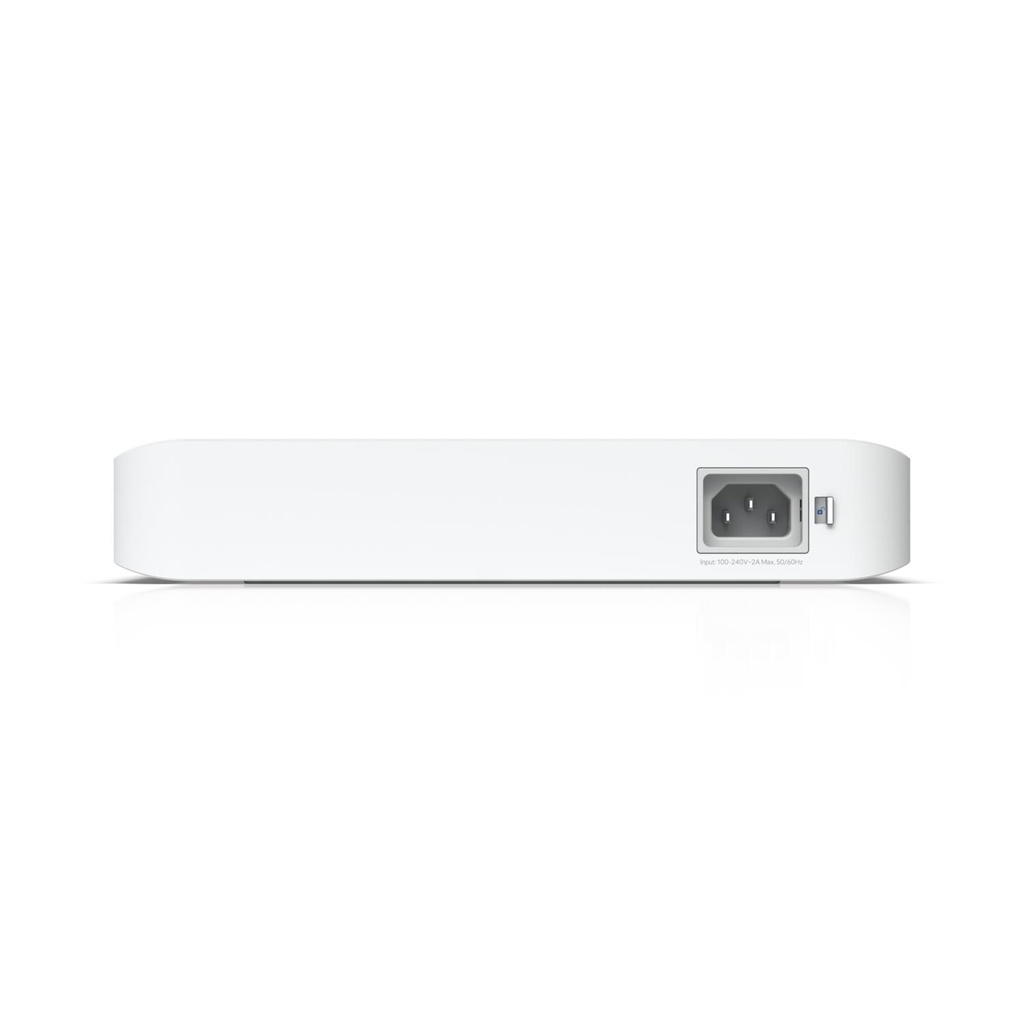

| AC input voltage | 100 - 240 V |
| Input current | 2 A |
| Number of power supply units | 1 |
| Power source | AC/DC |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
Weight & dimensions
| Depth | 248 mm |
| Height | 44 mm |
| Weight | 2100 g |
| Width | 200 mm |
Packaging content
| Manual | Yes |
Sustainability
| Sustainability compliance | Yes |
Certificates
| Certification | CE, FCC, IC |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
