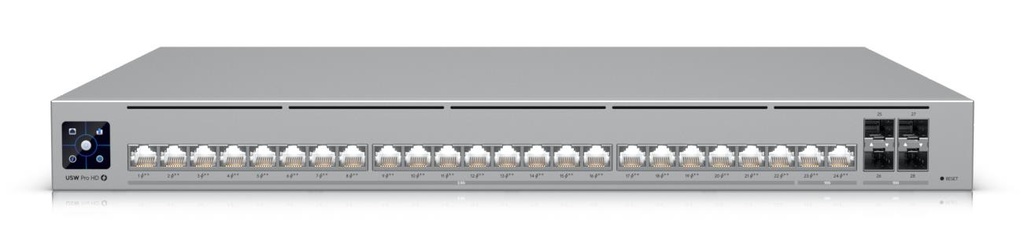

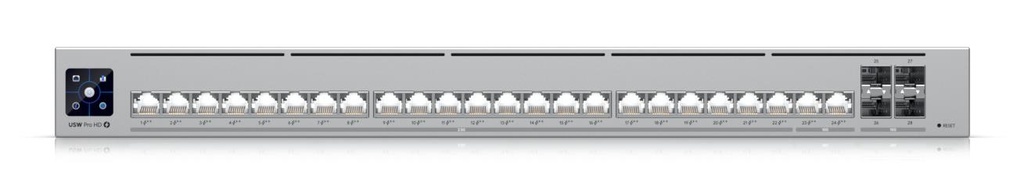

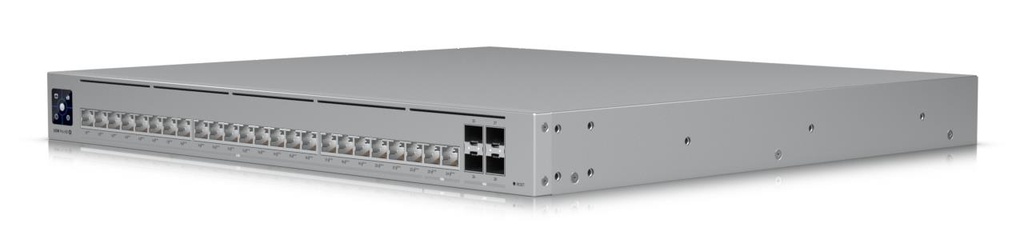

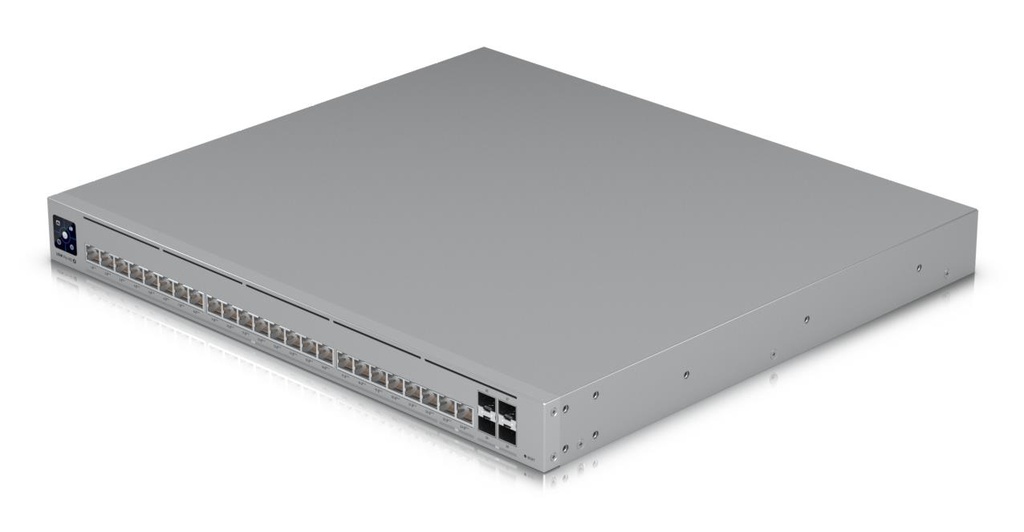

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (22) 2.5 GbE, (2) 10 GbE PoE++ ports
- (4) 10G SFP+ ports

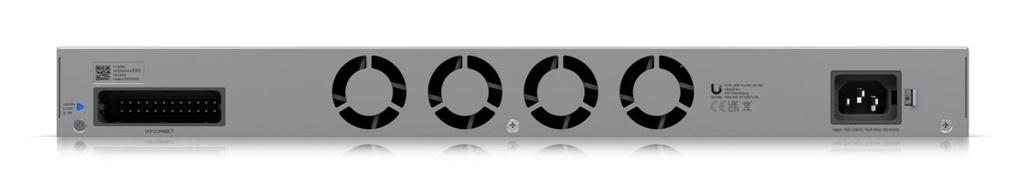

- DC power backup ready**
- 600W total PoE availability
General
| Unit Calculated Weight | 8.38 kg |
| Unit Calculated Volume | 0.04008 cubm |
| Units per Shipping Box | 2 |
| Units per Pallet | 0 |
| Summary | Ubiquiti UniFi Pro HD 24 PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 22. MAC address table: 32000 entries, Switching capacity: 230 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.52 |
| Unit Box Length | 0.54 |
| Unit Box Width | 0.12 |
| Model | USW-PRO-HD-24-POE |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| 10G Ethernet (copper) ports quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Power connector | AC/DC |
| SFP+ module slots quantity | 4 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 12000 |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 1000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 171 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Packet buffer memory | 2 MB |
| Static route | Yes |
| Switching capacity | 230 Gbit/s |
| Throughput | 115 Gbit/s |
Security
| DHCP features | DHCP guarding/DHCP relay/DHCP server/DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Multicast support | Yes |
Design
| Display type | LCM |
| Form factor | 1U |
| Housing material | SGCC |
| LED indicators | Link/Speed/Status |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
| Stackable | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 60 W |
| Power source | AC/DC/PoE |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 600 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 400 mm |
| Height | 44 mm |
| Weight | 6200 g |
| Width | 442.4 mm |

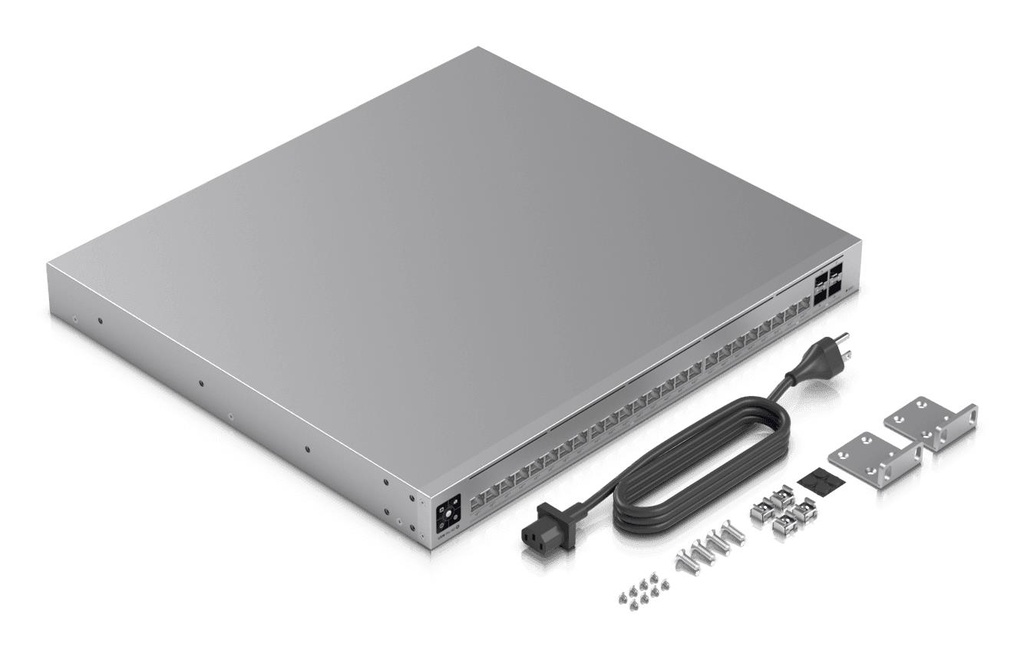

Packaging content
| Cables included | Power |
| Rack mount kit | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
