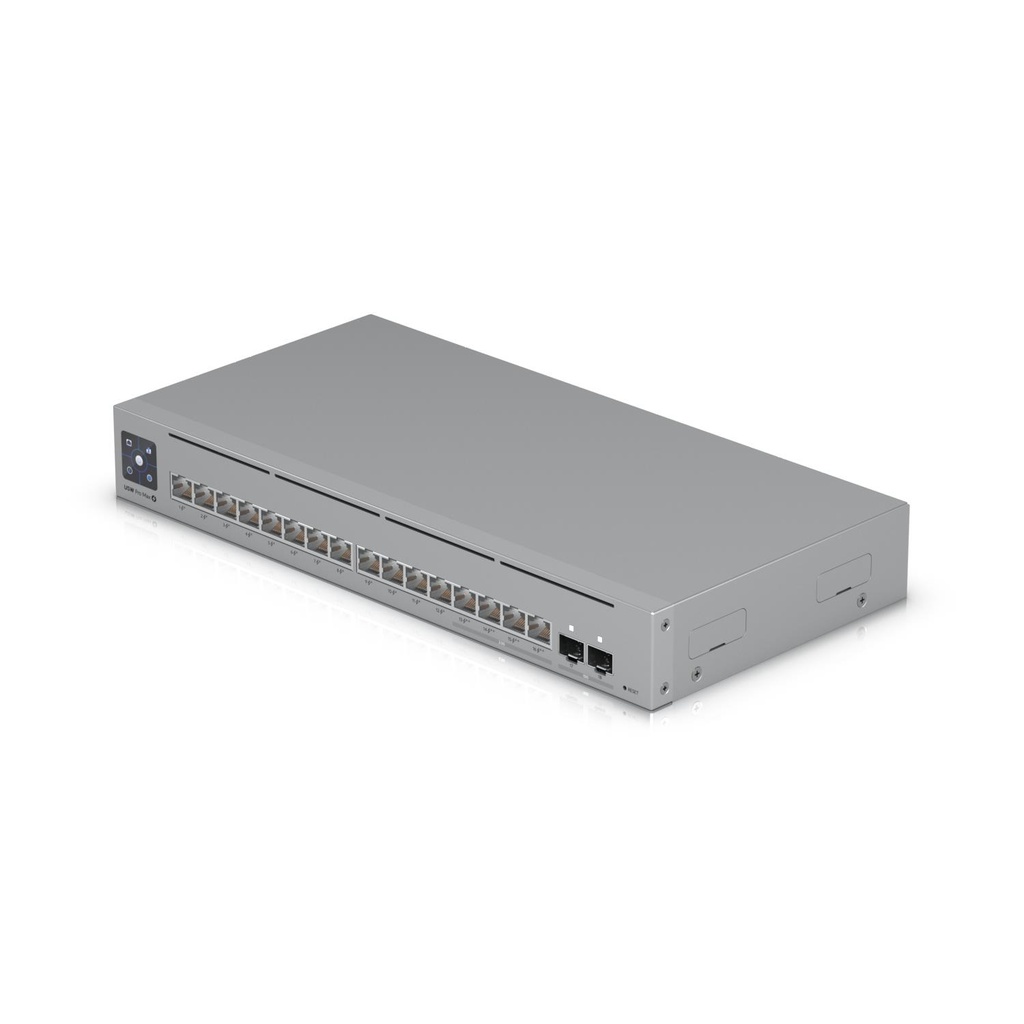

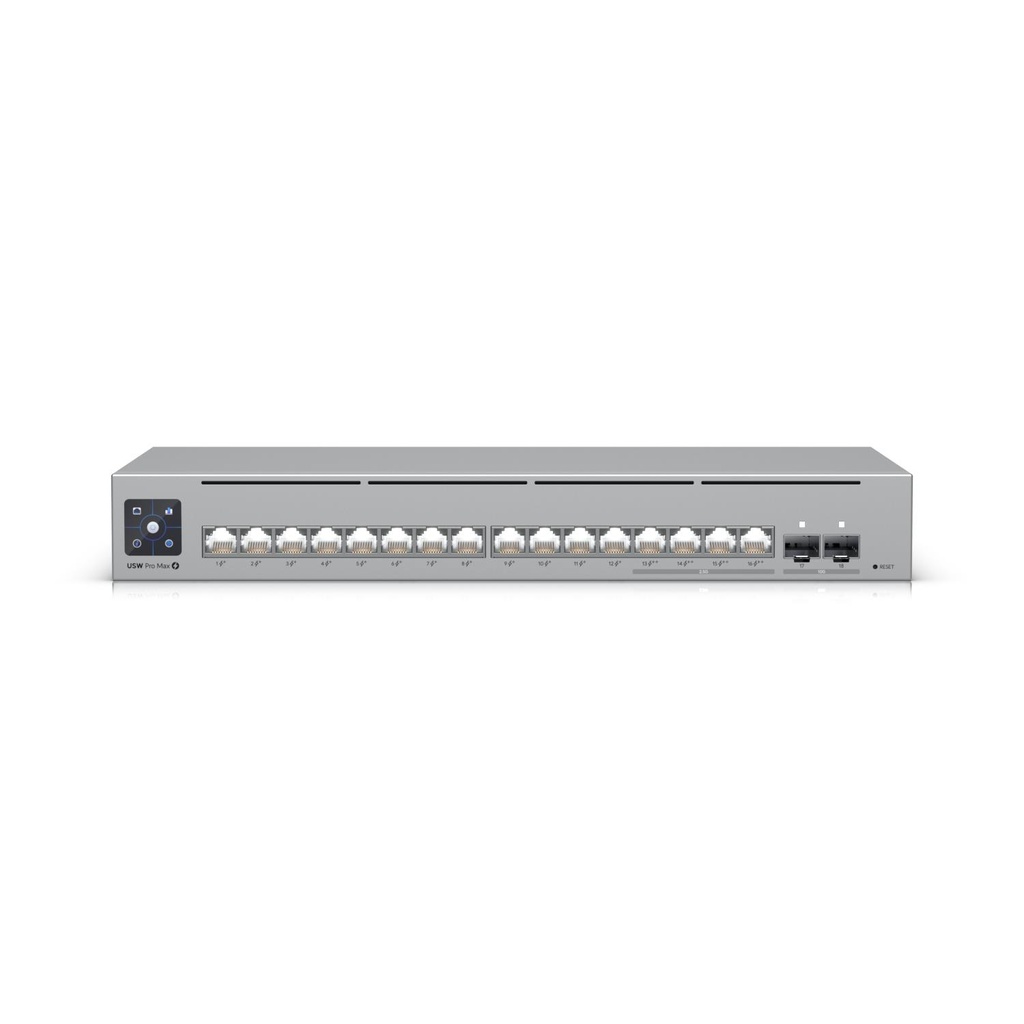

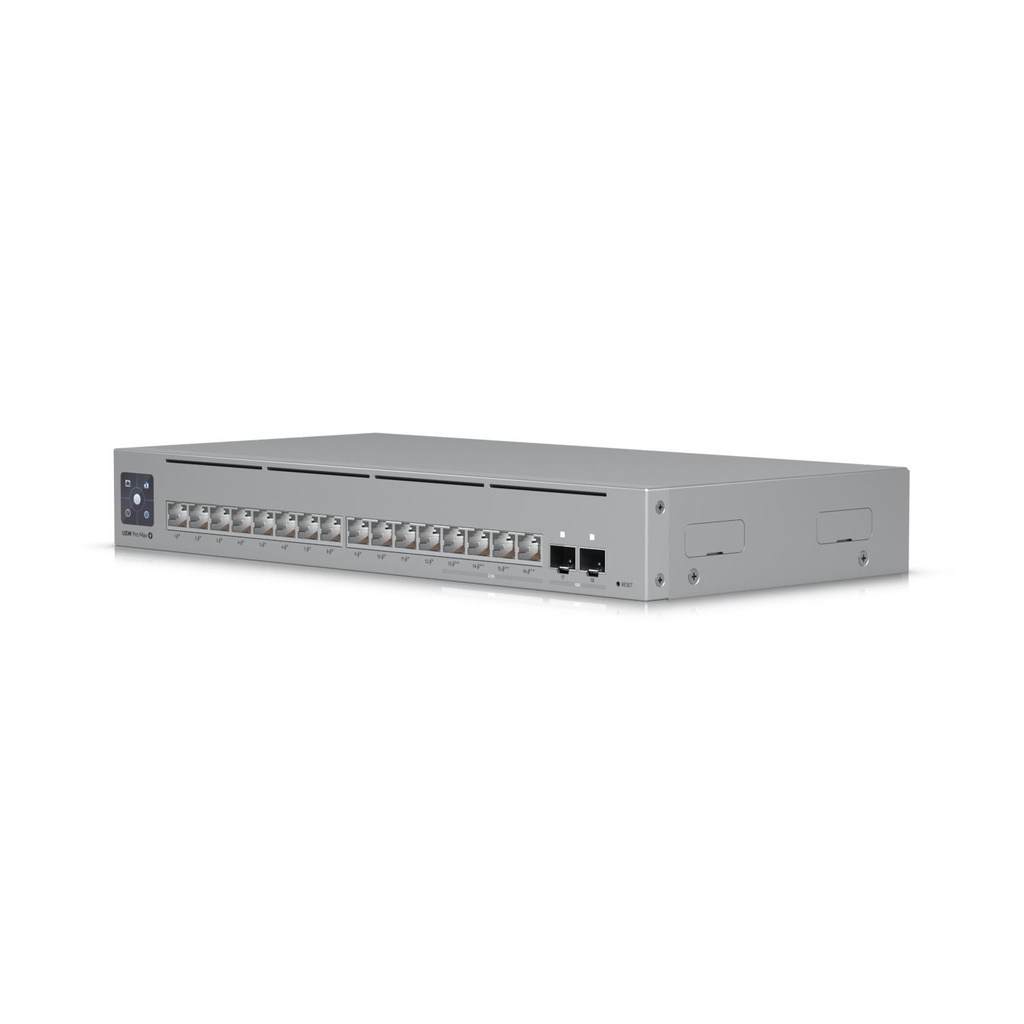

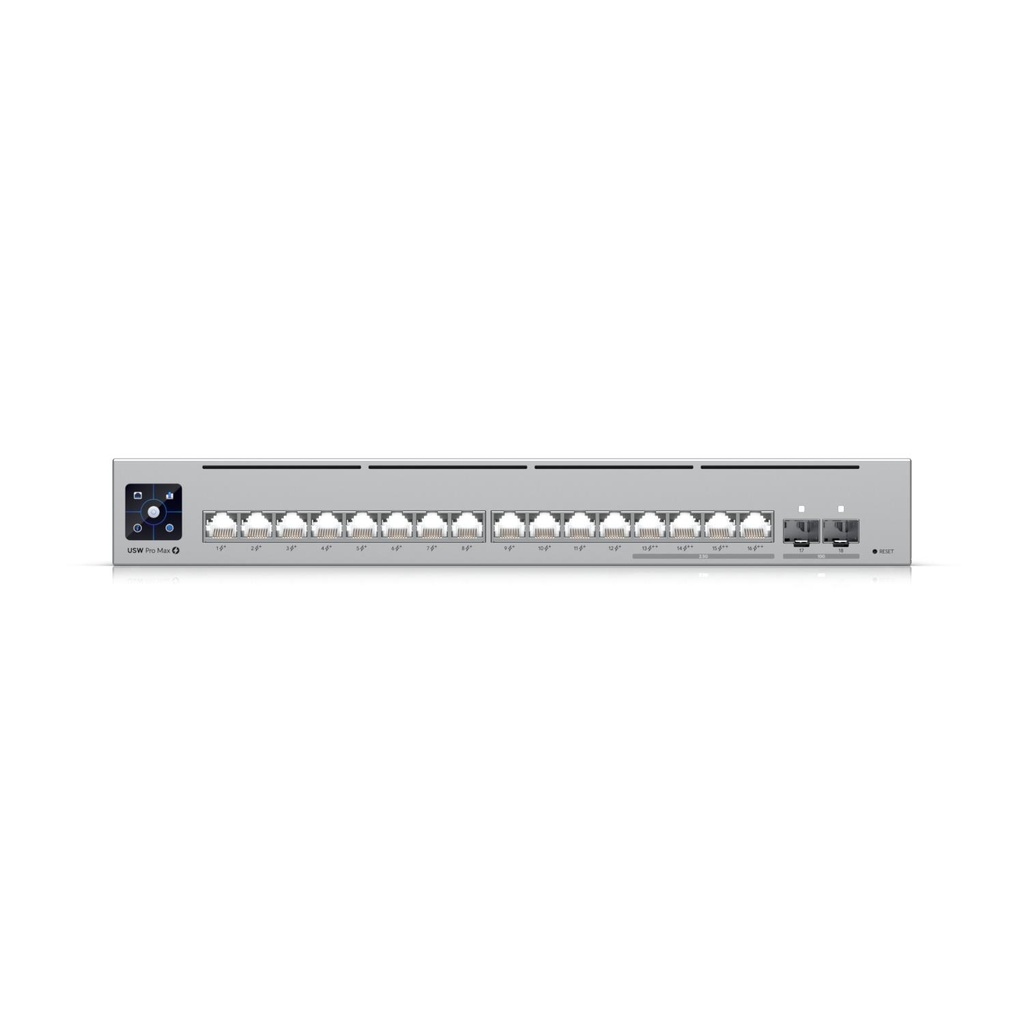

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.

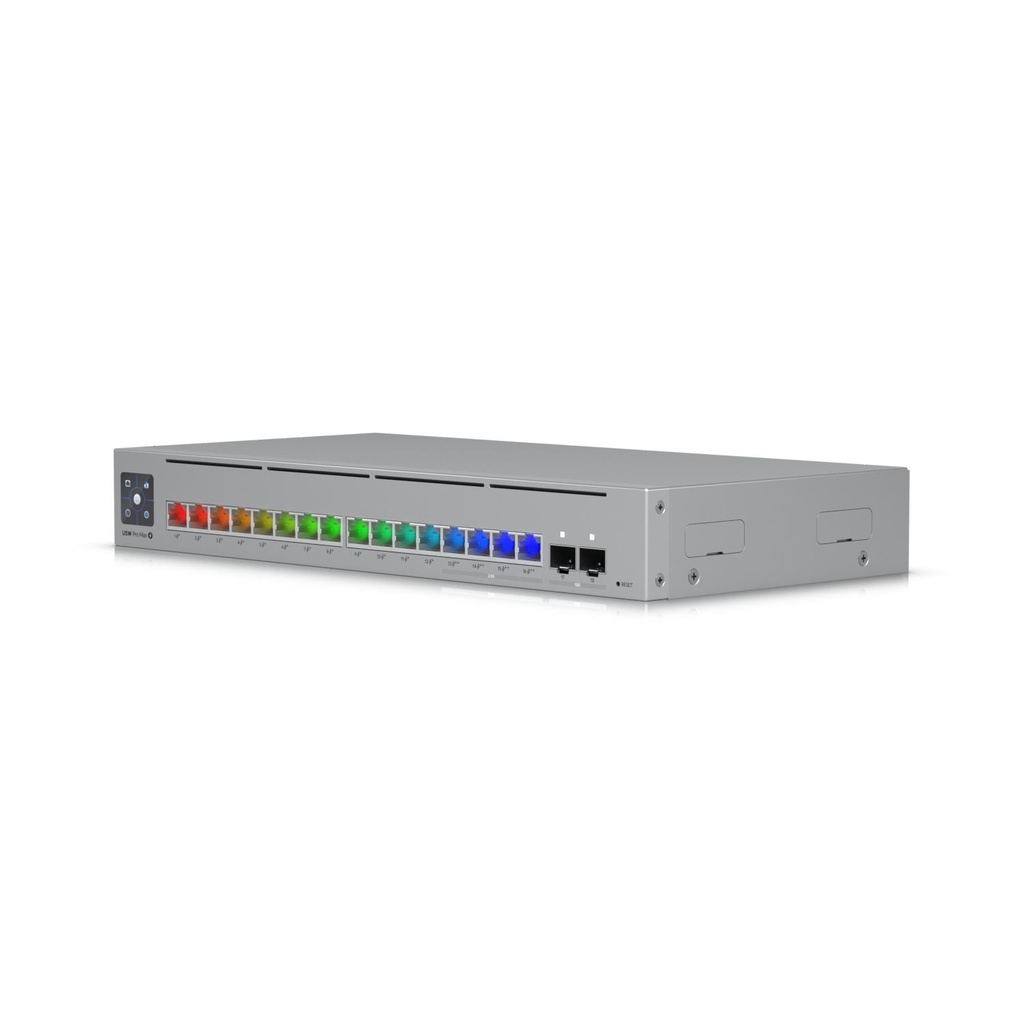

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile desktop, wall, and rack mounting
- Silent, fanless cooling system
General
| Unit Calculated Weight | 4.08 kg |
| Unit Calculated Volume | 0.01723 cubm |
| Units per Shipping Box | 4 |
| Summary | Ubiquiti Pro Max 16 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 84 Gbit/s. Networking standards: IEEE 802.1x. DC input voltage: 44 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.515 |
| Unit Box Width | 0.25 |
| Model name | Pro Max 16 PoE |
| Model | USW-PRO-MAX-16-POE |
Management features
| Switch layer | L3 |
| Switch type | Managed |
Ports & interfaces
| 2.5G Ethernet (copper) ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 12 |

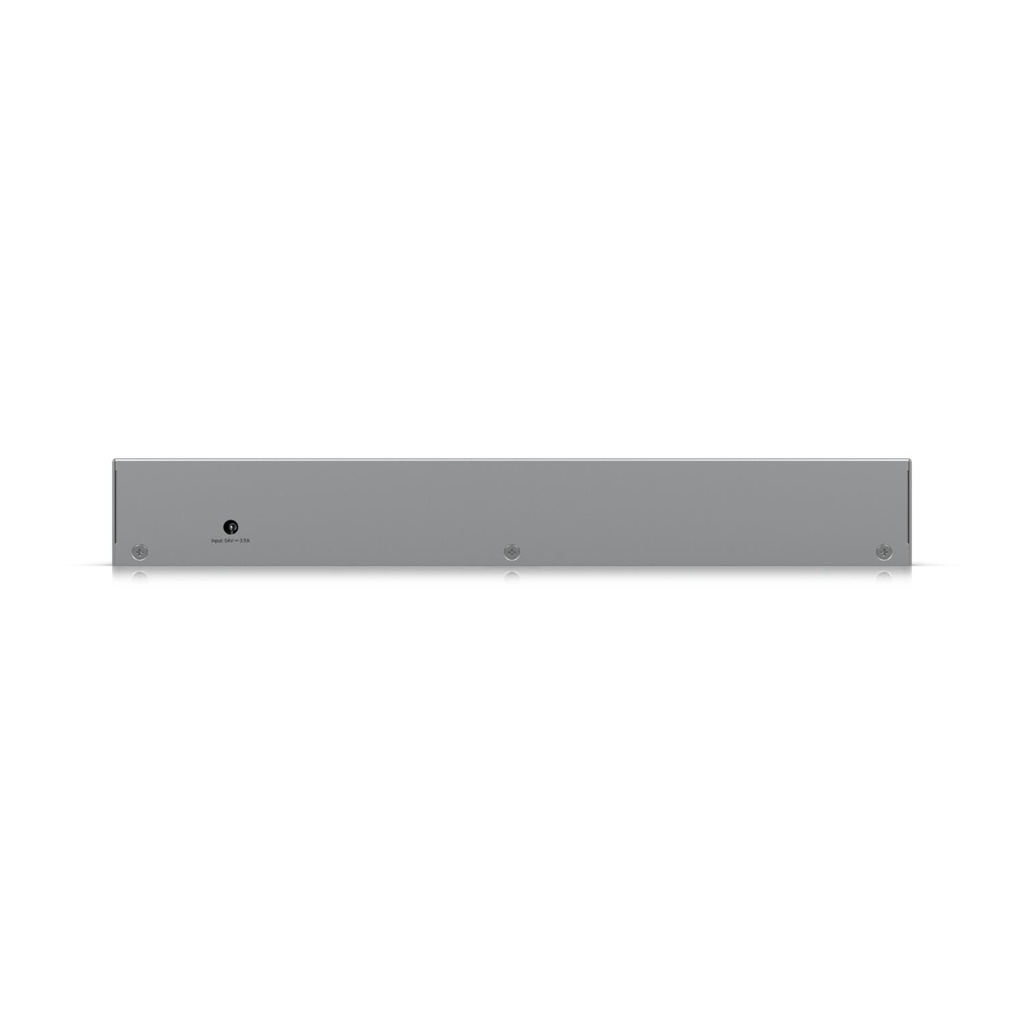

| Power connector | DC-in jack |
| SFP+ module slots quantity | 2 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Networking standards | IEEE 802.1x |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 62.496 Mpps |
| Jumbo frames support | Yes |
| Switching capacity | 84 Gbit/s |
| Throughput | 42 Gbit/s |
Security
| DHCP features | DHCP snooping/DHCPv6 relay |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Multicast support | Yes |
Design
| Display type | LCM |
| Housing material | Steel |
| LED indicators | System |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 30 W |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Total Power over Ethernet (PoE) budget | 180 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 160 mm |
| Height | 43.7 mm |
| Weight | 2100 g |
| Width | 325.1 mm |

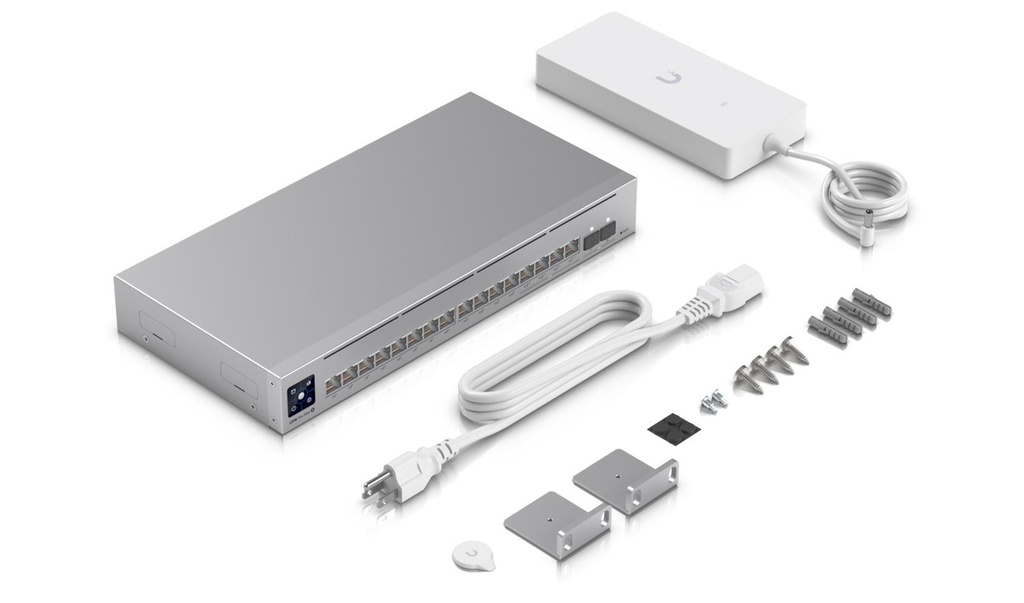

Packaging content
| Cables included | Power |
| Manual | Yes |
Packaging data
| Mounting brackets included | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
