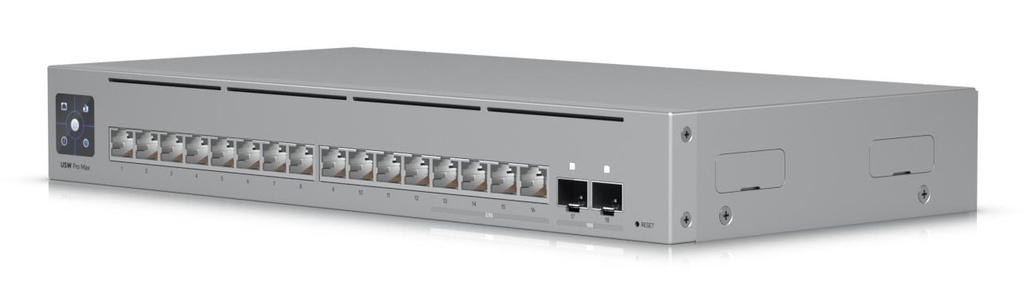

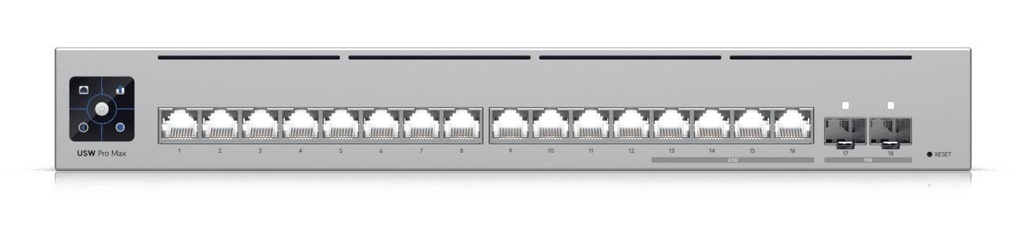

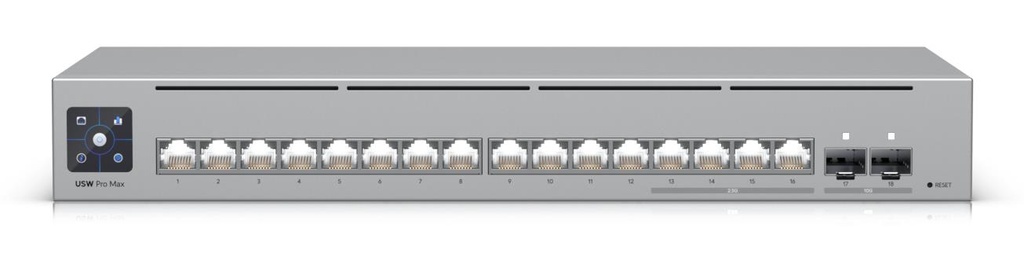

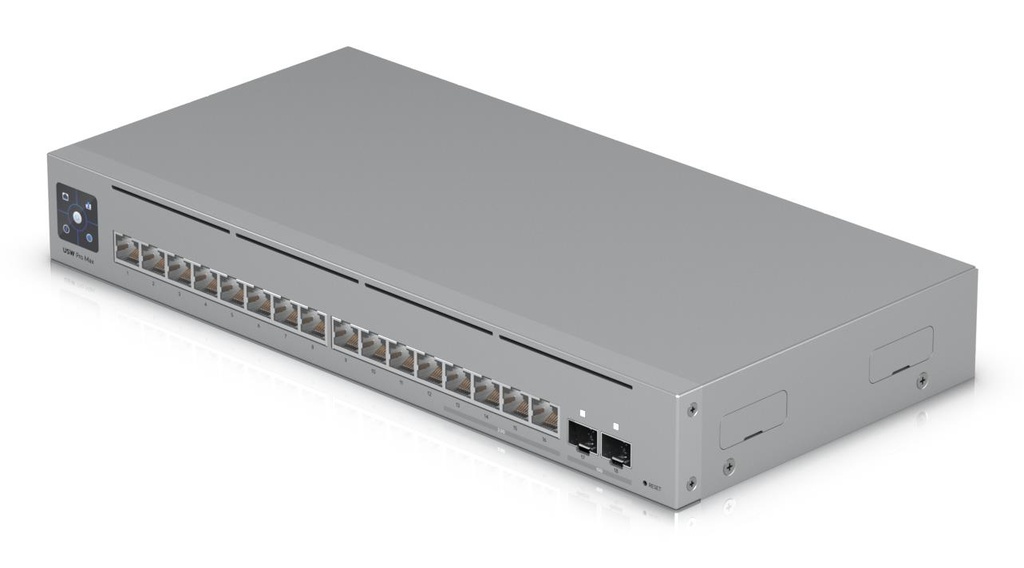

A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

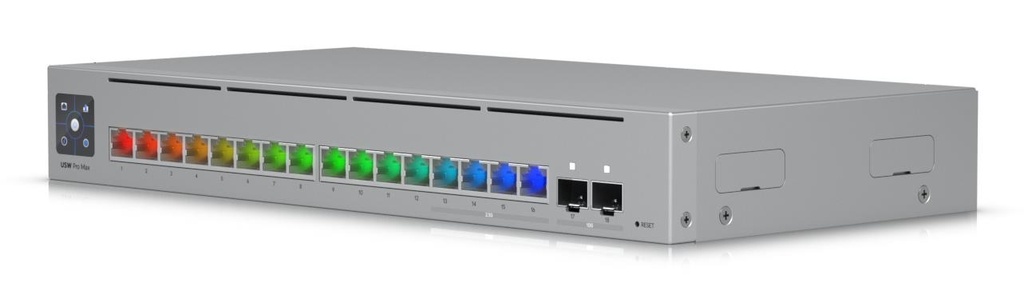

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (4) 2.5 GbE RJ45 ports
- (12) GbE RJ45 ports
- (2) 10G SFP+ ports
- Versatile desktop, wall, and rack** mounting
- Silent, fanless cooling system
General
| Unit Calculated Weight | 3.4625 kg |
| Unit Calculated Volume | 0.0167344 cubm |
| Units per Shipping Box | 4 |
| Summary | Ubiquiti Pro Max 16. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 16000 entries, Switching capacity: 84 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U |
| Unit Box Height | 0.245 |
| Unit Box Length | 0.51 |
| Unit Box Width | 0.11 |
| Model name | Pro Max 16 |
| Model | USW-Pro-Max-16 |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
Ports & interfaces
| 2.5G Ethernet (copper) ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 12 |

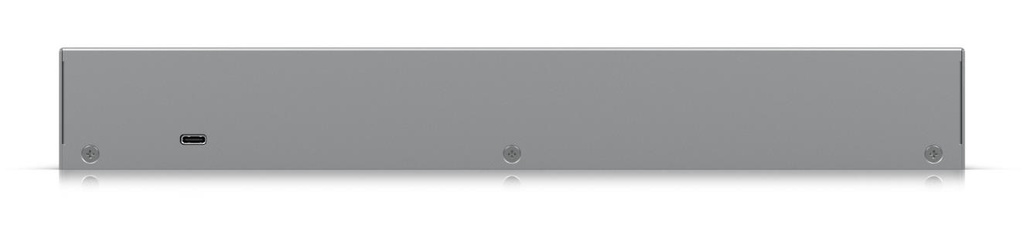

| Power connector | AC/DC |
| SFP+ module slots quantity | 2 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 512 |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 1000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 62 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Packet buffer memory | 1.5 MB |
| Static route | Yes |
| Switching capacity | 84 Gbit/s |
| Throughput | 42 Gbit/s |
Security
| Access Control List (ACL) | Yes |
| Authentication type | IEEE 802.1x |
| DHCP features | DHCP guarding/DHCP relay/DHCP server/DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Display type | LCM |
| Form factor | 1U |
| Housing material | SGCC |
| LED indicators | Link/Network/Speed/Status |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
| Stackable | Yes |
Performance
| Fanless | Yes |
Power
| Input current | 5 A |
| Input voltage | 4.8 - 5.2 V |
| Power consumption (max) | 25 W |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Heat dissipation | 85.3 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 160 mm |
| Height | 43.7 mm |
| Weight | 1950 g |
| Width | 325.1 mm |

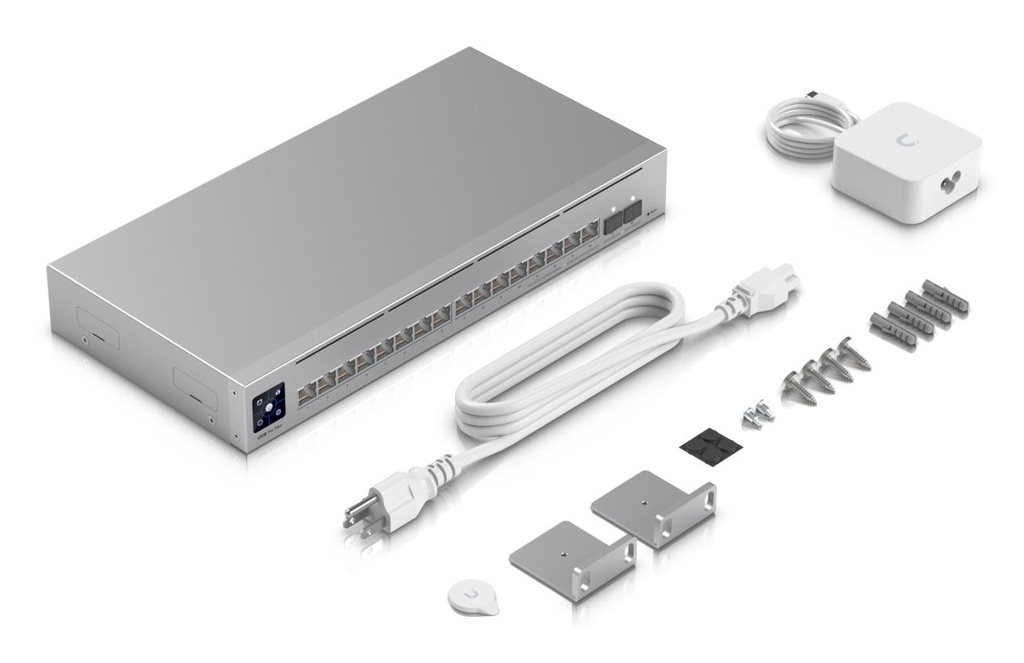

Packaging content
| Cables included | Power |
| Rack mount kit | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
