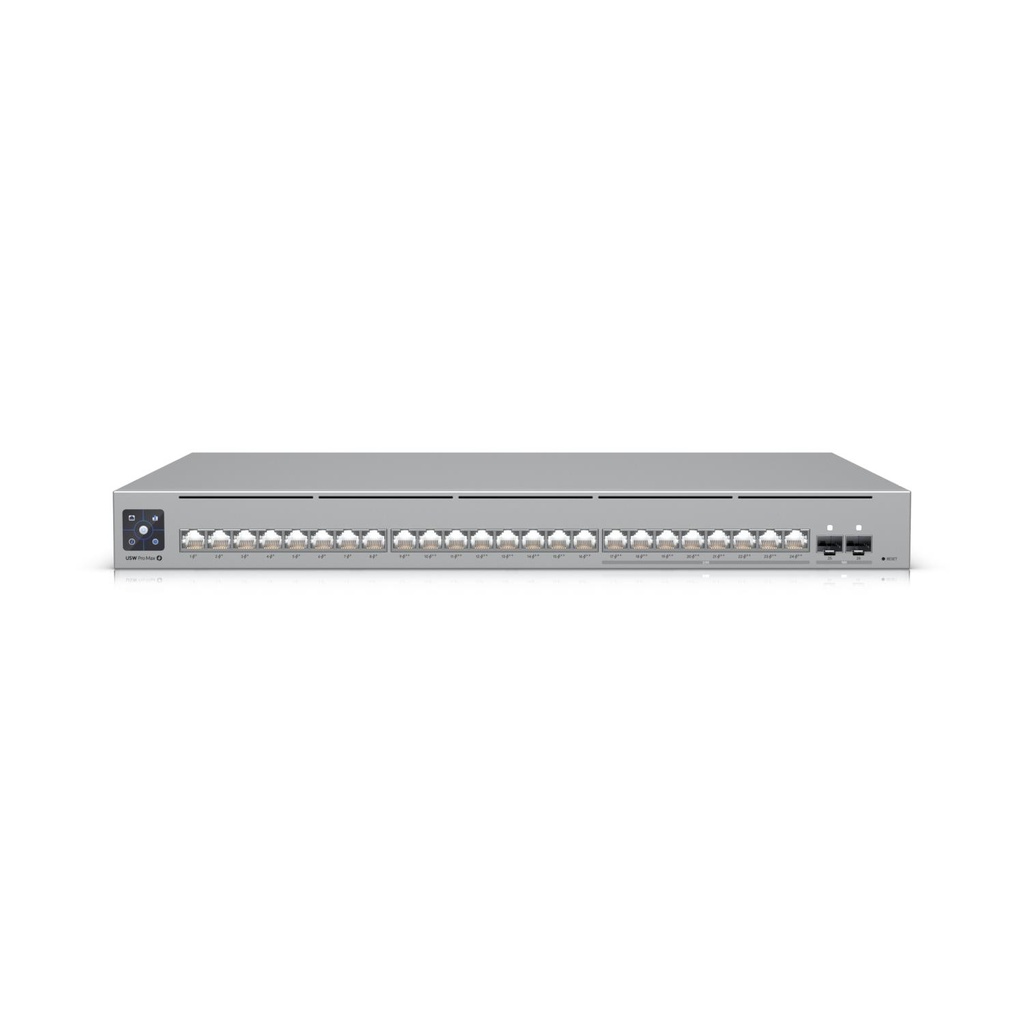

A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.

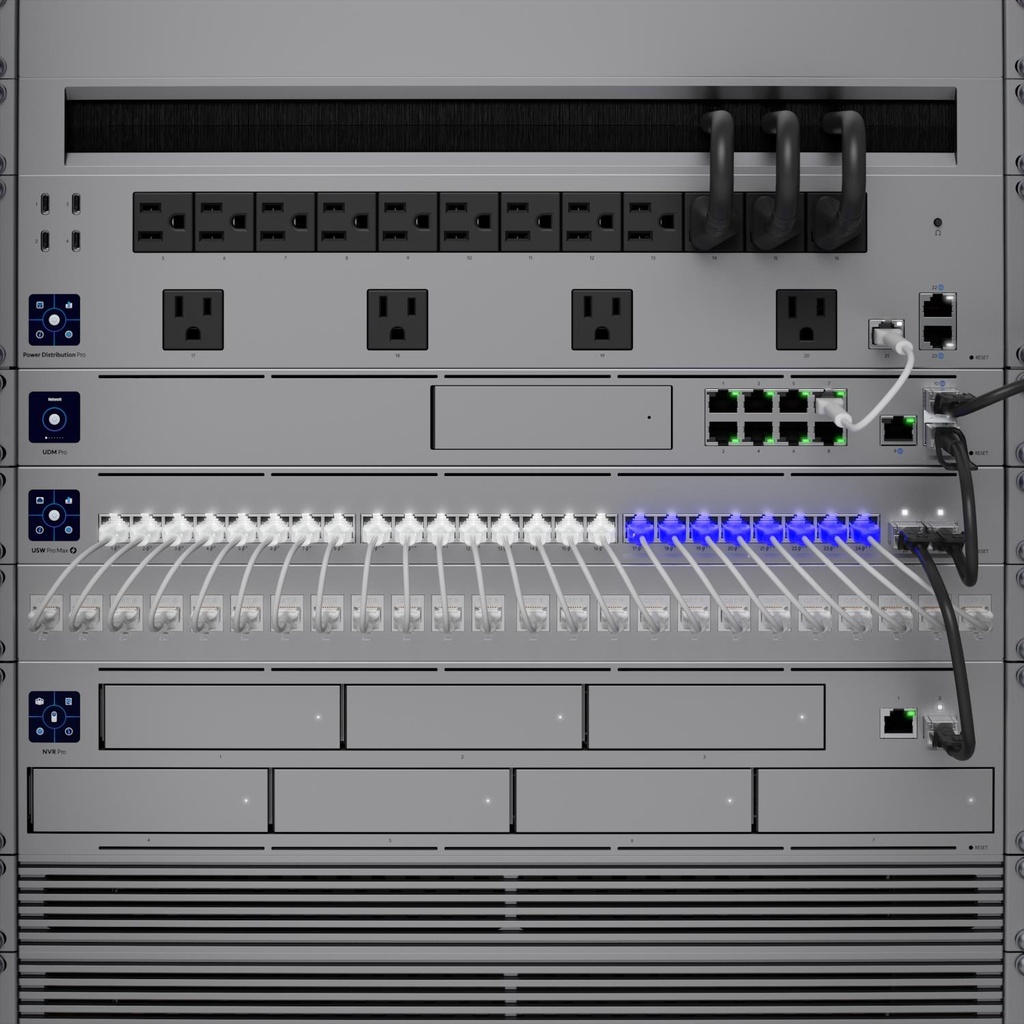

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (8) 2.5 GbE PoE++ ports
- (16) GbE ports including (8) PoE+ and (8) PoE++
- (2) 10G SFP+ ports
- DC power backup ready
- 400W total PoE availability
- Managed with UniFi Network 8.0.24 and later
General
| Unit Calculated Weight | 6.72 kg |
| Unit Calculated Volume | 0.03247 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti Pro Max 24 PoE. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 112 Gbit/s. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting |
| Unit Box Height | 0.435 |
| Unit Box Length | 0.52 |
| Unit Box Width | 0.12 |
| Model name | Pro Max 24 PoE |
| Model | USW-Pro-Max-24-PoE |
Management features
| Switch layer | L3 |
| Switch type | Managed |
Ports & interfaces
| 2.5G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 2 |
Network
| 10G support | No |
| VLAN support | Yes |
Data transmission
| Switching capacity | 112 Gbit/s |
| Throughput | 56 Gbit/s |
Design
| Housing material | Steel |
| LED indicators | System |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 50 W |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 400 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5100 g |
| Width | 442.4 mm |
Packaging content
| Manual | Yes |
Certificates
| Certification | CE, FCC, IC |
