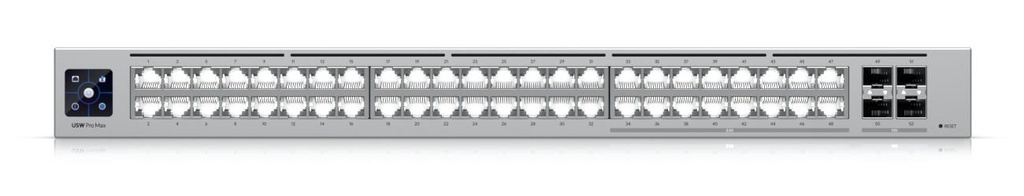

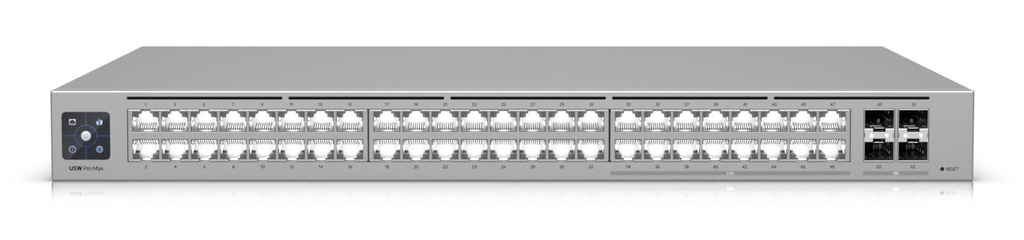

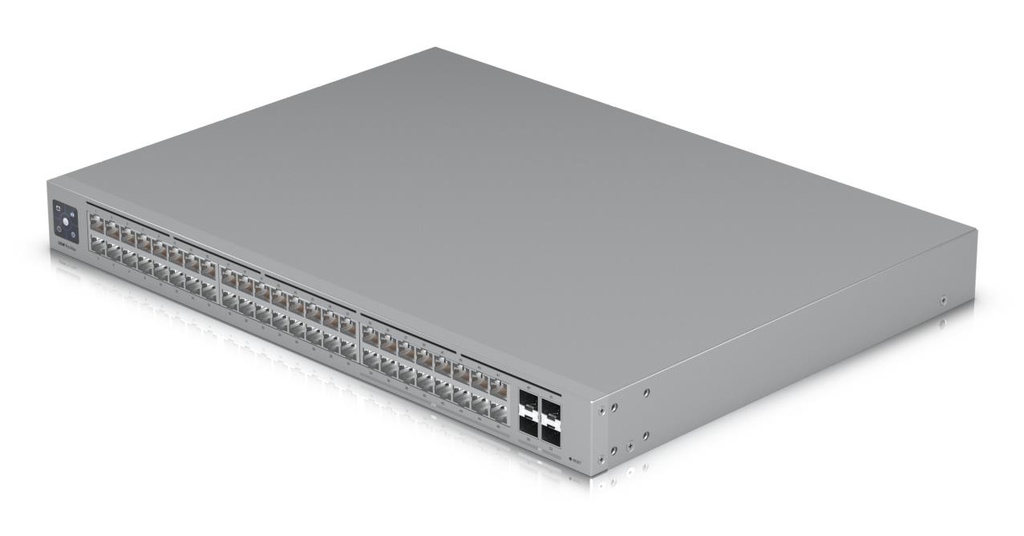

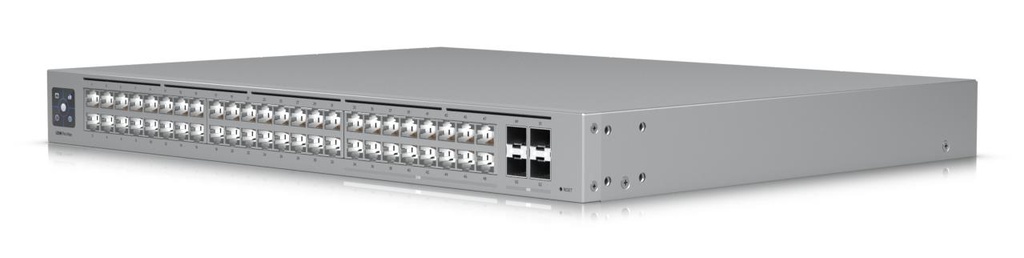

A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
- (16) 2.5 GbE RJ45 ports
- (32) GbE RJ45 ports
- (4) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
General
| Unit Calculated Weight | 6.58 kg |
| Unit Calculated Volume | 0.03169 cubm |
| Units per Shipping Box | 2 |
| Summary | Ubiquiti Pro Max 48. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 224 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting, Form factor: 1U |
| CnCode | 85176200 |
| Unit Box Height | 0.46 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.13 |
| Model name | Pro Max 48 |
| Model | USW-PRO-MAX-48 |
Management features
| Switch layer | L3 |
Ports & interfaces
| 2.5G Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC/DC |
| SFP+ module slots quantity | 4 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Networking standards | IEEE 802.1x |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Voice VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 166.656 Mpps |
| Jumbo frames support | Yes |
| Static route | Yes |
| Switching capacity | 224 Gbit/s |
| Throughput | 112 Gbit/s |
Security
| DHCP features | DHCP relay/DHCP snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
Design
| Display type | LCM |
| Form factor | 1U |
| Housing material | SGCC |
| LED indicators | Link/Network/Speed/Status |
| Product colour | Grey |
| Rack mounting | Yes |
| Reset button | Yes |
| Stackable | Yes |
Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 100 W |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 4800 g |
| Width | 442.4 mm |
Packaging content
| Cables included | Power |
Packaging data
| Mounting brackets included | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
