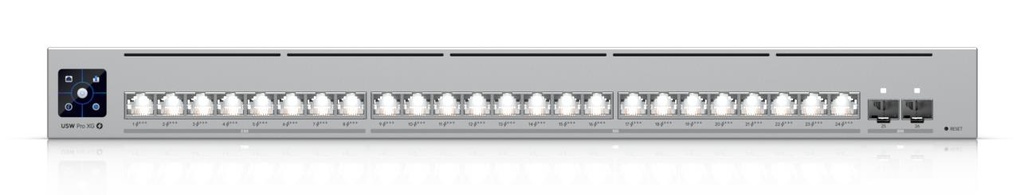

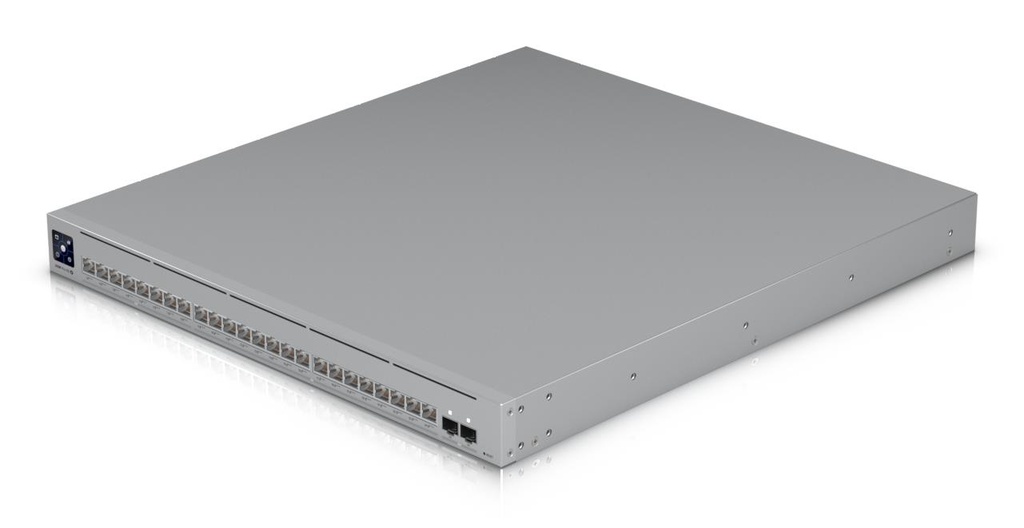

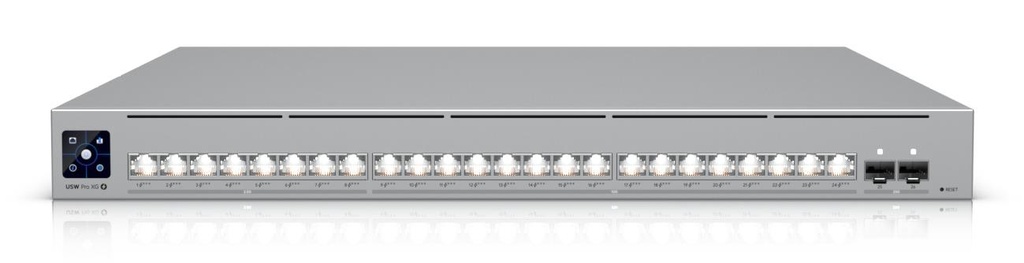

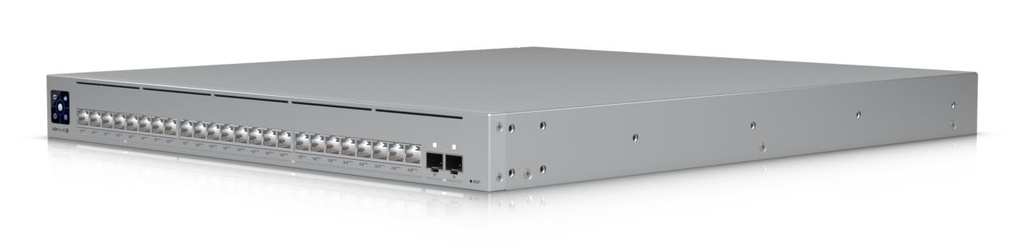

Ubiquiti UniFi Pro XG 24 PoE
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
General
| Unit Calculated Weight | 13.8 kg |
| Unit Calculated Volume | 0.1109 cubm |
| Units per Shipping Box | 1 |
| Units per Pallet | 0 |
| Summary | Ubiquiti UniFi Pro XG 24 PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 128000 entries, Switching capacity: 460 Gbit/s. Power connector: AC/DC. Power over Ethernet (PoE). Rack mounting, Form factor: 1U |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.77 |
| Unit Box Width | 0.6 |
| Model name | Pro XG 24 PoE |
| Model | USW-PRO-XG-24-POE |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
Ports & interfaces
| 10G Ethernet (copper) ports quantity | 16 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Power connector | AC/DC |
| SFP28 ports quantity | 2 |
Network
| 10G support | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 256000 |
| Number of VLANs | 1000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Interface-based VLAN/Voice VLAN |
| VLAN support | Yes |
Data transmission
| Forwarding rate | 342 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 128000 entries |
| Packet buffer memory | 8 MB |
| Static route | Yes |
| Switching capacity | 460 Gbit/s |
| Throughput | 230 Gbit/s |
Security
| Access Control List (ACL) IPv4 entries | 256 |
| DHCP features | DHCP guarding/DHCP relay/DHCP server/DHCPv6 snooping |
| IGMP snooping | Yes |
| Loop protection | Yes |
Multicast features
| Multicast support | Yes |
Design
| Backlight display | Yes |
| Display type | LCM |
| Form factor | 1U |
| Housing material | SGCC |
| Product colour | Grey |

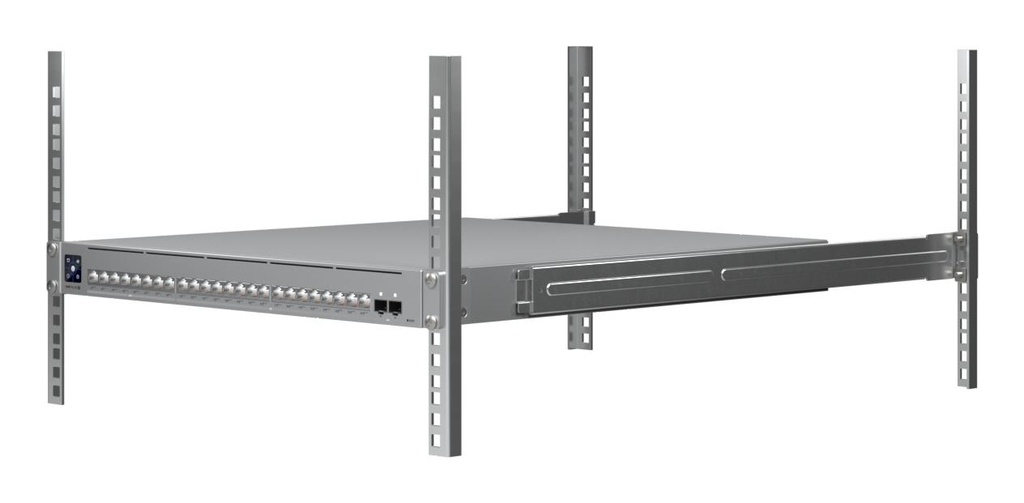

| Rack mounting | Yes |
| Reset button | Yes |
| Stackable | Yes |

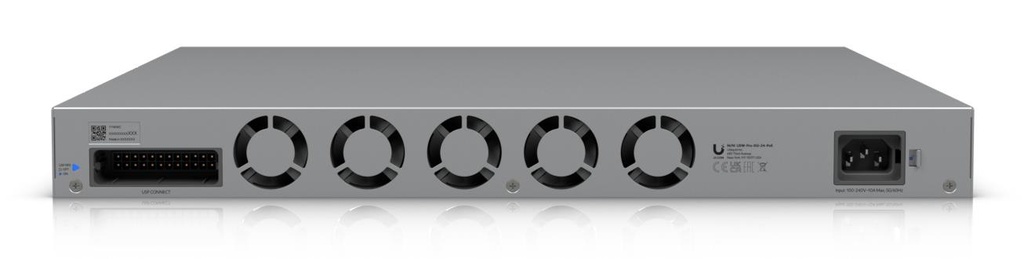

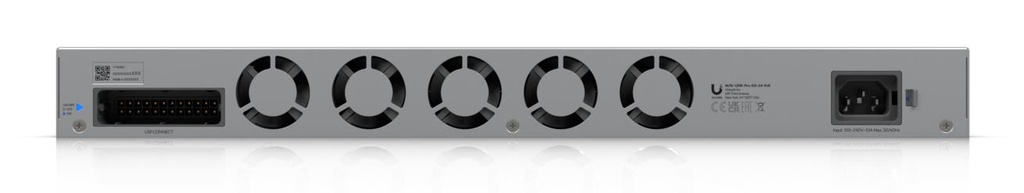

Power
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 870 W |
| Power source | AC/DC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) type supported | PoE+++ |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 720 W |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 40 °C |
Weight & dimensions
| Depth | 480 mm |
| Height | 44 mm |
| Weight | 7900 g |
| Width | 442 mm |
Packaging content
| Cables included | Power |
| Rack mount kit | Yes |
Certificates
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
